Weller WFE P Soldering fume extractor 230 V 70 W 50 l/min
EAN:
Part number:
Item no:
Number
Total (€ 1,189.08 / piece)
€ 1,189.08
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Weller WFE P Soldering fume extractor 230 V 70 W 50 l/min
- Up to 2 FE soldering irons can be connected
- Electric vacuum pump provides the necessary vacuum
- 2 power stages for optimum suction with 2 FE pistons
- Portable device for central use, with built-in pump, not suitable for 24 hours continuous operation
- The capacitor motor is maintenance-free and has an integrated temperature fuse, which protects the device against overload
Technical specifications
- Max. Capacity: 1-2
- Applications: Hand soldering
- Product type
Soldering fume extractor
- Max. power
70 W
- Operating voltage
230 V
- Air flow rate
50 l/min
- Max. noise generation
45 dBa
- Dim
(L x W x H) 140 x 140 x 295 mm
- Type
Suction device WFE P
- Weight
4 kg
- Features
Antistatic
- Width
140 mm
- Height
295 mm
- Length
140 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2177665 Weller WFE P Soldering fume extractor 230 V 70 W 50 l/min
Description

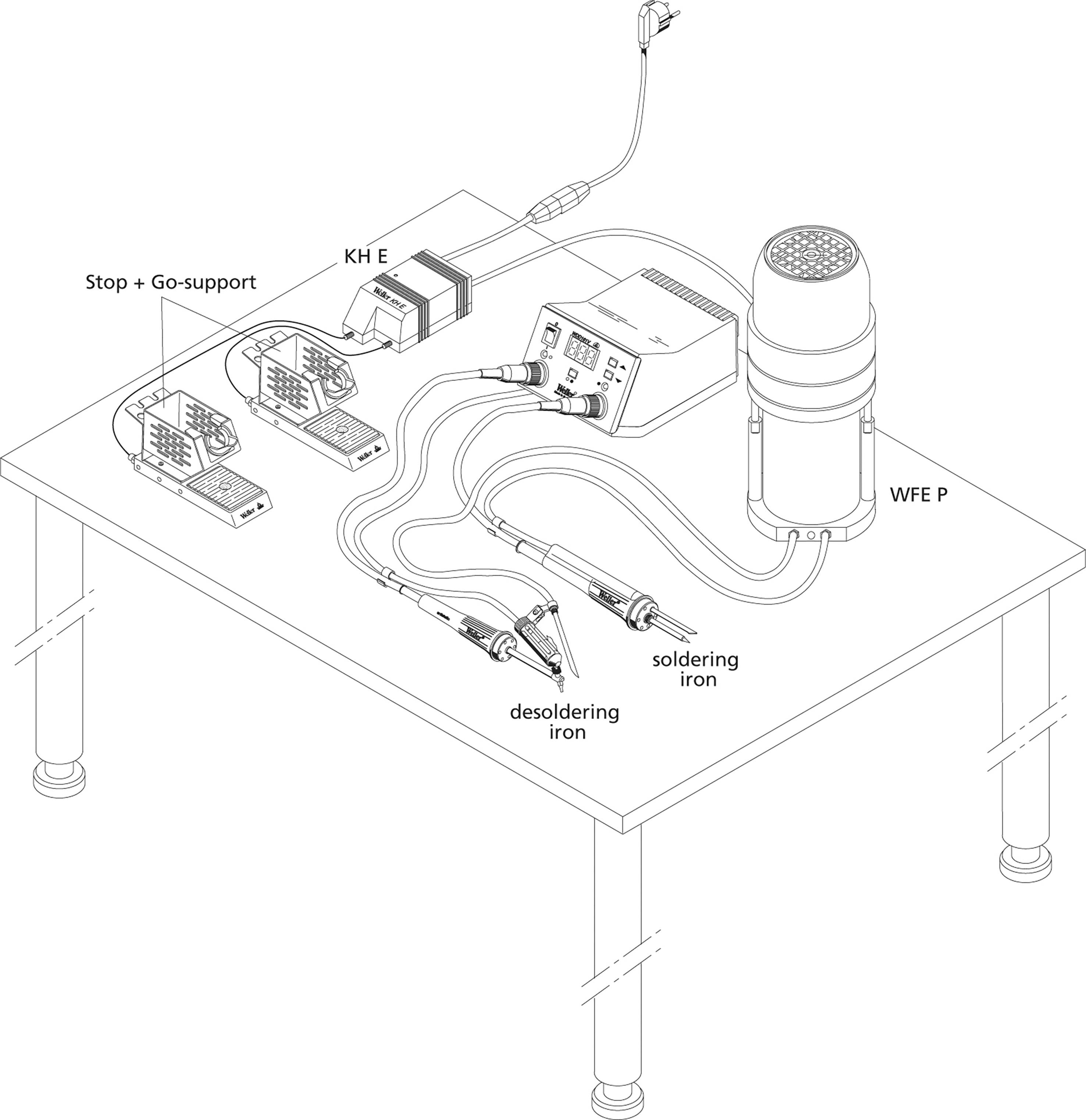

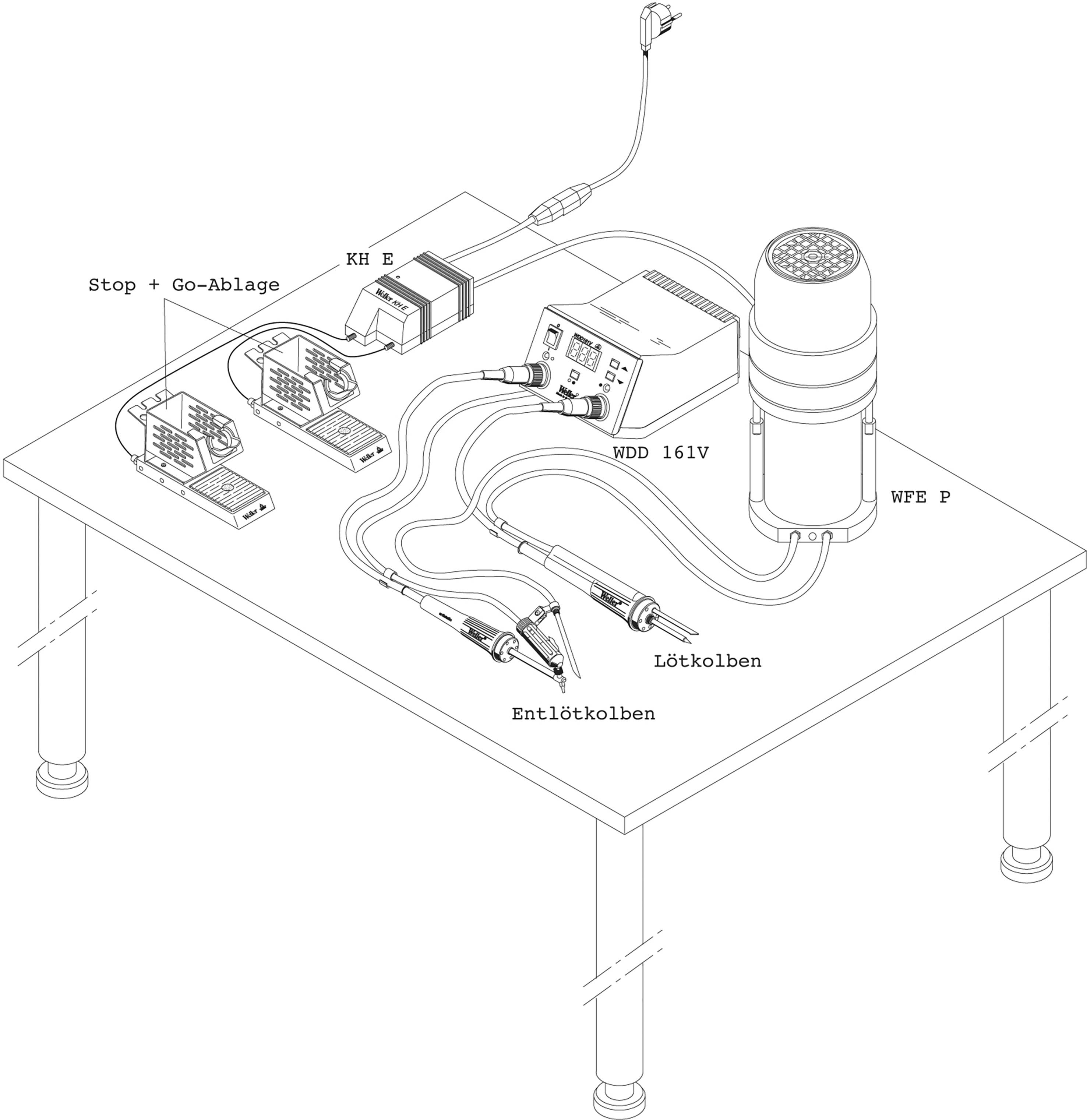

The Weller WFE P suction device is designed for the extraction of up to 2 FE soldering irons. An electric, long-lasting and optimally sound-proofed vacuum pump provides the necessary vacuum pressure and thus makes the WFE P pressure-independant. The vacuum pump has two power levels, which are set by means of a toggle switch, according to the number of FE soldering irons connected. This saves energy. The capacitor motor is maintenance-free and has an integrated temperature fuse, which protects the device against overload. The filter change can be carried out quickly and easily thanks to the filter lift system. The FE soldering irons (Fume Extraction) are connected directly to the device, no additional hose accessories are required.
This text is machine translated.
This text is machine translated.
Scope of delivery

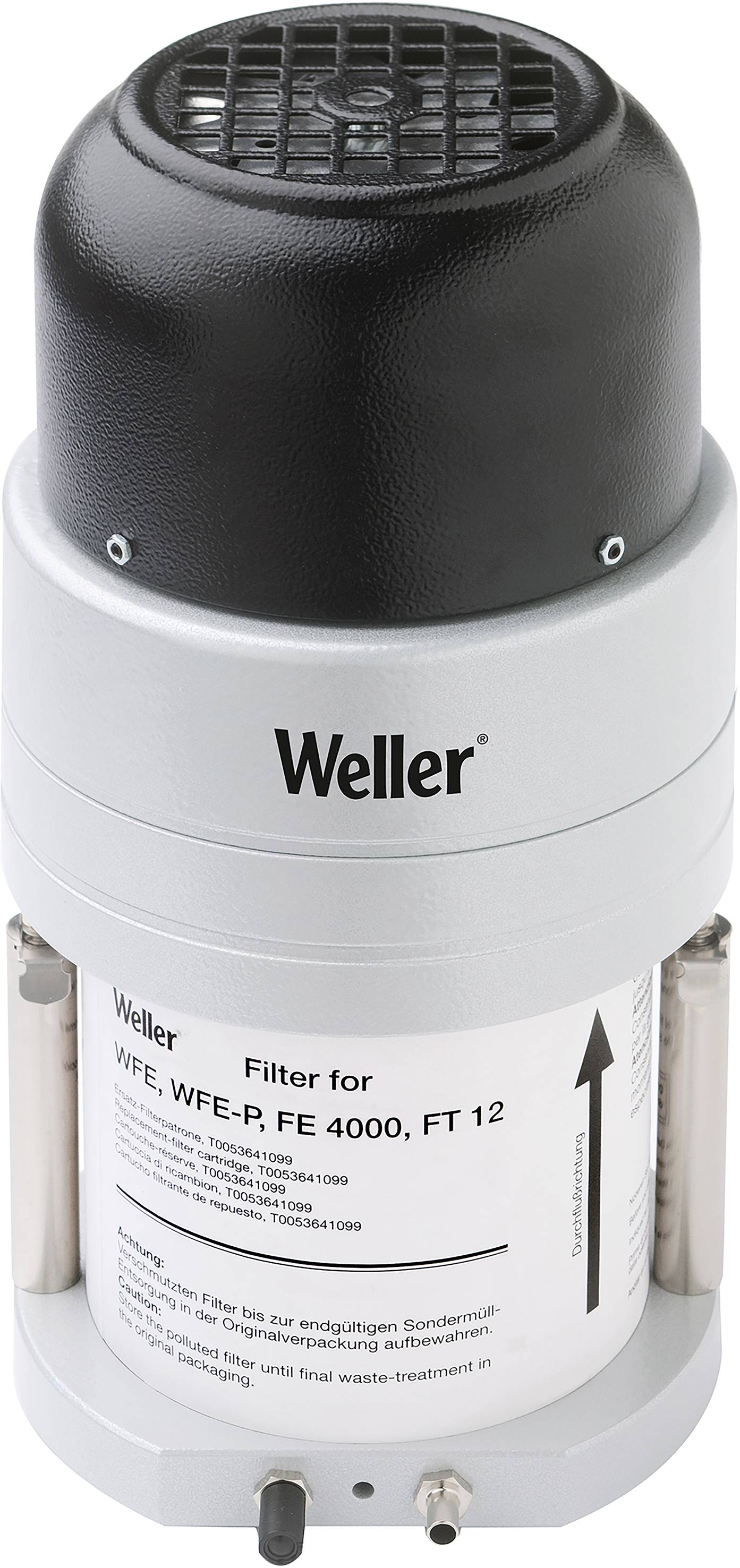

- Compact filter (T0053641099), fine dust filter F 7 (T0053642199)
