Weller WHP 1000 Spare heating element 1000 W 50 - 300 °C
EAN:
Part number:
Item no:
Number
Total (€ 2,054.62 / piece)
€ 2,054.62
plus VAT.
Highlights & Details
Weller WHP 1000 Spare heating element 1000 W 50 - 300 °C
- RS 232 interface e.g. for connection to WHA 3000 hot air station
- Digital display for reference and actual temperature
- K thermocouple (accessory) can be connected
- Heated surface 220 x 150 mm
- Temperature range: 50 °C - 300 °C
- 1000 W, 230 V.
Technical specifications
- Product type
Spare heating element
- Max. power
1000 W
- Power supply (LOV)
mains-powered
- Max. temperature
300 °C
- Dim
(L x W x H) 280 x 254 x 70 mm
- Operating voltage
230 V
- Weight
4.45 kg
- Weight, information
approx.
- Width
254 mm
- Height
70 mm
- Length
280 mm
- Min. temperature
50 °C
Documents & Downloads
User & Safety Instructions

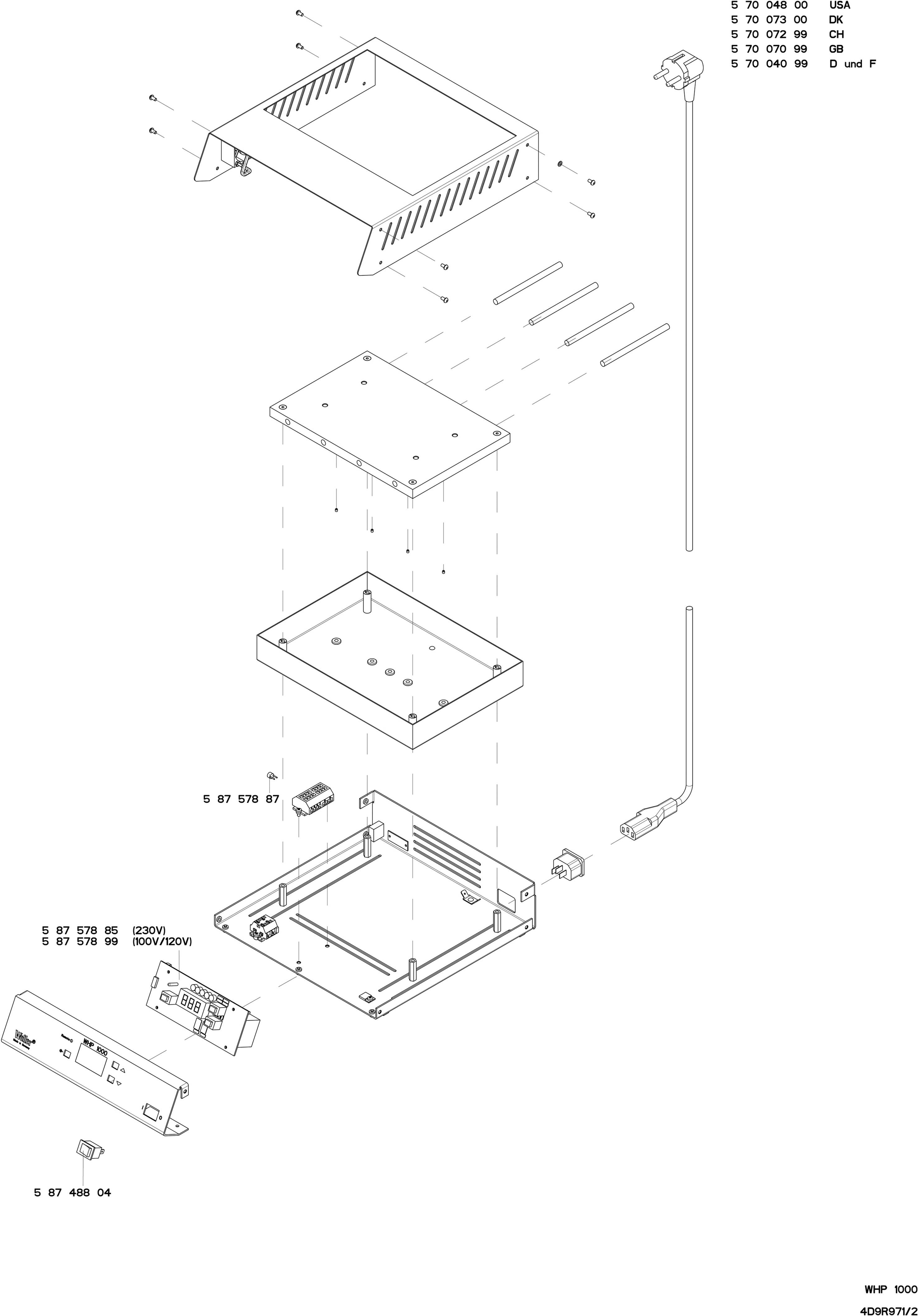

User & Safety Instructions 2177612 Weller WHP 1000 Spare heating element 1000 W 50 - 300 °C
Description

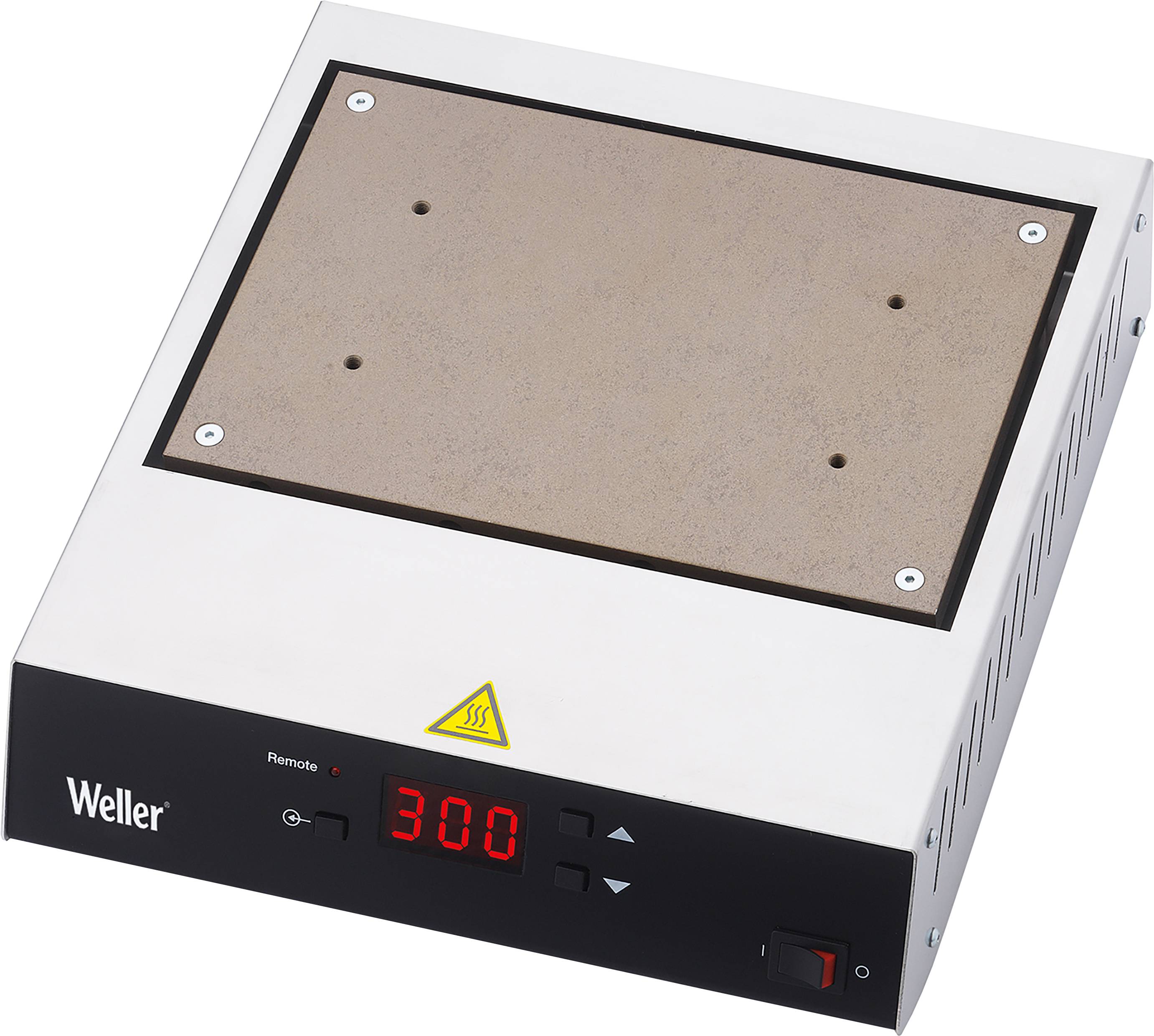

The hot plate WHP 1000 is equipped with 4 heating cartridges each 250 W and gives the user a variety of possibilities for the pre-heating of electronic modules. A digital control electronics ensures precise temperature behavior and supports various special functions such as automatic shut-off “AUTO OFF” or standby temperature. Setpoint and actual value are displayed digitally. An optional external sensor can be used to control the temperature at defined measuring points. An integrated RS232 interface enables external control by the Weller hot air station WHA 3000P /WHA 3000V. The WHP 1000 heating plate is integrated as a sub-heater in a 3-stage temperature time profile.
