Weller WR 3000MER HAP200/DSX120/WP120 230V F/G Soldering/desoldering station 400 W 50 - 550 °C
EAN:
Part number:
Item no:
Technical specifications
- Dimensions L x W x H 280.0 x 240.0 x 103.0mm
- Number of channels: 3
- Display: LCD
- Desoldering: Yes
- Flow rate (l / min): 18 l / min
- Hot air (picto): Yes
- IPC-compliant: (Tip to Ground) correspondence to IPC-J-001D
- Output: 400 W
- Soldering: Yes
- Maximum hot air flow rate l/min (depending on tool): 15 l/min.
- Potential balancing socket: Via a 3.5mm jack socket (output state hard earthed)
- Voltage: 230V
- Temperature range °C 50 - 550 °C
- Temperature accuracy °C: ± 9°C.
- Temperature stability °C: ± 2°C.
- USB: Yes
- Overcurrent 2.0 A
- Product type
Soldering/desoldering station
- Max. power
400 W
- Max. temperature
550 °C
- Height
103 mm
- Length
280 mm
- Min. temperature
50 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3762017 Weller WR 3000MER HAP200/DSX120/WP120 230V F/G Soldering/desoldering station 400 W 50 - 550 °C
Description
3-channel soldering and desoldering station, 360 W (400 W)
This text is machine translated.
This text is machine translated.
Features

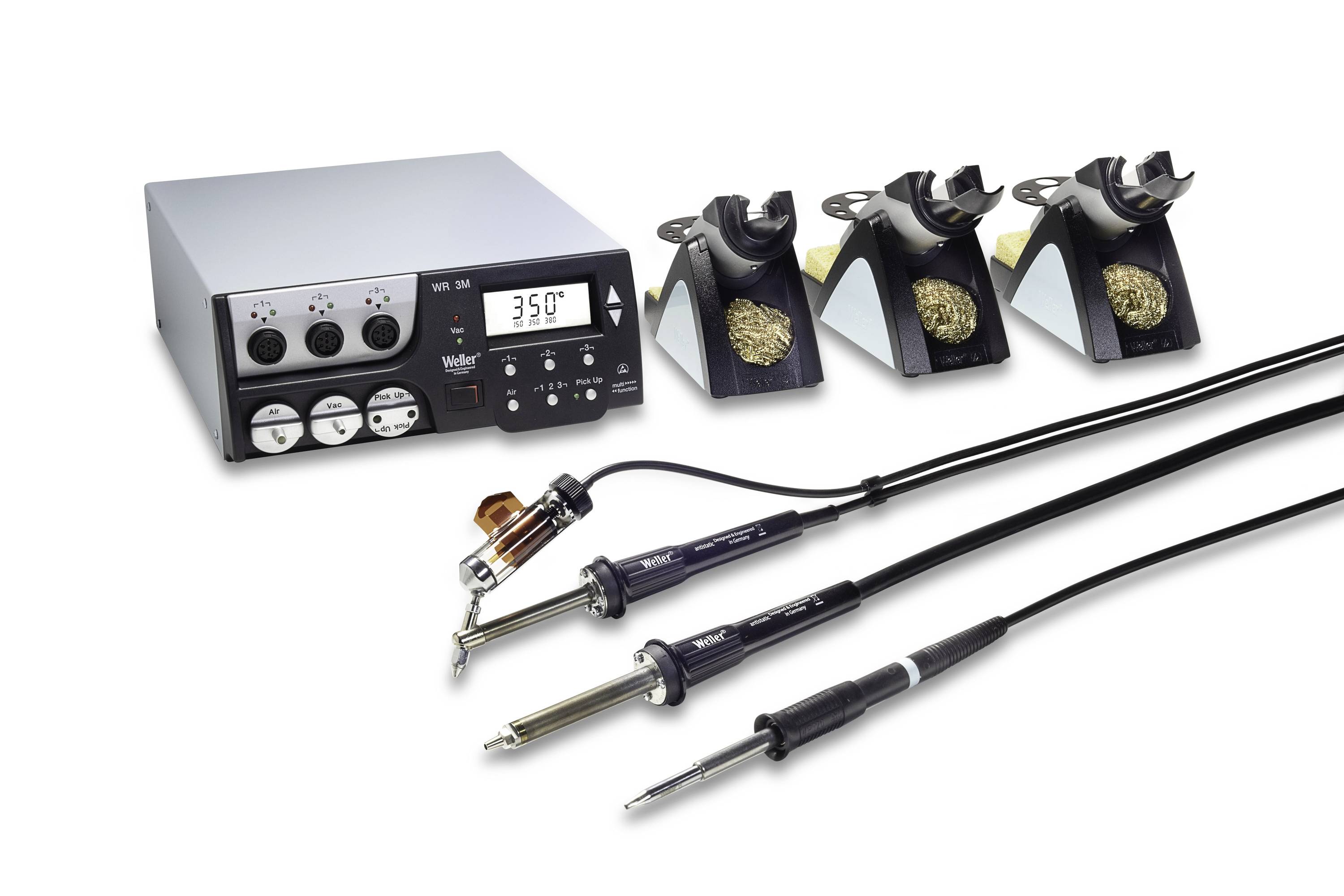

- 3-channel power supply unit WR 3M with soldering iron WP 120, desoldering iron DSX 120 and hot-air piston HAP 200
- Large all-rounder set for all repair tasks
