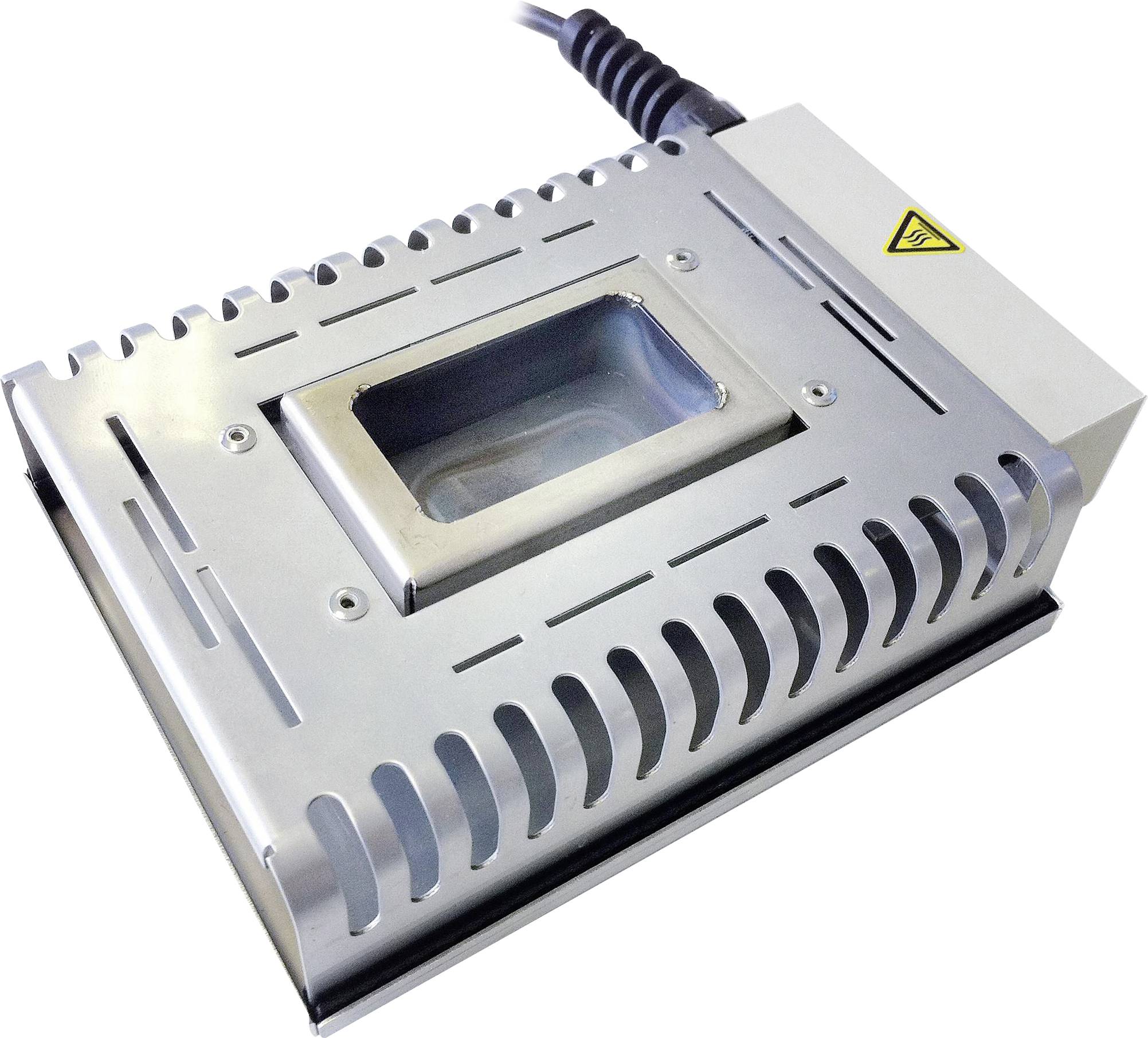

Weller WSB 150 LÖTBAD 24V/150W Solder bath 150 W 454 °C
EAN:
Part number:
Item no:
Technical specifications
- Dimensions L x W x H 175.0 x 120.0 x 54.0 mm
- Dimensions of solder bath L x W x H 57.9 x 33.0 x 19.0 mm
- ESD-safe: Yes
- Output 150 W
- Voltage 24 V
- Temperature range (depending on the tool): 65 - 454°C.
- Temperature range °C 66 - 454 °C
- Approximate heating time (50-350°C/120-660°F): 10 min.
- Product type
Solder bath
- Max. power
150 W
- Max. temperature
454 °C
- Temperature range
66 - 454 °C
- Preheating time
10 min
- Dim
(L x W x H) 175 x 120 x 54 mm
- Type
WSB 150 LÖTBAD 24V/150W
- Width
120 mm
- Height
54 mm
- Length
175 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3761993 Weller WSB 150 LÖTBAD 24V/150W Solder bath 150 W 454 °C
Description
Solder bath 150 W, 24 V.
This text is machine translated.
This text is machine translated.
Features
- Can be connected to all Weller stations with 150 W or WR3M
- For tin coatings and for the preparation of electronic components
- Soldering bath size: 58 x 33 x 19 mm (L x W x H), casing size: 150 x 120 x 65 mm (L x W x H)
- Suitable for lead-free solder
- Heat-up time ~ 10 min (50°C – 350°C)
- Suitable for lead-free solder
