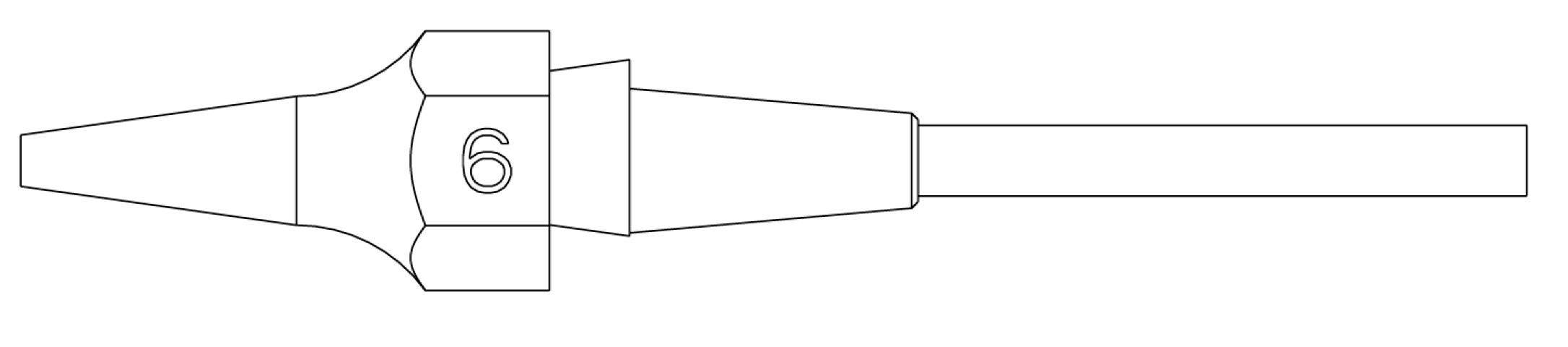

Weller XDSL 6 SAUGDÜSE Ø0,7XØ1,9 L=16,5MM VERP. Nozzle 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Outer diameter: 1.90mm
- Nozzle length 16.5mm
- 0.70mm inner diameter
- Top family: XDSL
- Tip form: Desoldering nozzle
- Product type
Nozzle
- Content
1 pc(s)
- Compatible with
Weller
- Tip shape
Hot air nozzles
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3762298 Weller XDSL 6 SAUGDÜSE Ø0,7XØ1,9 L=16,5MM VERP. Nozzle 1 pc(s)
Description
Suction nozzle, inside Ø 0.7 mm, outside Ø 1.9 mm, nozzle length 16.5 mm. Weller suction nozzles are used to remove solder from all types of solder joints. They are heated up and melt the solder. When the vacuum on the desoldering iron is switched on, the liquid solder is absorbed through the tube integrated into the nozzle and directed into the solder collector.
