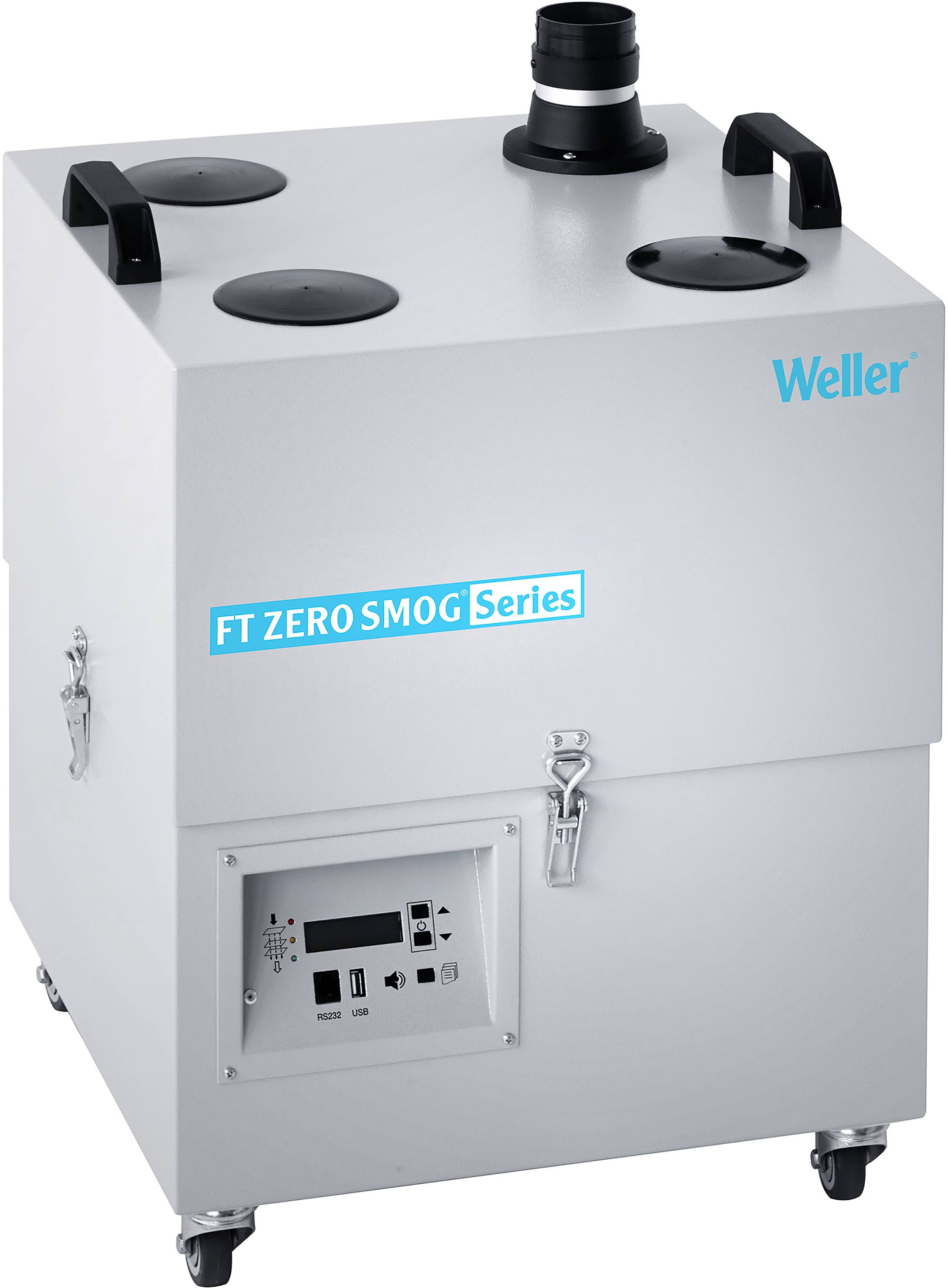

Weller Zero Smog 6V Soldering fume extractor 230 V 460 VA
EAN:
Part number:
Item no:
1 Piece(s)
Sales and shipping:
Number
Total (€ 4,970.59 / piece)
€
Only 1 Piece(s) available
Highlights & Details

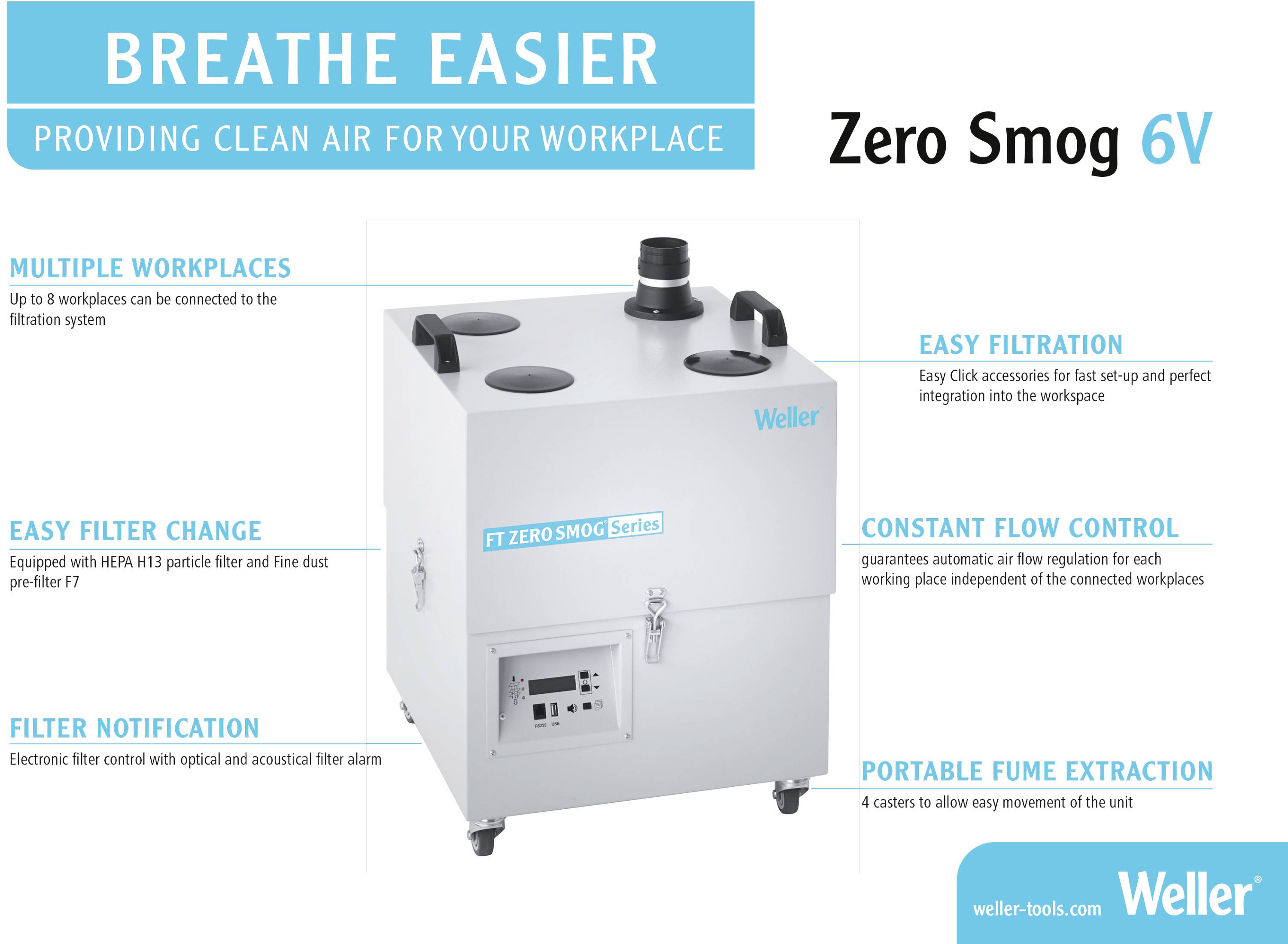

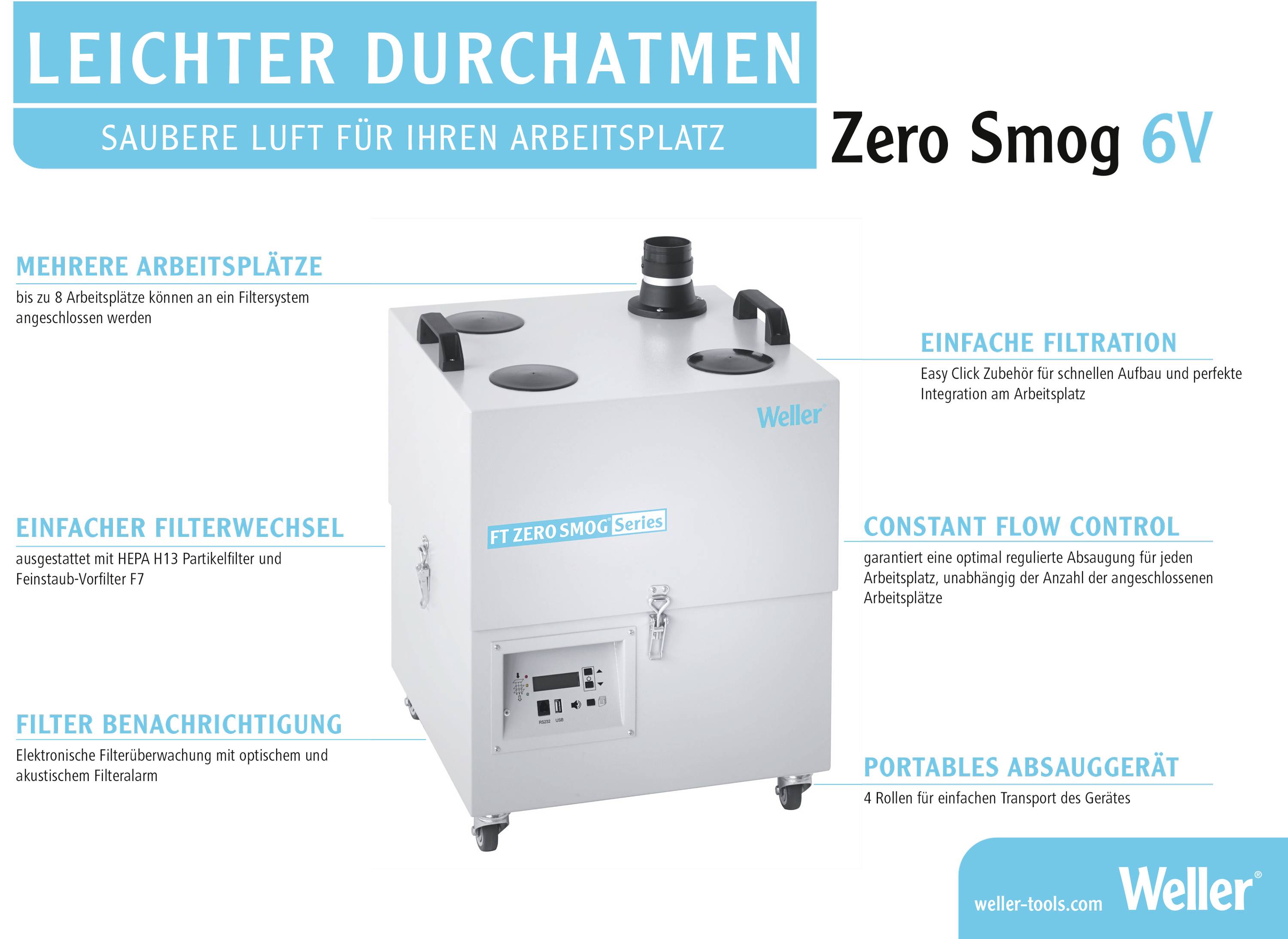

Weller Zero Smog 6V soldering fume extractor 230 V 460 VA 615 m³/h.
- 4 rolls for flexible use
- Suction device for use at up to 8 workstations
- The Constant Flow Control (CFC) function guarantees an optimally regulated suction for each individual workstation, regardless of the number of connected workstations
- Electronic filter monitoring with optical and acoustic filter alarm.
- Efficiency test via USB connection
- Low noise level
- Remote control via RS 232 interface
Technical specifications
- Max. Capacity: 1-8 jobs
- Applications: Hand soldering, strong solder smoke development, fine dust, solvents, clean room
- Product type
Soldering fume extractor
- Max. power
460 VA
- Operating voltage
230 V
- Max. noise generation
51 dBa
- Dim
(L x W x H) 460 x 460 x 665 mm
- Type
Zero Smog 6V fume extractor
- Weight
40 kg
- Features
Antistatic
- Width
460 mm
- Height
665 mm
- Length
460 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2177622 Weller Zero Smog 6V Soldering fume extractor 230 V 460 VA
Description
The Zero Smog 6V suction device is extremely user-friendly, both in the simple and fast installation as well as when changing the filter. It has a low noise emission and is so compact that it can be set up directly at the work area. The high-quality components used keep maintenance costs low and increase the life span. The device is equipped with an automatic speed control (CFC) for extending the filter service life and energy efficiency. This works independantly of the number of connected workstations. To increase the filter capacity, an external pre-filter can be connected to the ZS 6V. The powerful, maintenance-free turbine with variable speed is electronically controlled.
This text is machine translated.
This text is machine translated.
Scope of delivery

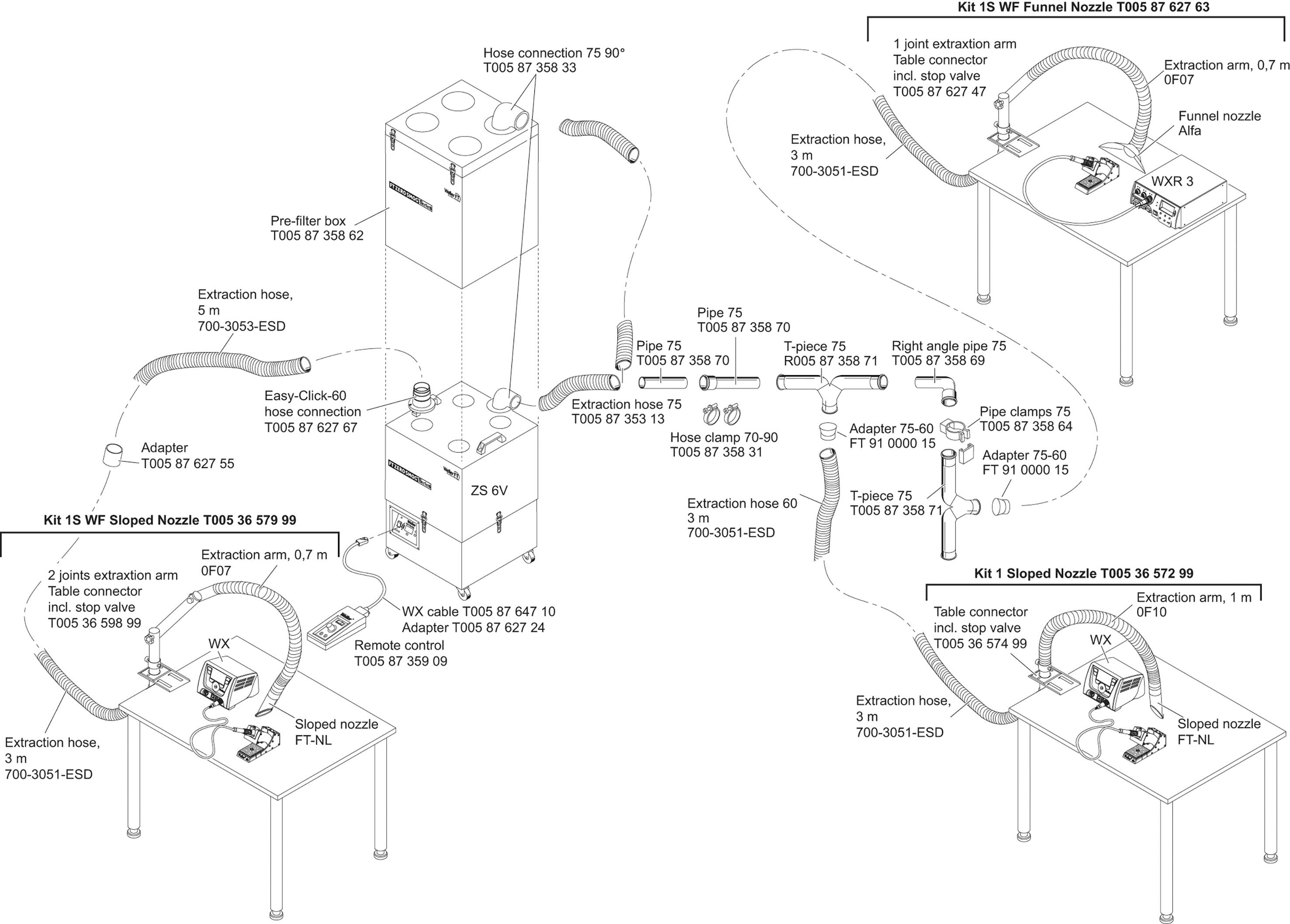

- Easy-Click 60 hose connection straight (T0058762767N), fine dust filter F7 (T0058735836), compact filter for WFE (T0058735838)
