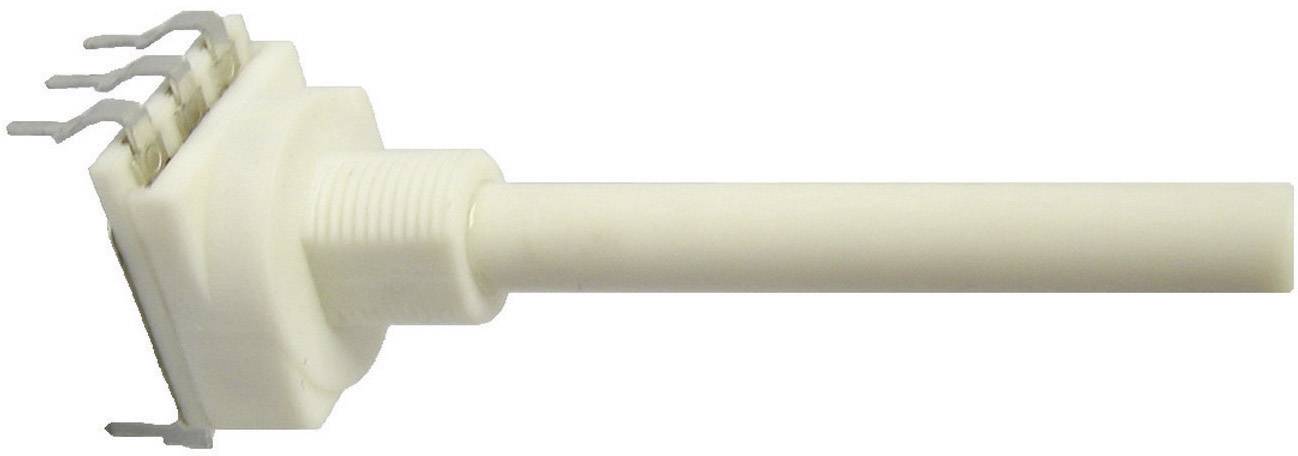

Weltron 002045038032 WEP162KCS-09-50F1-10K-20%-LIN Single turn rotary pot Mono 0.2 W 10 kΩ 1 pc(s)
EAN:
Part number:
Item no:
Product type
Single turn rotary pot
Resistance
10 kΩ
Resistance characteristic
linear
Output
Mono
Power rating
0.2 W
141 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.18
10
7% = € 0.23
€ 2.95
25
10% = € 0.33
€ 2.85
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.18 / piece)
€
Highlights & Details
Weltron 002045038032 WEP162KCS-09-50F1-10K-20%-LIN Single turn rotary pot Mono 0.2 W 10 kΩ 1 pc(s)
- 10 kΩ
- linear
Technical specifications
- Product type
Single turn rotary pot
- Resistance
10 kΩ
- Resistance characteristic
linear
- Output
Mono
- Power rating
0.2 W
- Connection
Print
- Mechanical angle
300°
- Actuating force
2.8 Ncm
- Impact tolerance
100 Ncm
- Axle length
50 mm
- Axle type
Plastic
Smooth
- Axle Ø
6 mm
- Thread size
M10
- Thread length
9 mm
- Tolerance ±
20 %
- Content
1 pc(s)
- Type
WEP162KCS-09-50F1-10K-20%-LIN
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 441016 Weltron 002045038032 WEP162KCS-09-50F1-10K-20%-LIN Single turn rotary pot Mono 0.2 W 10 kΩ 1 pc(s)
Description
Scope of delivery
- 002045038032.
