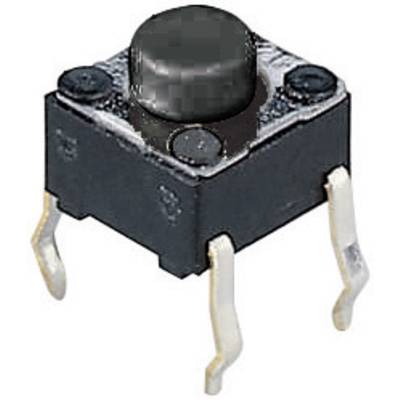

Weltron T602 T602 Pushbutton 24 V DC 0.05 A 1 x Off/(On) momentary (L x W x H) 6 x 6 x 5.0 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pushbutton
Lighting type
None
Switch position
1 x Off/(On)
Contact type
1 maker
Connection
Print
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
20
-
€ 0.13
60
8% = € 0.01
€ 0.12
100
15% = € 0.02
€ 0.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 20
Total (€ 0.13 / piece)
€ 0.43
-70 %
€ 2.60
plus VAT.
Highlights & Details
Weltron T602 T602 Pushbutton 24 V DC 0.05 A 1 x Off/(On) momentary (L x W x H) 6 x 6 x 5.0 mm 1 pc(s)
Our service for you
Technical specifications
- Activation travel 0.25 mm
- Product type
Pushbutton
- Switch/button features
Protruding
- Casing/button colour
Black
- Functions
momentary
- Lighting type
None
- Switch position
1 x Off/(On)
- Contact type
1 maker
- Connection
Print
- Switching voltage
24 V DC
- Switching current (max.)
0.05 A
- Length
6 mm
- Width
6 mm
- Height
5.0 mm
- Button diameter
3.5 mm
- Actuating force
1.2 N
- Content
1 pc(s)
- Dim
(L x W x H) 6 x 6 x 5.0 mm
- RoHS-compliant
Yes
- Front panel cut-out
6 x 6 mm
- Board thickness (max.)
3.2 mm
- Type
T602
- Switching voltage
24 V DC
- Switching current
50 mA
- Type
T602
- Actuating force
1 Ncm
Documents & Downloads
Datasheet
Datasheet 700460 Weltron T602 T602 Pushbutton 24 V DC 0.05 A 1 x Off/(On) momentary (L x W x H) 6 x 6 x 5.0 mm 1 pc(s)
Datasheet 700460 Weltron T602 T602 Pushbutton 24 V DC 0.05 A 1 x Off/(On) momentary (L x W x H) 6 x 6 x 5.0 mm 1 pc(s)
Description
For use mainly in data, digital, computer, measurement and control technology.
Hints
Touch button with short travel for PCB mounting (NO contact).
