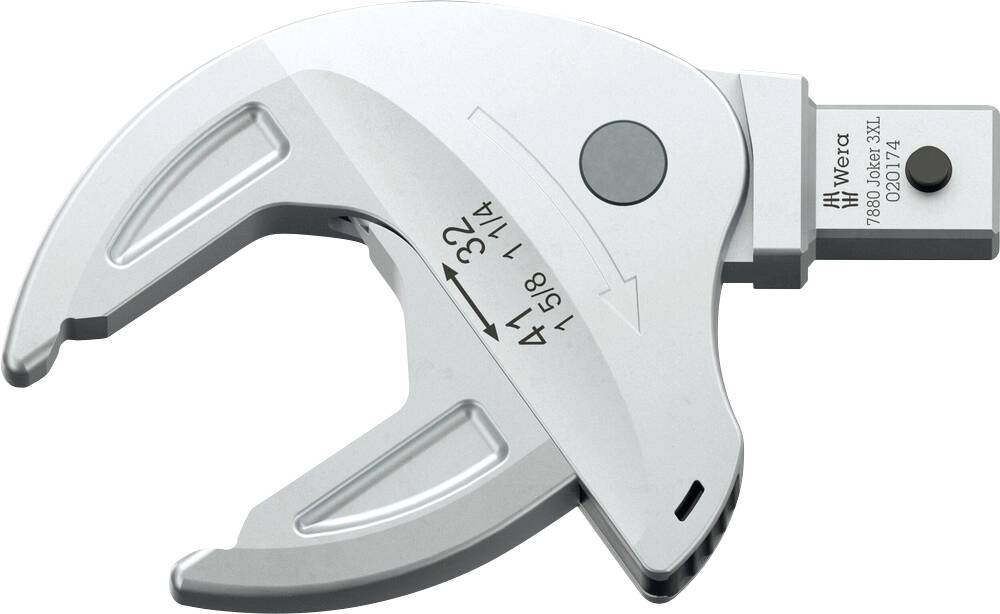

Wera 05020174001 7880 Joker 3XL Self-adjusting open ring spanner bit Spanner size (metric) 32 - 41 mm Spanner size (inch
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Drive square 14x18 mm
- Product type
Self-adjusting open ring spanner bit
- Size
1 1/4"
1 5/16"
1 3/8"
1 7/16"
1 1/2"
1 5/8"
- Spanner size
32 mm
41 mm
- Size
32 mm
34 mm
36 mm
41 mm
- Material
Chromium-vanadium steel
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3437238 Wera 05020174001 7880 Joker 3XL Self-adjusting open ring spanner bit Spanner size (metric) 32 - 41 mm Spanner size (inch
User & Safety Instructions
User & Safety Instructions 3437238 Wera 05020174001 7880 Joker 3XL Self-adjusting open ring spanner bit Spanner size (metric) 32 - 41 mm Spanner size (inch
Description
Self-adjusting socket wrench, for hexagonal screw heads or nuts, for Click-Torque X and XP torque wrench series with 14x18 mm holder. Covers all metric and imperial dimensions in each application area. The continuously variable, parallel jaws replace several individual fork-spanner dimensions. The required size is infinitely adjustable by itself when you place it on the hexagonal nut or screw. The integrated lever mechanism securely engages the hexagon screw or nut between the jaws, WAS significantly reduces the risk of slipping and damage. The ratchet function is provided for fast and continuous screwing without setting. By using the corner width prisms, a return angle of traverse of only 30° is possible.
This text is machine translated.
This text is machine translated.
Features
- Application: Hexagonal screw heads or nuts Drive: 14x18 mm
- For torque wrench series Click-Torque X and XP with 14x18 mm holder Design: Self-adjusting open-end wrench with ratchet function
- Size-adjustable jaw side, parallel-guided smooth jaws
- With 30° back angle of incline over the corner width prisms in the mouth
