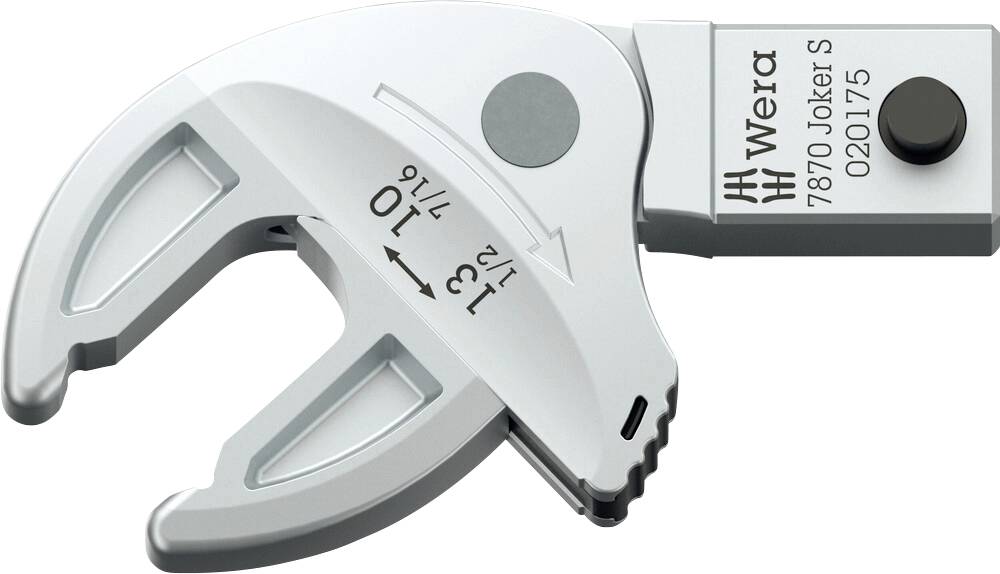

Wera 05020175001 7870 Joker S Self-adjusting open ring spanner bit Spanner size (metric) 10 - 13 mm Spanner size (inches
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Drive square 9x12 mm
- Product type
Self-adjusting open ring spanner bit
- Size
7/16"
1/2"
- Spanner size
10 mm
13 mm
- Size
10 mm
11 mm
12 mm
13 mm
- Material
Chromium-vanadium steel
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3437235 Wera 05020175001 7870 Joker S Self-adjusting open ring spanner bit Spanner size (metric) 10 - 13 mm Spanner size (inches
User & Safety Instructions
User & Safety Instructions 3437235 Wera 05020175001 7870 Joker S Self-adjusting open ring spanner bit Spanner size (metric) 10 - 13 mm Spanner size (inches
Description
Self-adjusting socket wrench, for hexagonal screw heads or nuts, for torque wrenches series of Click-Torque X and XP with 9x12 mm holders. Covers all metric and imperial dimensions in each application area. The continuously variable, parallel jaws replace several individual fork-spanner dimensions. The required size is infinitely adjustable by itself when you place it on the hexagonal nut or screw. The integrated lever mechanism securely engages the hexagon screw or nut between the jaws, WAS significantly reduces the risk of slipping and damage. The ratchet function is provided for fast and continuous screwing without setting. By using the corner width prisms, a return angle of traverse of only 30° is possible.
This text is machine translated.
This text is machine translated.
Features
- Application: Hexagonal screw heads or nuts Drive: 9x12 mm
- For torque wrench series Click-Torque X and XP with 9x12 mm holders Design: Self-adjusting open-end wrenches with ratchet function
- Size-adjustable jaw side, parallel-guided smooth jaws
- With 30° back angle of incline over the corner width prisms in the mouth
