Name: Wera 05020178001 7880 Joker 4XL Crowfoot ratcheting wrench
Brand: Wera
SKU: 3829778

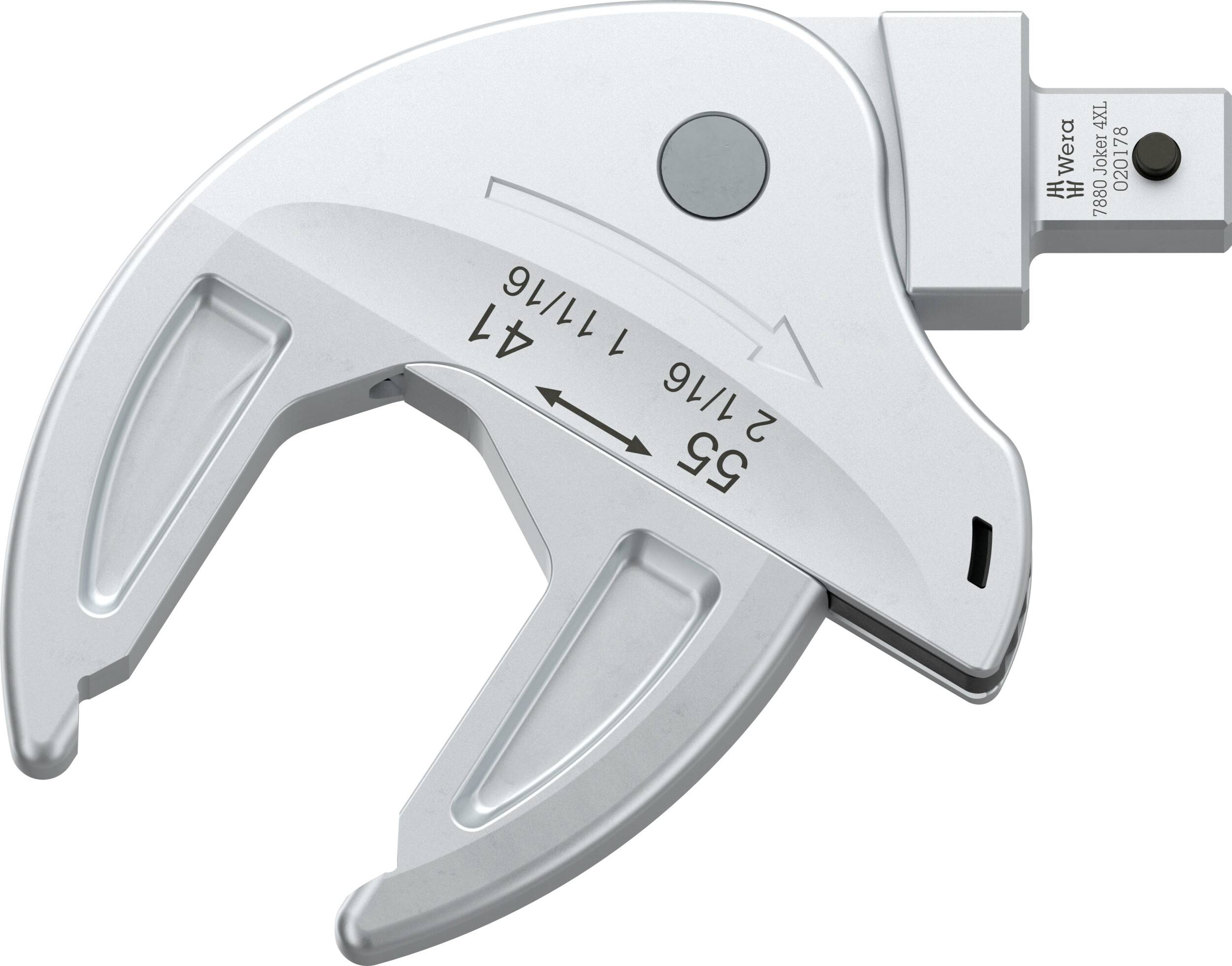

Silver adjustable measuring gauge tool with marked scale and sliding jaw, shown isolated on a white background.

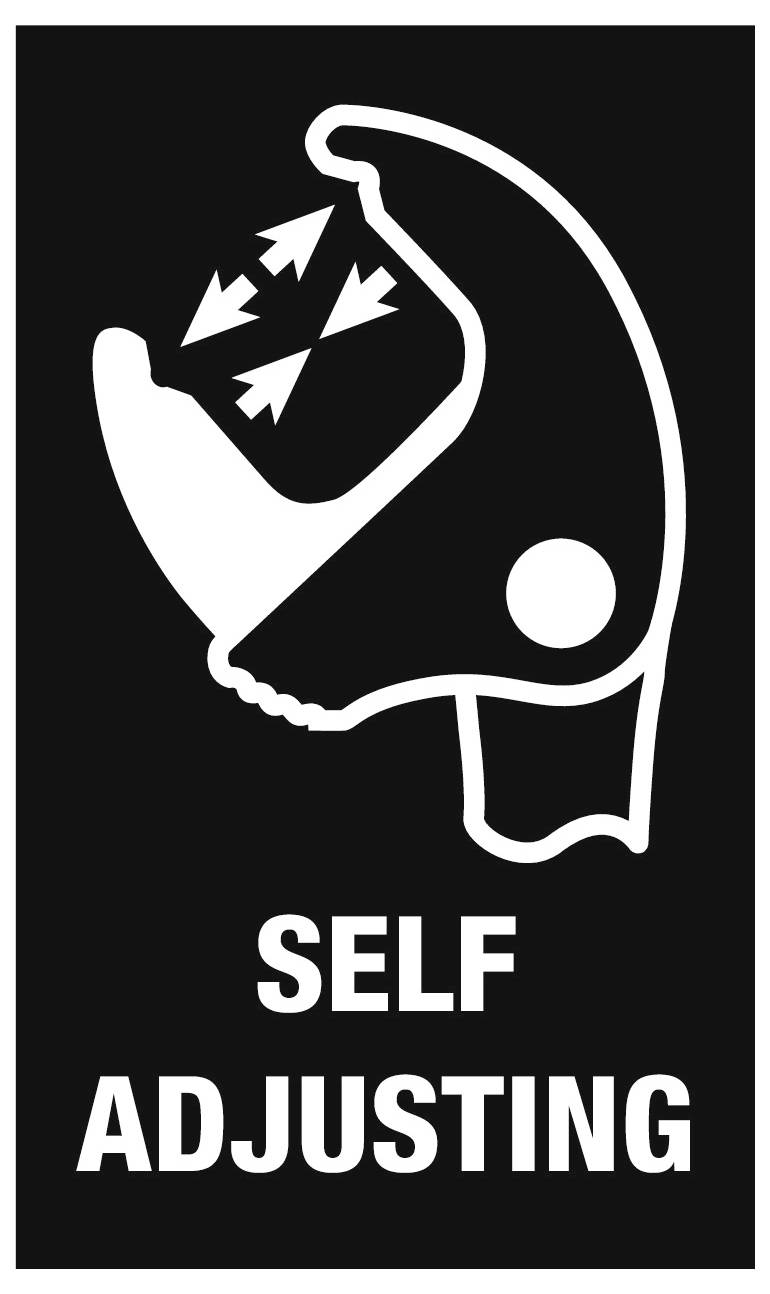

Black-and-white graphic of a hand and adjustable joint with arrows, labeled 'SELF ADJUSTING' below.

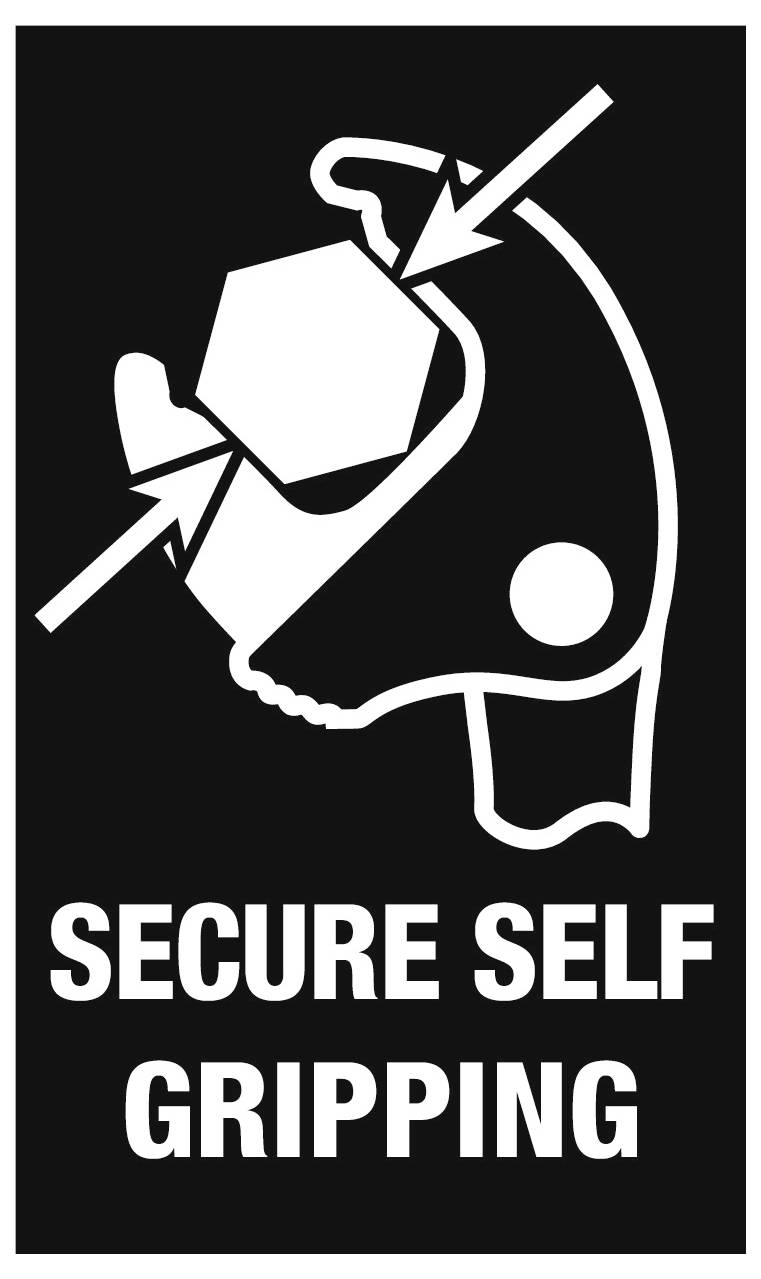

Black-and-white sign showing a hand gripping a polygon with arrows, labeled 'SECURE SELF GRIPPING'.

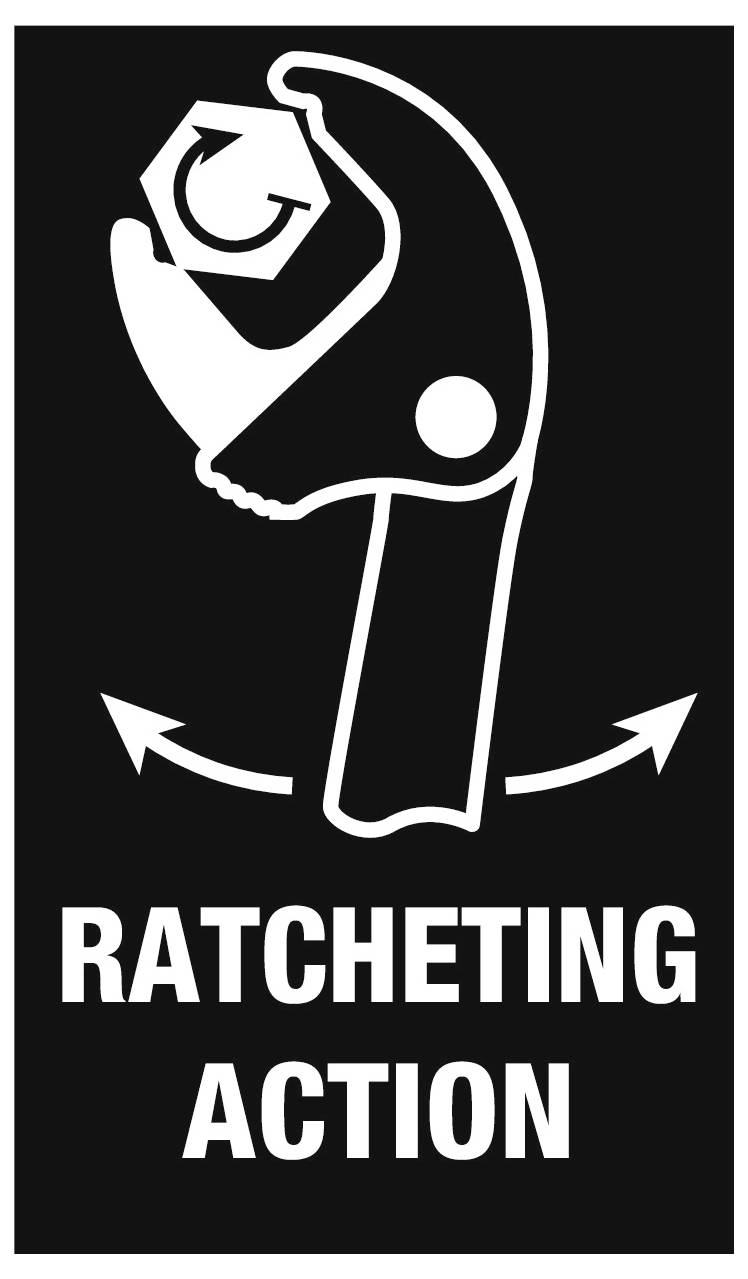

Diagram showing a ratchet wrench with arrows indicating pivoting motion and the label 'RATCHETING ACTION'.<br>

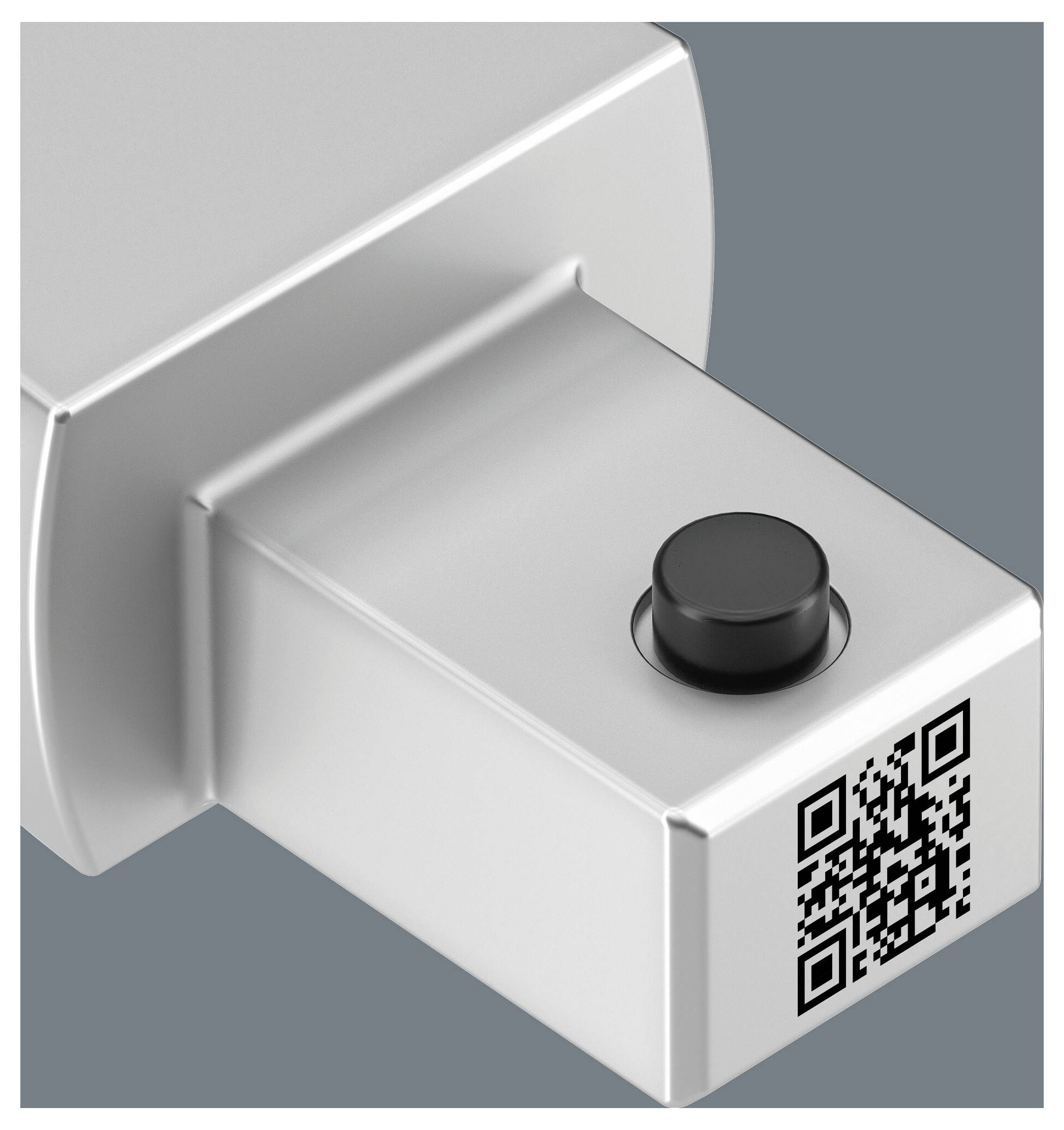

Metallic device with a protruding drawer and black button, featuring a QR code on the front side.<br>

Close-up of a 14x18 mm socket adapter with a square drive opening and locking button on a gray background.

Close-up of a wrench tightening a round nut or bolt, with arrows indicating the turning direction.

Diagram of a wrench-like clamp tightening around a hex bolt, with arrows showing pressure from above and below.<br>

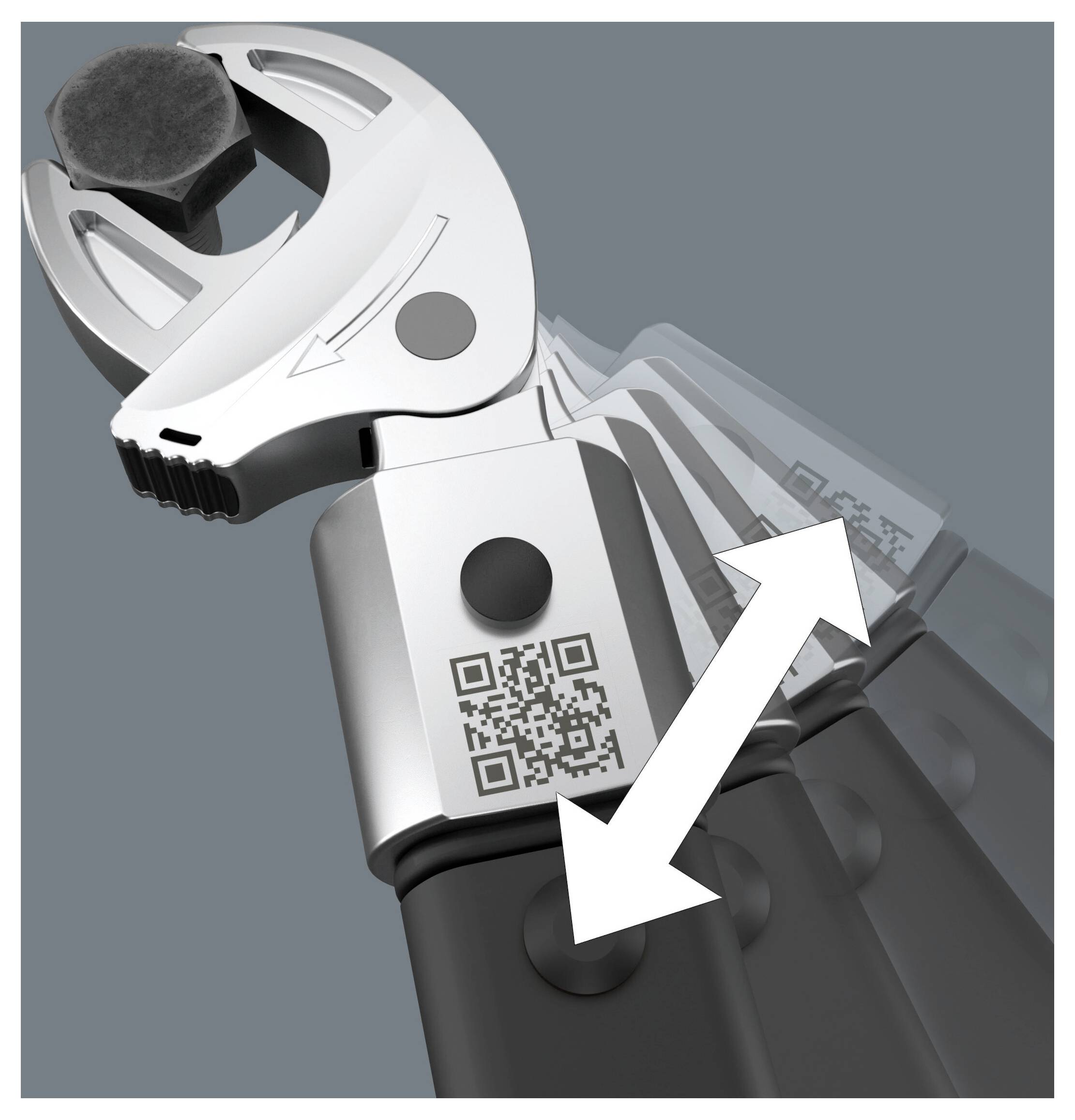

Close-up of a ratcheting wrench head with a QR code on the handle and large arrows indicating adjustable movement or rotation.<br>

Diagram of a wrench-like tool gripping a hex bolt, showing a 30° angled jaw position for tighter access in confined spaces.

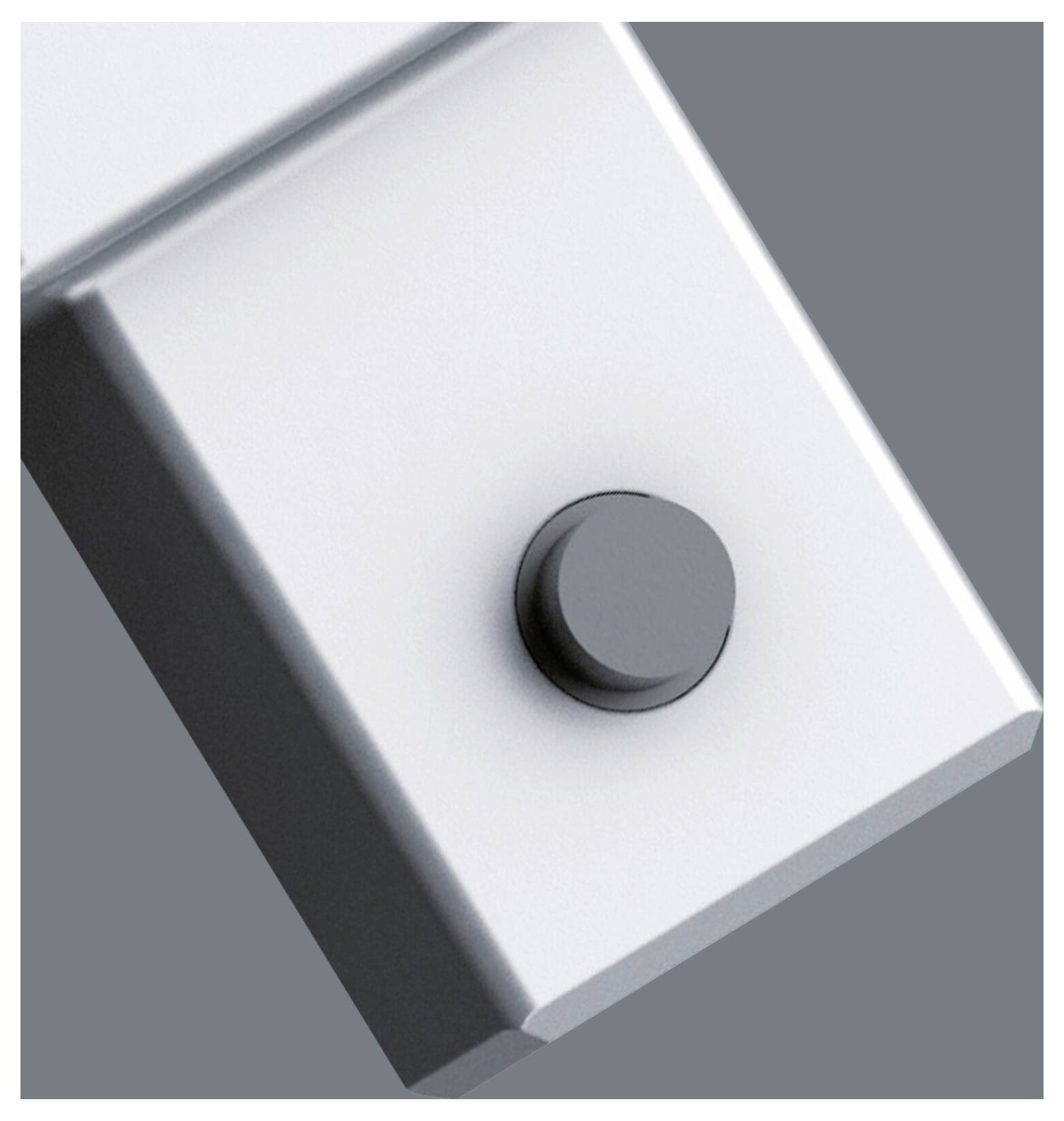

Close-up of a white wall plate with a single dark round push button on a gray background.

Icon showing an I-beam labeled 'CrV', indicating chromium-vanadium steel material.

1/12

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

7880 Joker 4XL self-adjusting screw-in wrench for size 41-55 mm, 14x18 mm

For the assembly and dismantling of large pipes in the SHK area

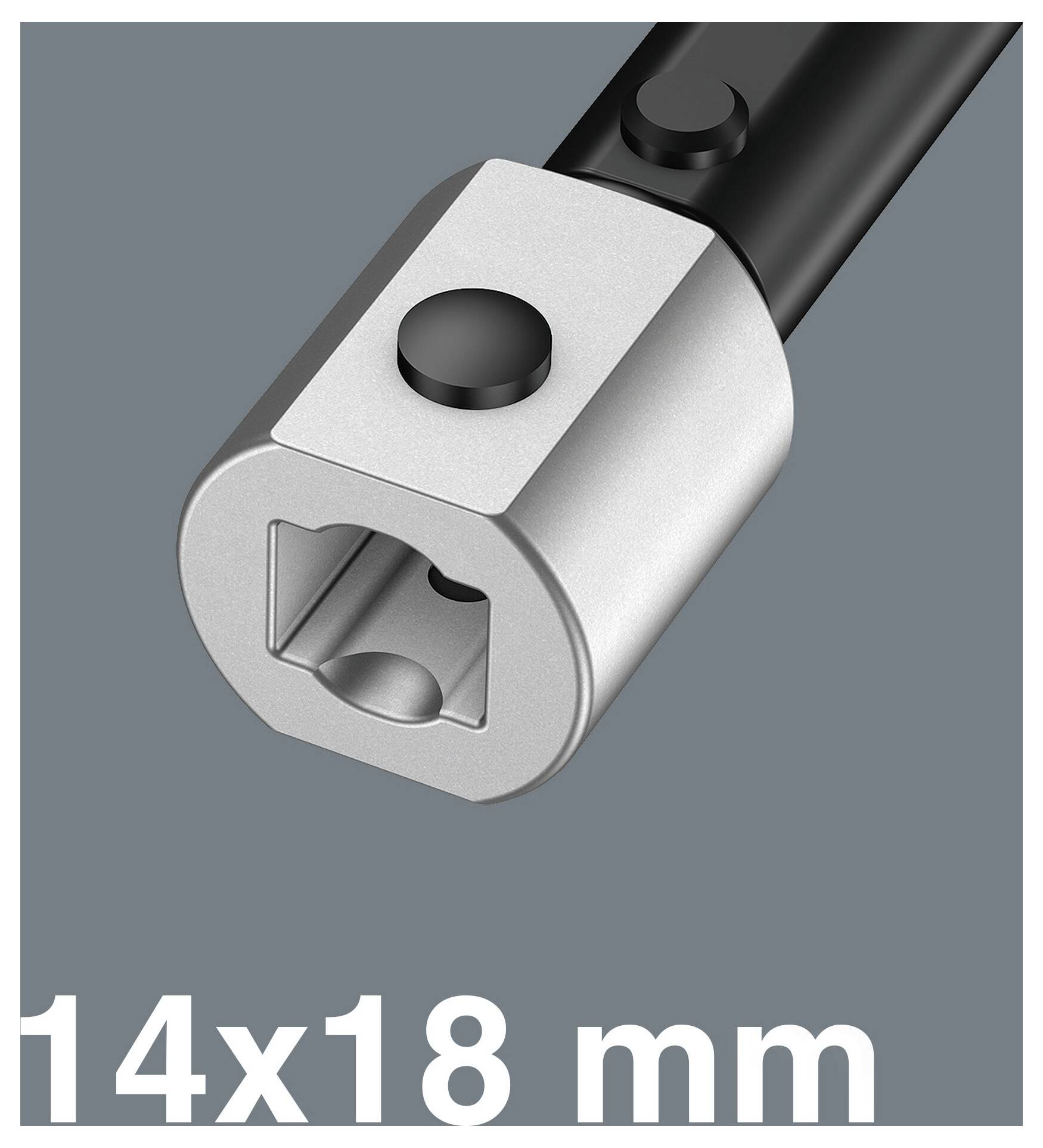

Square socket bit 14x18 mm
For torque wrench in the Click-Torque X series with 14x18 mm holder
For hexagon screw heads or nuts with wrench width 41-55 (metric) or 1 11/16"-2 1/16" (inch) and all intermediate sizes

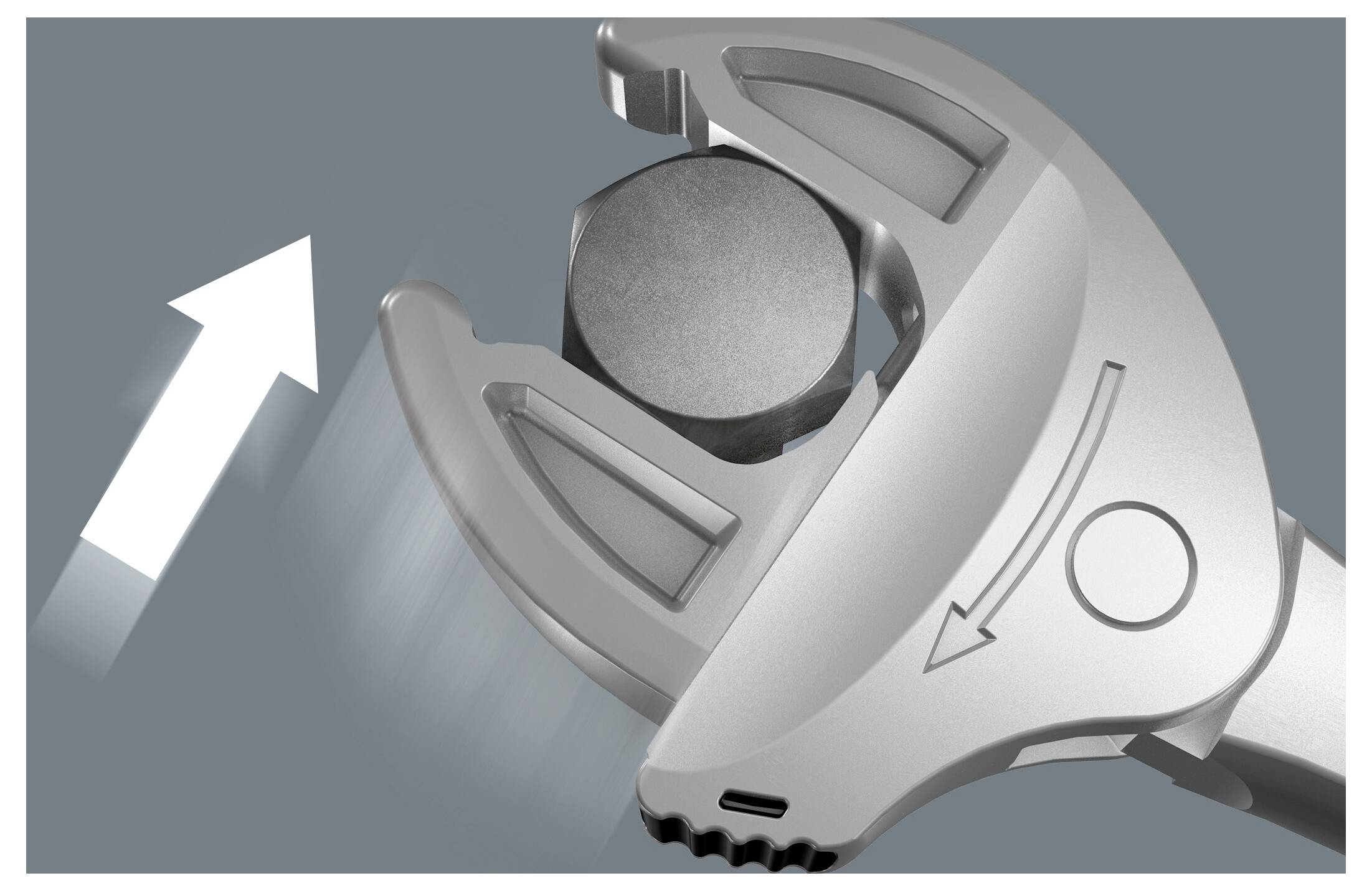

With mechanical ratchet function for quick and continuous screwing without setting off the key

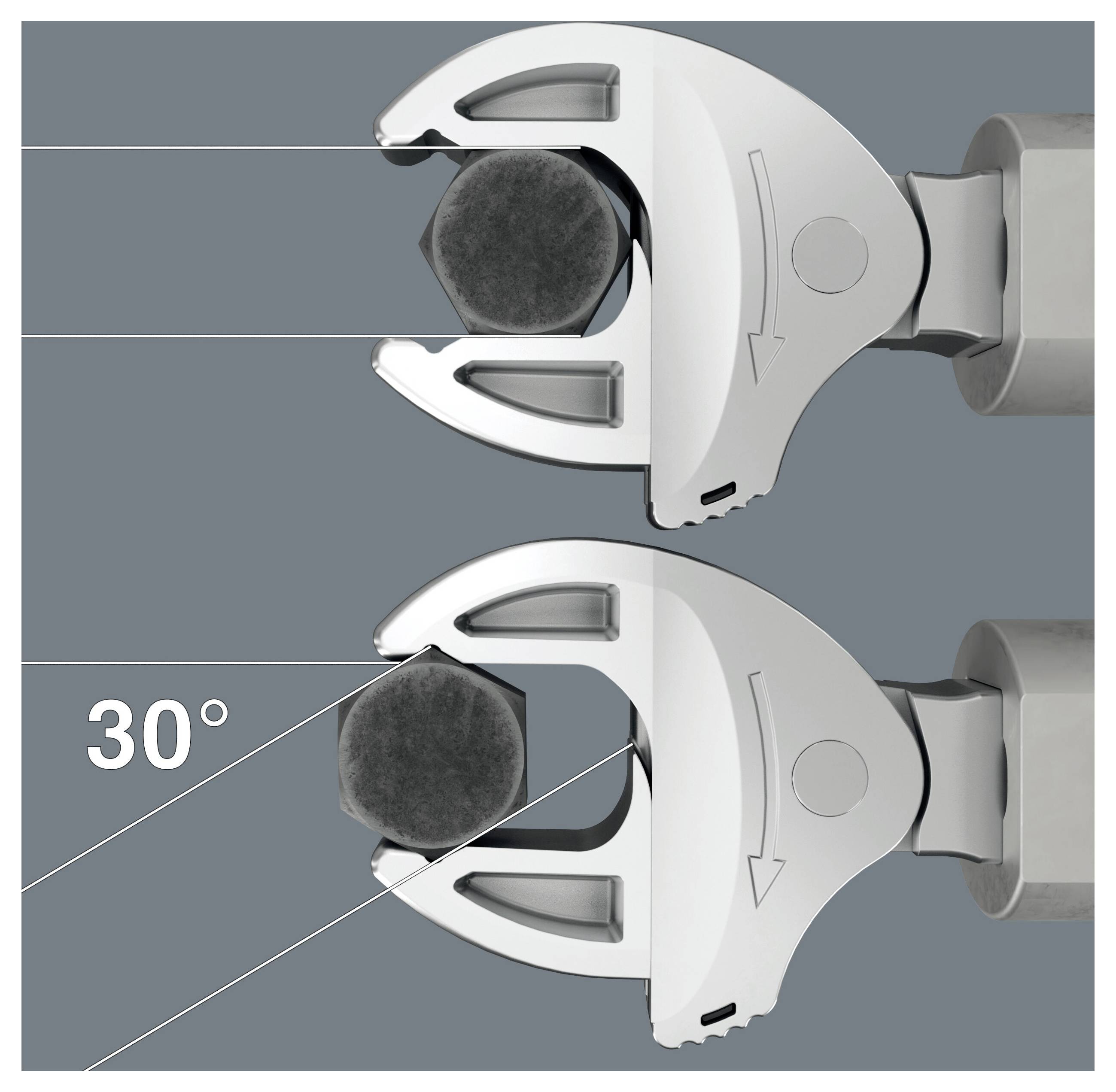

Back tilt angle of only 30° by setting in the corner width prisms in the mouth
The laser-etched abrasion-resistant QR code simplifies the determination of the correct torque value depending on the torque wrench used and the insertion tool

Technical specifications

Width across flats (metric) 41 - 55 mm
Spanner size (inches): 1 11/16" – 2 1/16"

Product type: Crowfoot ratcheting wrench

Material: Chromium-vanadium steel

Width: 120 mm

Height: 19 mm

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3829778 Wera 05020178001 7880 Joker 4XL Crowfoot ratcheting wrench

Description

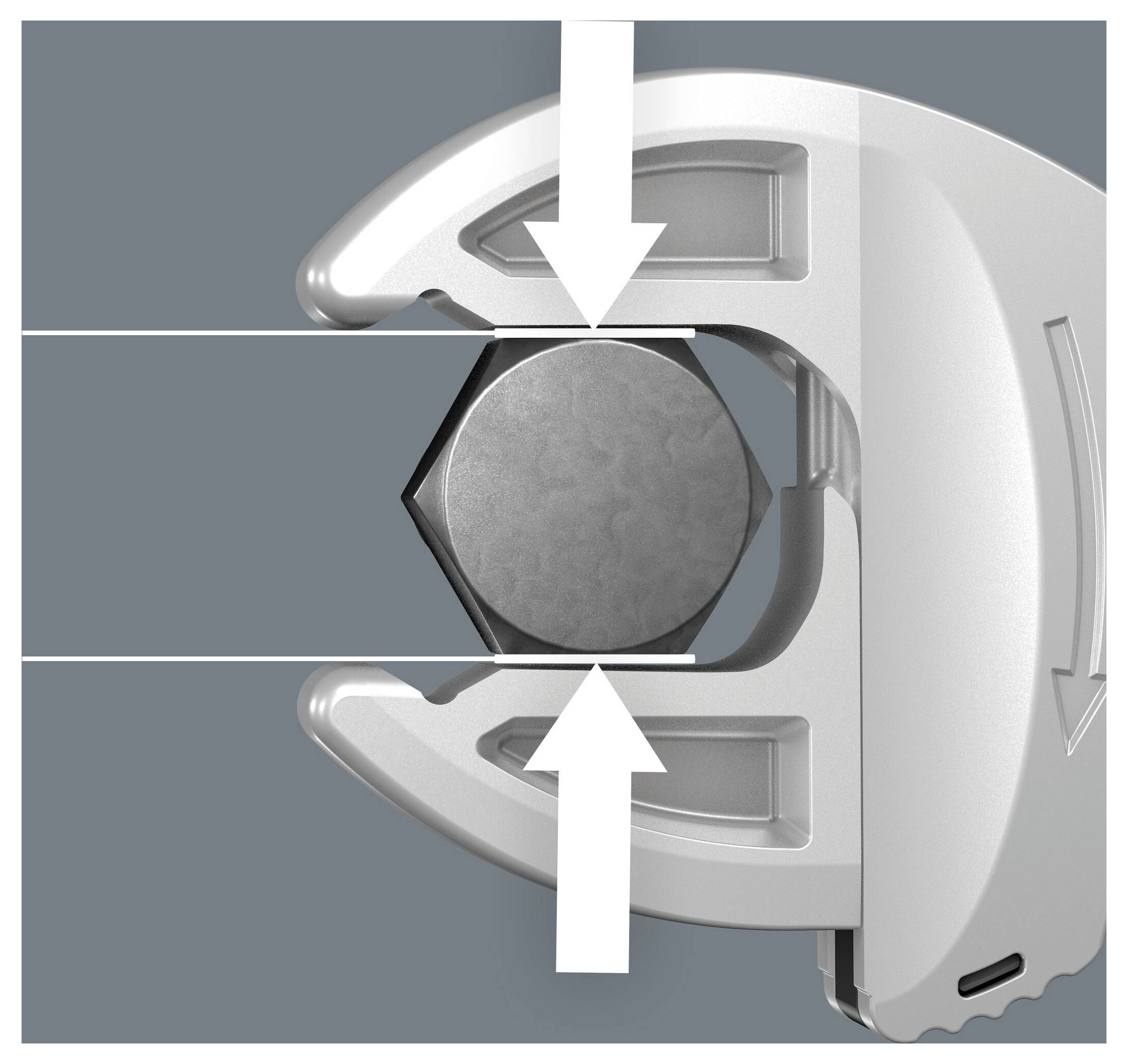

Self-adjusting socket wrench, for hexagonal screw heads or nuts, for Click-Torque X and XP torque wrench series with 14x18 mm holder. Covers all metric and imperial dimensions in each application area. The continuously variable, parallel jaws replace several individual fork-spanner dimensions. The required size is infinitely adjustable by itself when you place it on the hexagonal nut or screw. The integrated lever mechanism securely engages the hexagon screw or nut between the jaws, WAS significantly reduces the risk of slipping and damage. The ratchet function is provided for fast and continuous screwing without setting. By using the corner width prisms, a return angle of traverse of only 30° is possible.

This text is machine translated.
