Wera 05150132001 Workshop trolley Steel, Stainless steel, EVA foam Factory colour: Black
EAN:
Part number:
Item no:
Highlights & Details
9702 Tool Rebel Tool trolley Stainless XXL 2
- Extremely robust design thanks to double-walled design
Technical specifications
- 202 part
- Product type
Workshop trolley
- Factory colour
Black
- Dim
(L x W x H) 518 x 1133 x 1020 mm
- No. of drawers
8
- Content
1 pc(s)
- Material
Steel
Stainless steel
EVA foam
- Width
1133 mm
- Height
1020 mm
- Length
518 mm
- Features
Mobile
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3747140 Wera 05150132001 Workshop trolley Steel, Stainless steel, EVA foam Factory colour: Black
Description

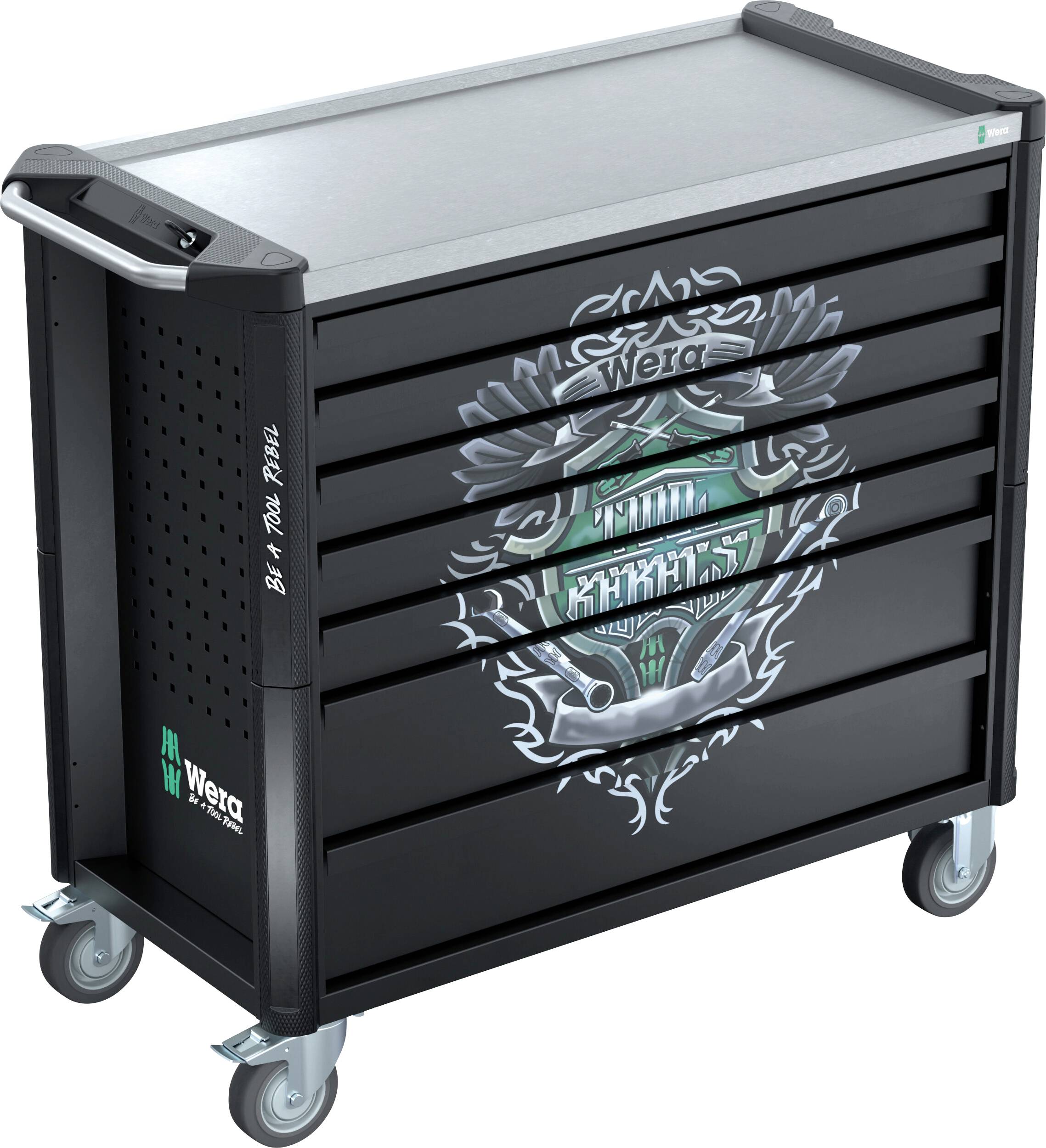

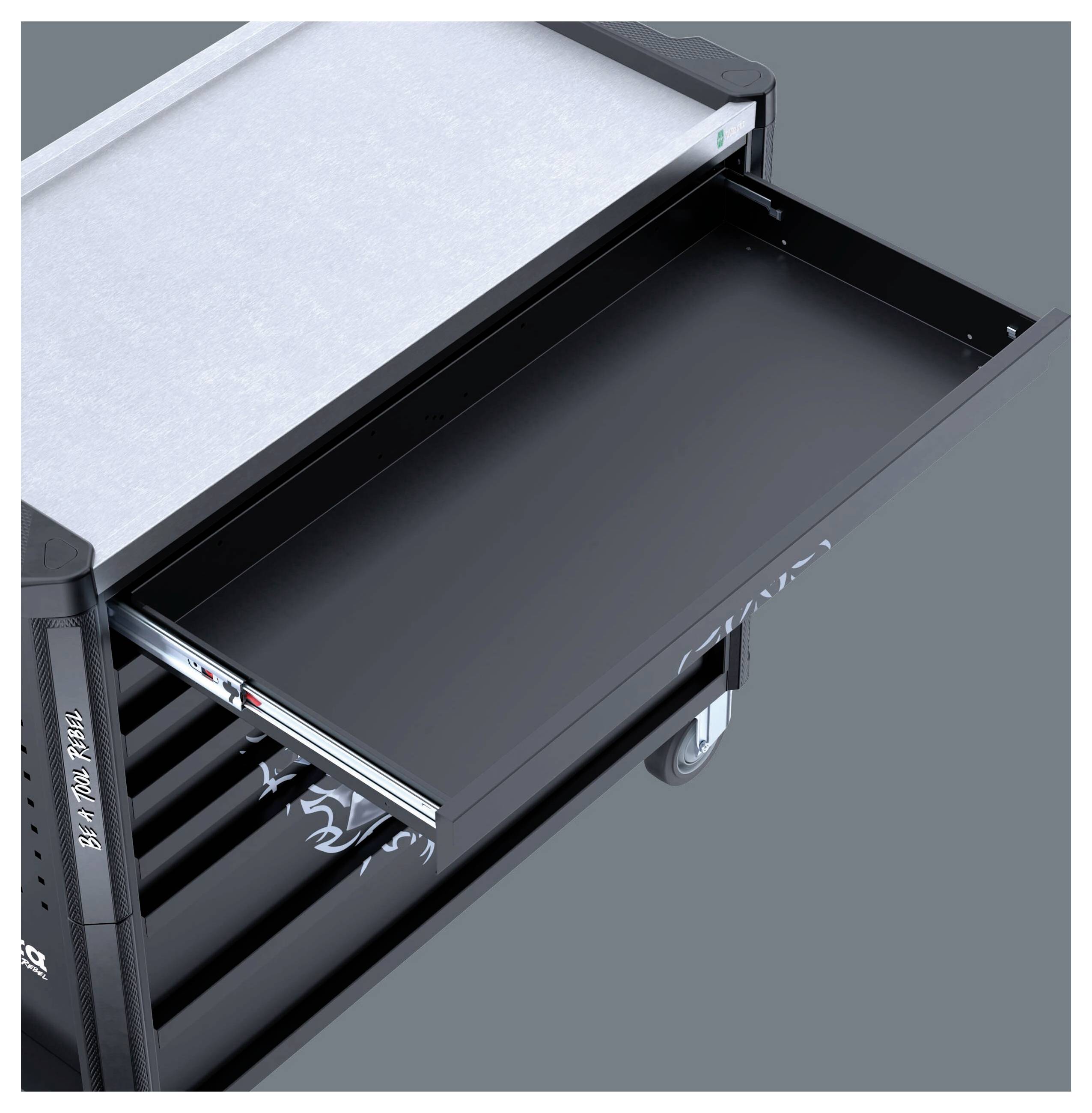

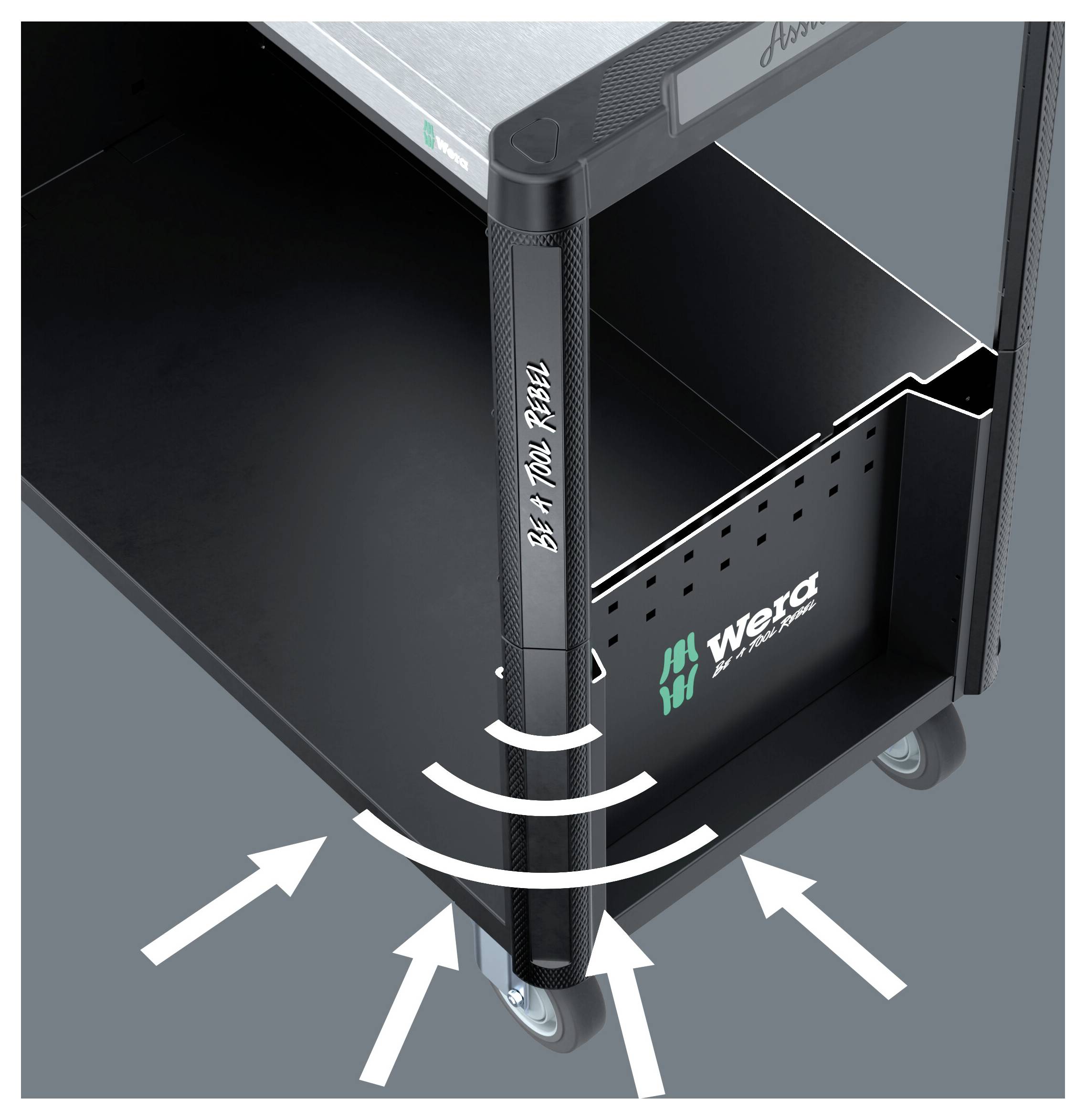

Exclusive workshop trolley in tool Rebel design. Large stainless steel storage and working surface; completely sealed to protect the interior of the vehicle, e.g. in case of leaking liquids. 5 flat and 2 high drawers ensure efficient, mobile organization of tools and materials. Extremely robust design with a double-walled design and the completely welded design of the entire body. Edge guard with damping concept at all four corners for optimum impact protection. For the daily hard workshop use. Equipped with 6003 Wera foam inlays: 1 foam insert screw driver set 9731, 6000 foam enclosure 1 A Cyclops ratchet set 1 (1/4"), 9721 foam insert 8000 B Cyclops ratchet set 1 (3/8"), 9723 foam insert Cyclops B bit set 1 (3/8"), 9730 foam insert 9720 Joker ratchet combination wrench set 8000, 1 foam inserts 8 Joker ring spanner set 9710, 9740 Foam insert L-key set 1, 9750 foam insert Kraftform compact and Tool-Check PLUS set 1.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 9702 Tool Rebel Tool trolley Stainless XXL 2, 202 piece
- 1 x 9710 foam insert screwdriver set 1, 18-part
- 2x 932 A Slotted screwdriver: 1x5.5 x 100 mm, 1.2x7x125 mm
- 3x 350 PH Crosshead Screwdrivers: PH 1x80 mm, PH 2x100 mm, PH 3x150 mm
- 1 x 350 PH Cross-tip dust-by/carburetor screwdriver: PH 2 x 25 mm
- 2x 355 PZ crosshead screwdrivers: PZ 1x80 mm, PZ 2x100 mm
- 2x 335 flat-tip screwdrivers - electrician blade: 0.8x4x100 mm, 1x5.5x125 mm
- 1 x 334 slot screwdriver - workshop blade 1.2 x 6.5 x 150 mm
- 1 x 335 Stubby / 7 x 1 x 5.5 x 24.5 mm screwdriver
- 1 x 2050 PH Electronic cross-head screwdrivers PH 0 x 40 mm
- 1 x 2035 Electronics slotted screwdrivers 0.40 x 2.5 x 80 mm
- 2x 160 i VDE-insulated slotted screwdriver: 0.4x2.5x80 mm, 0.6X3.5X100 mm
- 1 x 1441 SB screw claw for screwdriver blades, long bits and offset screwdrivers with retaining function for screws 4,5-6 x 41 mm
- 1 x 1442 screw claw for screwdriver blades, long bits and offset screwdrivers with fixing function for screws 6.0–8.5 x 41 mm
- 1 x 9810 Foam insert screwdriver set 1, without tools 344 x 30 x 392 mm
- 1x 9720 Foam insert 8000 A Cyclops catch 1/4" set 1, 37 piece
- 1x 8000 A Cyclops speed catch with 1/4" drive 1/4" x 152 mm
- 1x 8794 LA Cyclops extension with fast cable end, long, 1/4": 1/4" x 150 mm
- 1x 8794 SA Cyclops extension with fast cable end, short, 1/4": 1/4" x 75 mm
- 1 x 8795 A Cyclop-Universal joint, 1/4": 1/4" x 35.5 mm
- 1x 8794 A Cyclop-"Wobble" extension, 1/4": 1/4" x 56 mm
- 14x 8790 HMA Cyclops socket insert with 1/4"-drive: 4x23 mm, 4.5x23 mm, 5x23 mm, 5,5x23 mm, 6x23 mm, 7x23 mm, 8x23 mm, 9x23 mm, 10x23 mm, 11x23 mm, 12x23 mm, 13x23 mm, 14x23 mm, 15x23 mm
- 9x 8767 A HF TORX® Cyclops bit nut with 1/4" drive, with holding function: TX 8x28 mm, TX 9x28 mm, TX 10x28 mm, TX 15x28 mm, TX 20x28 mm, TX 25 x 28 mm, TX 27 x 28 mm, TX 30 x 28 mm, TX 40 x 28 mm
- 9x 8740 A HF Cyclops bit nut with 1/4" drive, with holding function for inner hexagonal screws: 3x28 mm, 4x28 mm, 4x100 mm, 5x28 mm, 5x100 mm, 6x28 mm, 6x100 mm, 8x28 mm, 8x100 mm
- 1x 9820 Foam insert 8000 A Cyclops catch 1/4" set 1, without tools 172 x 30 x 392 mm
- 1x 9721 Foam insert 8000 B Cyclops catch 3/8" set 1, 23-piece
- 1 x 8000 B Cyclops speed catch with 3/8" drive 3/8" x 199 mm
- 1x 8794 SB Cyclops extension with fast cable end sleeves, short, 3/8": 3/8" x 125 mm
- 1x 8794 lb Cyclops-extension with fast cable end, long, 3/8": 3/8" x 200 mm
- 1 x 8795 B Cyclops-cardan joint, 3/8" 3/8" x 50 mm
- 1x 8794 B Cyclops-"wobble"-extension, 3/8": 3/8" x 76 mm
- 18x 8790 HMB Cyclops socket insert with 3/8" drive: 6x29 mm, 7x29 mm, 8x29 mm, 9x29 mm, 10x29 mm, 11x29 mm, 12x29 mm, 13x29 mm, 14x29 mm, 15x29 mm, 16x30 mm, 17x17 mm, 18x30 mm, 19x30 mm, 20x30 mm, 21x30 mm, 22x30 mm, 24x32 mm
- 1 x 9821 foam insert 8000 B Cyclops ratchet 3/8" set 1, without tool 172 x 30 x 392 mm
- 1x 9723 Foam insert Cyclops B 3/8" bit set 1, 22 piece
- 1x 8784 B1 Cyclops connector, 3/8" 1/4" x 3/8" x 44 mm
- 10x 8767 B 3/8"-drive TORX® Cyclops bit nut with hold function: TX 15x35 mm, TX 20x35 mm, TX 25x35 mm, TX 25x107 mm, TX 27x35 mm, TX 27x107 mm, TX 30x35 mm, TX 30x107 mm, TX 40x35 mm, TX 40x107 mm
- 11x 8740 B HF Cyclops bit nut with 3/8" drive, with holding function for Allen screws: 4x35 mm, 4x107 mm, 5x35 mm, 5x107 mm, 6x35 mm, 6x107 mm, 7x38.5 mm, 8x38.5 mm, 8x100 mm, 10x38.5 mm, 10 x 100 mm
- 1 x 9823 foam insert Cyclops B 3/8" bit set 1, without tools 172 x 30 x 392 mm
- 1x 9730 foam insert 6000 Joker Set 1, 11-piece
- 11x 6000 Joker ratchet combination wrenches: 8x144 mm, 10x159 mm, 11x165 mm, 12x170.7 mm, 13x177 mm, 14x188 mm, 15x200 mm, 16x212 mm, 17x17 224 mm, 18x235 mm, 19x246 mm
- 1 x 9830 foam insert 6000 Joker Set 1, without tools 172 x 30 x 392 mm
- 1x 9731 foam insert 6003 Joker Set 1, 19-piece
- 18x 6003 open ring spanner: 6x105 mm, 7x110 mm, 8x115 mm, 9x120 mm, 10x125 mm, 11x135 mm, 12x148 mm, 13x160 mm, 14x167 mm, 15x174 mm, 16x182 mm, 17x17 190 mm, 18x210 mm, 19x230 mm, 20x230 mm, 21x260 mm, 22x260 mm, 24x280 mm
- 1x bottle opener 148 mm
- 1 x 9831 foam insert 6003 Joker Set 1, without tools 344 x 30 x 392 mm
- 1x
- 1x
