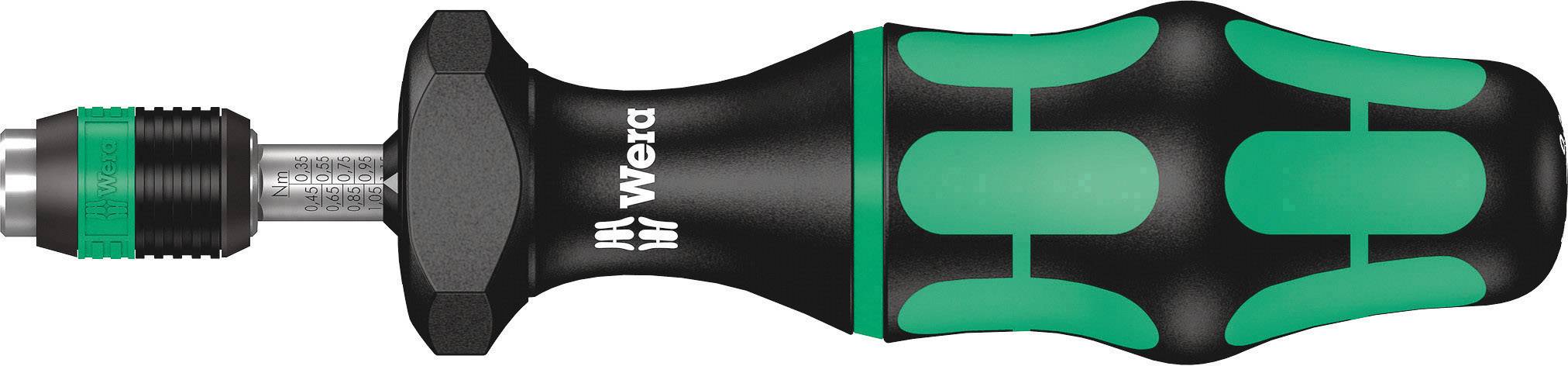

Wera 7430 Torque screwdriver 1-piece 0.10 - 0.34 Nm DIN ISO 1173
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
7400 Series Kraftform adjustable torque screwdriver (0,1-3.0 Nm) with Rapidaptor quick-change chuck, art. no. 7430 x 1/4" x 0,10-0,34 N m
- Adjustable Kraftform torque screwdriver with Rapidaptor quick-change chuck
- For bits with 1/4" hexagon drive
- Rapidaptor technology for lightning-fast bit change
- Trigger signal upon reaching the set value
- Numeric torque value display
Technical specifications
- Product type
Torque screwdriver
- Drive
1/4"
- Torque (min.)
0.10 Nm
- Torque (max.)
0.34 Nm
- Nm graduation
0.015 Nm
- Length
142 mm
- Height
142 mm
- Weight
0.18 kg
- DIN standard
DIN ISO 1173
- Screwdriver features
adjustable
Multi-purpose tool grip
calibrated
Quick-change chuck
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1887458 Wera 7430 Torque screwdriver 1-piece 0.10 - 0.34 Nm DIN ISO 1173
User & Safety Instructions
User & Safety Instructions 1887458 Wera 7430 Torque screwdriver 1-piece 0.10 - 0.34 Nm DIN ISO 1173
Description
Wera torque screwdriver. Variable Torque setting at the highest levels of accuracy. Easy setting of the required torque value without special tools. Good readability of the scale value. With click-signal. Rapidaptor quick-change technology for lightning-fast bit change. Unlimited loosening torque for loosening fixed screws. Multi-component Kraftform handle with hard and soft zone for high working speeds and to protect the palm of the hand. Suitable for bits with 1/4" hexagon head drive to DIN ISO 1173-C 6.3 and E 6.3 (ISO 1173).
This text is machine translated.
