Wera 9558 05136062001 #####Drehmoment-Set 9 x 12 mm 10 - 50 Nm
EAN:
Part number:
Item no:
Number
Total (€ 444.54 / piece)
€ 444.54
plus VAT.
14-day return policy included
Highlights & Details
9558 torque set for pipe cable glands, 10-50 Nm 9558, 5-piece

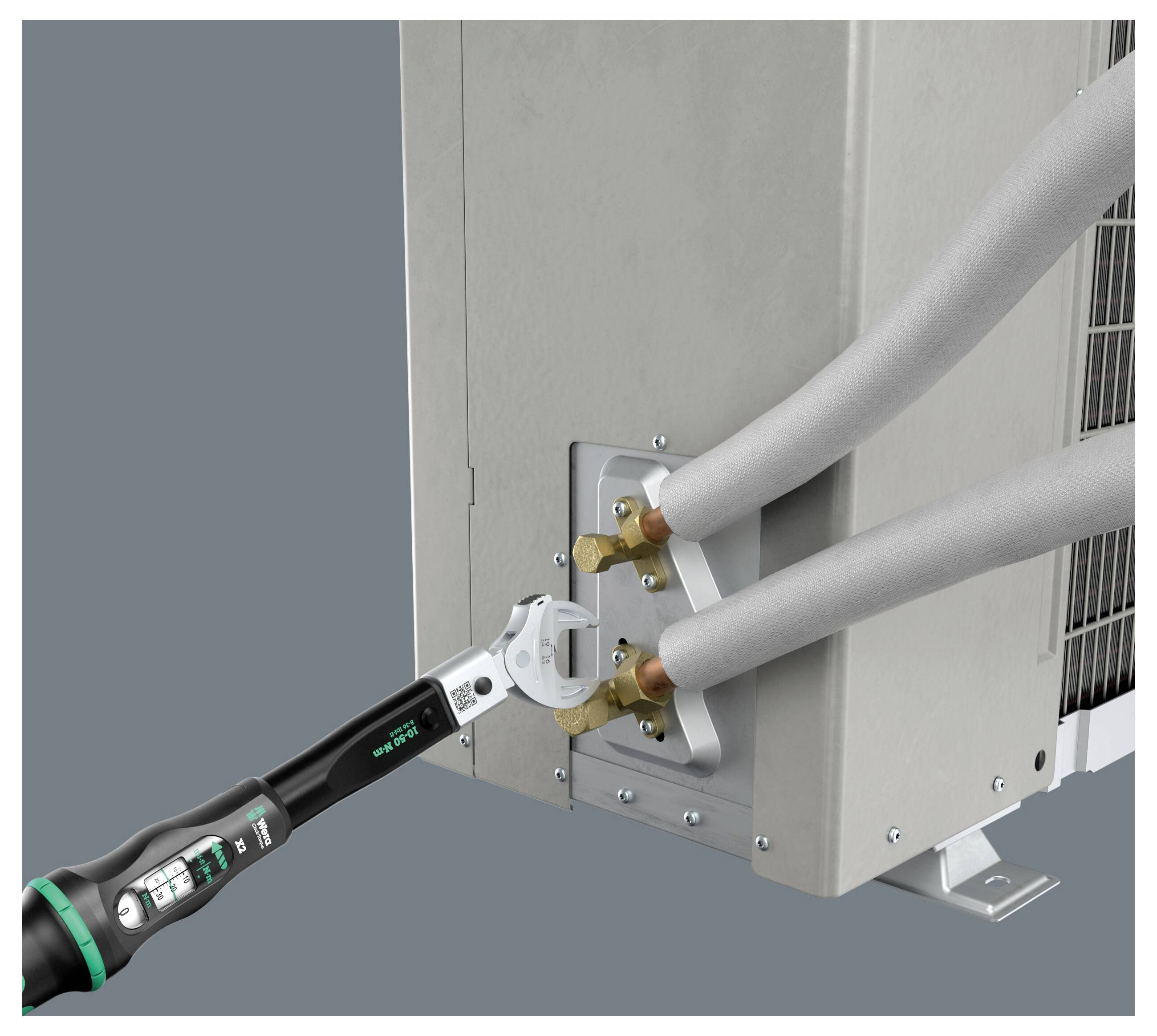

- For specialist and proper tightening of pipe screw connections as per the manufacturer's specifications

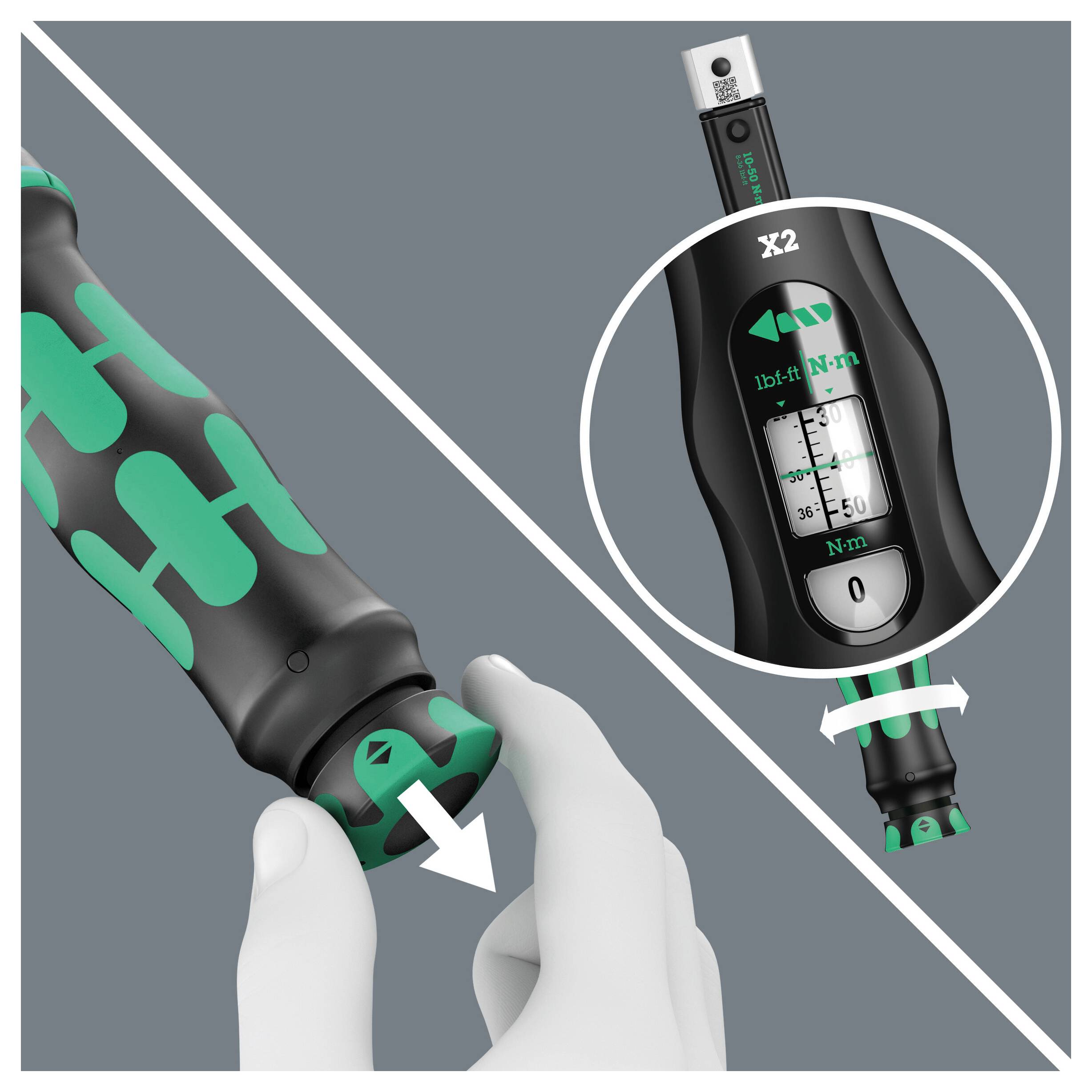

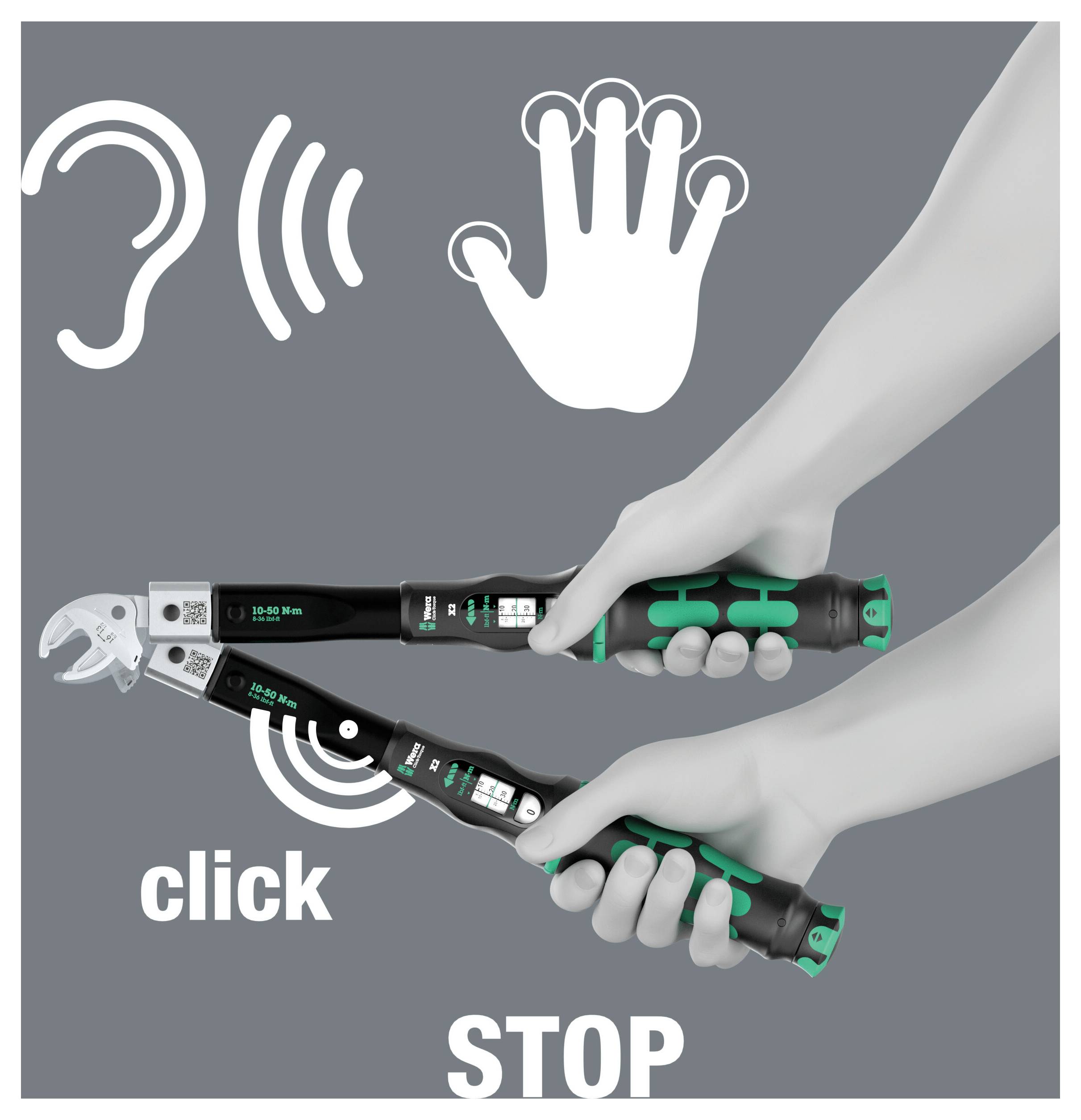

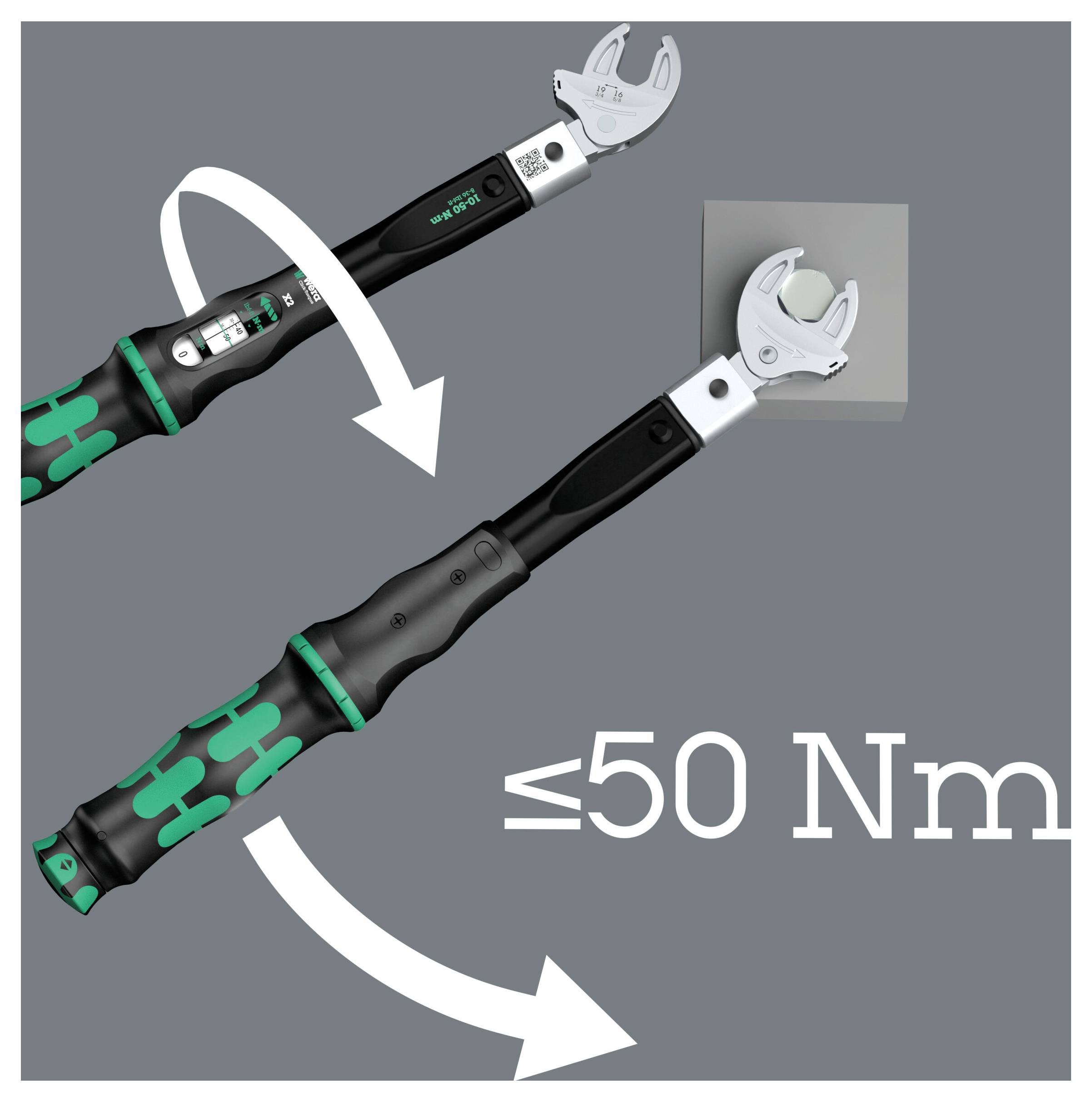

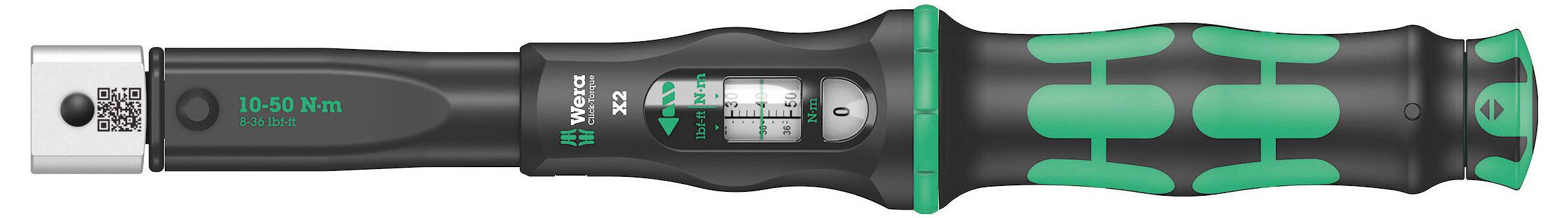

- Adjustable torque wrench Click-Torque X 2, measuring range 10-50 Nm

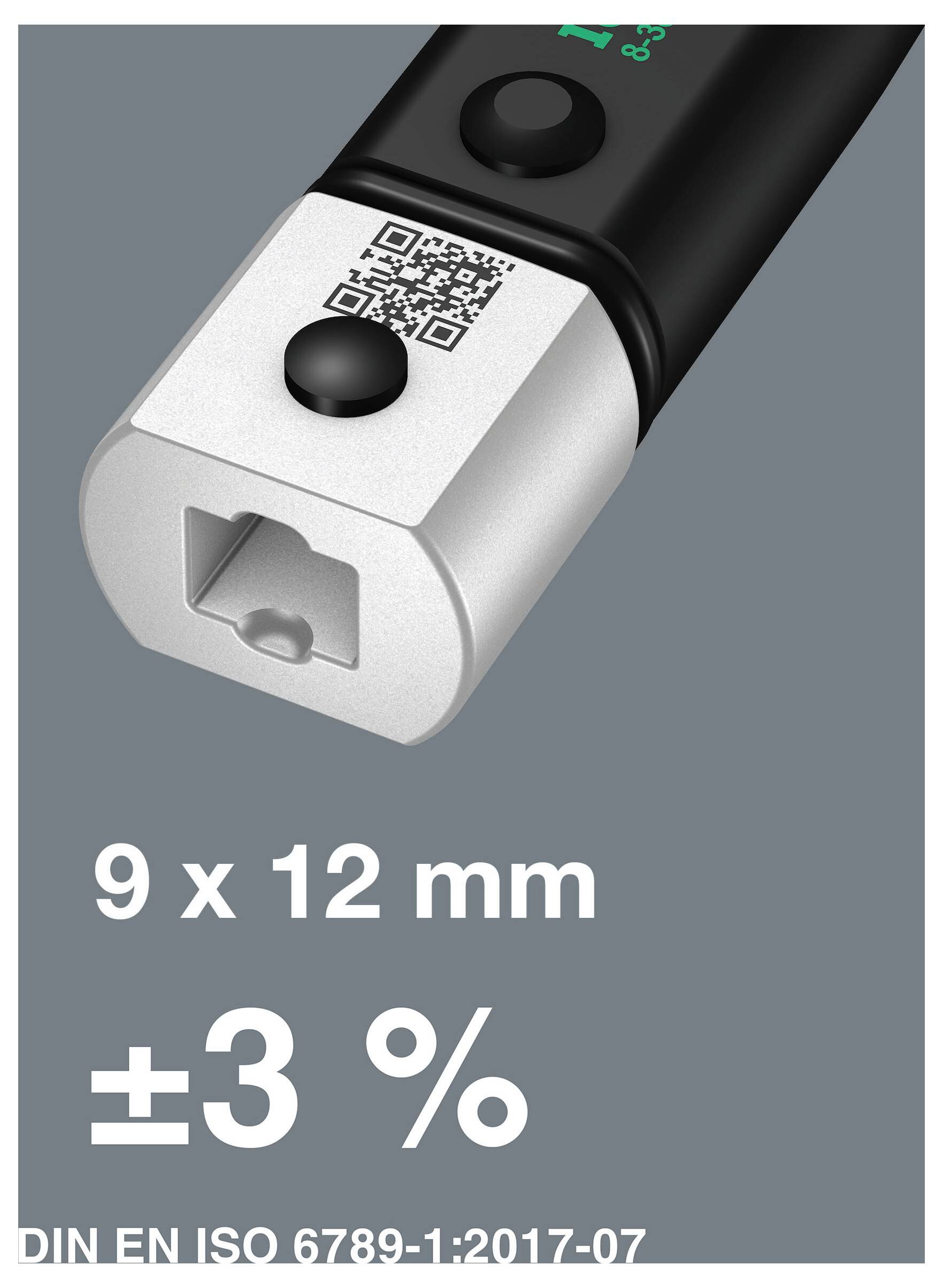

- With insert for changeable 9 x 12 mm plug-in tools
- 3 self-adjusting open-end wrenches (9x12 mm drive) for wrench sizes 10-19 (7/16"-3/4") and all intermediate sizes

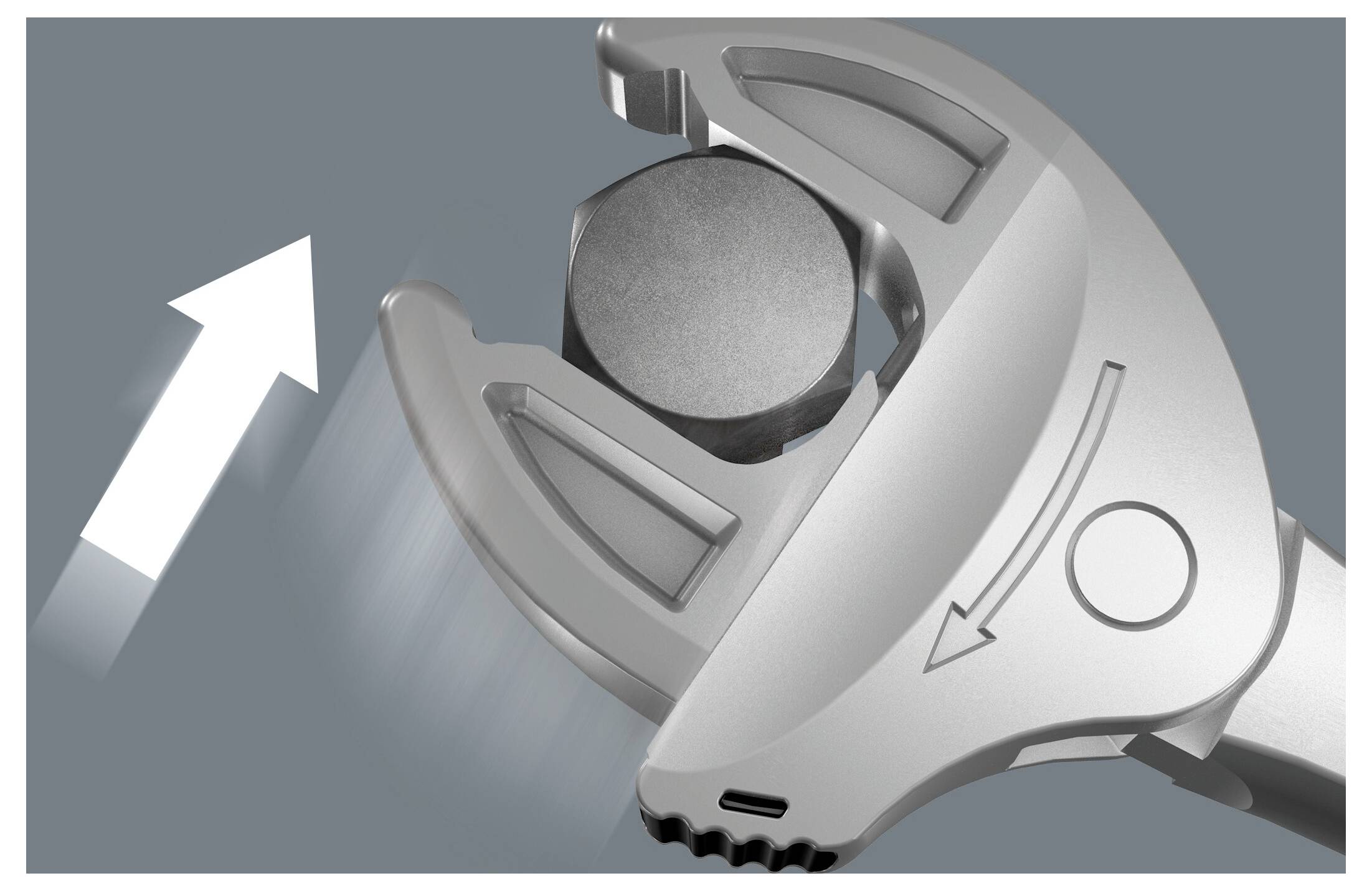

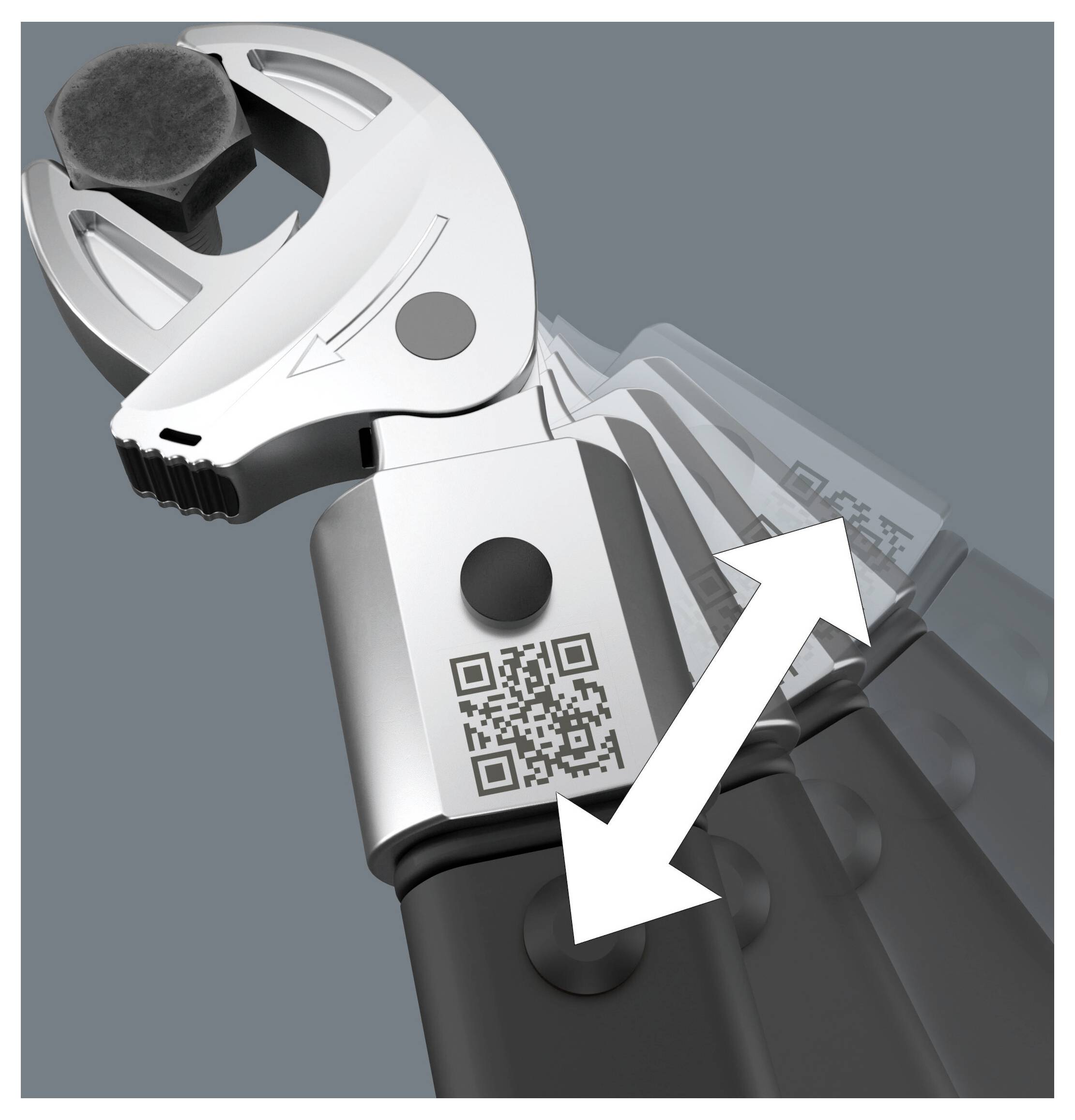

- With mechanical ratchet function for quick and continuous screwing without setting off the key
- Back tilt angle of only 30° by setting in the corner width prisms in the mouth
- 1 switchable plug-in ratchet for 3/8" square socket wrench inserts and 3/8" connecting parts with square drive
- Torque Advisor: Innovative calculation system for torque values for Click-Torque X torque wrench combined with insertion tools
Technical specifications
- Product type
#####Drehmoment-Set
- Downforce
9 x 12 mm
- Torque (min.)
10 Nm
- Torque (max.)
50 Nm
- Trigger accuracy
3 %
- Length
400 mm
- Weight
1.925 g
- Width
125 mm
- Height
80 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3829779 Wera 9558 05136062001 #####Drehmoment-Set 9 x 12 mm 10 - 50 Nm
Description

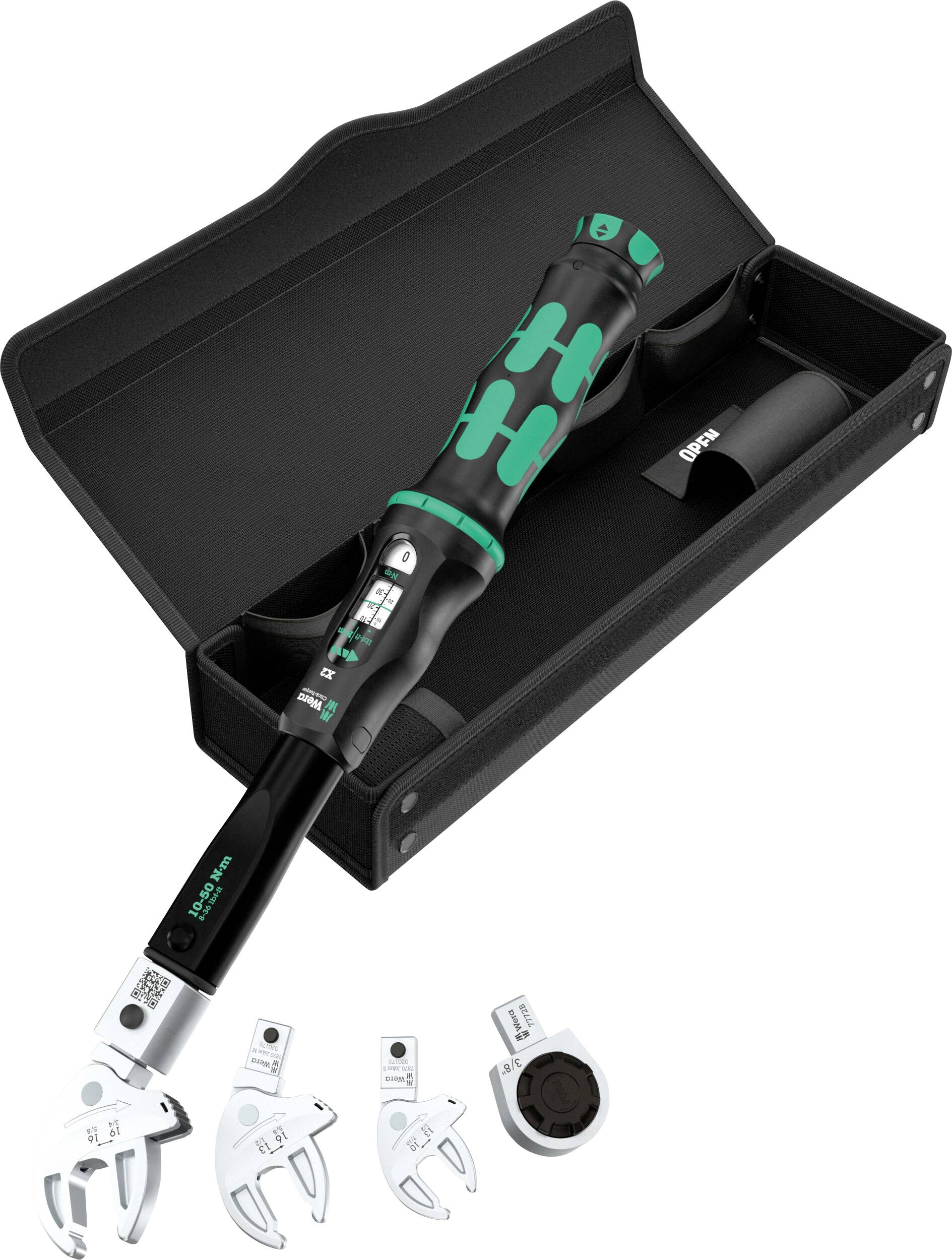

5-piece set for specialist and professional tightening of pipe screw connections. 1 adjustable Click-Torque X 2 torque wrench (10-50 Nm) with 9x12 mm socket for insertion tools. 3 self-adjusting socket wrench (metric 10-19 (inches: 7/16"-3/4") and all intermediate sizes) with mechanical ratchet function for fast and continuous screwing without setting. 1 switchable plug-in ratchet for 3/8" square socket wrench inserts and 3/8" connecting parts with square drive. The abrasion-resistant QR code lasered onto the tools simplifies the determination of the correct torque value depending on the torque wrench and insertion tool used. In robust textile box.
This text is machine translated.
This text is machine translated.
Features

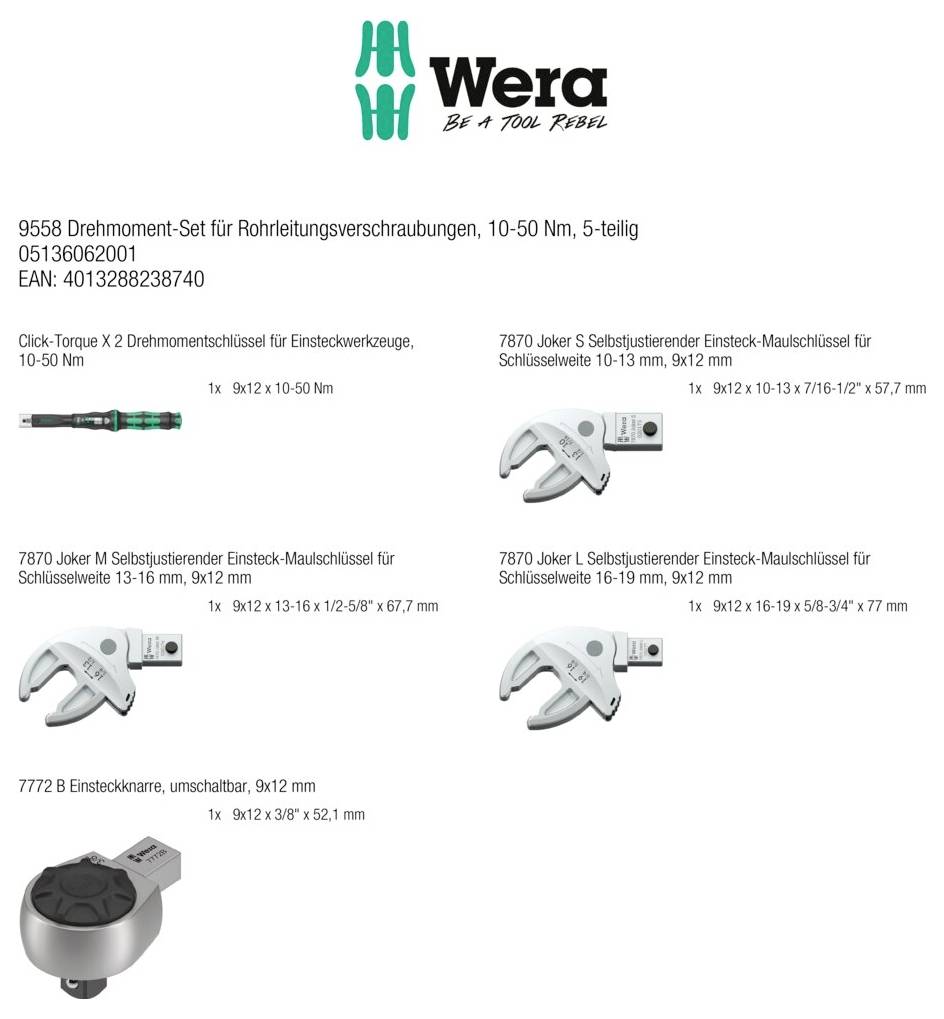

- 9558 torque set for pipe cable glands, 10-50 Nm, 5-piece
- 1x Click-Torque X 2 torque wrench for insertion tools, 10-50 Nm: 9x12 x 10-50 Nm

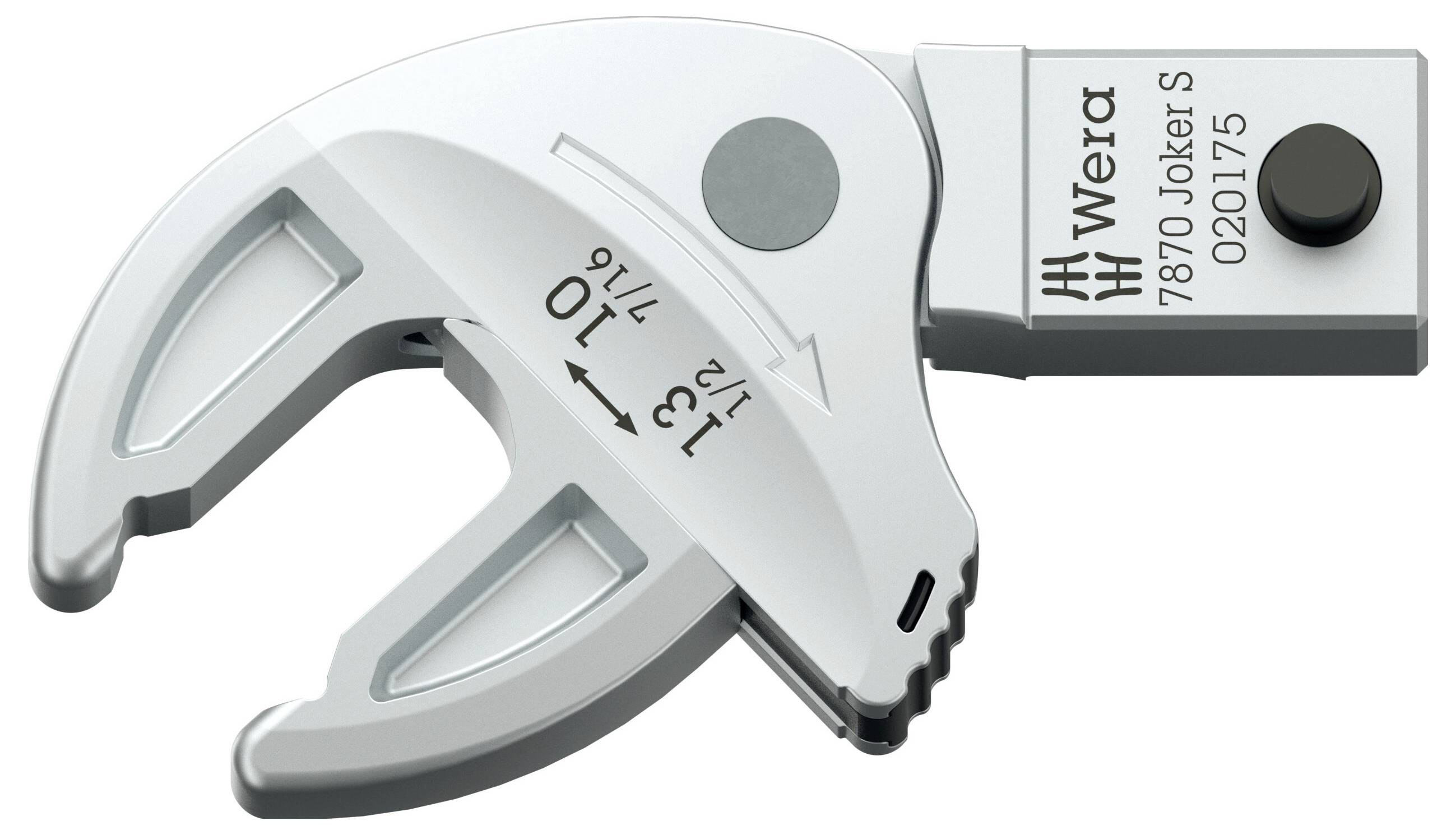

- 1 x 7870 Joker S self-adjusting open-end wrench for width across flats 10-13 mm, 9x12 mm x 10-13 x 7/16-1/2" x 57.7 mm

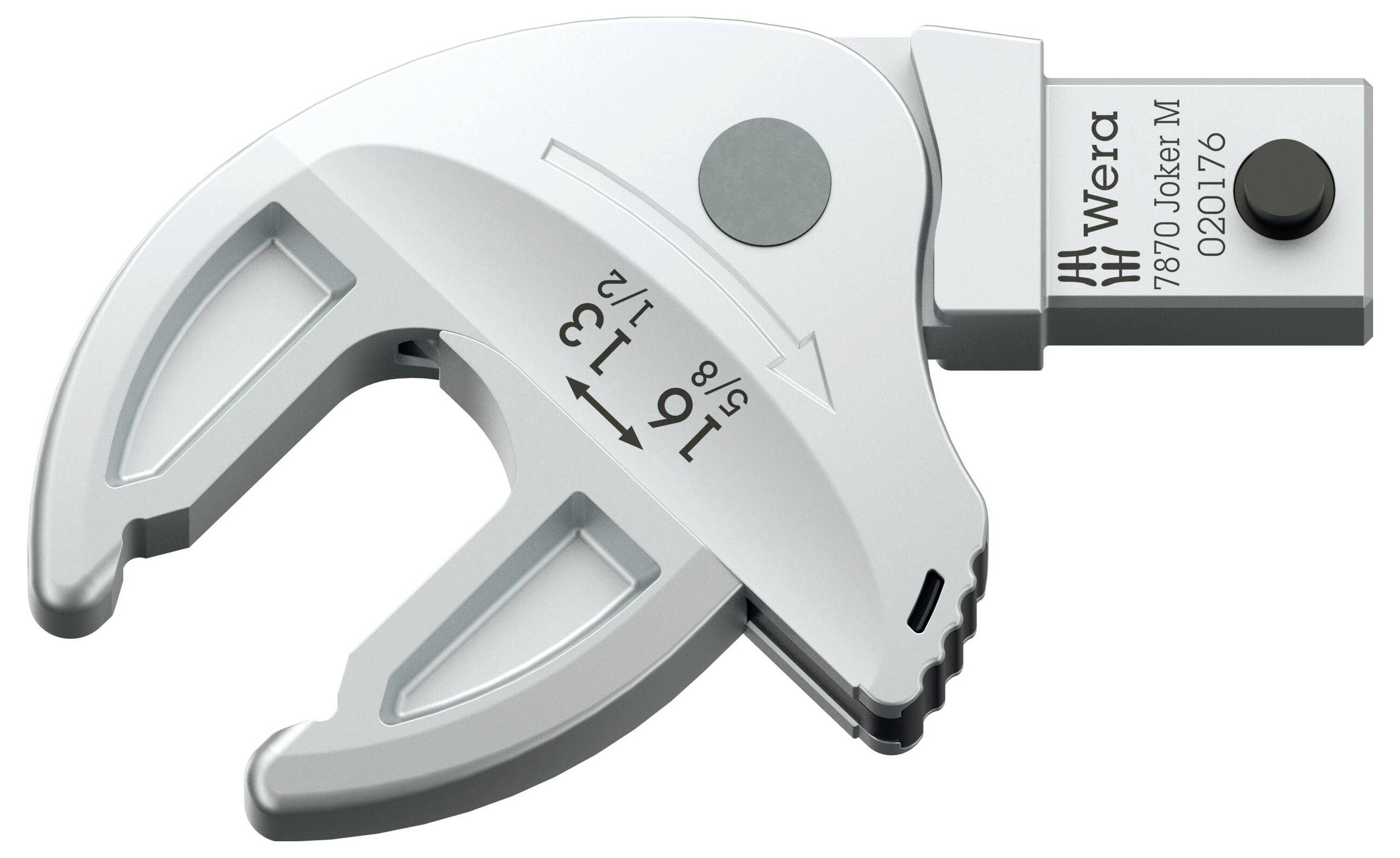

- 1 x 7870 Joker M Self-adjusting open-end wrench for width across flats 13-16 mm, 9x12 mm x 13-16 x 1/2-5/8" x 67.7 mm

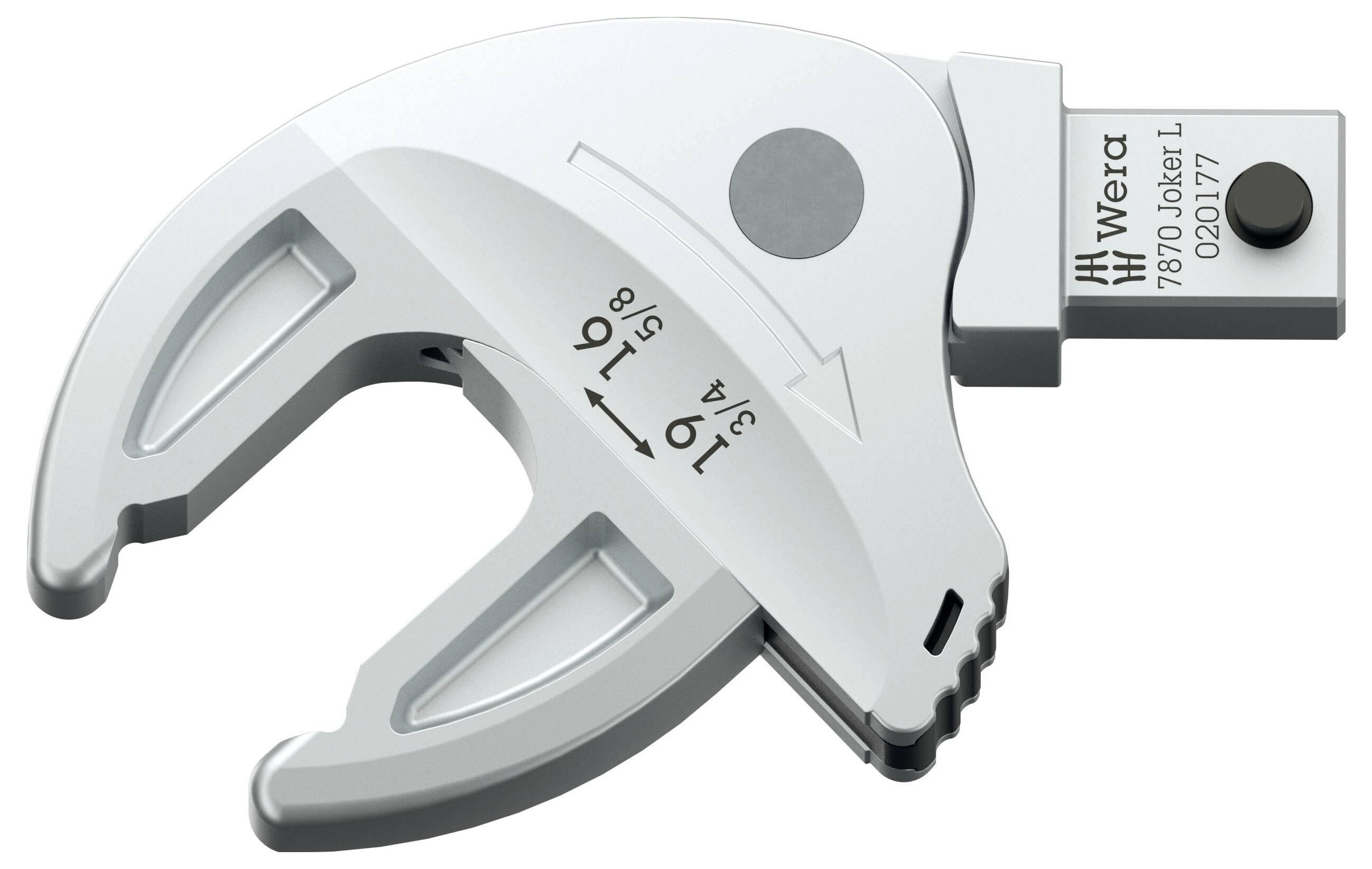

- 1 x 7870 Joker L Self-adjusting open-end wrench for width across flats 16-19 mm, 9 x 12 mm x 16-19 x 5/8-3/4" x 77 mm
- 1x 7772 B Ratchet, reversible, 9x12 mm:9x12 x 3/8" x 52.1 mm
Scope of delivery
- 9558 torque set for pipe cable glands, 10-50 Nm, 5-piece
