Buy Wera Click-Torque 05136076001 Torque wrench set Slipping 14 x 18 mm socket square 10 - 100 Nm

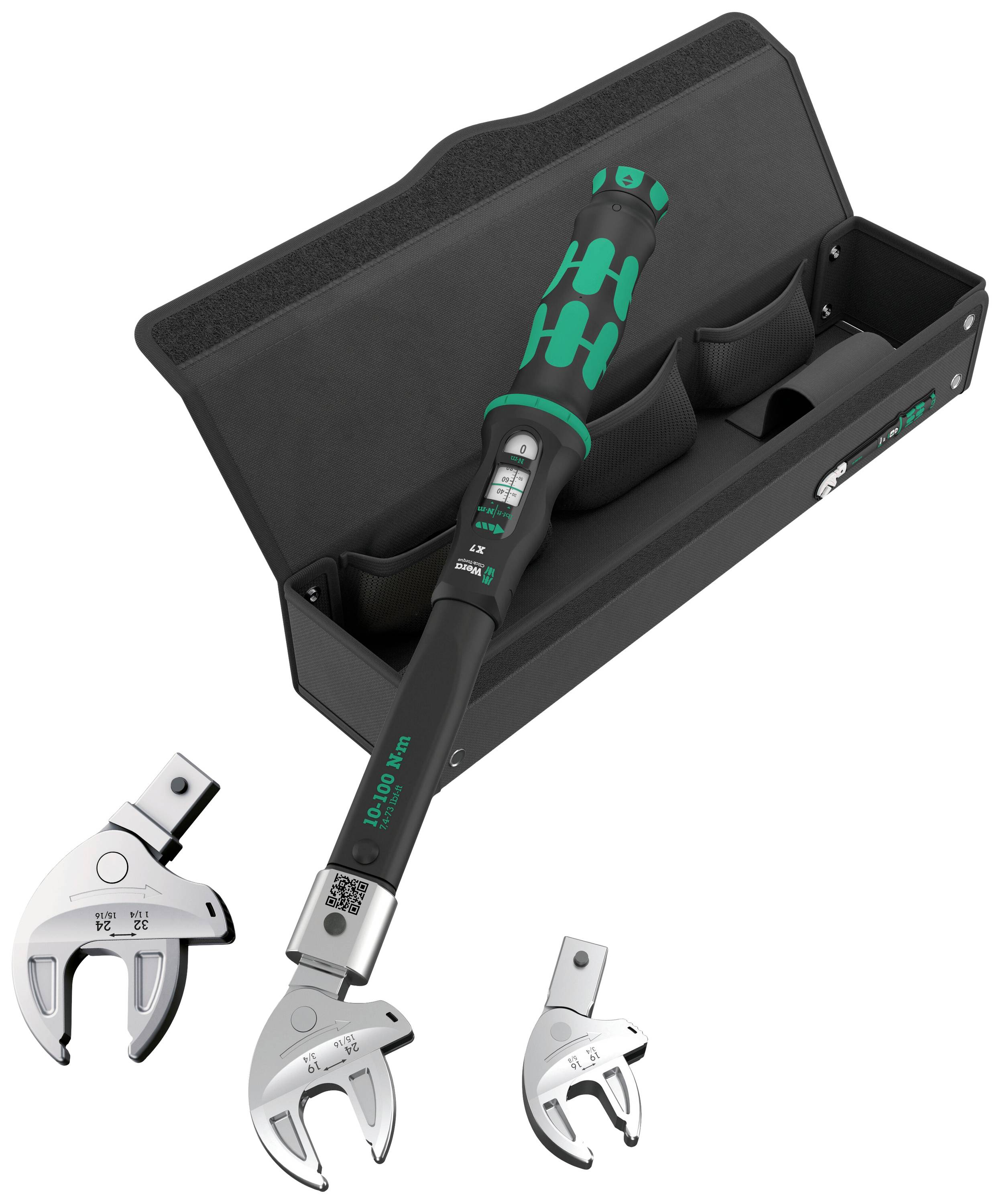

Torque wrench set with green and black handle in hard plastic case. Includes four removable heads for various screw sizes.

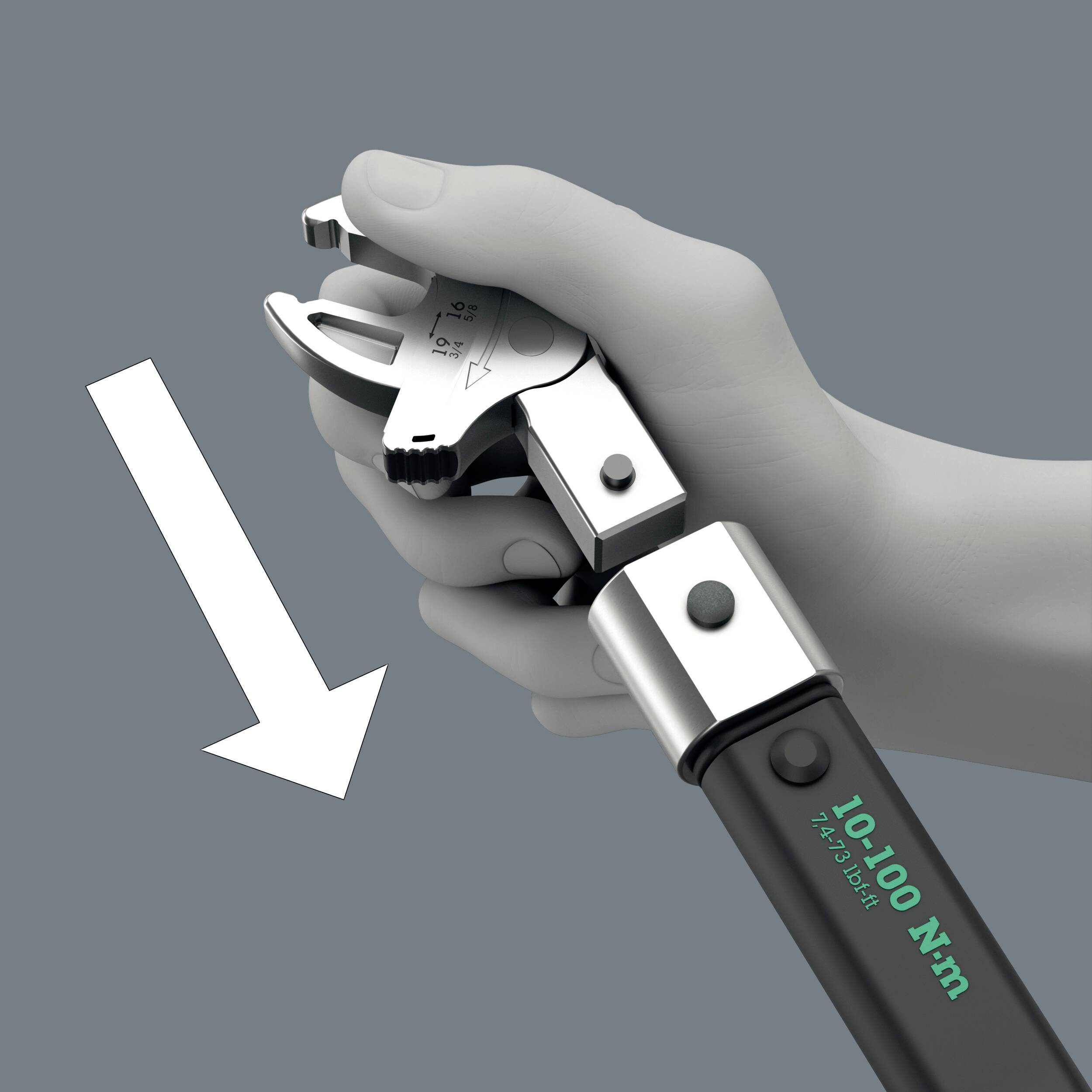

A hand holds a torque wrench, displaying a setting of 10-100 Nm, with a white arrow indicating direction.

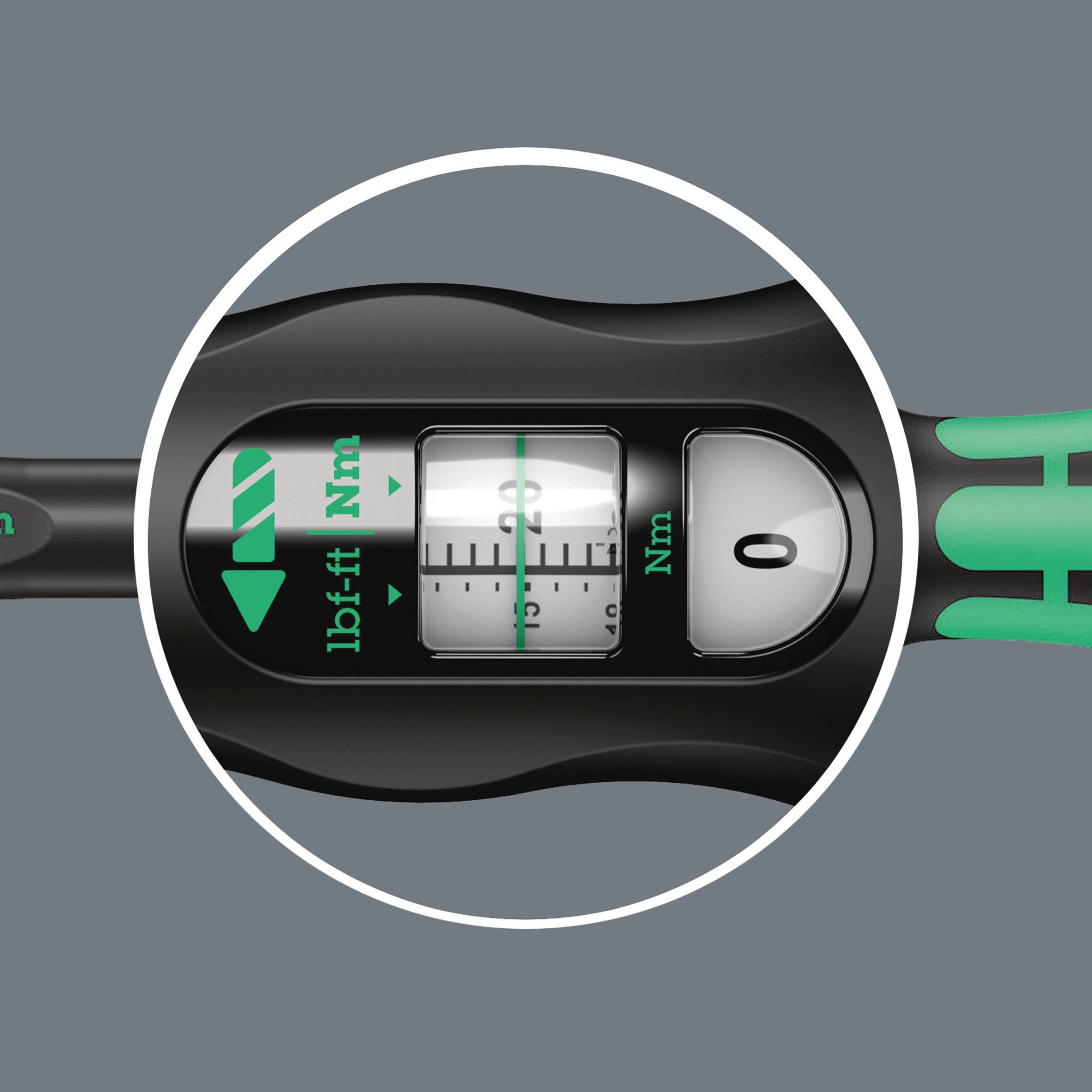

Torque wrench with scale, showing 0 Nm. Used for precise torque adjustment during mechanical work.

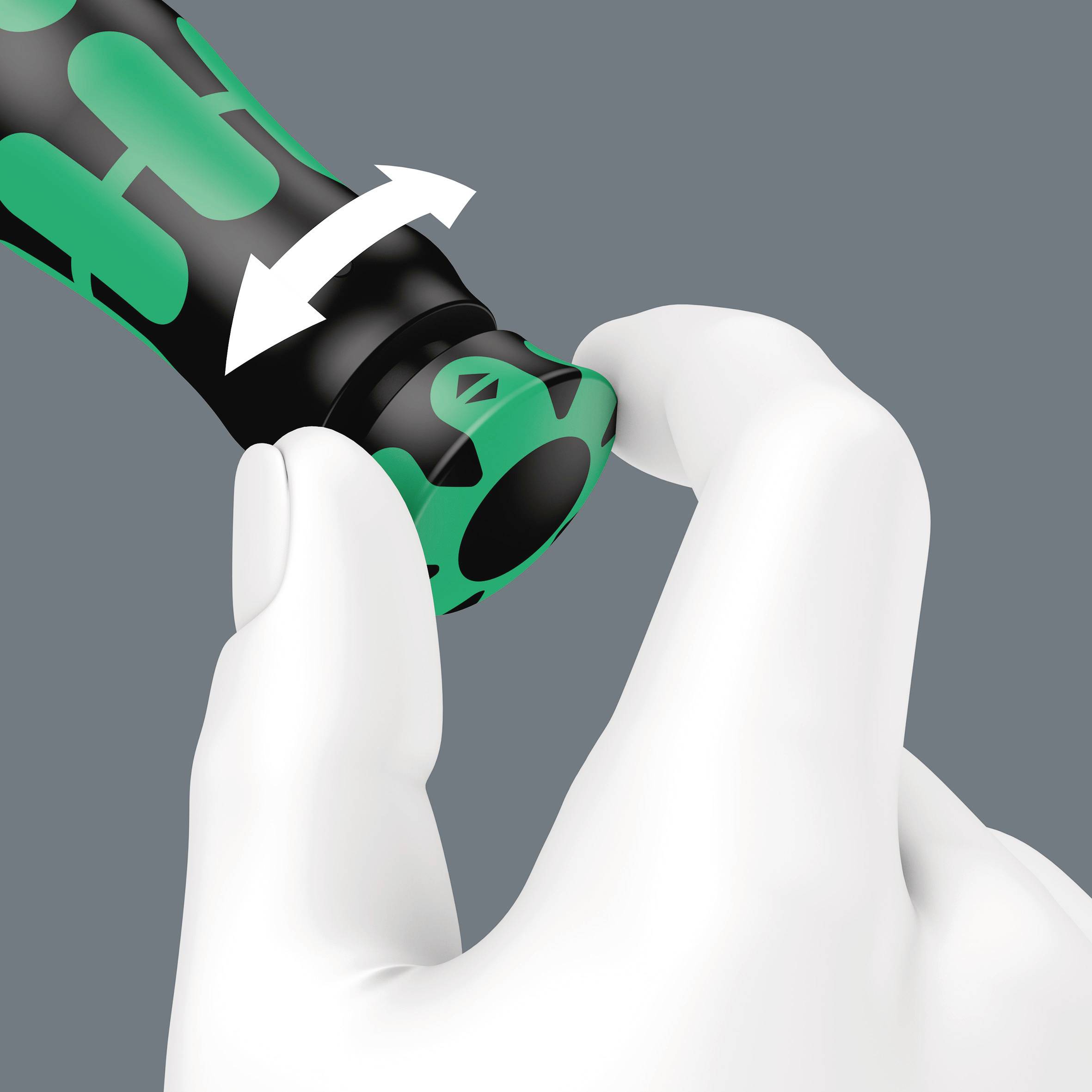

A hand turns a black and green handle to the right. An arrow indicates the direction of rotation.

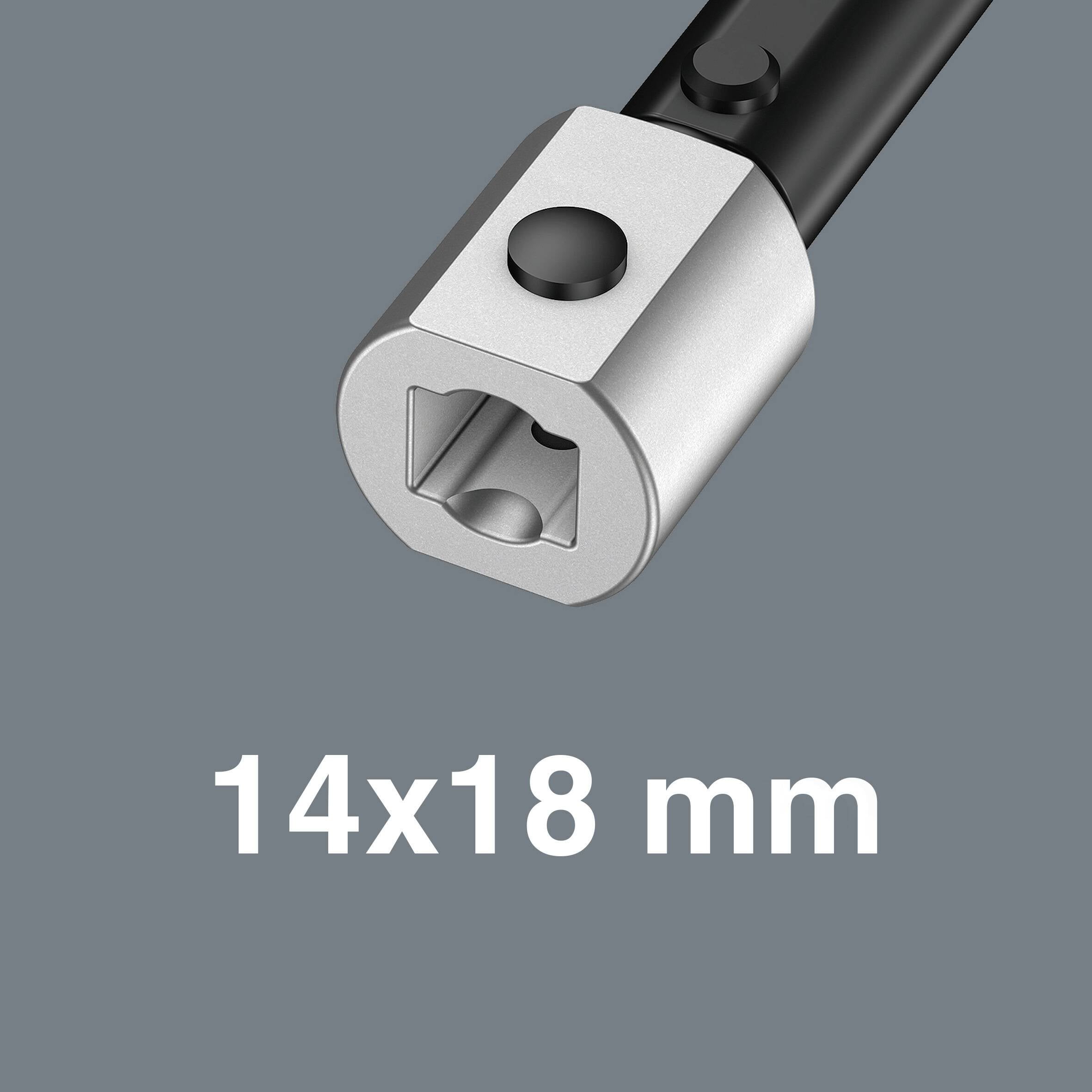

Metal adapter with a square hole, likely for tool use, indicated dimensions: '14x18 mm'.

Wera Click-Torque 05136076001 Torque wrench set Slipping 14 x 18 mm socket square 10 - 100 Nm-5

Wera Click-Torque 05136076001 Torque wrench set Slipping 14 x 18 mm socket square 10 - 100 Nm-6

Wera Click-Torque 05136076001 Torque wrench set Slipping 14 x 18 mm socket square 10 - 100 Nm-7

Wera Click-Torque 05136076001 Torque wrench set Slipping 14 x 18 mm socket square 10 - 100 Nm-8

Wera Click-Torque 05136076001 Torque wrench set Slipping 14 x 18 mm socket square 10 - 100 Nm-9

1/10

Datasheet (PDF)

Unavailable

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Torque wrench set

Features: Slipping

Downforce: 14 x 18 mm socket square

Torque (min.): 10 Nm

Torque (max.): 100 Nm

Trigger accuracy: 4 %

DIN standard: DIN EN ISO 6789

Documents & Downloads

Datasheet

Datasheet 3125040 Wera Click-Torque 05136076001 Torque wrench set Slipping 14 x 18 mm socket square 10 - 100 Nm

User & Safety Instructions

User & Safety Instructions 3125040 Wera Click-Torque 05136076001 Torque wrench set Slipping 14 x 18 mm socket square 10 - 100 Nm

Description

4-part Click-Torque Wrench set with three self-adjusting Joker push-in spanner. For proper tightening of screw connections in the installation and repair of refrigeration, air conditioning and heat pumps. Click torque wrench in a distinctive Wera design. Very robust design with high accuracy in accordance with DIN EN ISO 6789-1:2017-07. Simple setting and saving of default value. The audible and perceptible latching upon reaching the scale values also facilitates the safe setting of the desired torque value. The robust triggering mechanism guarantees a clearly audible and tangible triggering signal when the set torque is reached. For right and left-handed tightening and with square 14x18 mm for accepting corresponding insertion tools. The three self-adjusting open-end wrenches 7880 replace several fork-spanner sizes with the continuously variable and parallel guided jaws. The required size is infinitely adjustable by itself when you place it on the hexagonal nut or screw. The ratchet function is provided for fast and continuous screwing without setting. By using the corner width prisms, a return angle of traverse of only 30° is possible.

This text is machine translated.
