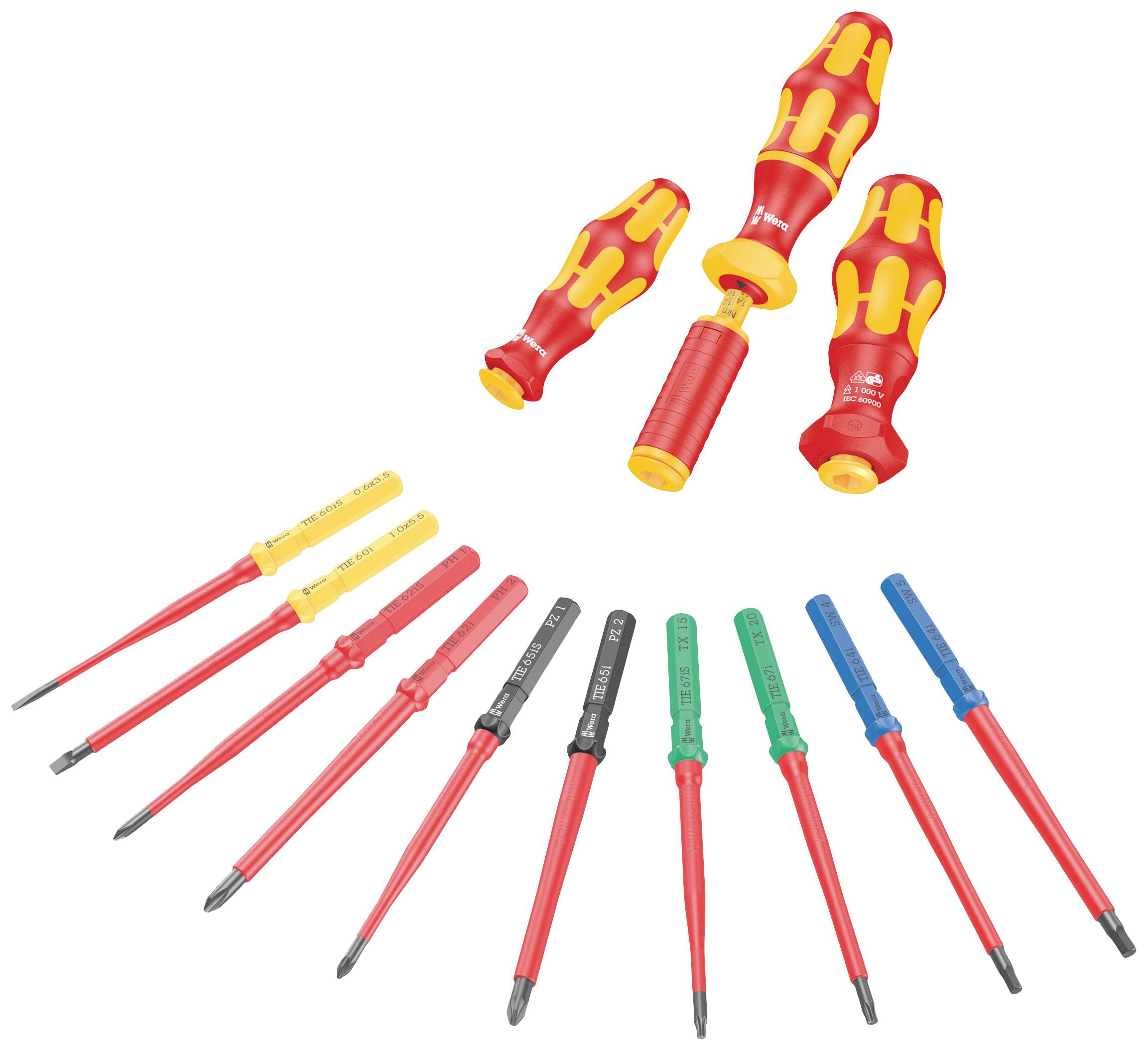

A set of screwdrivers with different heads and handles, primarily in red and yellow, for various screw types.

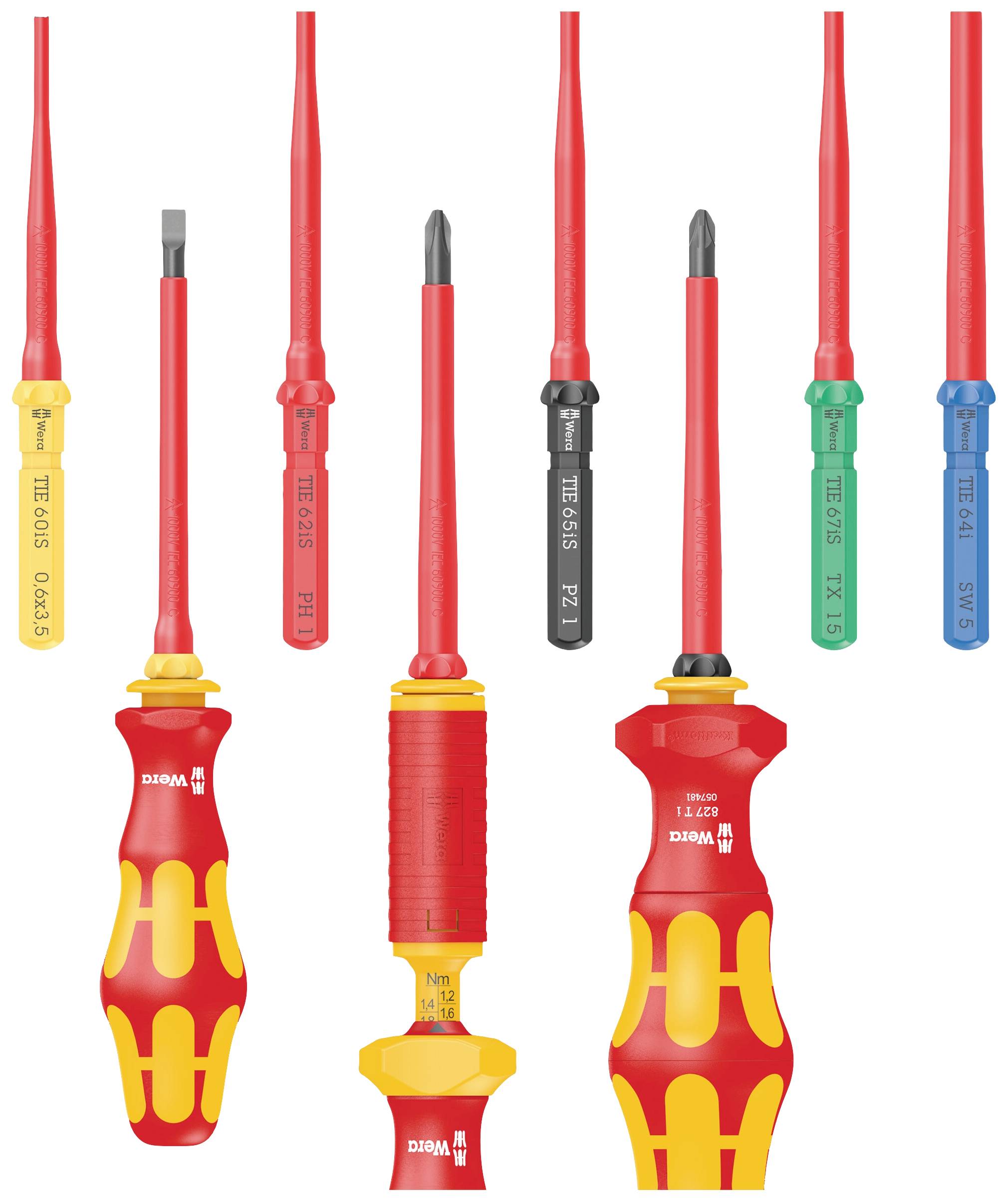

'Set of coloured screwdriver blades and handles. Various blade shapes and sizes, with each blade marked in its holder.'

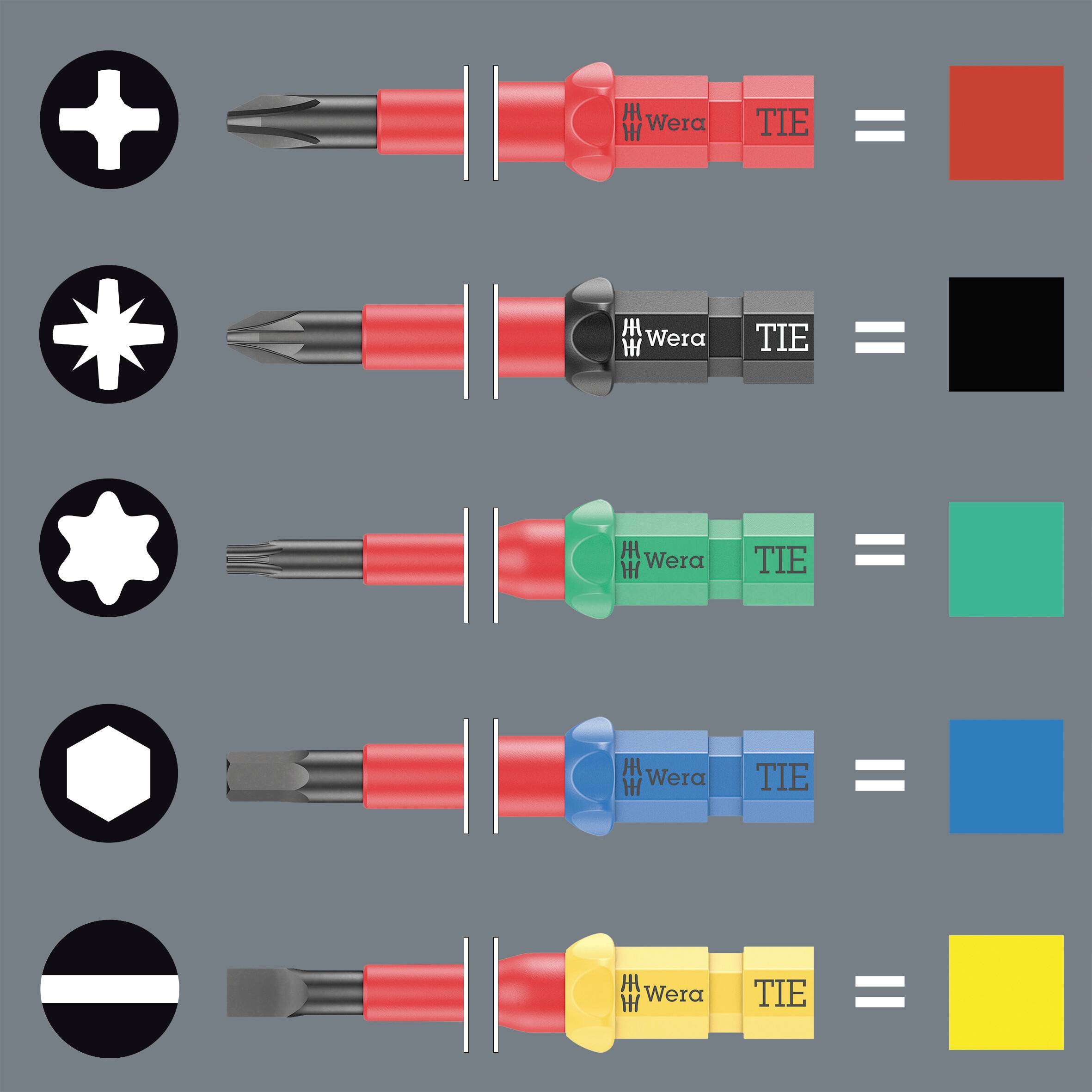

Various screwdriver bits, sorted by shape: Phillips (red), Torx (black), Allen key (green), Hexagon (blue), Flathead (yellow).

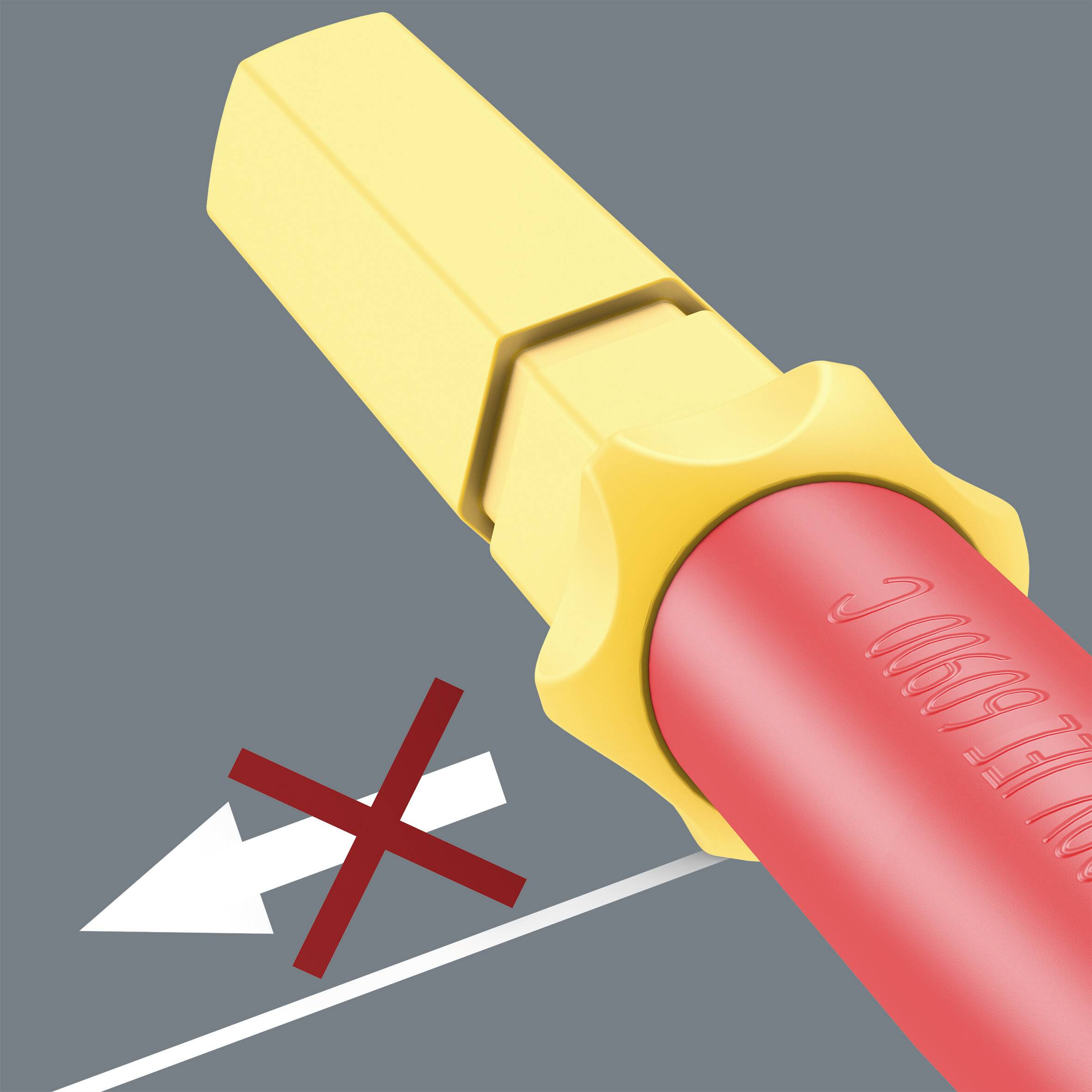

Yellow hose placement in a corner with a red 'X' beside it, indicates not usable in a specific area or context.

A hand is holding a yellow screwdriver with a red handle.

A stylised tool on a black background with the text 'TAKE IT EASY TOOL FINDER'.

1/8

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Kraftform compact VDE 60 i Take it easy, 0.6 x 3.5 x 157 mm

VDE Interchangeable blade for flat-tip screws 0.6X3.5X157

Technical specifications

Product type: Interchangeable bit

Range of use: Electrician

Downforce: Slot

Size: 3.5 mm

Blade width: 3.5 mm

Blade thickness: 0.6 mm

Spanner size: 9 mm

Blade length: 157 mm

Length: 157 mm

Material properties: anti-corrosive

Height: 12 mm

Width: 12 mm

Weight: 15 g

Screwdriver features: insulated

Dim: (L x W x H) 157 x 12 x 12 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3165477 Wera Kraftform Kompakt VDE 60 i 0,6 x 3,5 x 157 mm TIE Electrician Slot Interchangeable bit 3.5 mm 3.5 mm 9 mm 157 mm

User & Safety Instructions

User & Safety Instructions 3165477 Wera Kraftform Kompakt VDE 60 i 0,6 x 3,5 x 157 mm TIE Electrician Slot Interchangeable bit 3.5 mm 3.5 mm 9 mm 157 mm

Description

VDE blade for power form Compact handle / replacement blade system for lightning fast replacement of the blade without special tool. Tested tools according to IEC 60900 Routine test at 10,000 V for safe working at the approved voltage of 1,000 V. With rolling protection and tool finder Take it easy: Colour labeling according to profiles as well as lasered size specification.

This text is machine translated.

Features

Kraftform compact VDE Interchangeable blade for slotted screws
Insulated, piece-tested according to IEC 60900
9 mm hexagonal drive with guide edge
Conical cutting
The Wera black point tip offers form-fitting accuracy and optimized corrosion protection
