Buy Wera Kraftform Kompakt VDE 60 i 1,2 x 6,5 x 157 mm TIE Electrician Slot Interchangeable bit 6.5 mm 157 mm

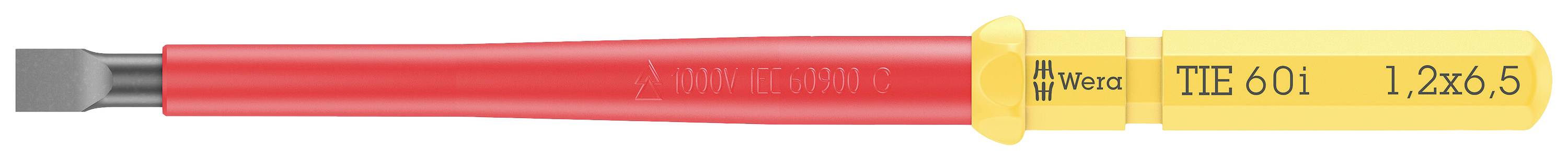

Flat, insulated screwdriver with a red handle and yellow tip, marked with 'TIE 601 1.2x6.5', suitable for electrical work.

Measuring device with a display ranging from 0 to 12 kV. The pointer is positioned at 9 kV. Two connection buttons on the right.

A set of isolated screwdrivers and bits in various colours and sizes, predominantly in red and yellow.

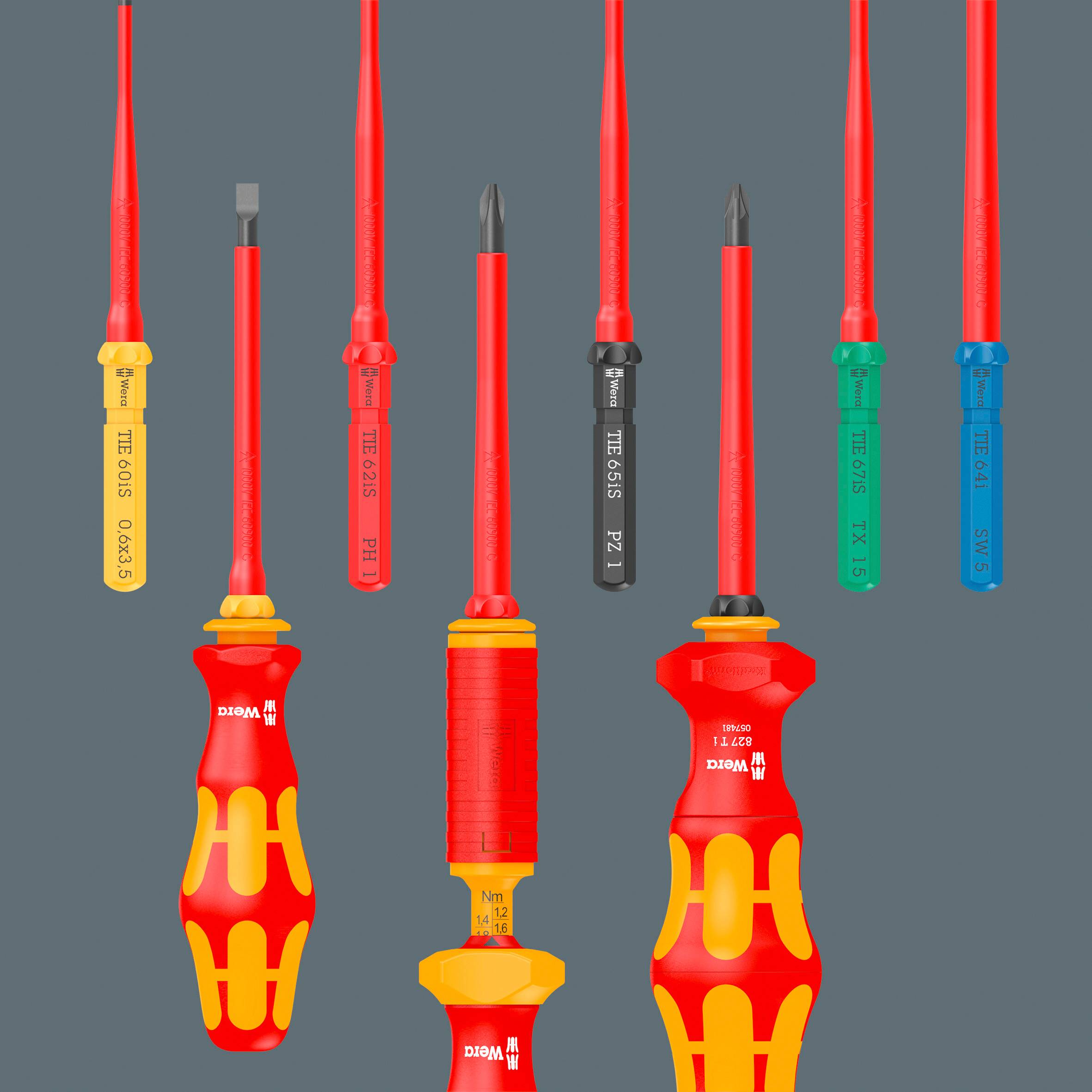

A selection of screwdrivers in various colours and sizes, with different blade shapes and types.

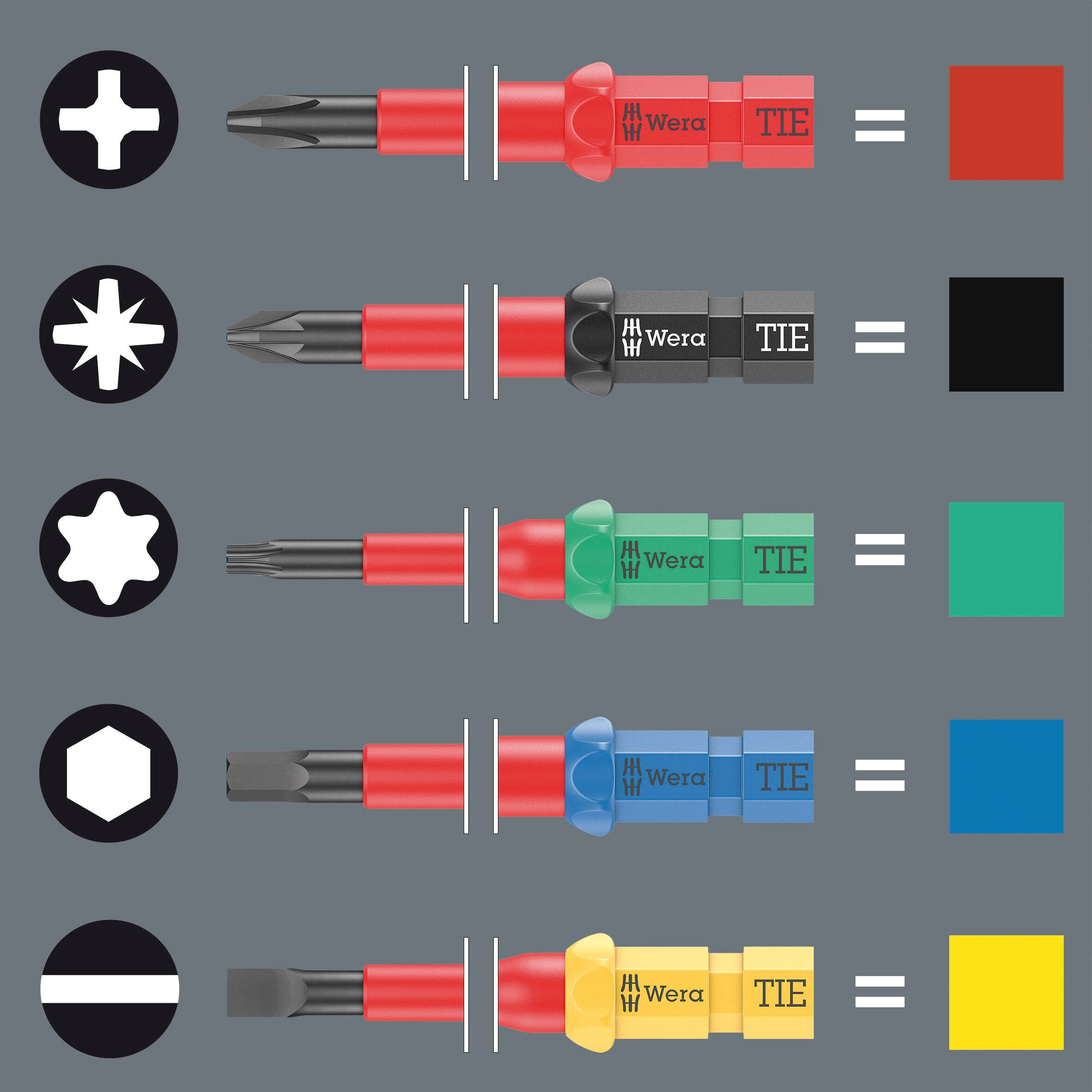

Different screw head types with matching screwdriver bits and colour-coded markers: Phillips head, Torx, hex head.

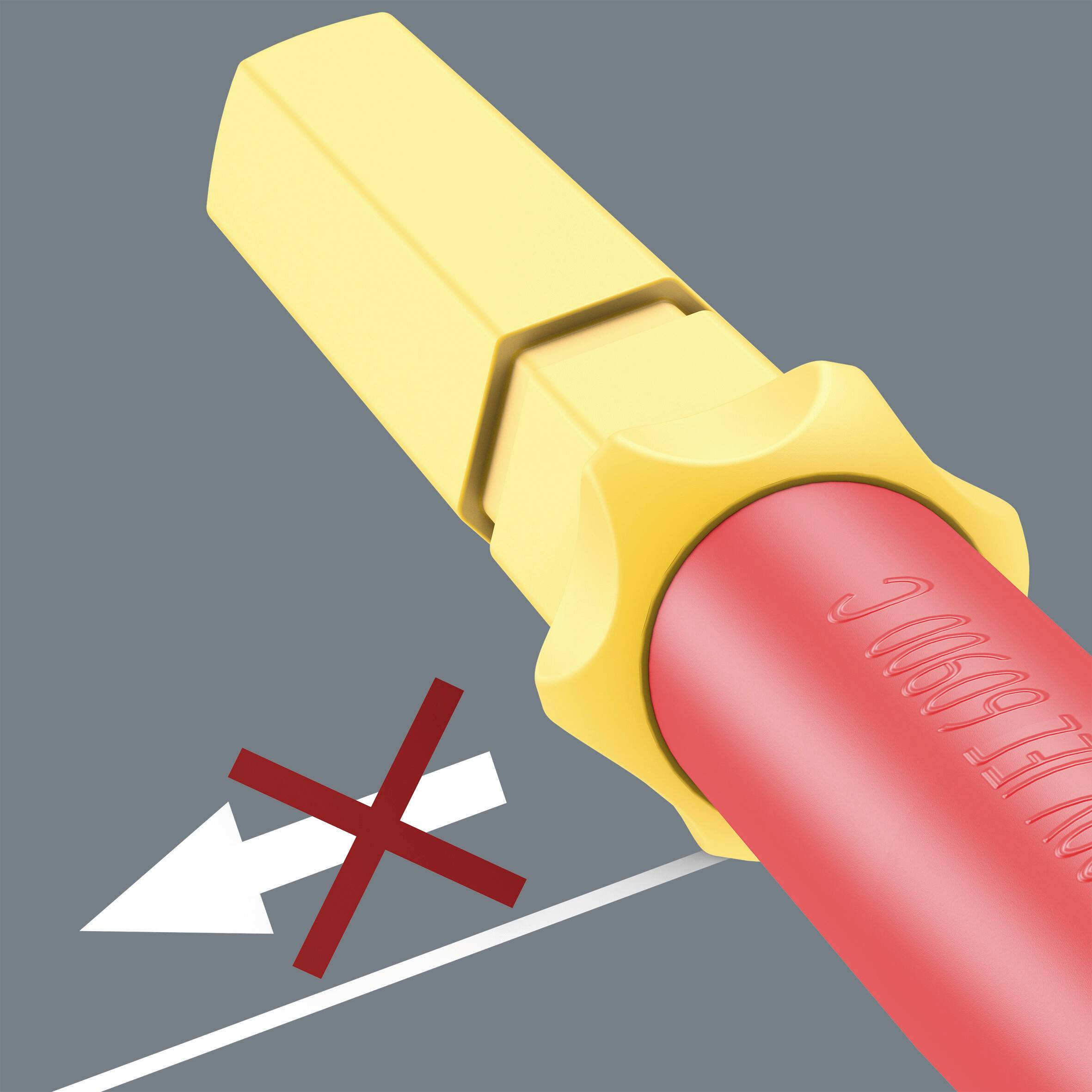

A yellow product is not moved to the left, symbolised by a red arrow with a cross, which reads 'DO NOT REMOVE'.

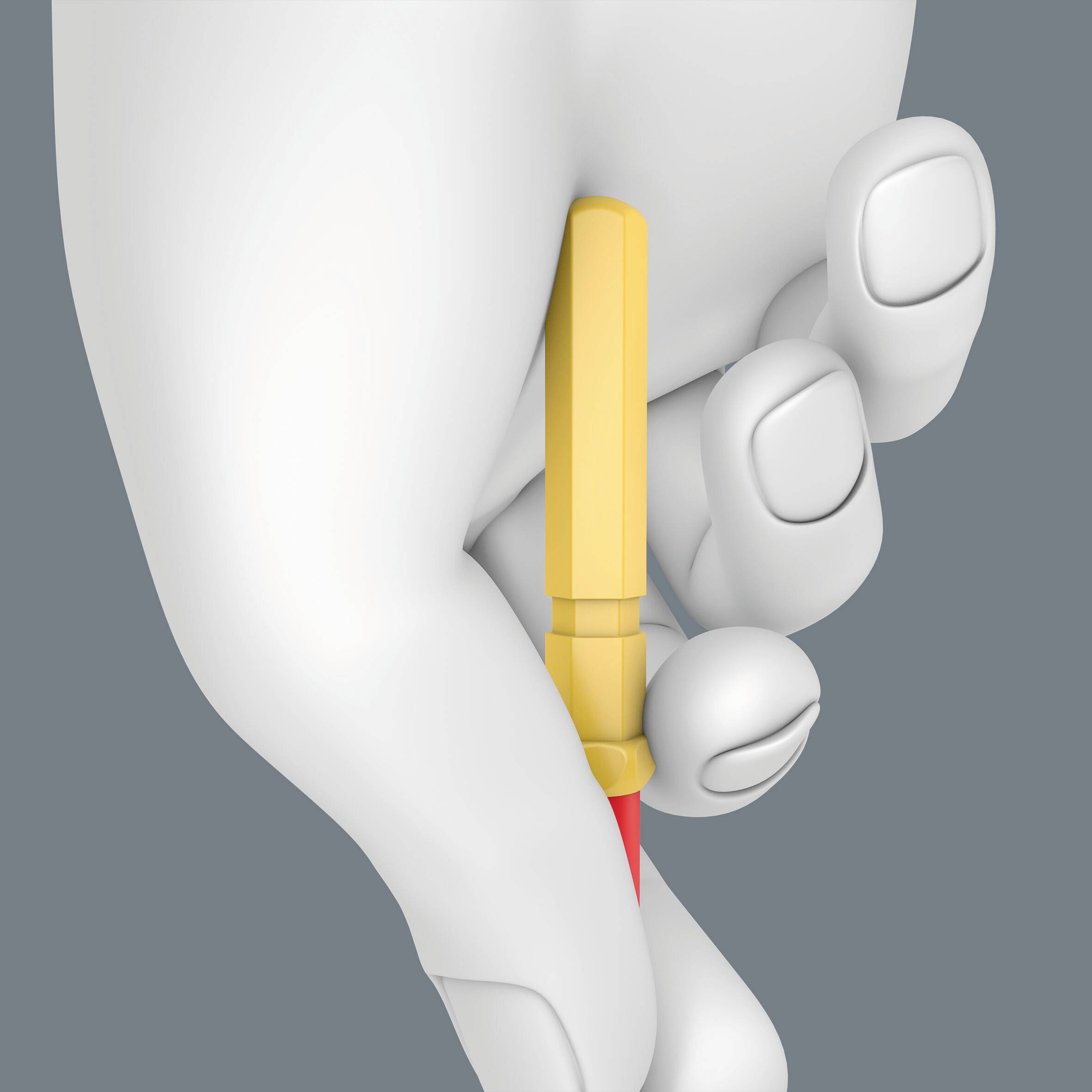

A white hand is holding a yellow screwdriver with a red handle. The background is grey.

'VDE Tool' marking with VDE, GS mark and '1000 V C', indicates tested electrical equipment with safety standards up to 1000 volts.

'Take it easy Tool Finder' appears beneath a schematic representation of a tool, likely an attachment or screwdriver.

1/9

Datasheet (PDF)

Unavailable

31 Piece(s)

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Kraftform compact VDE 60 i Take it easy, 1.2 x 6.5 x 157 mm

VDE Interchangeable blade for flat-tip screws 1.2x6.5x157

Technical specifications

Product type: Interchangeable bit

Range of use: Electrician

Downforce: Slot

Blade width: 6.5 mm

Blade thickness: 1.2 mm

Blade length: 157 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3165480 Wera Kraftform Kompakt VDE 60 i 1,2 x 6,5 x 157 mm TIE Electrician Slot Interchangeable bit 6.5 mm 157 mm

User & Safety Instructions

User & Safety Instructions 3165480 Wera Kraftform Kompakt VDE 60 i 1,2 x 6,5 x 157 mm TIE Electrician Slot Interchangeable bit 6.5 mm 157 mm

Description

VDE blade for power form Compact handle / replacement blade system for lightning fast replacement of the blade without special tool. Tested tools according to IEC 60900 Routine test at 10,000 V for safe working at the approved voltage of 1,000 V. With rolling protection and tool finder Take it easy: Colour labeling according to profiles as well as lasered size specification.

This text is machine translated.

Features

Kraftform compact VDE Interchangeable blade for slotted screws
Insulated, piece-tested according to IEC 60900
9 mm hexagonal drive with guide edge
Conical cutting
The Wera black point tip offers form-fitting accuracy and optimized corrosion protection
