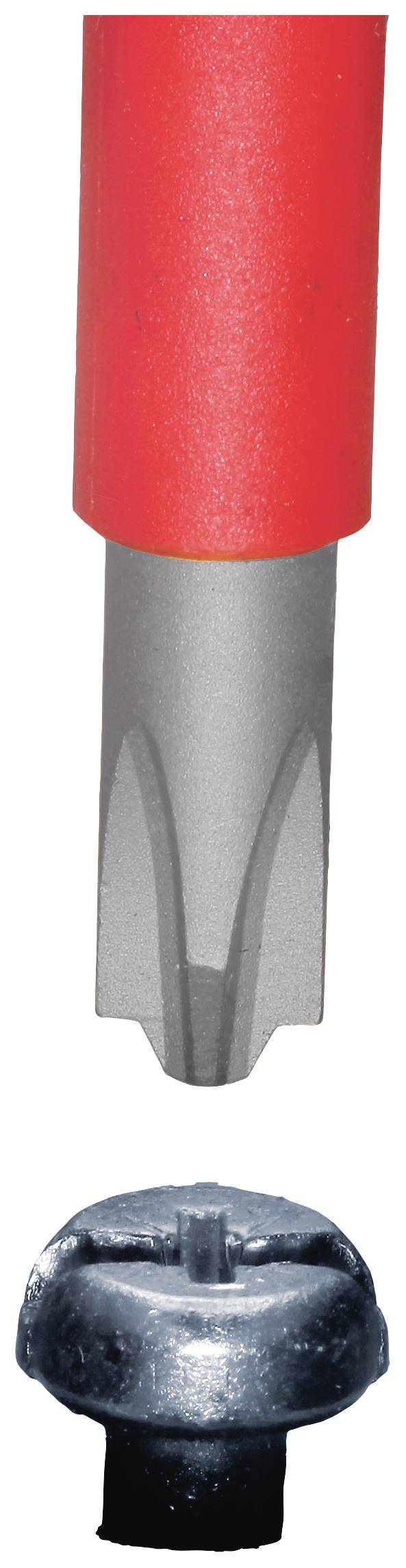

A red Torx-head screwdriver and a matching screw.

An analogue voltmeter indicates a voltage of 9 kV. The device is blue and has several grey buttons and switches on the side.

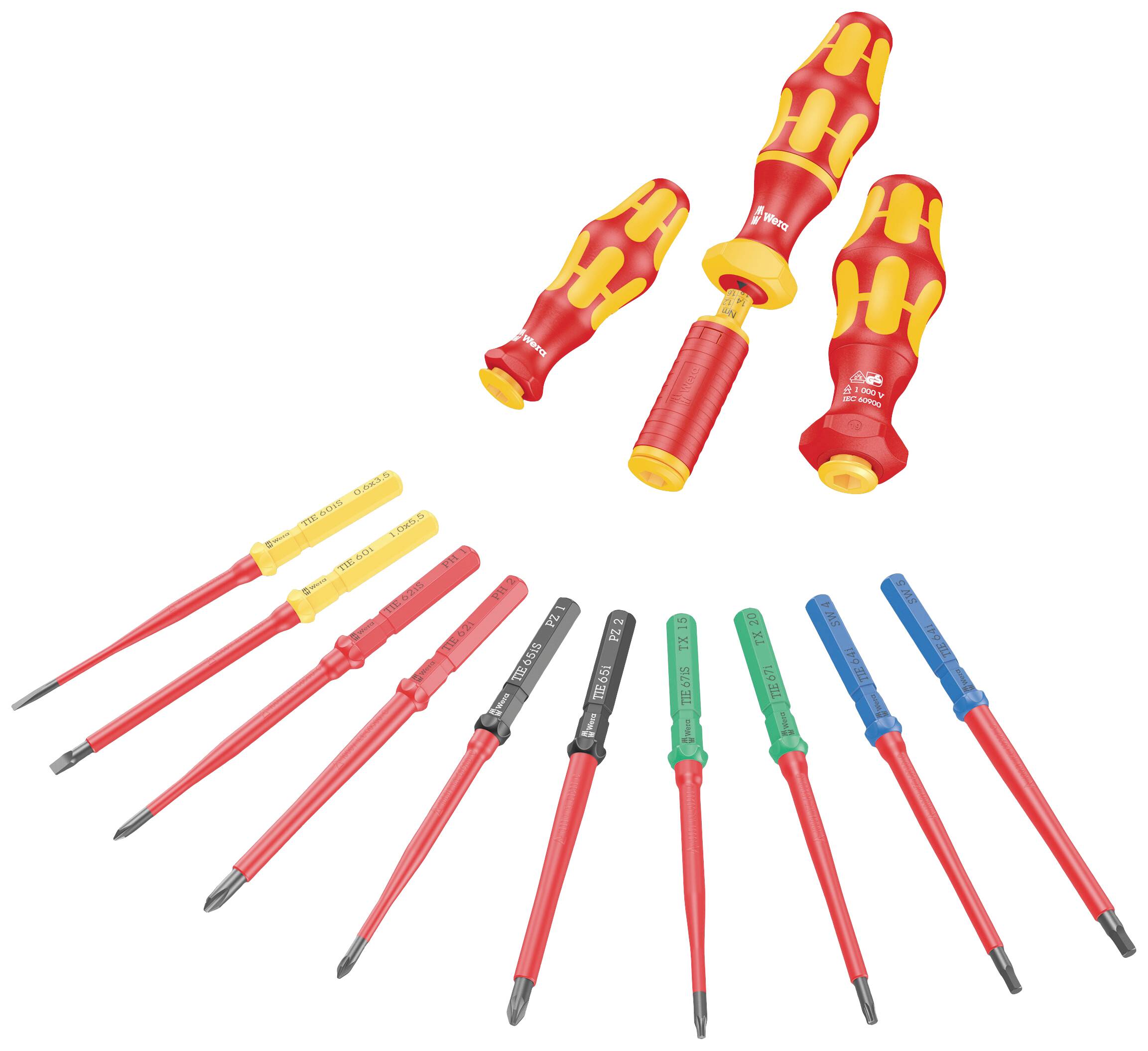

A set of multi-coloured screwdrivers and interchangeable bits, suitable for various screw types, on a white background.

'Set of seven colour-coded screwdriver bits and two insulated handles for different screw types and sizes.'

Red plastic handle with grey six-pointed steel tool tip.

Combination of screwdriver tips. Top: Cross-head with red handle, bottom: Hexagonal with yellow handle. Corresponding colour coding shown.

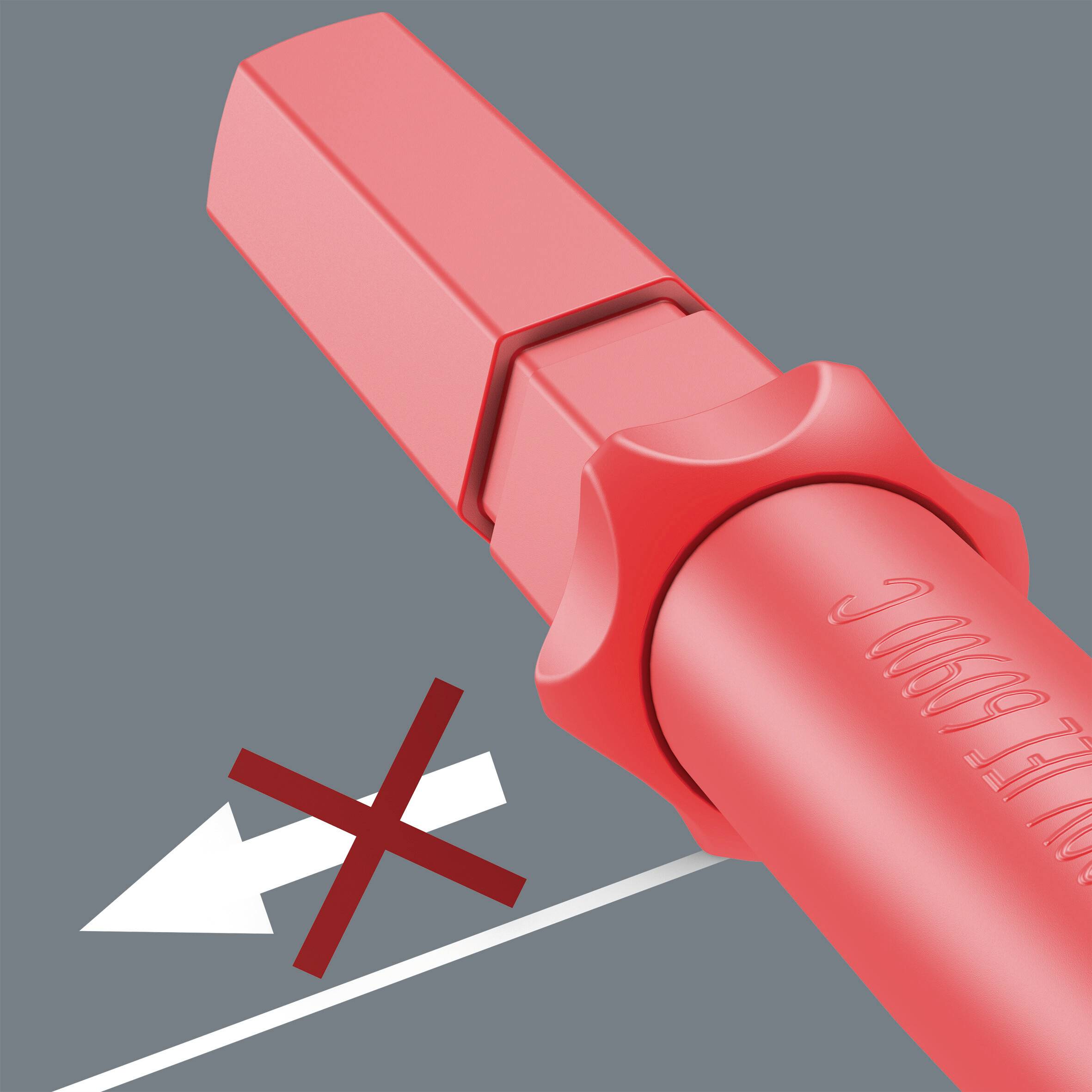

Red plastic adapter with an arrow and a crossed-out symbol; indicates that the adapter is being used incorrectly or is not permitted.

A white hand holds a red, elongated object between the thumb and forefinger against a grey background.

'VDE TOOL' label with symbols: 'VDE', 'GS', '1000 V'; indicating verified safety and electrical voltage resistance.

Illustration of a tool against a black background with the text 'Take It Easy Tool Finder'

1/11

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

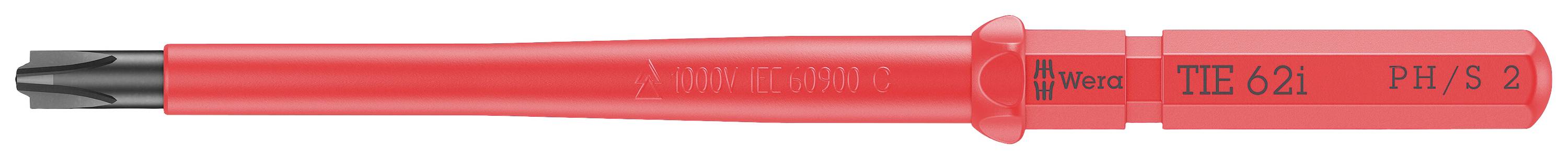

Kraftform compact VDE 62 i PH/S take it easy, # 2 x 157 mm

VDE Interchangeable blade for Plus Minus screws # 2x157

Technical specifications

Product type: Interchangeable bit

Range of use: Electrician

Downforce: Plus/Minus

Blade width: 2 mm

Length: 157 mm

Height: 12 mm

Width: 12 mm

Weight: 3 g

Dim: (L x W x H) 157 x 12 x 12 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3165511 Wera Kraftform Kompakt VDE 62 i PH/S # 2 x 157 mm TIE Electrician Plus/Minus Interchangeable bit 2 mm

User & Safety Instructions

User & Safety Instructions 3165511 Wera Kraftform Kompakt VDE 62 i PH/S # 2 x 157 mm TIE Electrician Plus/Minus Interchangeable bit 2 mm

Description

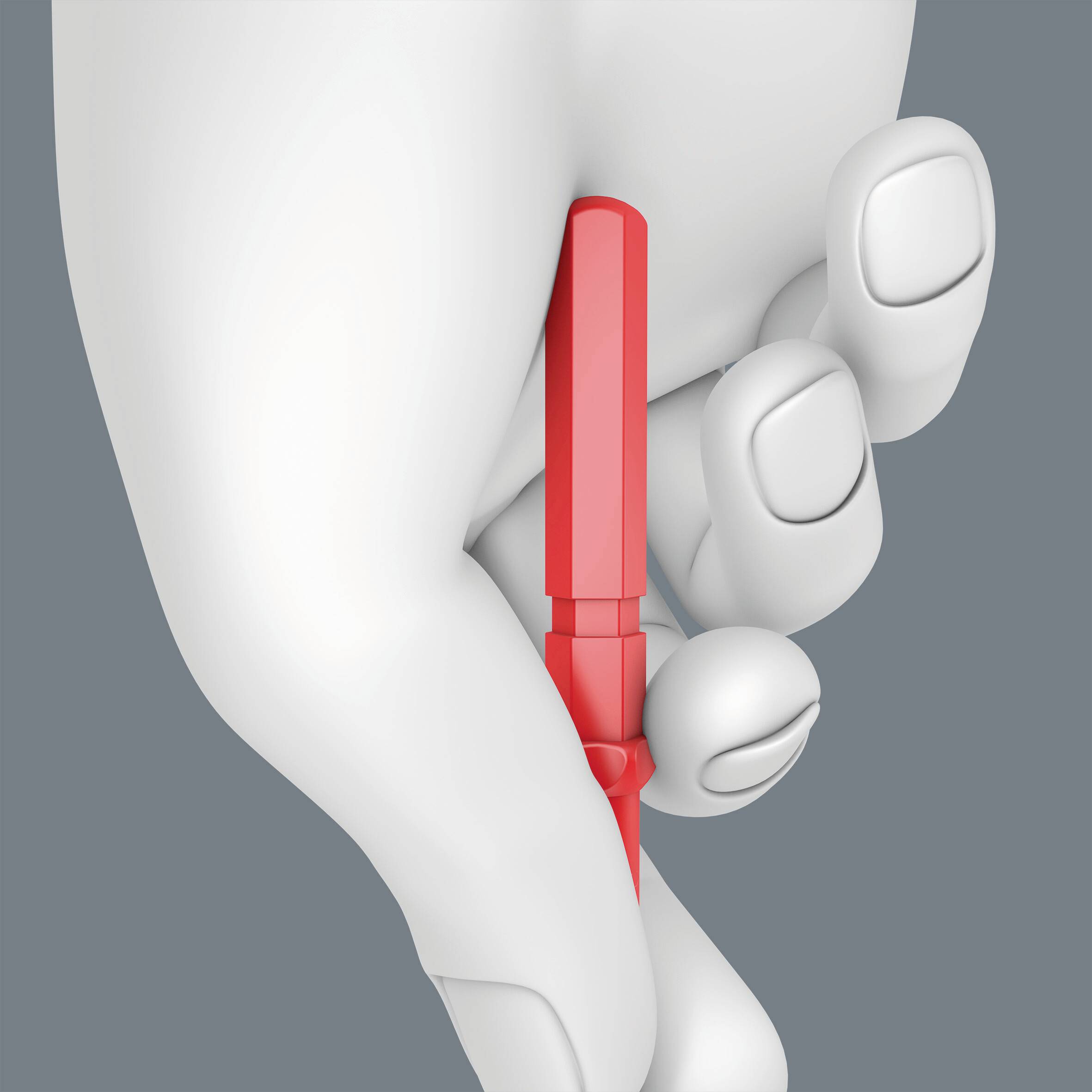

VDE blade for power form compact handle / replacement blade system. Combination profile slot and Phillips, especially for use in terminal blocks, fuse boxes, switches, relays. Lightning-fast replacement of the blade without special tools. Tested tools according to IEC 60900 Routine test at 10,000 V for safe working at the approved voltage of 1,000 V. The Wera black point tip offers fitting accuracy and optimized corrosion protection. With Tool Finder Take it easy: Colour marking according to profiles as well as lasered size specification. The hexagonal unroll protection prevents the blade from rolling away unintentionally.

This text is machine translated.

Features

Kraftform Compact VDE Interchangeable blade for PlusMinus screws Slot/Phillips
Insulated, piece-tested according to IEC 60900
9 mm hexagonal drive with guide edge

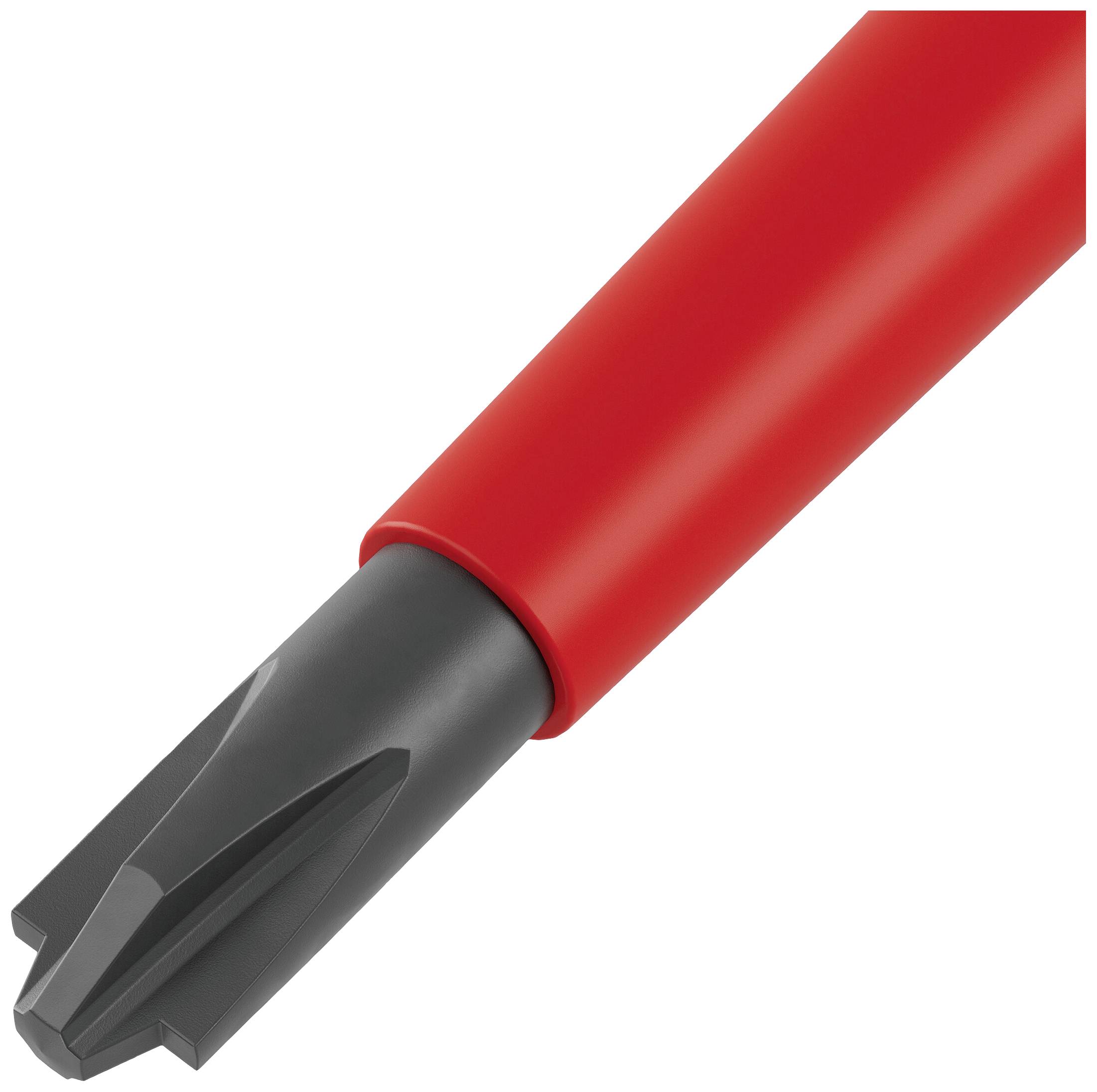

With Black Point tip for high corrosion protection and form-fitting

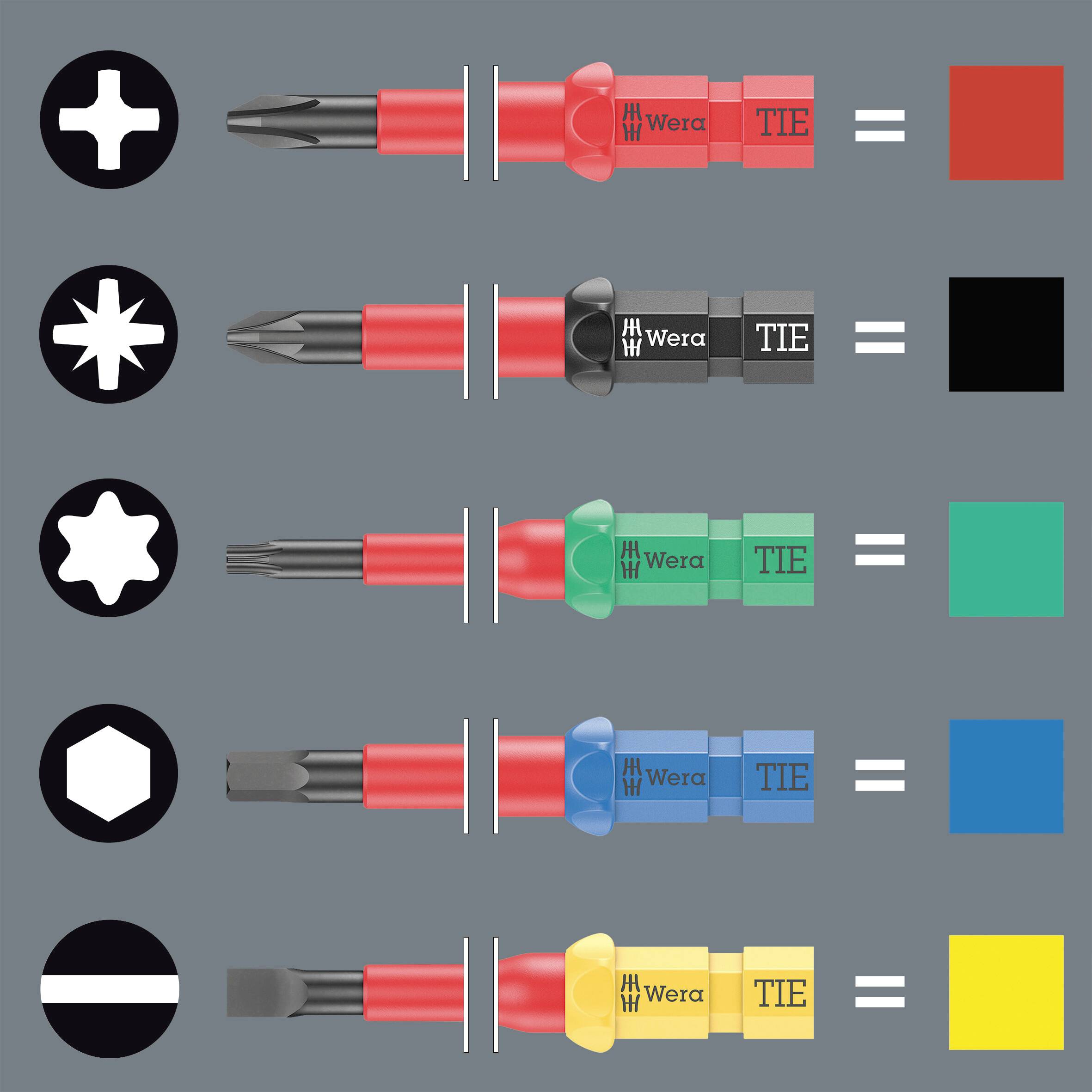

Take it easy tool finder: Colour codes by profile and lasered size specification

Scope of delivery

VDE Interchangeable blade for Plus Minus screws # 2x157
