Highlights & Details

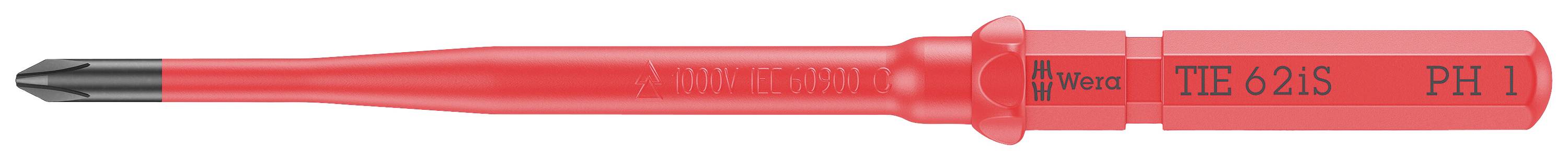

Kraftform compact VDE 62 is take it easy, PH 1 x 157 mm

VDE Reversing blade for Phillips screws PH 1x157

Technical specifications

Product type: Interchangeable bit

Range of use: Electrician

Downforce: Frearson

Size: PH 1

Blade width: 2.5 mm

Blade thickness: 0.4 mm

Length: 157 mm

Height: 12 mm

Width: 12 mm

Weight: 2 g

Dim: (L x W x H) 157 x 12 x 12 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3165487 Wera Kraftform Kompakt VDE 62 iS PH 1 x 157 mm TIE Electrician Frearson Interchangeable bit 2.5 mm PH 1

User & Safety Instructions

User & Safety Instructions 3165487 Wera Kraftform Kompakt VDE 62 iS PH 1 x 157 mm TIE Electrician Frearson Interchangeable bit 2.5 mm PH 1

Description

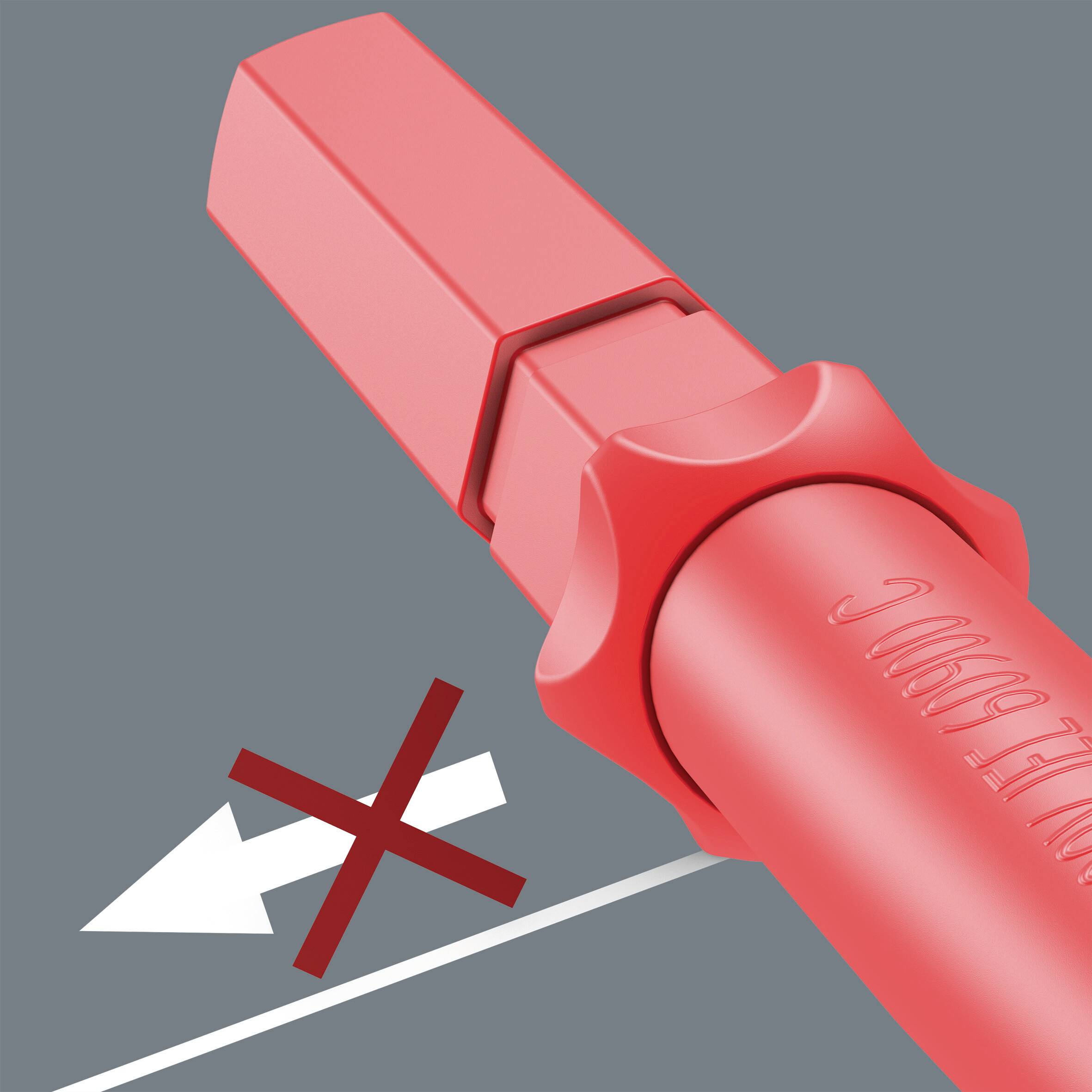

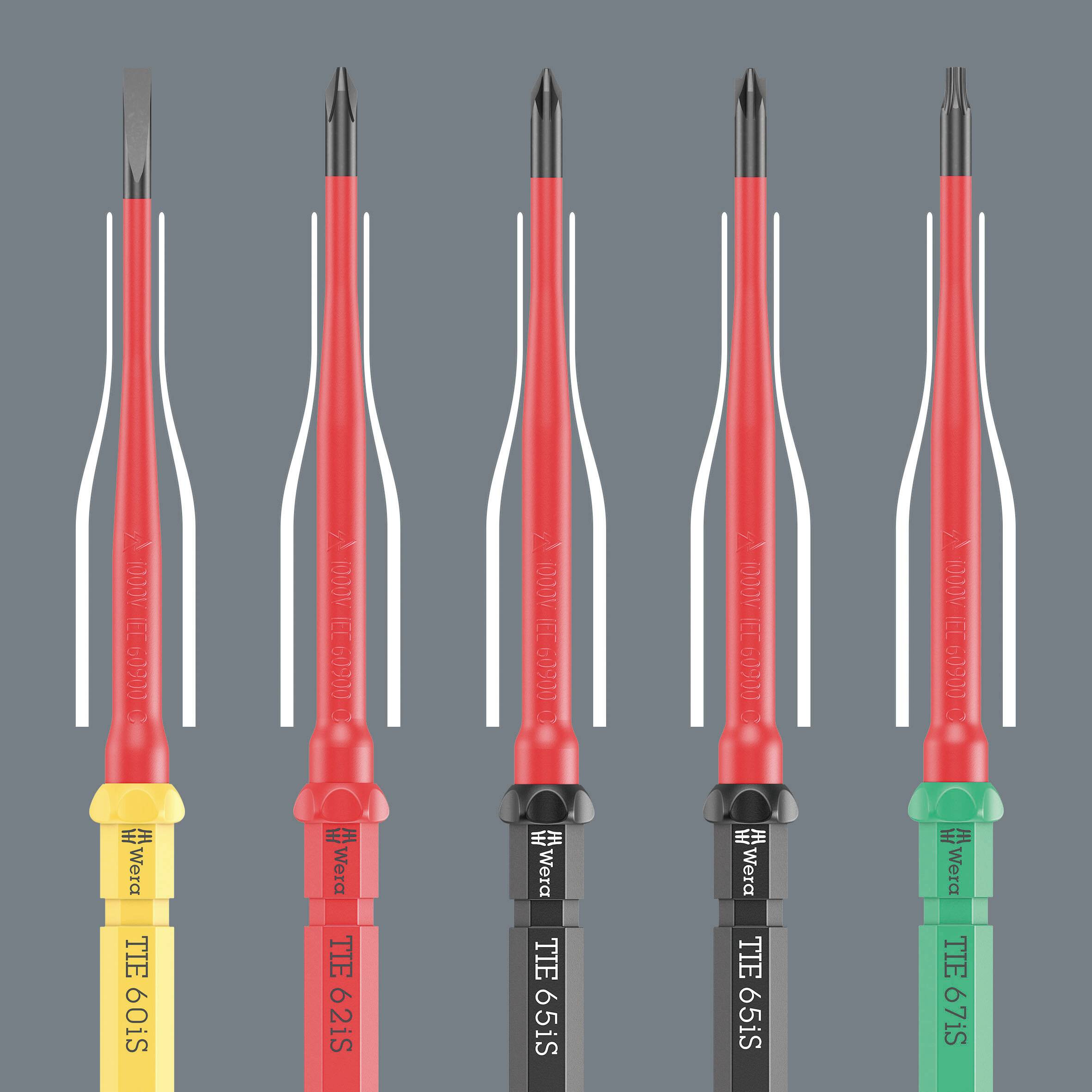

VDE blade for power form compact handle / replacement blade system. Lightning-fast replacement of the blade without special tools. Tested tools according to IEC 60900 Testing at 10,000 V for safe working at the approved voltage of 1,000 V. Reduced blade diameter with integrated protective insulation lets you reach deep-lying screw and spring elements. The Wera black point tip offers form-fitting accuracy and optimized corrosion protection. With Tool Finder Take it easy: Colour marking according to profiles as well as lasered size specification. The hexagonal unroll protection prevents the blade from rolling away unintentionally.

This text is machine translated.

Features

Kraftform Compact VDE Interchangeable blade for Phillips screws

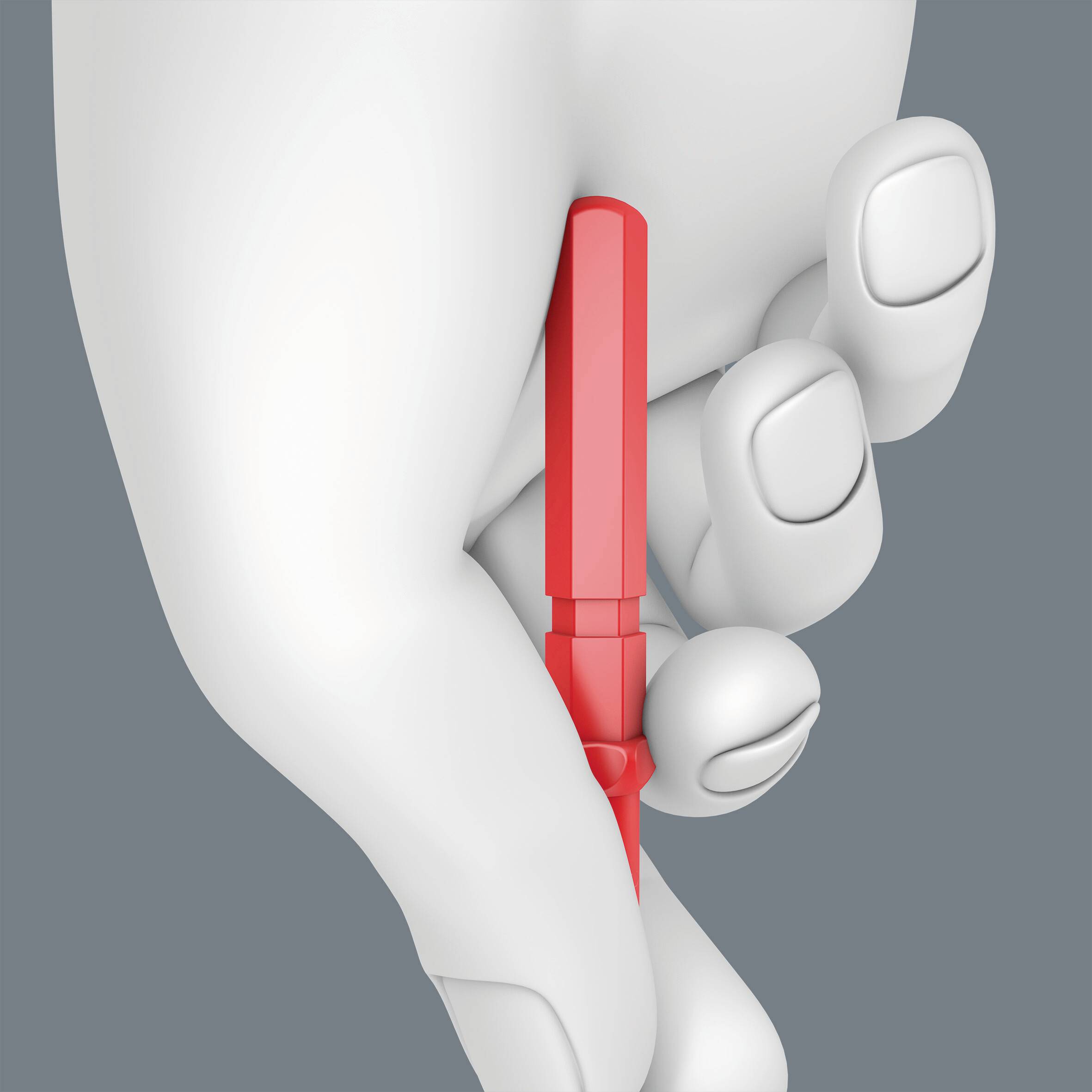

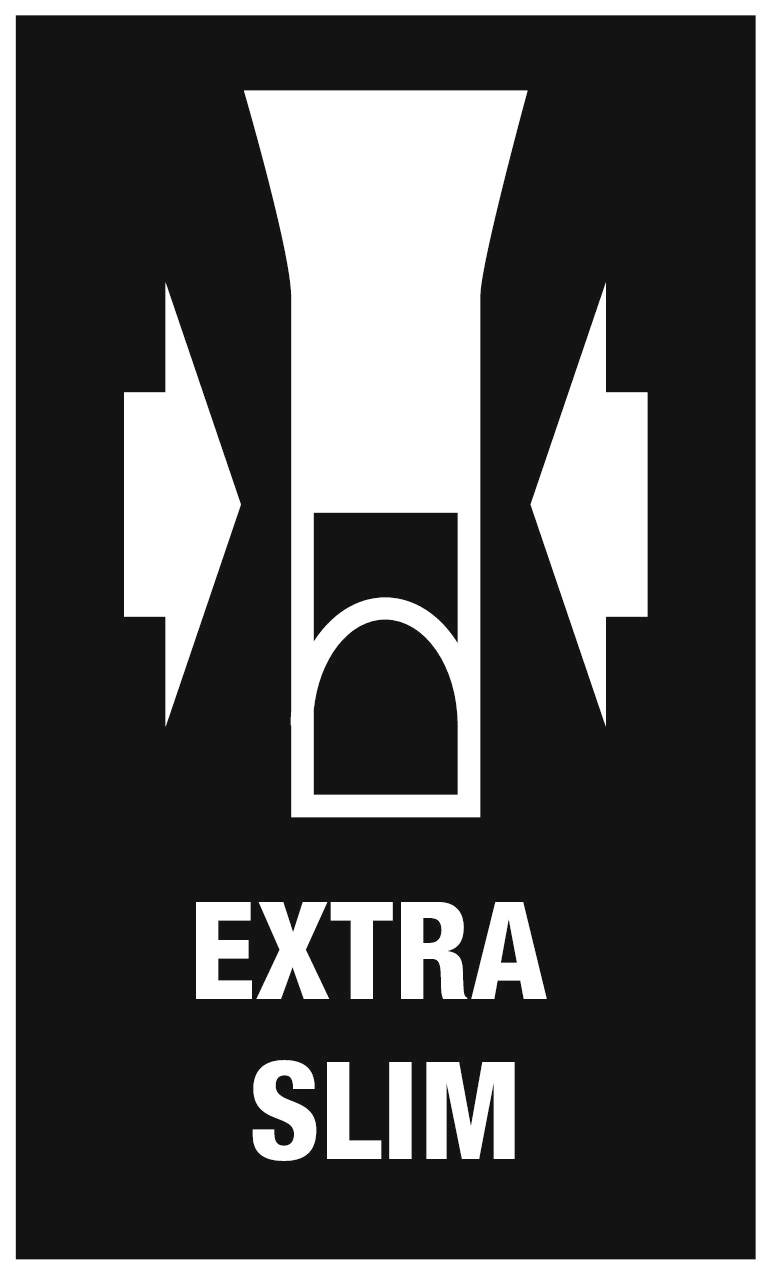

With reduced blade diameter and integrated protective insulation
Insulated, piece-tested according to IEC 60900
9 mm hexagonal drive with guide edge
With Black Point tip for high corrosion protection and form-fitting

Scope of delivery

VDE Reversing blade for Phillips screws PH 1x157
