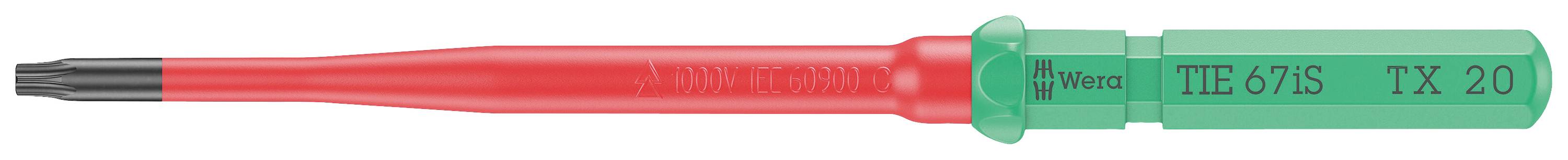

Red and green screwdriver with inscription 'TE 6/S TX 20'.

Analogue measuring device indicates a voltage of 9 kV. Device shown against a blue background with silver connections.

A set of isolated screwdrivers with interchangeable blades in various colours and sizes, suitable for electrical work.

A set of isolated screwdrivers with interchangeable bits in various shapes and colours, suitable for different screw types.

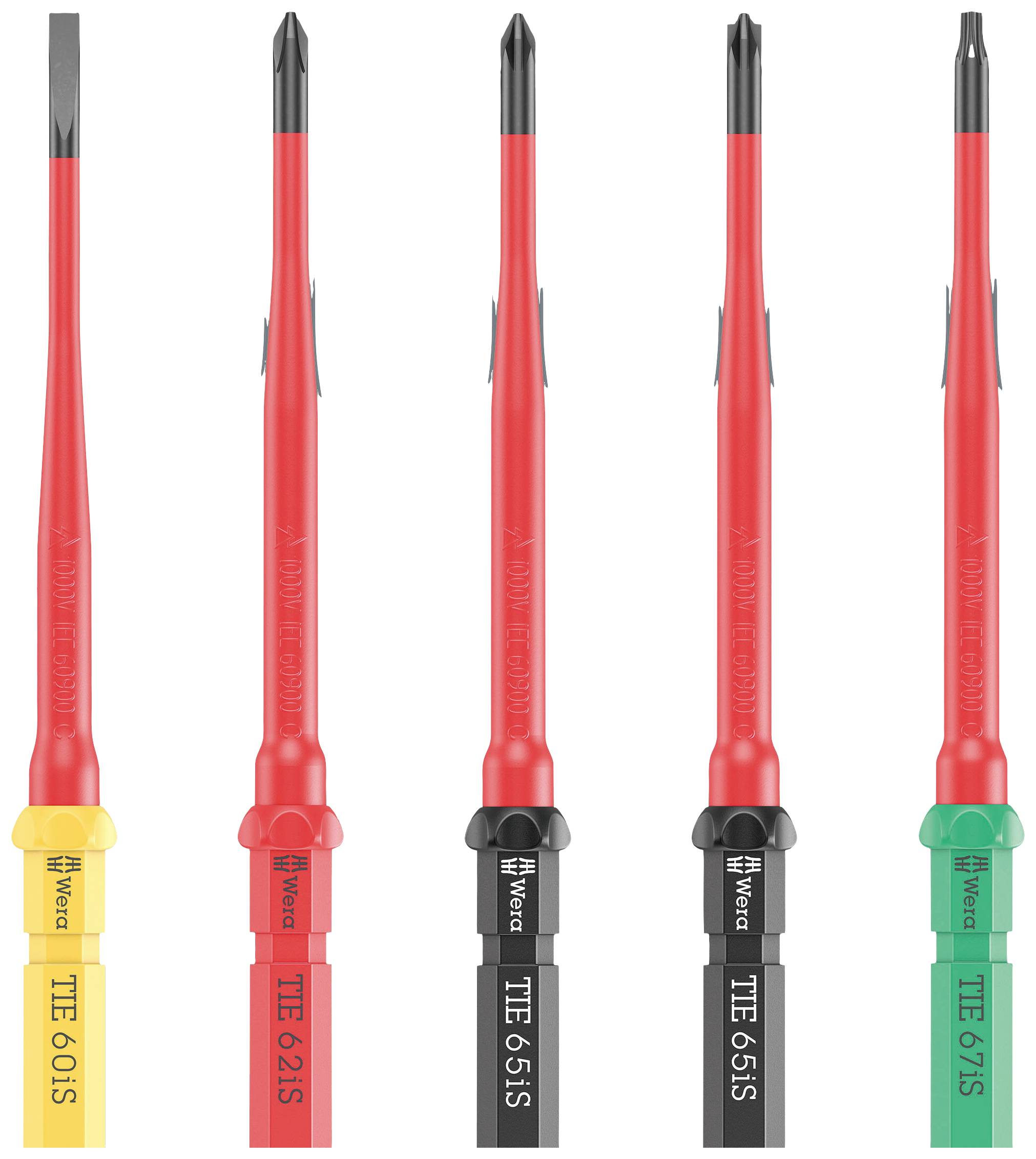

Five red screwdriver bits with different colour-coded shaft ends for various sizes: T6, T7, T8, T9, T10.

Illustration of various screwdrivers with different tip shapes, each with colour-coded handles.

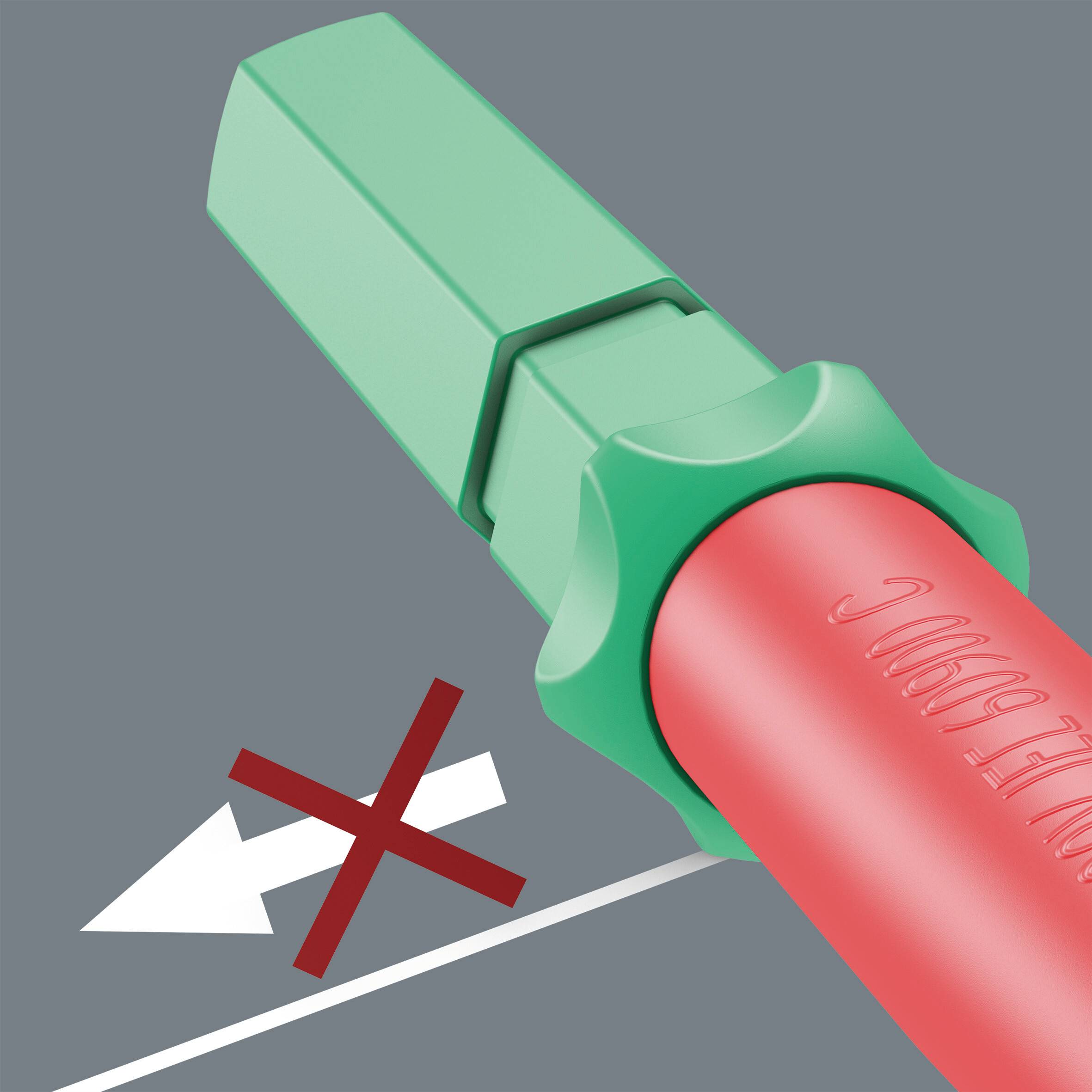

The image shows a green USB stick that needs to be turned over. A red X and an arrow on a white background indicate this.

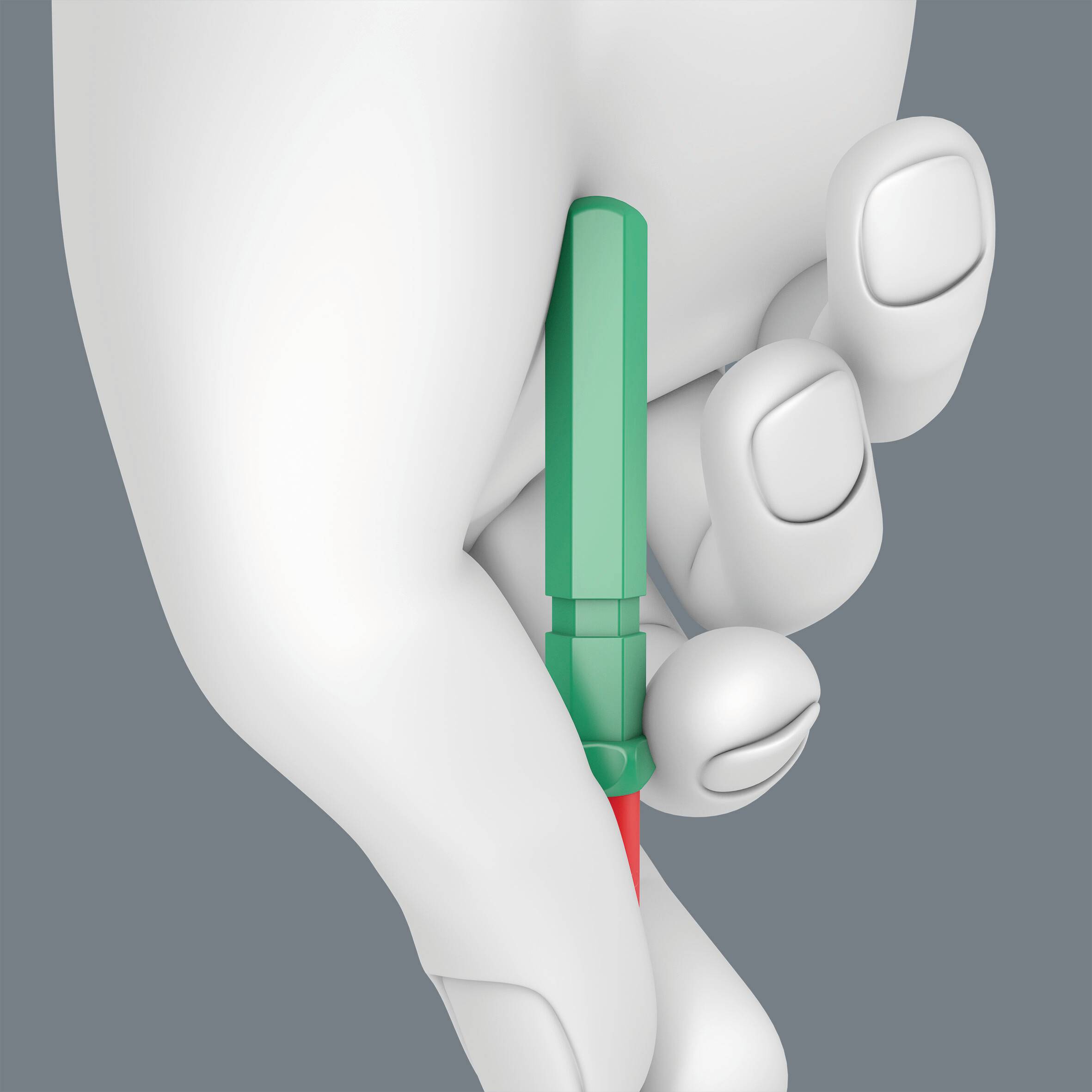

A hand is holding a green and red plug being inserted into a device. The background is grey.

Wera Kraftform Kompakt VDE 67 iS TX 20 x 157 mm TIE Electrician TORX Interchangeable bit TX 20-8

A graphic shows a tool with the text 'Take It Easy Tool Finder' underneath, on a black background.

1/11

Datasheet (PDF)

Unavailable

18 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Compact form VDE 67 is TORX Take it easy, TX 20 x 157 mm

VDE Interchangeable blade for TORX screws TX 20x157

Technical specifications

Product type: Interchangeable bit

Range of use: Electrician

Downforce: TORX

Size: TX 20

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3165507 Wera Kraftform Kompakt VDE 67 iS TX 20 x 157 mm TIE Electrician TORX Interchangeable bit TX 20

User & Safety Instructions

User & Safety Instructions 3165507 Wera Kraftform Kompakt VDE 67 iS TX 20 x 157 mm TIE Electrician TORX Interchangeable bit TX 20

Description

VDE blade for power form compact handle / replacement blade system. Lightning-fast replacement of the blade without special tools. Tested tools according to IEC 60900 Testing at 10,000 V for safe working at the approved voltage of 1,000 V. Reduced blade diameter with integrated protective insulation lets you reach deep-lying screw and spring elements. The Wera black point tip offers form-fitting accuracy and optimized corrosion protection. With Tool Finder Take it easy: Colour marking according to profiles as well as lasered size specification. The hexagonal unroll protection prevents the blade from rolling away unintentionally.

This text is machine translated.

Features

Kraftform Compact VDE Interchangeable blade for TORX® screws
With reduced blade diameter and integrated protective insulation
Insulated, piece-tested according to IEC 60900
9 mm hexagonal drive with guide edge
With Black Point tip for high corrosion protection and form-fitting

Scope of delivery

VDE Interchangeable blade for TORX screws TX 20x157
