Buy Wera Kraftform Kompakt VDE 68 i # 1 x 157 mm TIE Electrician Square socket Interchangeable bit 1 mm

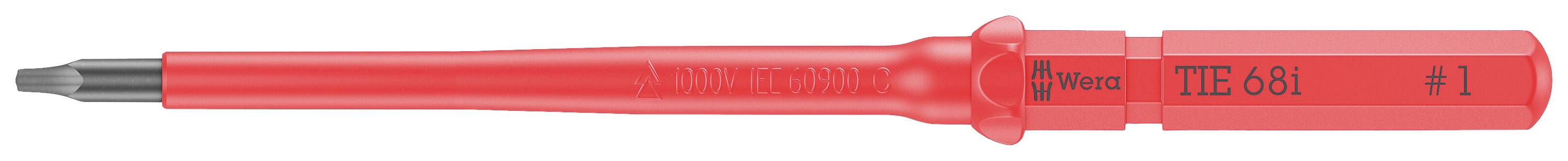

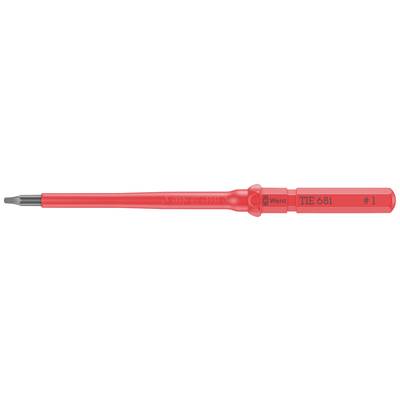

A red, isolated screwdriver with the marking 'TTE-681' and a cross-head. Suitable for electrical tool use.

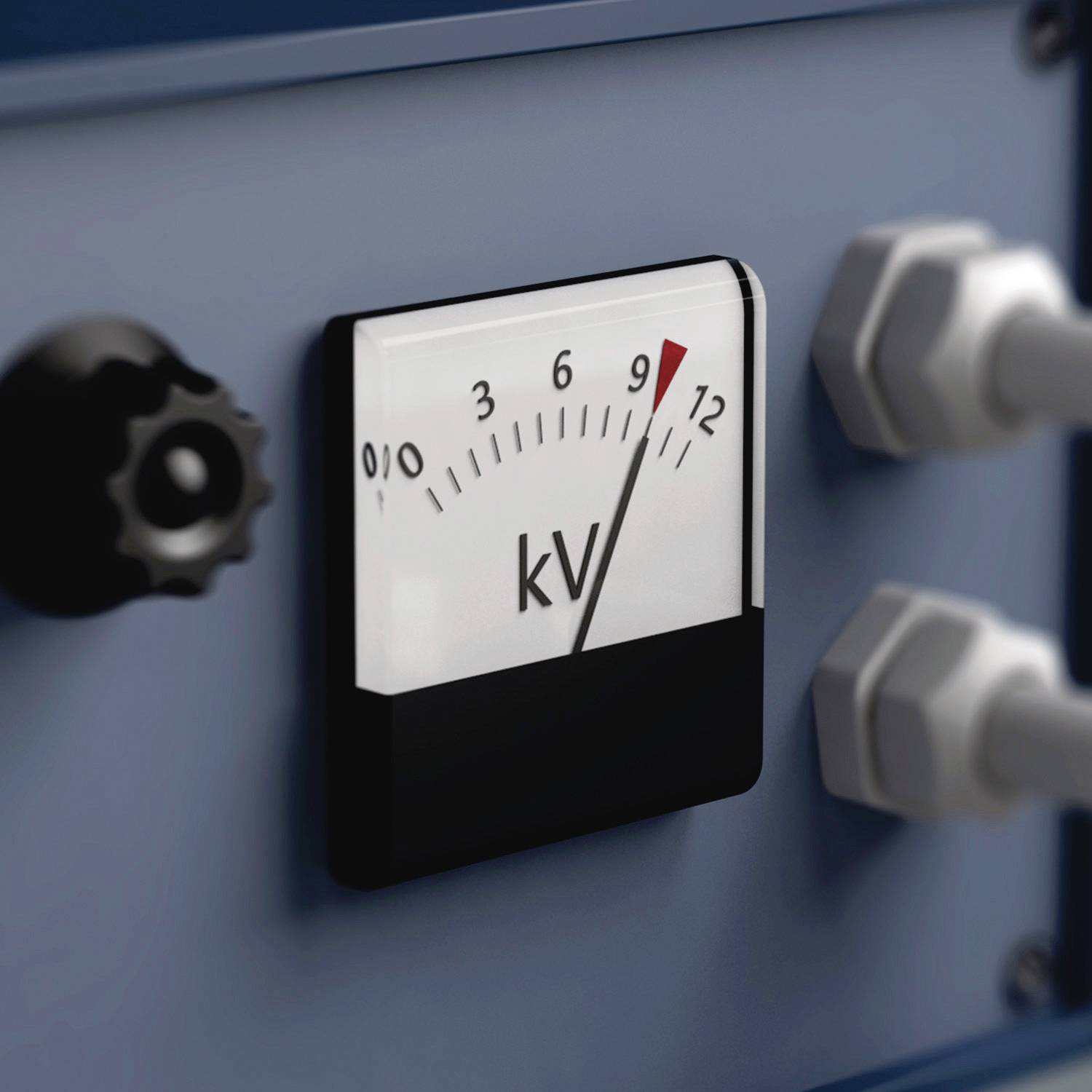

An analogue voltmeter shows just over 9 kV. A dark blue device housing with grey and black rotary knobs visible in the background.

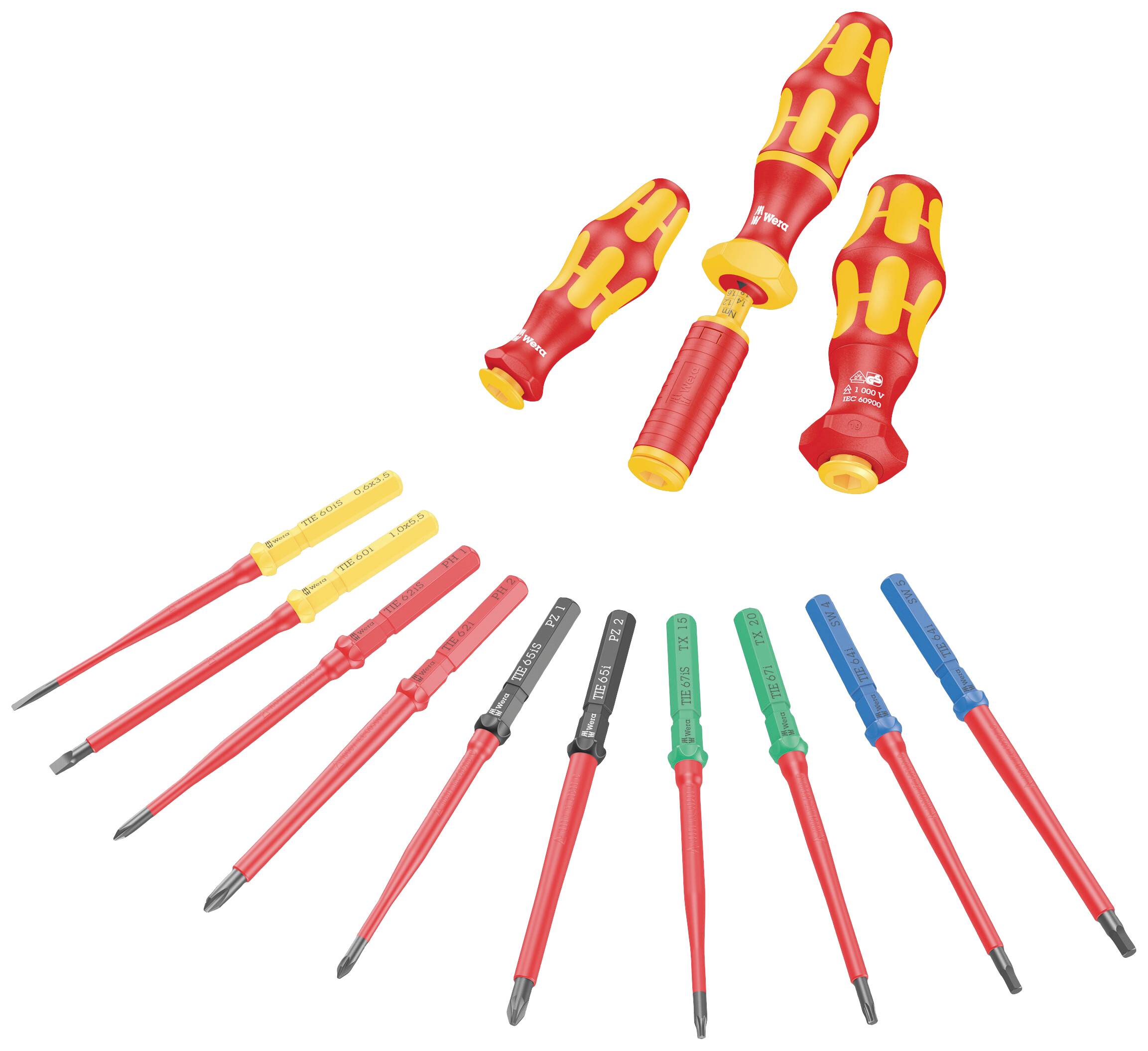

Screwdriver set with insulated handles and interchangeable blades in various colours for different screw heads.

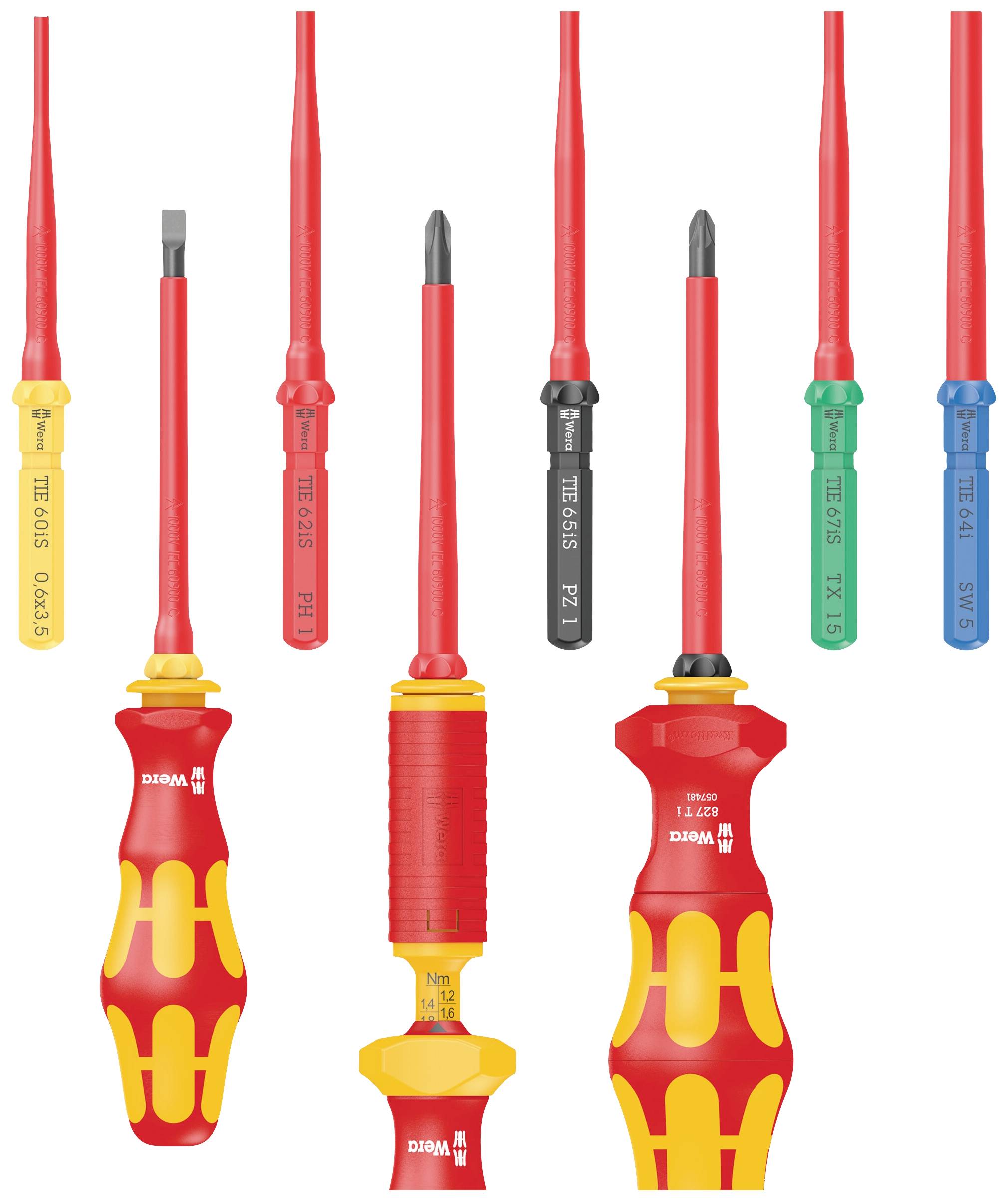

Eight isolated screwdrivers with various heads and handles in red, yellow, blue, and green. The handles are ergonomically shaped.

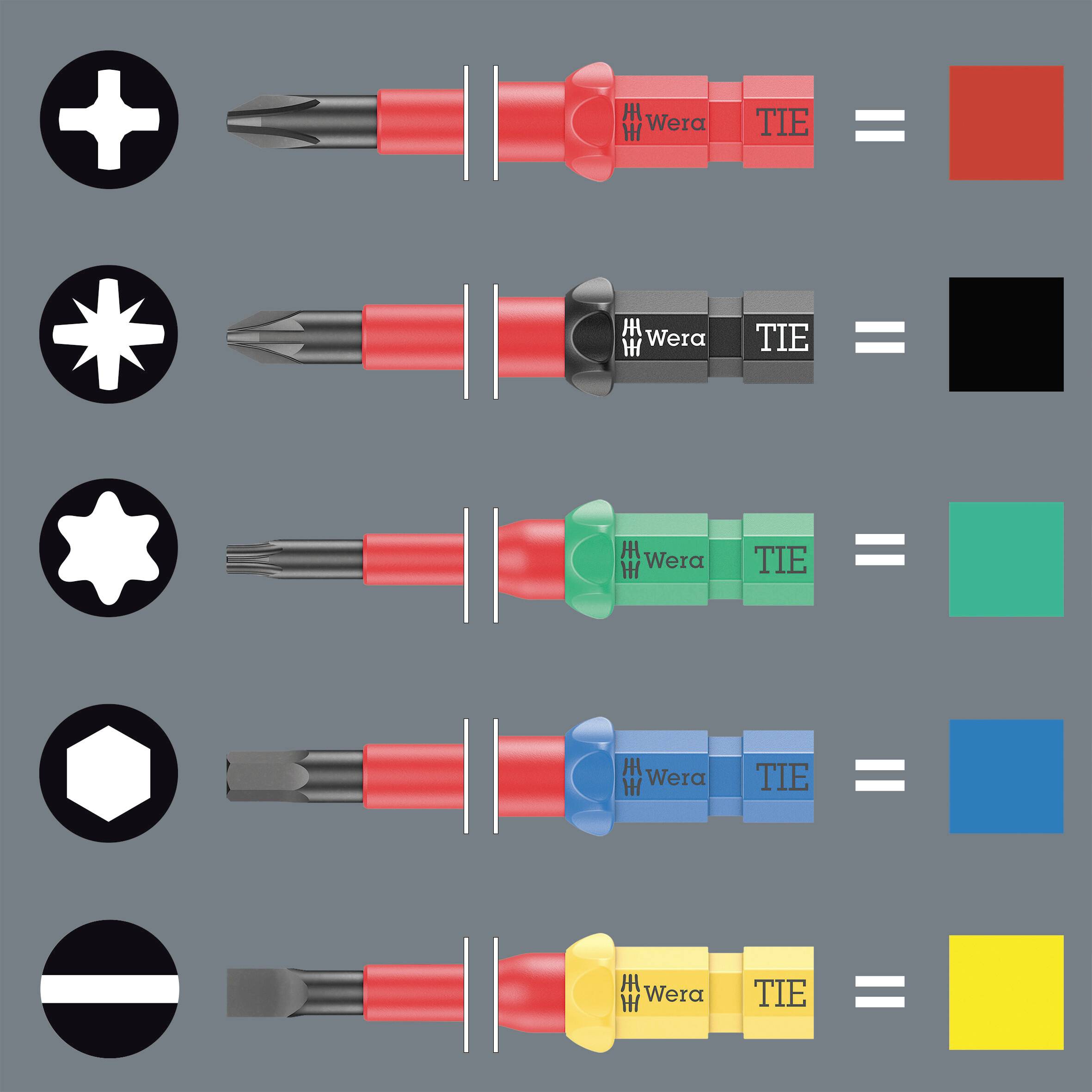

The image depicts five different screwdriver bits in various shapes and colours: cross-head, Torx, hexagonal, with corresponding colour indicators: Red, Black, Green, Blue.

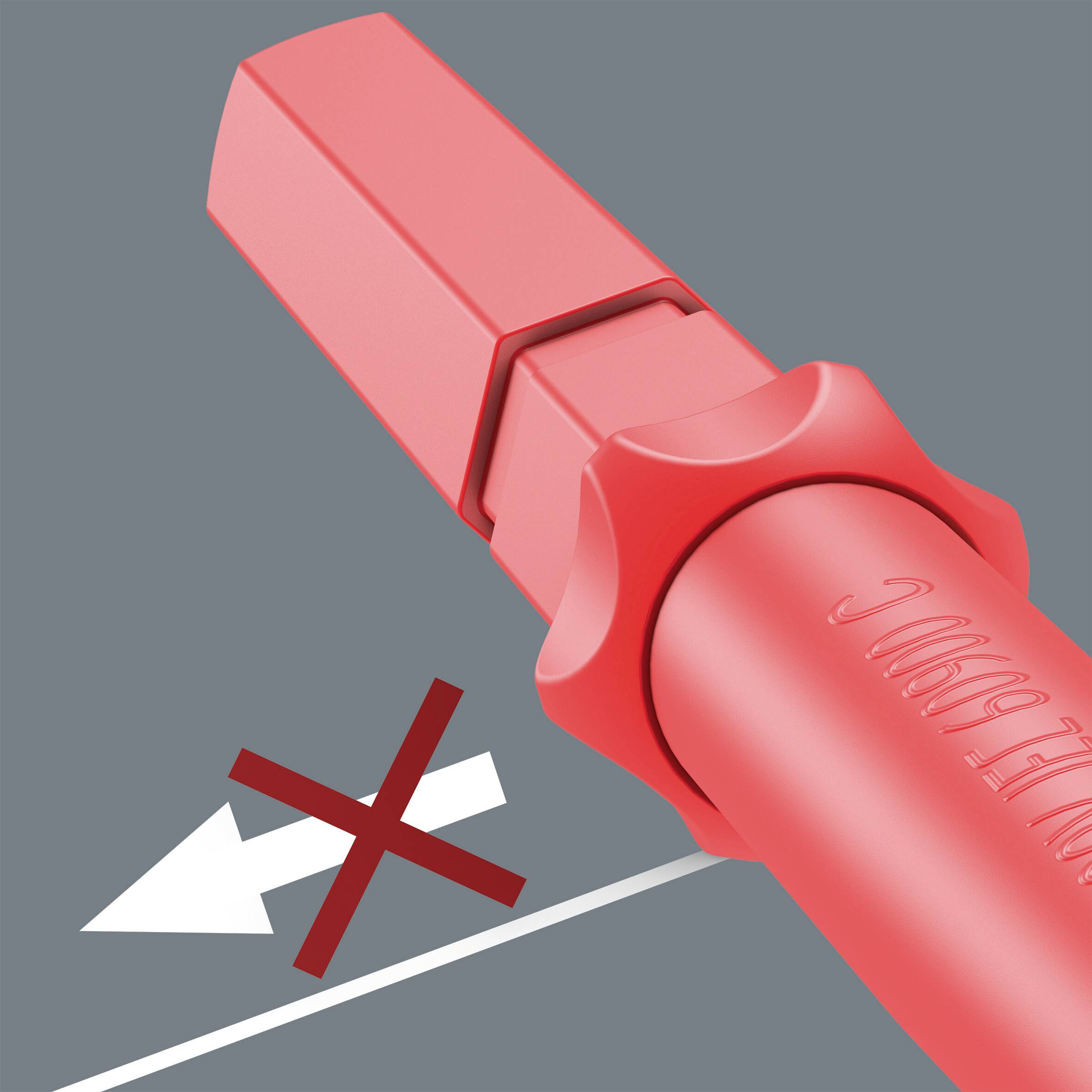

Red component with arrows showing correct and incorrect assembly. A cross marks the incorrect locking position.

White hand holding a red screwdriver vertically. Grey background.

'VDE Tool' on a black background, symbols for DVE, GS, 1000 V, indicating verified safety and voltage.

Stylised illustration of a tool with the inscription 'Take It Easy Tool Finder' on a black background.

1/9

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Kraftform compact VDE 68 i Take it easy, # 1 x 157 mm

VDE Interchangeable blade for square drive screws # 1x157

Technical specifications

Product type: Interchangeable bit

Range of use: Electrician

Downforce: Square socket

Blade width: 1 mm

Length: 157 mm

Height: 12 mm

Width: 12 mm

Weight: 21 g

Dim: (L x W x H) 157 x 12 x 12 mm

Documents & Downloads

Datasheet

Datasheet 3165489 Wera Kraftform Kompakt VDE 68 i # 1 x 157 mm TIE Electrician Square socket Interchangeable bit 1 mm

User & Safety Instructions

User & Safety Instructions 3165489 Wera Kraftform Kompakt VDE 68 i # 1 x 157 mm TIE Electrician Square socket Interchangeable bit 1 mm

Description

VDE blade for power form compact handle / replacement blade system. Lightning-fast replacement of the blade without special tools. Tested tools according to IEC 60900 Routine test at 10,000 V for safe working at the approved voltage of 1,000 V. The Wera black point tip offers fitting accuracy and optimized corrosion protection. With Tool Finder Take it easy: Colour marking according to profiles as well as lasered size specification. The hexagonal unroll protection prevents the blade from rolling away unintentionally.

This text is machine translated.

Features

Power form Compact VDE Interchangeable blade for square socket screws
Insulated, piece-tested according to IEC 60900
9 mm hexagonal drive with guide edge
With Black Point tip for high corrosion protection and form-fitting
Take it easy tool finder: Colour codes by profile and lasered size specification

Scope of delivery

VDE Interchangeable blade for square drive screws # 1x157
