Buy Wera Kraftform Kompakt VDE 68 i # 2 x 157 mm TIE Electrician Square socket Interchangeable bit 2 mm

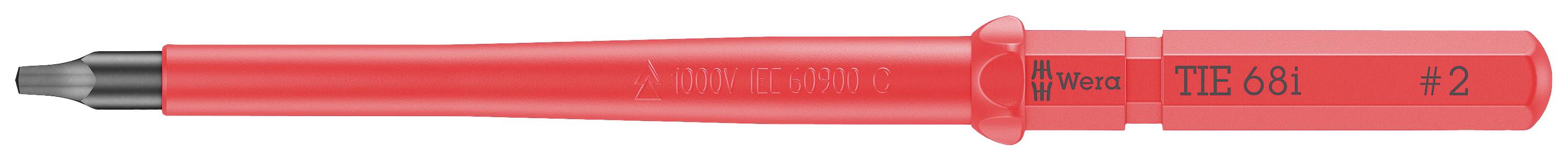

Red insulated screwdriver with a black tip, featuring a black marking 'TTE-601 ±2' on the handle.

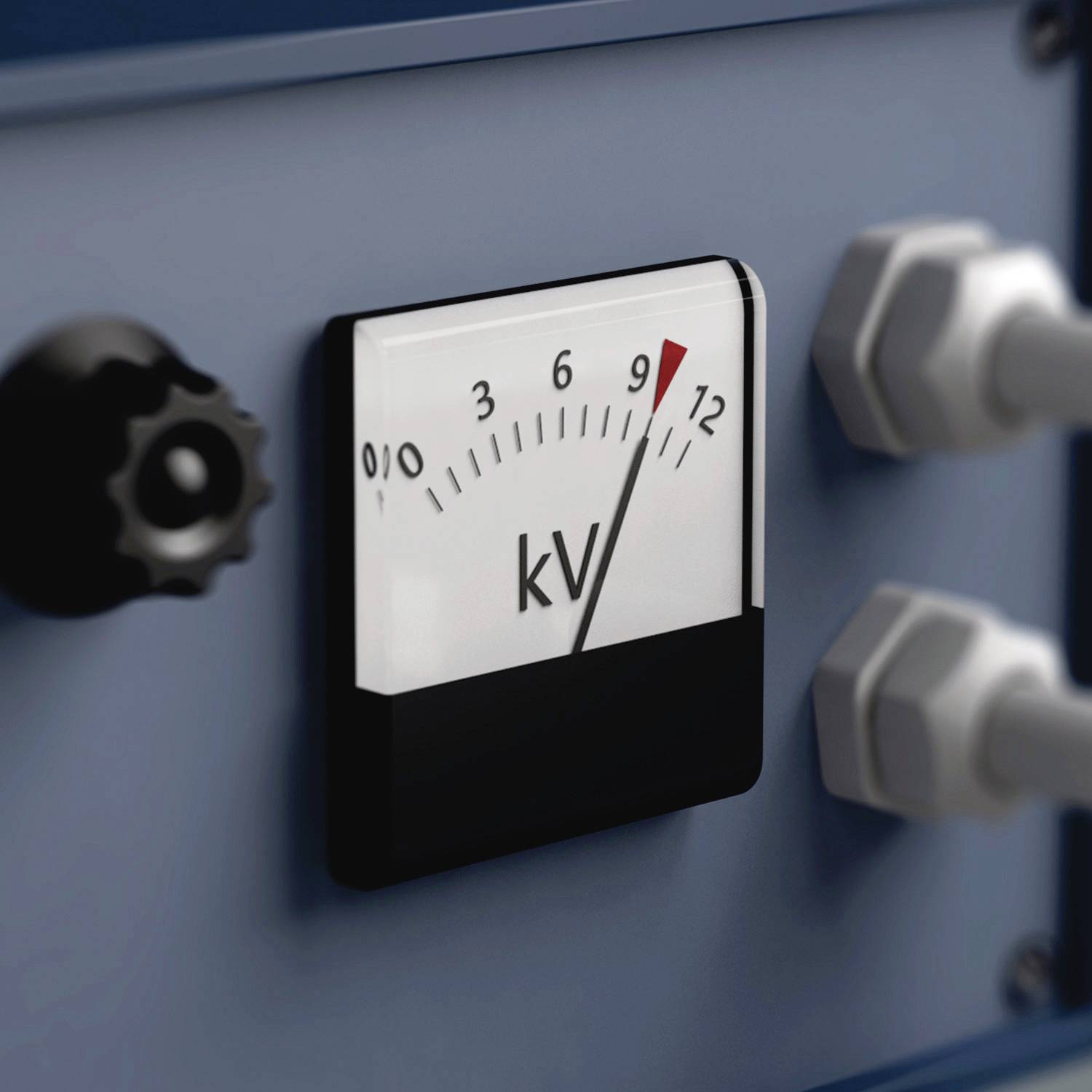

A voltage measuring device shows 9 kV on a scale from 0 to 12 kV. It is part of a technical instrument with a rotary knob and cable connections.

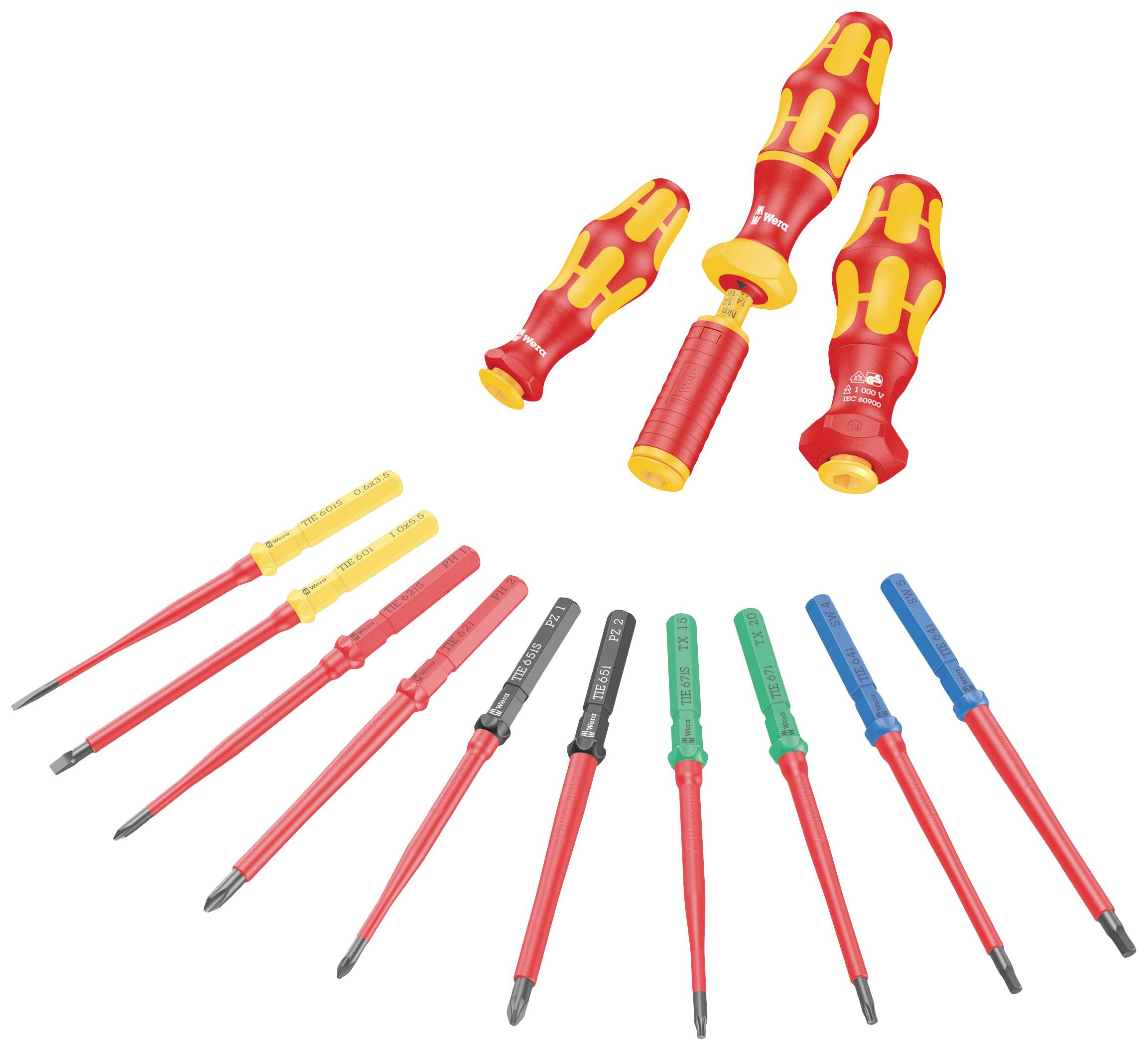

A set of interchangeable screwdriver bits and handles in various colours, suitable for different screw head types.

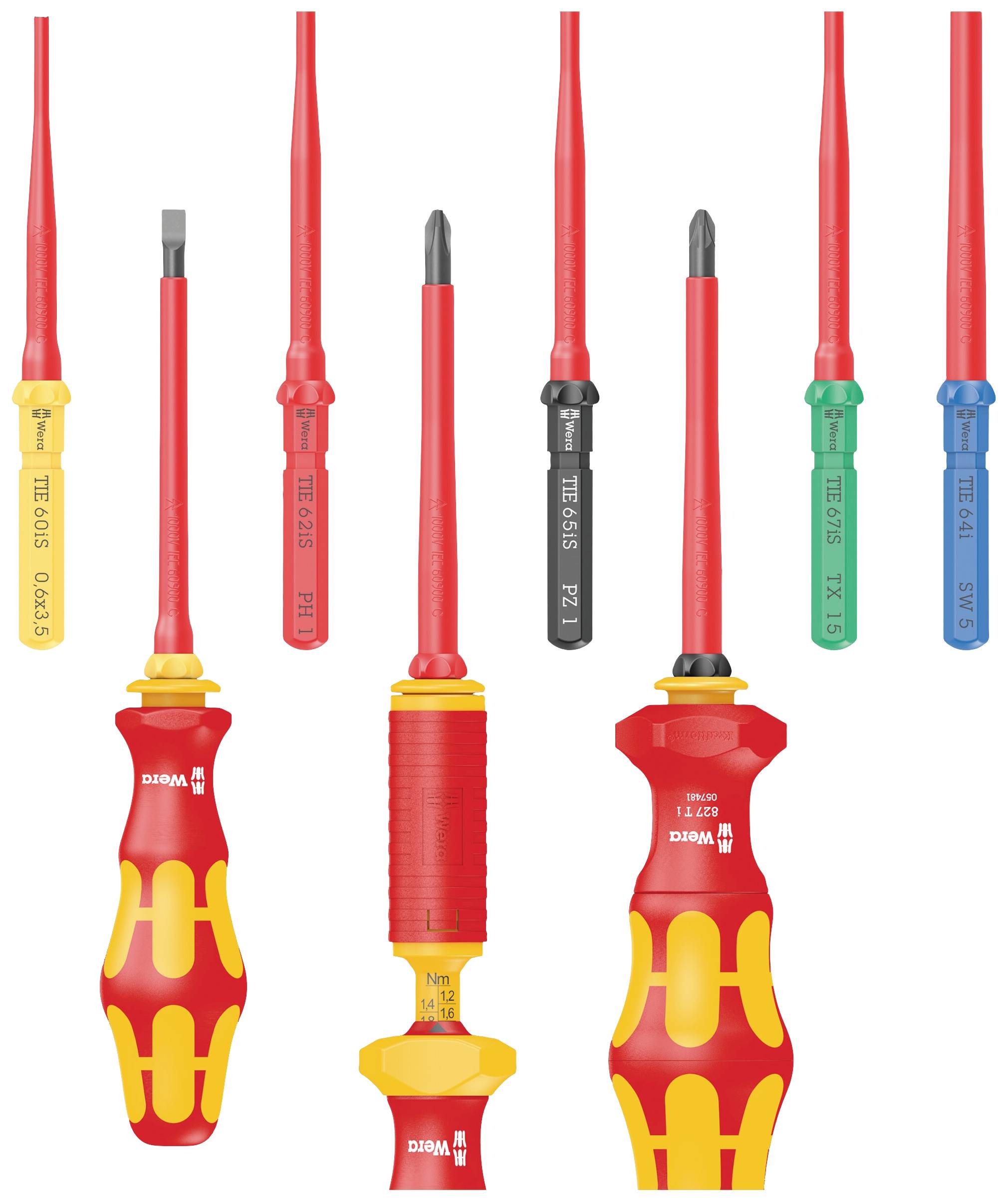

A set of colourful screwdrivers in various sizes and types, with two featuring ergonomic handles at the front, and seven interchangeable tips behind them.

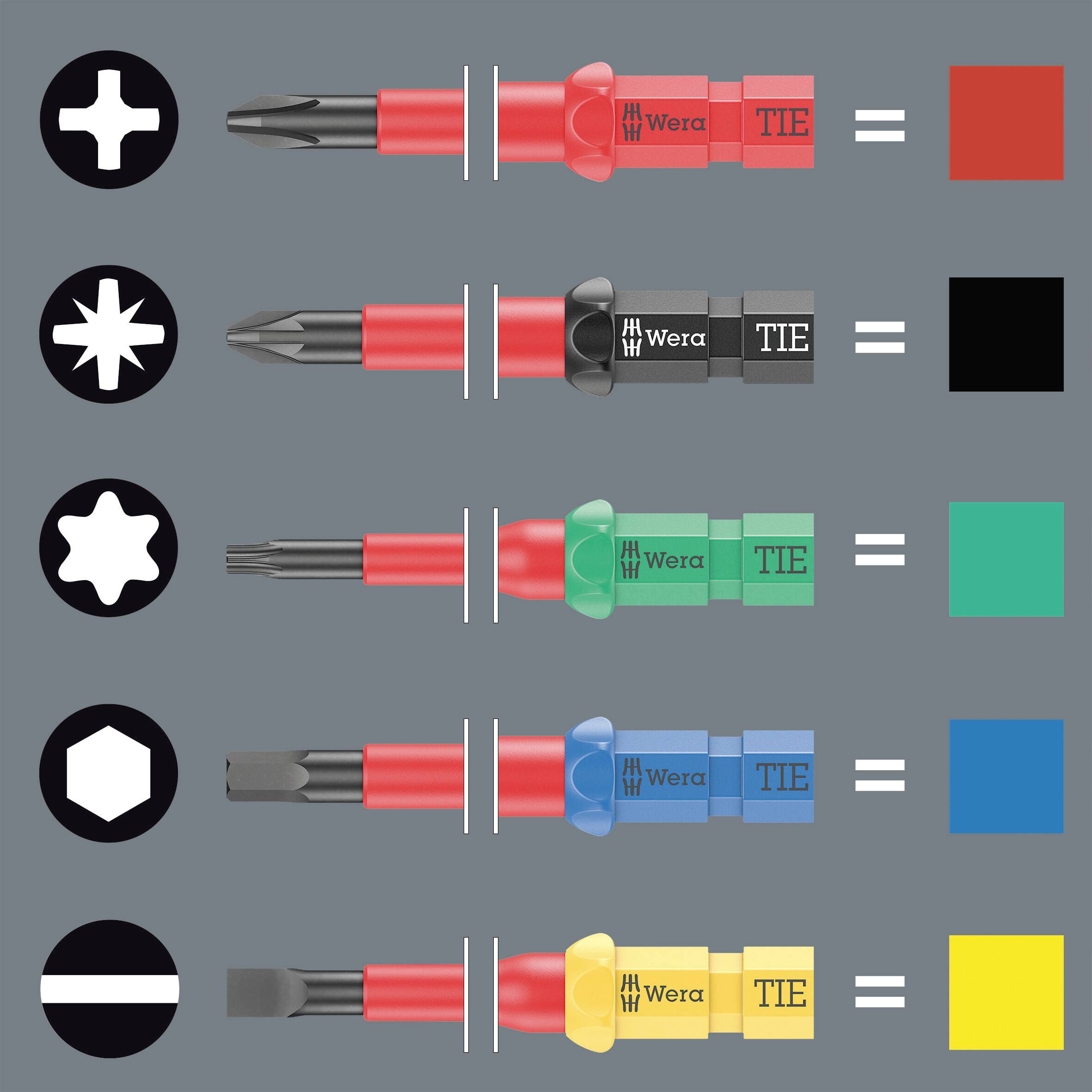

Screwdriver Drive Types: Phillips (Red), Pozidriv (Black), Torx (Green), Hex (Yellow) with respective colours depicted.

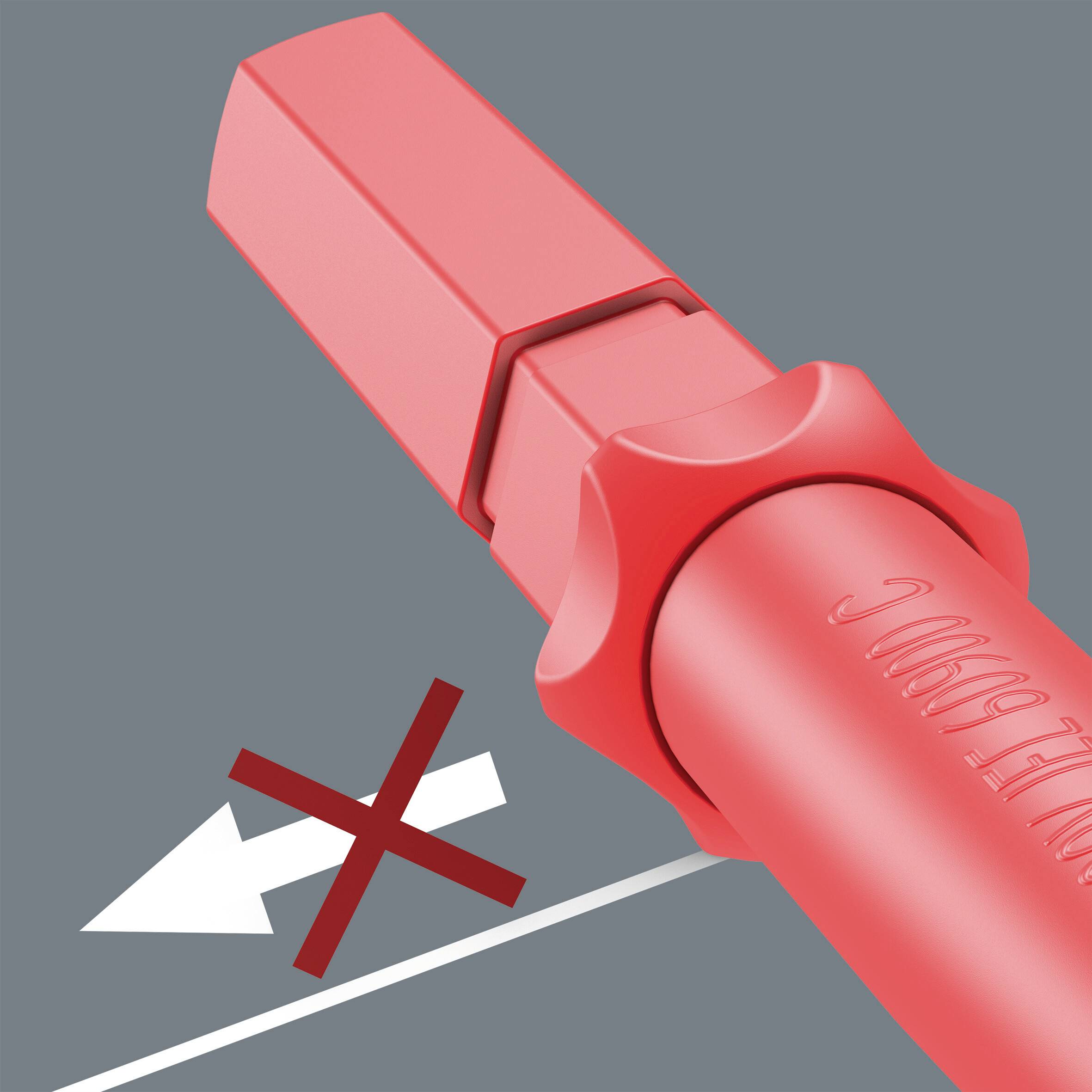

A red-marked plug with a cross indicates that the polarity or connection is incorrect.

Graphic representation of a white hand holding a red Triton plastic wall plug between two fingers. The background is grey.

'VDE' and 'Verified Safety' logos on a black background, with symbols '1000V', 'C' and a triangle. Text: 'VDE TOOL'.

Against a black background, a stylised tool is depicted. Underneath, the text 'TAKE IT EASY TOOL FINDER' is written in white.

1/9

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Kraftform compact VDE 68 i Take it easy, # 2 x 157 mm

VDE Interchangeable blade for square drive screws # 2x157

Technical specifications

Product type: Interchangeable bit

Range of use: Electrician

Downforce: Square socket

Blade width: 2 mm

Length: 157 mm

Height: 12 mm

Width: 12 mm

Weight: 33 g

Dim: (L x W x H) 157 x 12 x 12 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3165490 Wera Kraftform Kompakt VDE 68 i # 2 x 157 mm TIE Electrician Square socket Interchangeable bit 2 mm

User & Safety Instructions

User & Safety Instructions 3165490 Wera Kraftform Kompakt VDE 68 i # 2 x 157 mm TIE Electrician Square socket Interchangeable bit 2 mm

Description

VDE blade for power form compact handle / replacement blade system. Lightning-fast replacement of the blade without special tools. Tested tools according to IEC 60900 Routine test at 10,000 V for safe working at the approved voltage of 1,000 V. The Wera black point tip offers fitting accuracy and optimized corrosion protection. With Tool Finder Take it easy: Colour marking according to profiles as well as lasered size specification. The hexagonal unroll protection prevents the blade from rolling away unintentionally.

This text is machine translated.

Features

Power form Compact VDE Interchangeable blade for square socket screws
Insulated, piece-tested according to IEC 60900
9 mm hexagonal drive with guide edge
With Black Point tip for high corrosion protection and form-fitting
Take it easy tool finder: Colour codes by profile and lasered size specification

Scope of delivery

VDE Interchangeable blade for square drive screws # 2x157
