Wera Safe-Torque A 1 Imperial 1 05075831001 Torque wrench set Forward/reverse ratchet 12 - 2 Nm
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Torque wrench set
- Features
Forward/reverse ratchet
- Torque (min.)
12 Nm
- Torque (max.)
2 Nm
- Length
275 mm
- Weight
1023 g
- Width
140 mm
- Height
65 mm
Documents & Downloads
Datasheet
Datasheet 2626311 Wera Safe-Torque A 1 Imperial 1 05075831001 Torque wrench set Forward/reverse ratchet 12 - 2 Nm
User & Safety Instructions
User & Safety Instructions 2626311 Wera Safe-Torque A 1 Imperial 1 05075831001 Torque wrench set Forward/reverse ratchet 12 - 2 Nm
Description

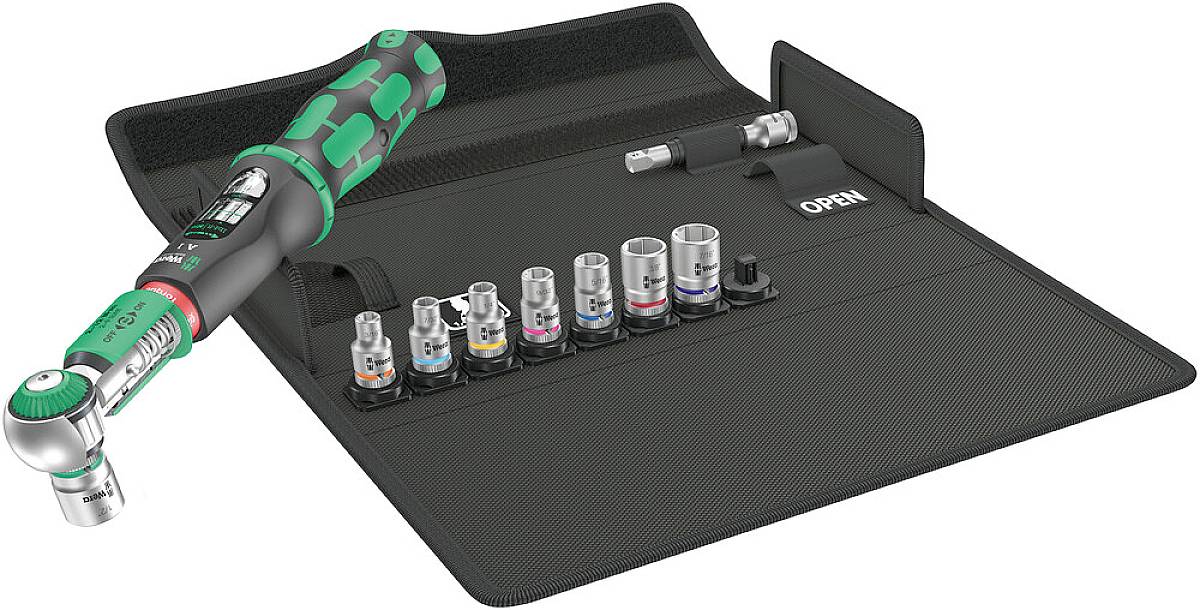

10-part; in surface-friendly, compact textile box with high robustness. Low volume and weight for simplified mobility. 1 Safe Torque A 1 Torque wrench with 1/4" square drive, measuring range 2-12 Nm; for controlled right and left tightening, tightening and loosening with and without torque, torque function (Torque Lock function) can be switched off; 72 teeth; low return angle of 5°; Easy setting and protection of the desired torque value, with audible and tactile latching when reaching the scale values, slipping release mechanism when reaching the set torque value; ergonomic 2-component grip; 8 Cyclops nuts, 1 Cyclops extension with quick turning sleeve, short
This text is machine translated.
This text is machine translated.
Features
- Overslip release mechanism - the set torque value can therefore never be covered
- Torque Lock function: The torque function can be switched off - tool can therefore also be used as standard ratchet with high release torques and for defined rotation angle applications
- For controlled right and left tightening and loosening with and without torque
- Easy setting and securing of the desired torque value with audible and tactile latching when reaching the scale values
- After target torque achievement only 30° trigger angle
Scope of delivery
- 1x Safe Torque A 1 imperial set 1, 1/4" square, 2-12 Nm, 10-piece
- 1x Safe-Torque A 1 Torque wrench with 1/4" square drive, 2-12 Nm: 1/4"x2-12
- 8x 8790 HMA Cyclops socket wrench set with 1/4" drive: 3/16"x23.0, 7/32"x23.0, 1/4"x23.0, 9/32"x23.0, 5/16"x23.0, 3/8"x23.0, 7/16"x23.0, 1/2"x23.0
- 1x 8794 SA Cyclops-extension with fast turning sleeve, short, 1/4": 1/4"x75.0
- 1x Velcro strips 240: 50x240
