Western Co. Inverter Wechselrichter Western Wi400-12 400 W 12 V - 230 V Sine wave
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

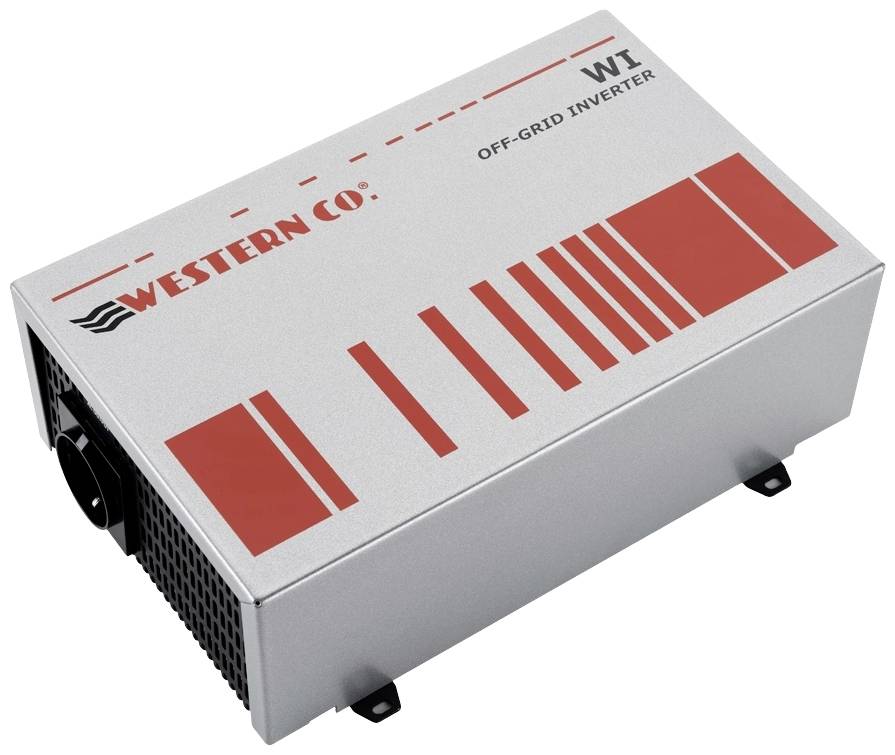

Inverter Western WI400-12
- 400 W
- 12 VDC
- 230 V AC / 50 Hz
Technical specifications
- Input voltage
9.2 - 17 V
- Product type
Inverter
- Signal output type
Sine wave
- Output voltage
230 V
400 W
- Input voltage
12 V
- Output
PG socket
- Nominal load efficiency
90 %
- Output frequency
50 Hz
- Weight
3.5 kg
- Width
230 mm
- Height
85 mm
- Length
130 mm
- Peak output power
700 W
- Standby consumption
2.5 W
- Type
Wechselrichter Western Wi400-12
- Features
Sine wave
Documents & Downloads
Datasheet
Datasheet 2615921 Western Co. Inverter Wechselrichter Western Wi400-12 400 W 12 V - 230 V Sine wave
User & Safety Instructions
User & Safety Instructions 2615921 Western Co. Inverter Wechselrichter Western Wi400-12 400 W 12 V - 230 V Sine wave
Conformity certificate
Conformity certificate 2615921 Western Co. Inverter Wechselrichter Western Wi400-12 400 W 12 V - 230 V Sine wave
Description
The WI400, the WI800 and the WI1200 are DC/AC inverters for network-independent applications with high reliability and professional performance. The products were developed to generate a waveform from pure sine alternating current output with a high conversion efficiency - up to 90% - and a very low power consumption in standby mode of less than 2.5 W. These features are achieved through a hybrid configuration with a toroidal transformer output and a high-frequency switching technology. (HF-Technology) The power saving function makes possible to reduce the consumption considerably with missing connected load and thus to ensure a superior system autonomy.
The power saving function enables a substantial reduction of the consumption with missing connected load and ensures a high system autonomy.
This text is machine translated.
The power saving function enables a substantial reduction of the consumption with missing connected load and ensures a high system autonomy.
This text is machine translated.
Features
- IP21
- LED
- Sine wave voltage
- Electronic safety function
- Earthing contact socket-outlet
Scope of delivery
- Inverter
