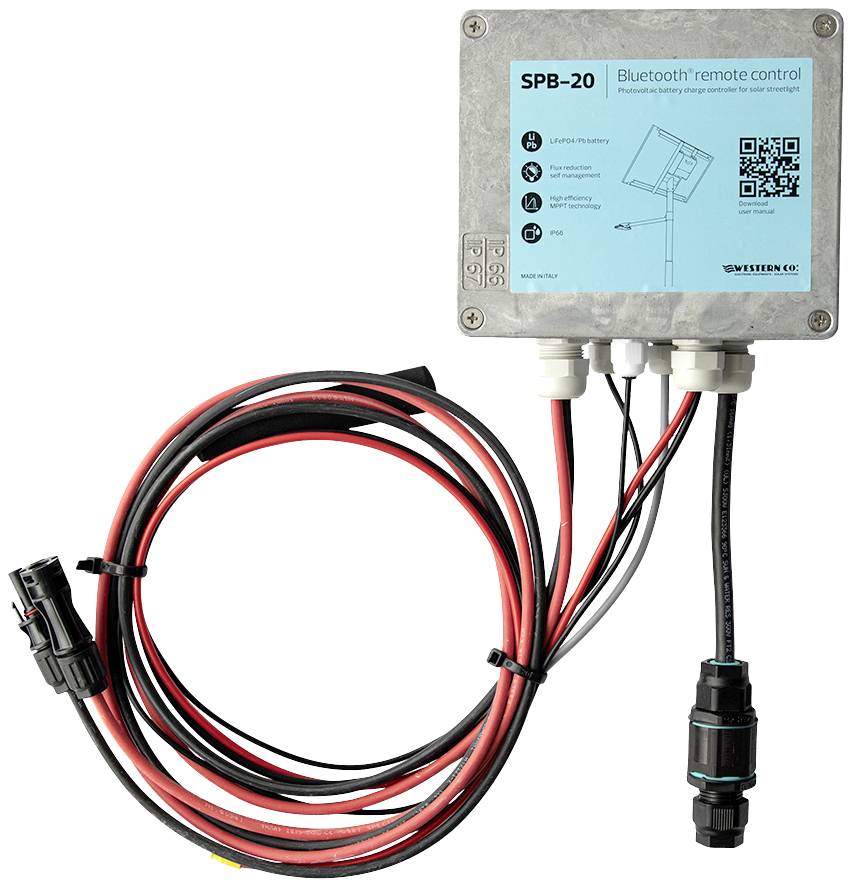

Western Co. Solar Charge Controller MPPT Western SPB-20 Charge controller 12 V, 24 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Solar charge regulator MPPT Western SPB-20
- Charging and load current 20 A
- 12/24 VDC, 100 VOC
- Own consumption 0.4 W.
Technical specifications
- Product type
Charge controller
- Nominal voltage
12 V
24 V
- Module power (max.)
320 W
- Temperature range
-20 - +55 °C
- Matching rechargeable battery
SLA
Lead-acid
Li-ion
LiFePO4
- Dim
(L x W x H) 135 x 160 x 65 mm
- Weight
1 kg
- Features
Data logger
- Current load
20 A
- Module load (max.)
18 A
- Width
160 mm
- Height
65 mm
- Length
135 mm
Documents & Downloads
Datasheet
Datasheet 2638277 Western Co. Solar Charge Controller MPPT Western SPB-20 Charge controller 12 V, 24 V
User & Safety Instructions
User & Safety Instructions 2638277 Western Co. Solar Charge Controller MPPT Western SPB-20 Charge controller 12 V, 24 V
Conformity certificate
Conformity certificate 2638277 Western Co. Solar Charge Controller MPPT Western SPB-20 Charge controller 12 V, 24 V
Description
The SPB-20 controller has a user interface (UI) via a Bluetooth® connected Android/iOS app that allows the installer to check the operation of the street light, set different parameters and the data of the internal logger for predictive maintenance of the street light.
This text is machine translated.
This text is machine translated.
Features
- IP66, PV-cable standard4 (1600 mm)
- Battery connection ring cable M8 (900 mm)
- Interface (Bluetooth)
- Data logger (30 d)
- Freely programmable time and brightness
- Security Functions
- Optional: Motion sensor, auxiliary contact
Scope of delivery
- Solar charge regulator
Hints
Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.
