Western Co. Solarladeregler MPPT Western WRM20+ Charge controller MPPT 12 V, 24 V 20 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

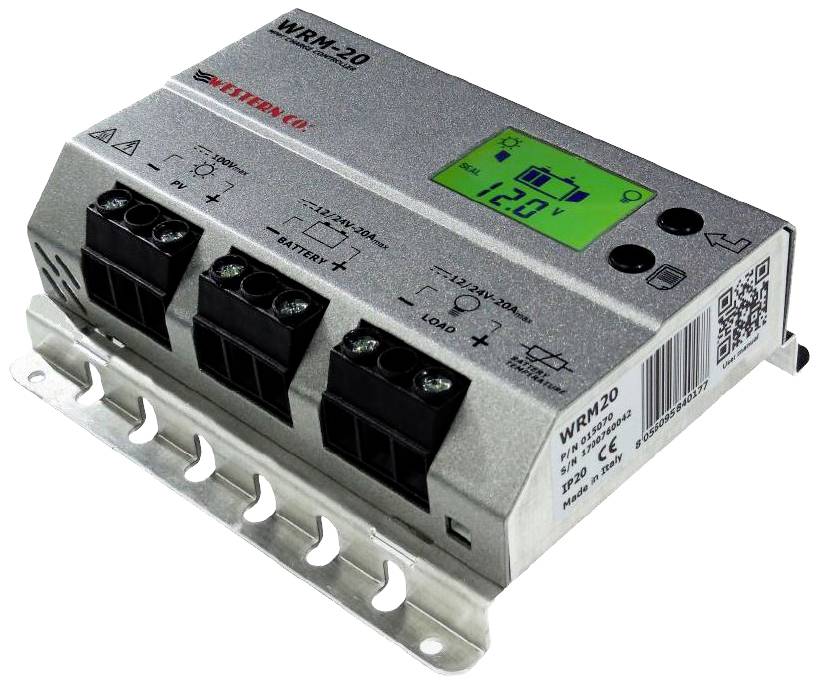

Solar charge regulator MPPT Western WRM20+
- 20A Charge regulator
- MPPT-algorithm with 12V/24V auto detect
- LCD-display and RS485 interface
Technical specifications
- Product type
Charge controller
- Nominal voltage
12 V
24 V
- Module power (max.)
620 W
- Temperature range
-40 to +50 °C
- Charging current (max.)
20 A
- Matching rechargeable battery
SLA
Lead-acid
Li-ion
- Control type
MPPT
- Dim
(L x W x H) 130 x 153 x 53 mm
- Weight
515 g
- Features
LCD
- Current load
20 A
- Module load (max.)
19 A
- Width
153 mm
- Height
53 mm
- Length
130 mm
Documents & Downloads
Datasheet
Datasheet 2624387 Western Co. Solarladeregler MPPT Western WRM20+ Charge controller MPPT 12 V, 24 V 20 A
User & Safety Instructions
User & Safety Instructions 2624387 Western Co. Solarladeregler MPPT Western WRM20+ Charge controller MPPT 12 V, 24 V 20 A
Conformity certificate
Conformity certificate 2624387 Western Co. Solarladeregler MPPT Western WRM20+ Charge controller MPPT 12 V, 24 V 20 A
Description
The WRM20 is the complete solution for implementing island-shaped solar systems, for power supply of traffic lights and lighting systems, devices with low voltage and for charging batteries in mobile homes and water vehicles. The different charging programs available to the user make the WRM20 the complete solution for many applications; For example, for the feeding of cameras that are intended to operate only during the day, for the power supply of lighting fixtures or lights that are intended to operate only at night, or for the power supply of lighting systems that are intended to work for a certain number of hours. A large display shows the battery voltage, the charging current from the solar module, the charging current connected to the output and other variables. The WRM20+ model allows for the Western Co. WRD display To be connected via the datalogger and the remote control. The family Western Co. Provides the communication protocol at this interface and the operator can therefore implement his own data logger or remote control
This text is machine translated.
This text is machine translated.
Scope of delivery
- Solar charge regulator
