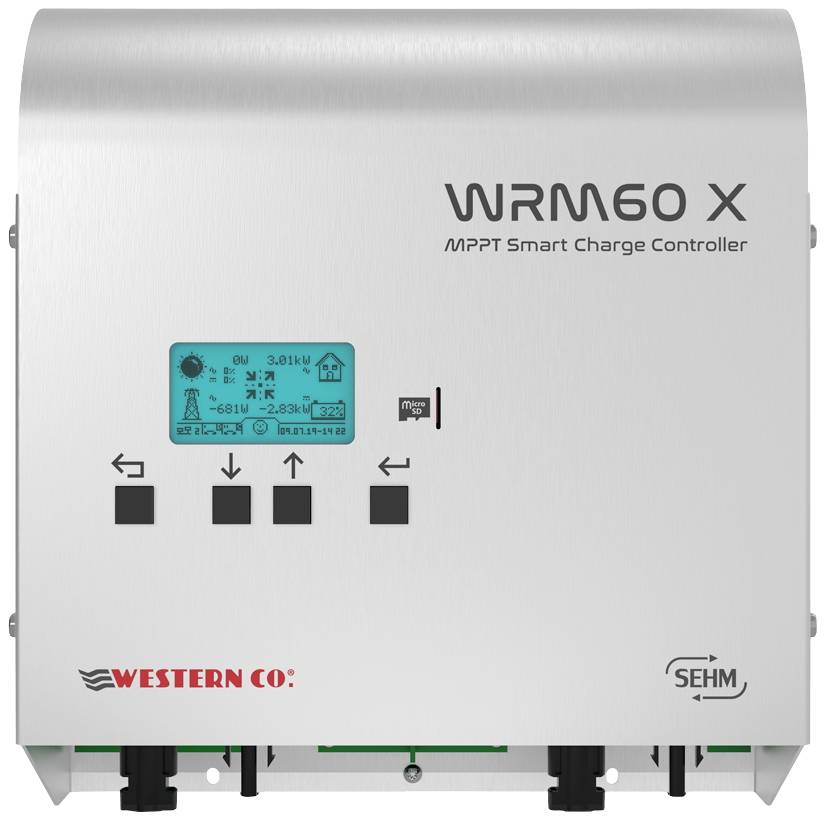

Western Co. Solarladeregler MPPT Western WRM60 X M Charge controller MPPT 24 V, 48 V 60 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Solar charge regulator MPPT Western WRM60 X.
- Charging current 2x 30 A
- 24/48 VDC
- Maximum open circuit voltage of PV string: 180 V.
Technical specifications
- Product type
Charge controller
- Nominal voltage
24 V
48 V
- Module power (max.)
1800 W
- Temperature range
-10–+50 °C
- Charging current (max.)
60 A
- Matching rechargeable battery
SLA
Lead-acid
Li-ion
- Control type
MPPT
- Dim
(L x W x H) 261 x 287 x 105 mm
- Weight
2.5 kg
- Features
LCD
Dual ouput
- Module load (max.)
26 A
- Width
287 mm
- Height
105 mm
- Length
261 mm
Documents & Downloads
Datasheet
Datasheet 2625693 Western Co. Solarladeregler MPPT Western WRM60 X M Charge controller MPPT 24 V, 48 V 60 A
User & Safety Instructions
User & Safety Instructions 2625693 Western Co. Solarladeregler MPPT Western WRM60 X M Charge controller MPPT 24 V, 48 V 60 A
Conformity certificate
Conformity certificate 2625693 Western Co. Solarladeregler MPPT Western WRM60 X M Charge controller MPPT 24 V, 48 V 60 A
Description
The WRM60 X is an intelligent charge controller for charging PV modules and is used in household or large isolated systems. It is suitable for 24V/48V systems and its modularity enables the administration of photovoltaic power up to 50kW by adding the WRM60 X slaves thanks to the internet connection, users can control the operation of the charge controller remotely, change the settings and update the software. In fact, a dedicated platform enables various functions: Monitoring, controlling, and managing the system. This model implements a search circuit of the maximum power of the PVModule (MPPT) and enables the management of two independent PV strings. It is compatible with batteries that are equipped with BMS (with CAN communication), or with conventional batteries thanks to the Western battery monitor (WBM).
This text is machine translated.
This text is machine translated.
Features
- Own consumption 2 W.
- LCD
- IP20
- PV-connection 2x standard4
- Screw terminal M8 (Bat)
- Interface (WBus, CAN)
- Auxiliary contact 60VDC/5A
- Data logger (web portal, APP)
- Programmable
- Option (WBM)
- Cloud IoT Technology
- Advanced data review and control
- 24V/48V automatic battery voltage detection
- For Pb-lead acid, Pb –AGM Pb-gel batteries and lithium batteries
Scope of delivery
- Solar charge regulator
