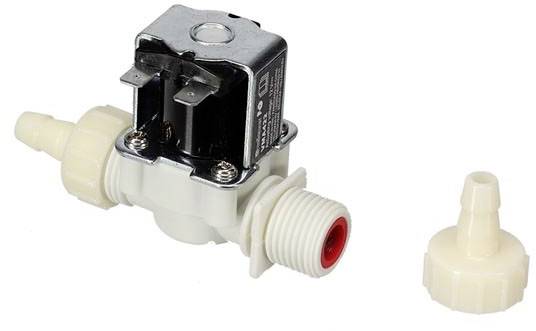

Whadda Magnetic valve WPM422 WPM422 12 V DC Hose connector (outside Ø: 8 mm) 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
6% = € 0.74
€ 12.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
Technical specifications
- Product type
Magnetic valve
- Operating voltage
12 V DC
- Max. operating pressure
8 bar
- Connection
Hose connector (outside Ø: 8 mm)
- Media temperature (range)
1 up to 60 °C
- Manufacturer part #
WPM422
- Operating pressure (min.)
0.02 bar
- Function
2/2 normally closed mono-stable
- Weight
95 g
- Max. media temperature
60 °C
- Media temperature (min.)
1 °C
- Factory colour
Multi-colour
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2330794 Whadda Magnetic valve WPM422 WPM422 12 V DC Hose connector (outside Ø: 8 mm) 1 pc(s)
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
