Whadda WPB101 Microcontroller expansion kit WPB101

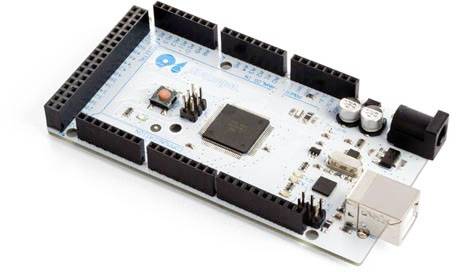

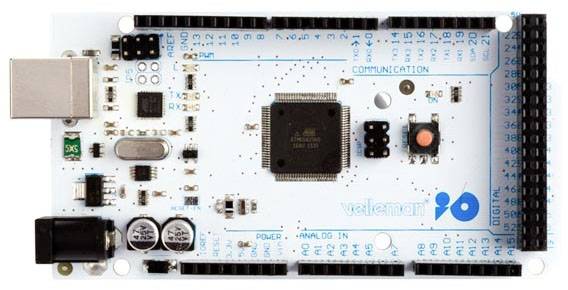

The ATmega2560 MEGA DEVELOPMENT BOARD (Arduino® compatible) Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analogueue inputs, 4 UARTs (serial hardware ports), a 16 MHz crystal oscillator, a USB connection, a power connection socket, an ICSP header, and a reset button. It contains everything was necessary to support the microcontroller. Connect it to a computer with a USB cable or supply it with an AC/DC adapter or battery to get started. The Mega is compatible with most signs developed for the Arduino Duemilanove or Diecimila.

Features:

100% compatible with Arduino® MEGA2560
Specifications
Microcontroller: ATmega2560
Operating voltage: 5VDC
Input voltage (recommended): 7-12VDC
Input voltage (limits): 6-20VDC
Digital I/O pins: 54 (of which 15 provide PWM output)
Analogue input pins:
16VDC per I/O pin: 40mA
DC for 3.3V Pin: 50 mA
Flash memory: 256 kB, of which 8 kB, used by the bootloader
SRAM: 8 kB
EEPROM: 4 kB
Clock rate: 16 MHz
Length: 112 mm
Width: 55 mm
Weight: 62 g.
