Whadda WPM344 Converter 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 5.03 / piece)
€ 5.03
plus VAT.
14-day return policy included
Technical specifications
- Product type
Converter
- Interfaces
I²C
- Tool type
Converter
- No. of outputs
1 x
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2481898 Whadda WPM344 Converter 1 pc(s)
Description

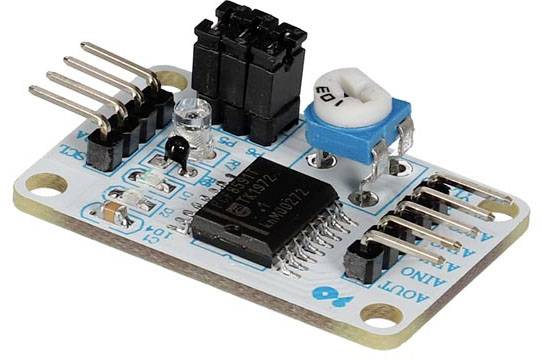

This PCF8591 module is a monolithic integrated 8-bit CMOS data acquisition device. The PCF8591 has four analogue inputs, one analogue output, and one I2C serial bus interface.
For test purposes, the module contains a photo transistor, NTC and a trimmer connected to the PCF8591 by 3 jumpers.
This text is machine translated.
For test purposes, the module contains a photo transistor, NTC and a trimmer connected to the PCF8591 by 3 jumpers.
This text is machine translated.
Features
- Single power supply * supply operating voltage 2.5 V to 6.0 V * low standby current * serial input and output via I2C bus * maximum sampling rate through I2C bus speed * 4 analogue inputs, which can be configured as individual end or differential inputs, Or differential inputs * automatically incremented * channel selection * analogue voltage range from VSS to VDD * to chip track and hold circuit * 8-bit sequential approach A / D conversion * Multiply DAC with an analogue output
