Buy Wi-Fi Switch Surface-mount 1-channel 1-channel Switching capacity (max.) 3500 W Max. range (open field) 20 m

A rectangular, black outdoor electronic enclosure with rounded corners and cable gland.

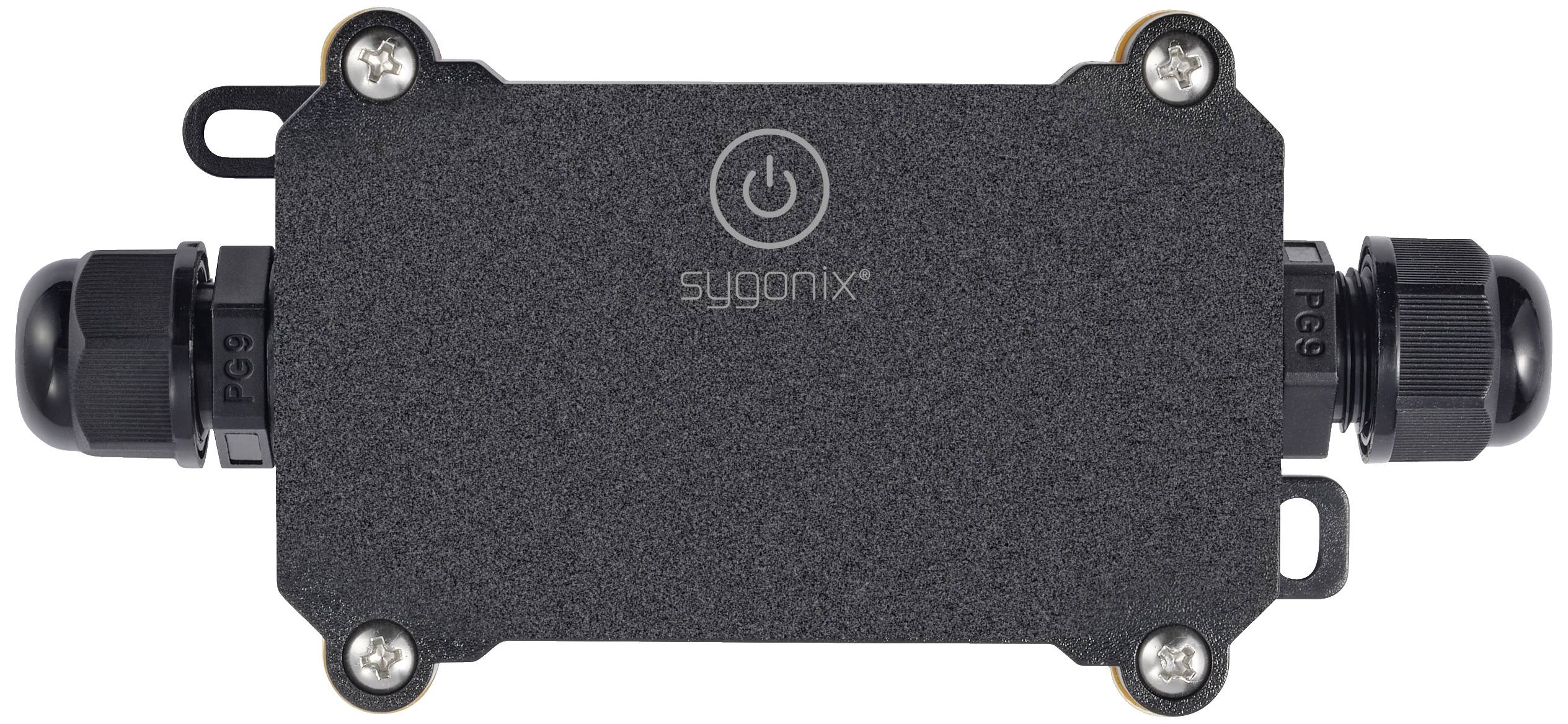

Black and grey electrical component with two cable gland connections and a central on/off switch button, labelled with 'sygonix'.

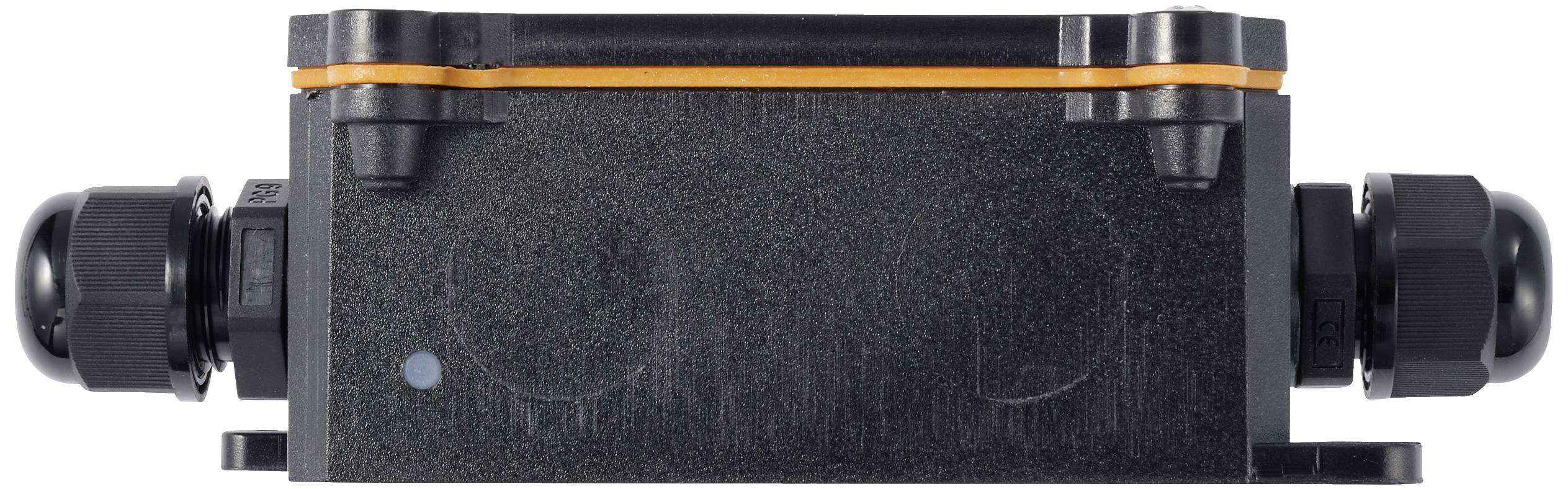

A rectangular, black electronic device with two round ports and an orange stripe at the top.

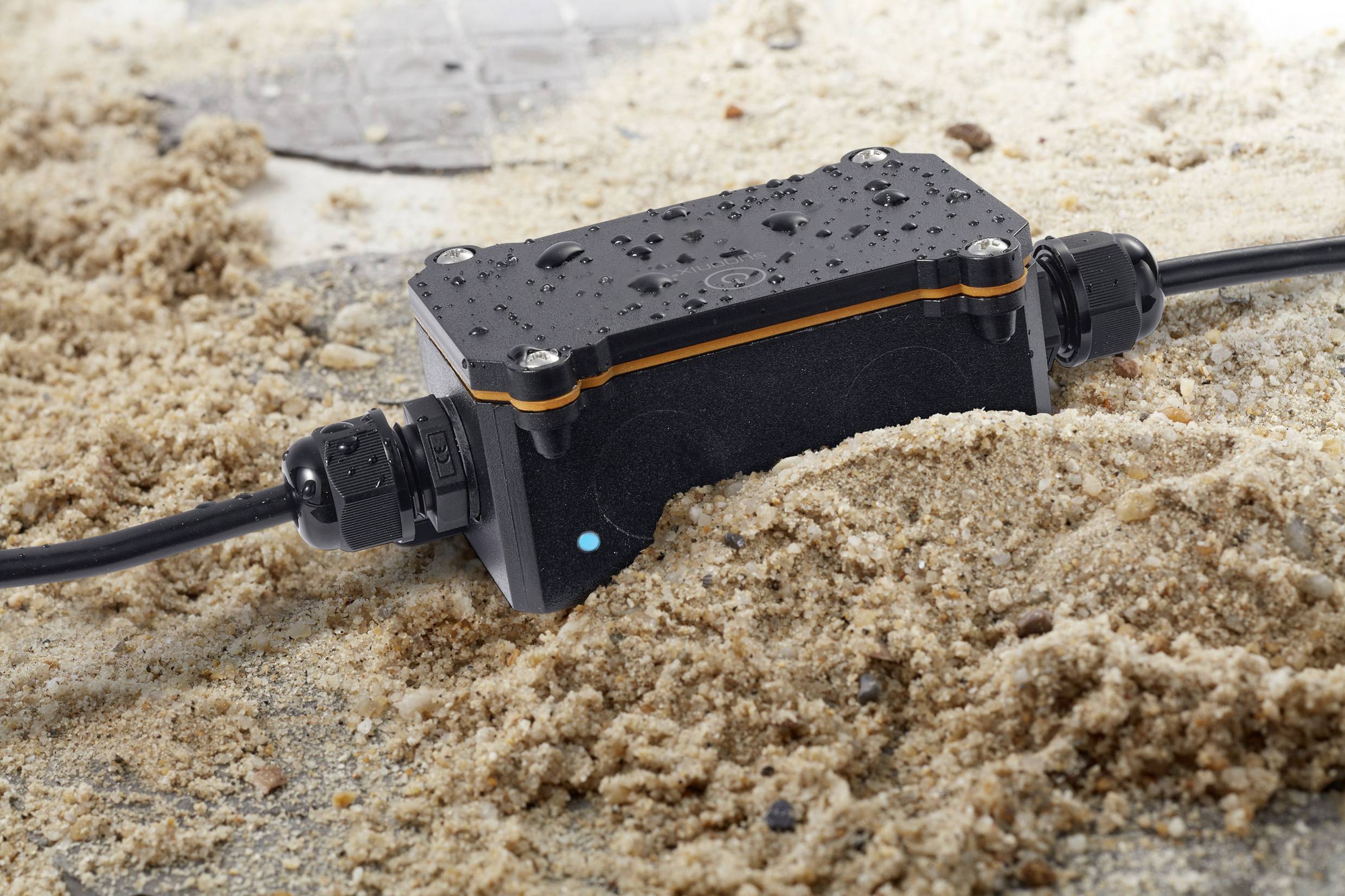

A waterproof black electrical junction box lies in the sand, with water droplets and connected cables at its ends.

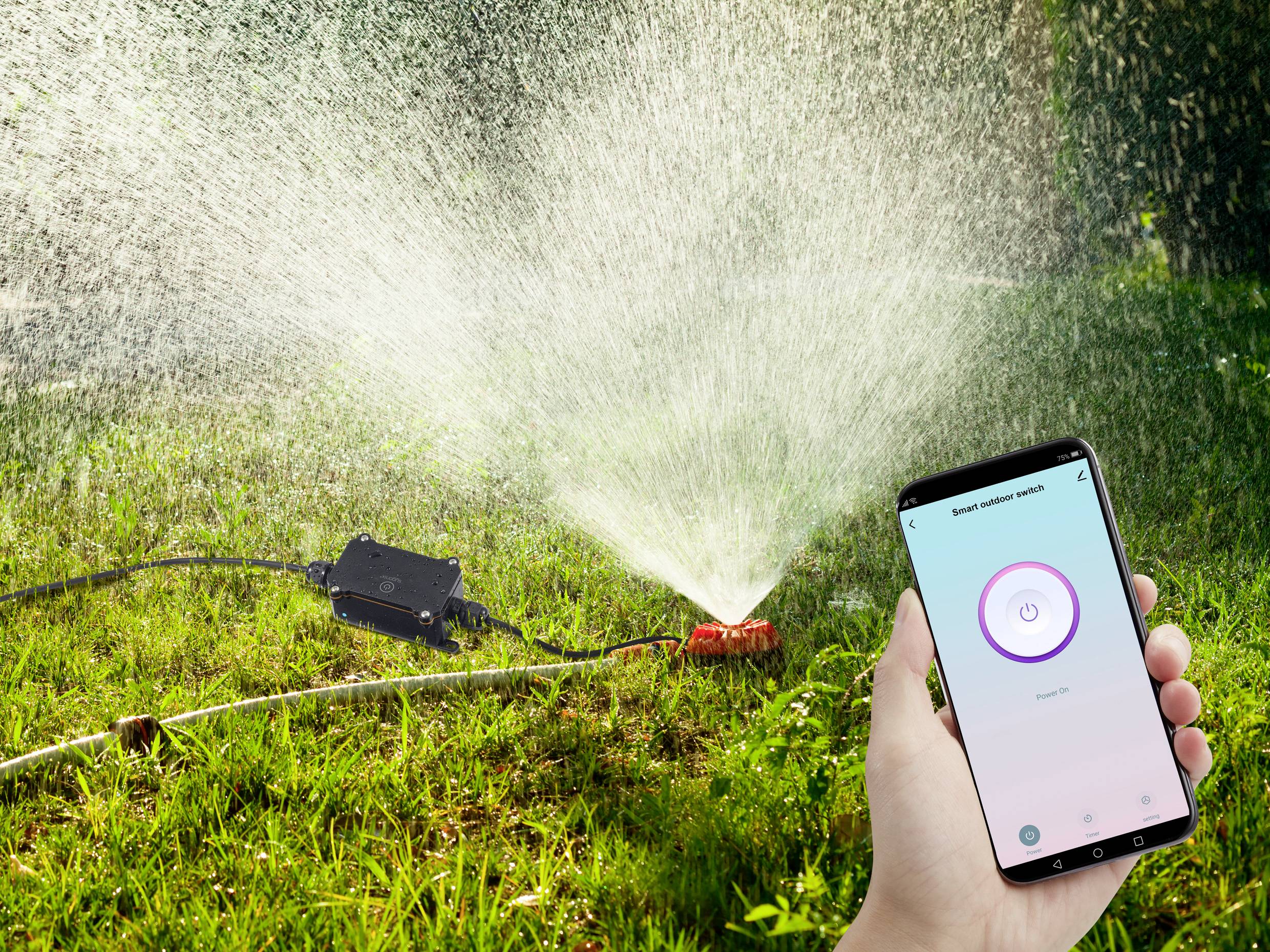

A hand is holding a smartphone displaying an app to control a lawn sprinkler. The sprinkler is watering the lawn.

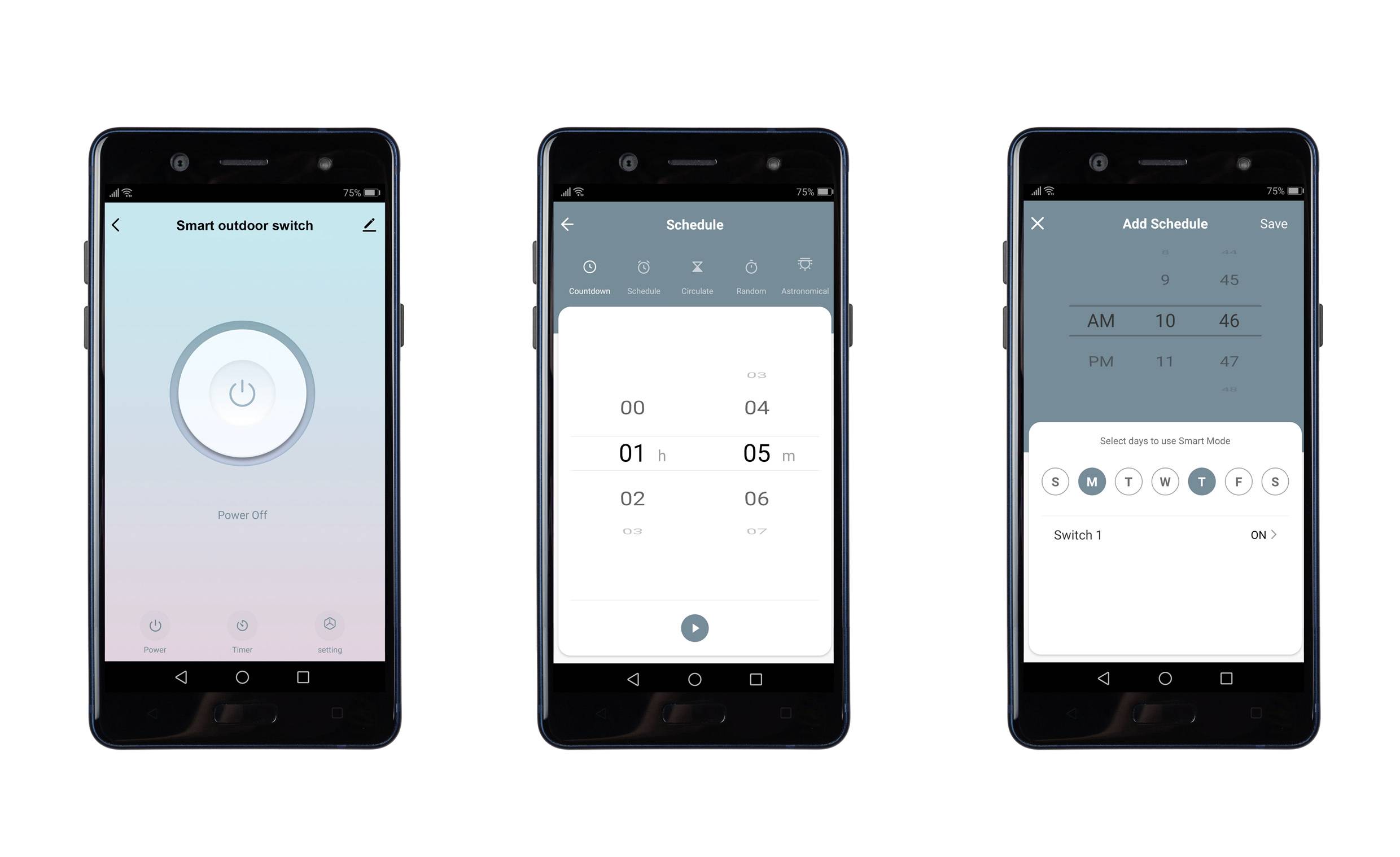

Three smartphone screens display a smart outdoor switch app: homepage with on/off button, schedule settings, and schedule addition.

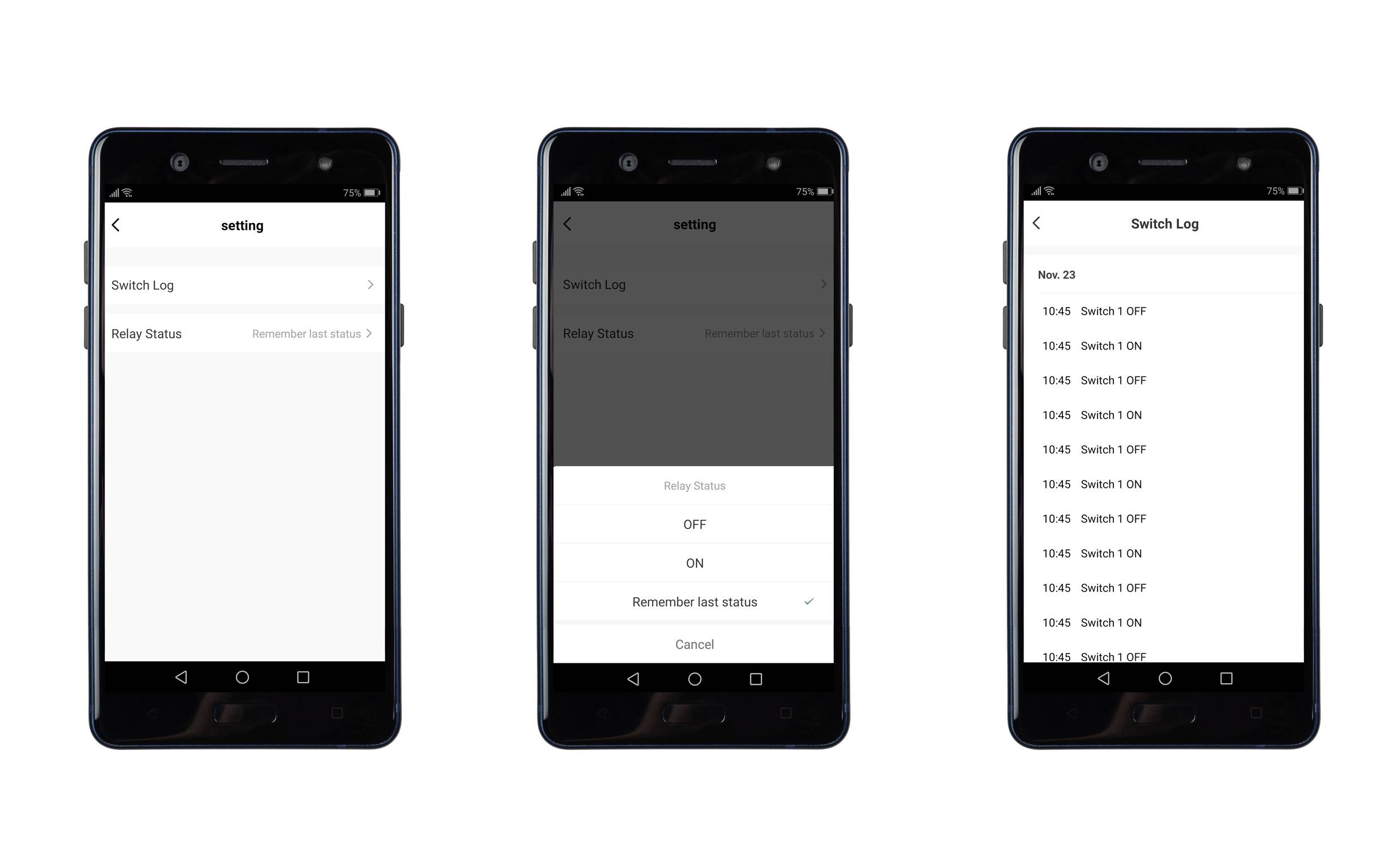

Three smartphone screens display an app interface for controlling switching operations. Left: Settings. Centre: Relay status. Right: Switching log showing time and status.

1/8

Our service for you

Fast track dispatch on Wed, 30 Sep

520 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 24.36 / piece)

€ 24.36

plus VAT.

14-day return policy included

Report legal concerns

Pre-contractual information under the EU Data Act

Highlights & Details

Wi-Fi outdoor smart switch, 14.6 A

Remote on/off, timer, countdown via mobile app
With two PG9 cable glands, suitable for cable diameter of 4-8 mm
IP68 waterproof, suitable for outdoor use

Technical specifications

Product type: Switch

: Alexa
Google Home
Tuya

Transfer Standard (Smart Home): Wi-Fi

Max. switching capacity: 3500 W

Used at: Outdoors
Indoors

Operating voltage: 230 V AC

Data transfer (Smart Home): Wireless

Channels: 1

Frequency: 2.4 GHz

: 20 m

Mounting type: Surface-mount

Factory colour: Black

Width: 140 mm

Height: 42 mm

Depth: 62 mm

Dim: (W x H x D) 140 x 42 x 62 mm

Hub: Not required, optional for remote access

Data exchange: Bidirectional (bi)

: n.rel.

Protection class: IP68

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2799085 Wi-Fi Switch Surface-mount 1-channel 1-channel Switching capacity (max.) 3500 W Max. range (open field) 20 m

Warranty Terms

Warranty Terms 2799085 Wi-Fi Switch Surface-mount 1-channel 1-channel Switching capacity (max.) 3500 W Max. range (open field) 20 m

Description

Switch to Smart HOMEA wireless switch makes the conventional devices communication-capable and enables all the connected components to be controlled via a mobile APP. This way, for example, the garage door can be opened with a mobile phone and the lights in the house can be regulated from a holiday in order to scare off potential burglars.Flexibility thanks to mobile APPVia the mobile end device the Smart switch can not only be controlled directly: On and off times can be set as desired via timer. Furthermore, a countdown app allows you to keep an eye on all settings. The Sygonix WLAN outdoor AP switch 14.6 A supports Google home and Amazon Alexa. Of course, manual operation is also possible via a touch-sensitive main switch.Safe and easy installationThe Smart switch from Sygonix is waterproof according to IP68 and therefore especially suitable for outdoor areas. The switch secured with overload protection is mounted on the surface and has two PG9 line guides, which are suitable for cable diameters from 4 - 8 mm. Mounting screws are included in the delivery as well as the operating instructions.

This text is machine translated.

Features

Overload protection
With touch on/off button
Supports Google Home and Amazon Alexa

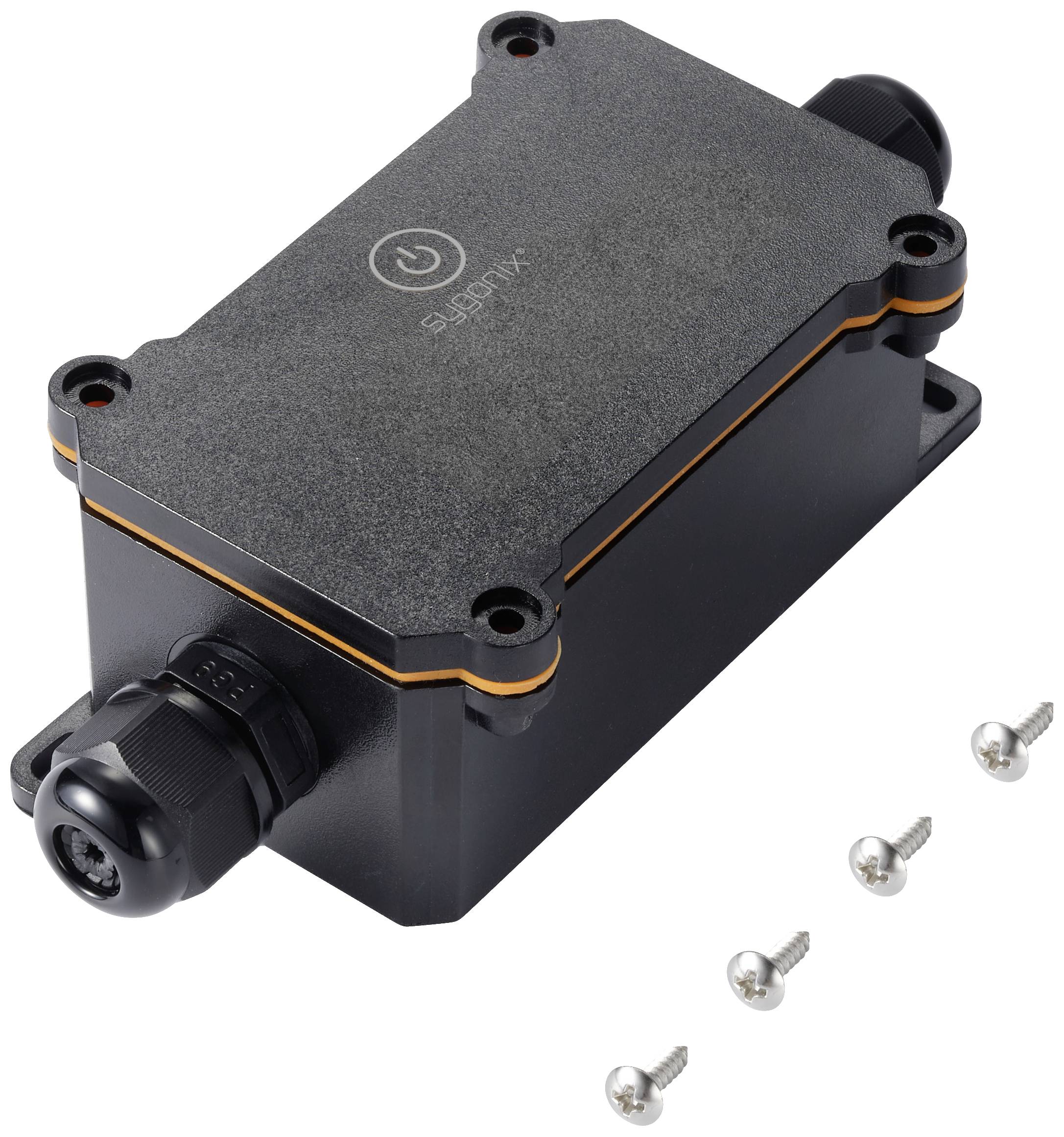

Scope of delivery

Smart switch
4x screws
User manual
