Wieland Electric 21.305.0957.0 Screw terminal flexible: 0.75-1 mm² fixed: 0.75-1.5 mm² Number of pins: 9 500 pc(s) Grey
EAN:
Part number:
Item no:
Product type
Screw terminal
Cross section (flexible) (min.)
0.75 mm²
Cross section (flexible) (max.)
1 mm²
Cross section (inflexible) (min.)
0.75 mm²
Cross section (inflexible) (max.)
1.5 mm²
Number (Package size 500 pc(s))
Total (€ 3.59 / piece)
€ 1,797.48
plus VAT.
14-day return policy included
Technical specifications
- Product type
Screw terminal
- Cross section (flexible) (min.)
0.75 mm²
- Cross section (flexible) (max.)
1 mm²
- Cross section (inflexible) (min.)
0.75 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- Number of pins
9
- Factory colour
Grey
- Content
500 pc(s)
- Manufacturer part #
21.305.0957.0
- Type
4E / 9DS GW
- Connection
Screws
- Nominal voltage
400 V
- Width
70 mm
Direct mounting
Grey
70 mm
400 V
9
2
V2
FALSE
Screw connection
Screw connection
8 mm
FALSE
0.75-1.5 mm²
0.75-1 mm²
0.75-1 mm²
0.75-1 mm²
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3271608 Wieland Electric 21.305.0957.0 Screw terminal flexible: 0.75-1 mm² fixed: 0.75-1.5 mm² Number of pins: 9 500 pc(s) Grey
Description

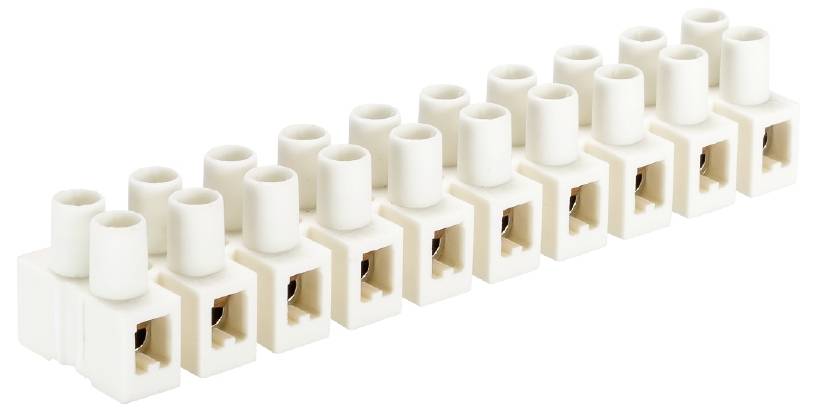

Europe terminal strip with wire protection
9-pin*
Nominal cross-section: 1.5mm²
Pitch: 8mm
Rated voltage: 400V
Colour: white
This text is machine translated.
9-pin*
Nominal cross-section: 1.5mm²
Pitch: 8mm
Rated voltage: 400V
Colour: white
This text is machine translated.
