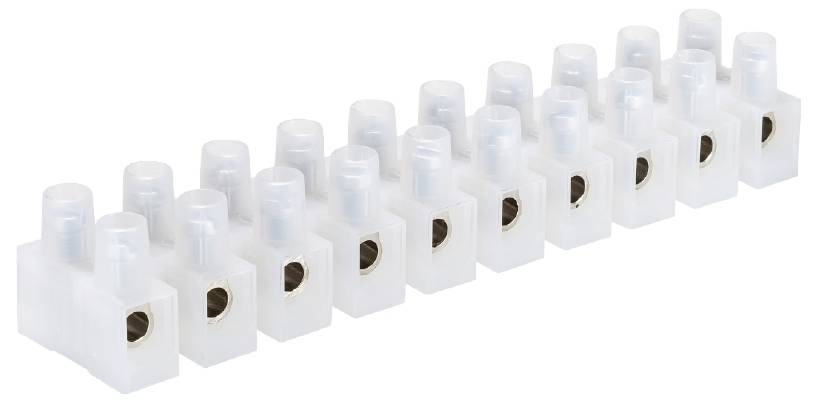

Wieland Electric 21.310.1257.0 Screw terminal flexible: 1-2.5 mm² fixed: 1-4 mm² Number of pins: 12 250 pc(s) Grey
EAN:
Part number:
Item no:
Product type
Screw terminal
Cross section (flexible) (min.)
1 mm²
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (min.)
1 mm²
Nominal current - rounded value
24 A
Number (Package size 250 pc(s))
Total (€ 2.47 / piece)
€ 617.65
plus VAT.
14-day return policy included
Technical specifications
- Product type
Screw terminal
- Cross section (flexible) (min.)
1 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Nominal current
24 A
- Cross section (inflexible) (min.)
1 mm²
- Nominal current - rounded value
24 A
- Cross section (inflexible) (max.)
4 mm²
- Number of pins
12
- Factory colour
Grey
- Content
250 pc(s)
- Manufacturer part #
21.310.1257.0
- Type
6E GW
- Connection
Screws
- Nominal voltage
400 V
- Width
117 mm
Direct mounting
Grey
117 mm
400 V
12
2
V2
FALSE
Screw connection
Screw connection
10 mm
FALSE
1-4 mm²
1-2.5 mm²
1-2.5 mm²
1-4 mm²
24 A
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3289033 Wieland Electric 21.310.1257.0 Screw terminal flexible: 1-2.5 mm² fixed: 1-4 mm² Number of pins: 12 250 pc(s) Grey
Description
Europe terminal strip without wire protection
12-pin
Nominal cross-section: 4mm²
Pitch: 10mm
Rated voltage: 400V
Colour: white
This text is machine translated.
12-pin
Nominal cross-section: 4mm²
Pitch: 10mm
Rated voltage: 400V
Colour: white
This text is machine translated.
