Wieland Electric 21.330.5757.0 Screw terminal flexible: 1.5-4 mm² fixed: 1.5-6 mm² Number of pins: 7 250 pc(s) Grey
EAN:
Part number:
Item no:
Product type
Screw terminal
Cross section (flexible) (min.)
1.5 mm²
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (min.)
1.5 mm²
Nominal current - rounded value
32 A
Number (Package size 250 pc(s))
Total (€ 2.87 / piece)
€ 718.49
plus VAT.
14-day return policy included
Technical specifications
- Product type
Screw terminal
- Cross section (flexible) (min.)
1.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Nominal current
32 A
- Cross section (inflexible) (min.)
1.5 mm²
- Nominal current - rounded value
32 A
- Cross section (inflexible) (max.)
6 mm²
- Number of pins
7
- Factory colour
Grey
- Content
250 pc(s)
- Manufacturer part #
21.330.5757.0
- Type
10E / 7 GW
- Connection
Screws
- Nominal voltage
500 V
- Width
80 mm
Direct mounting
Grey
80 mm
500 V
7
2
V2
FALSE
Screw connection
Screw connection
12 mm
FALSE
1.5-6 mm²
1.5-4 mm²
1.5-4 mm²
1.5-6 mm²
32 A
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3288981 Wieland Electric 21.330.5757.0 Screw terminal flexible: 1.5-4 mm² fixed: 1.5-6 mm² Number of pins: 7 250 pc(s) Grey

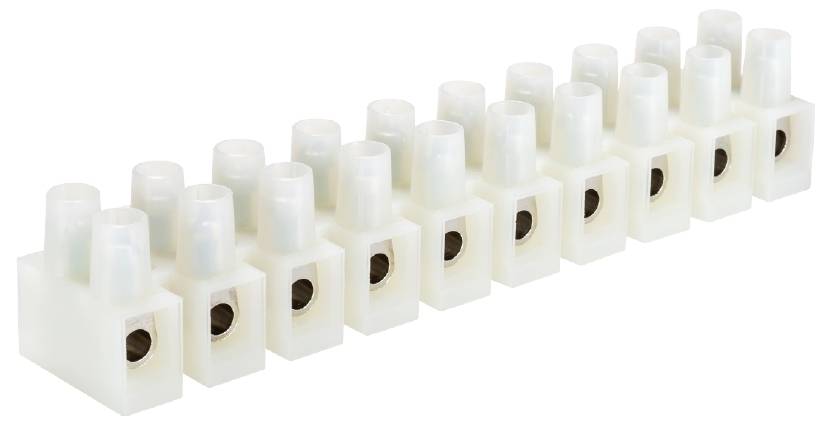

Description
Europe terminal strip without wire protection
7-pin
Nominal cross-section: 6mm²
Pitch: 12mm
Rated voltage: 500V
Colour: white
This text is machine translated.
7-pin
Nominal cross-section: 6mm²
Pitch: 12mm
Rated voltage: 500V
Colour: white
This text is machine translated.
