Wieland Electric 21.340.3153.0 Screw terminal flexible: 4-10 mm² fixed: 4-16 mm² Number of pins: 1 200 pc(s) Grey
EAN:
Part number:
Item no:
Product type
Screw terminal
Cross section (flexible) (min.)
4 mm²
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (min.)
4 mm²
Nominal current - rounded value
57 A
Number (Package size 200 pc(s))
Total (€ 0.90 / piece)
€ 180.66
plus VAT.
14-day return policy included
Technical specifications
- Product type
Screw terminal
- Cross section (flexible) (min.)
4 mm²
- Cross section (flexible) (max.)
10 mm²
- Nominal current
57 A
- Cross section (inflexible) (min.)
4 mm²
- Nominal current - rounded value
57 A
- Cross section (inflexible) (max.)
16 mm²
- Number of pins
1
- Factory colour
Grey
- Content
200 pc(s)
- Manufacturer part #
21.340.3153.0
- Type
20E / 1
- Connection
Screws
- Nominal voltage
500 V
- Width
11.5 mm
Direct mounting
Grey
11.5 mm
500 V
1
2
V2
FALSE
Screw connection
Screw connection
14.5 mm
FALSE
4-16 mm²
4-10 mm²
4-10 mm²
4-16 mm²
57 A
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3271653 Wieland Electric 21.340.3153.0 Screw terminal flexible: 4-10 mm² fixed: 4-16 mm² Number of pins: 1 200 pc(s) Grey

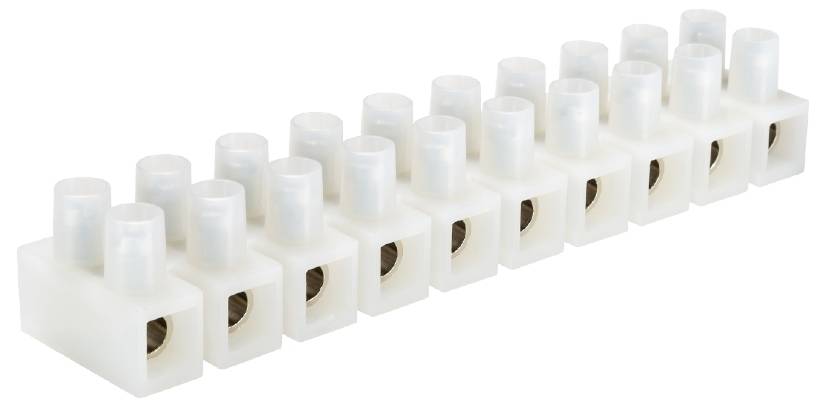

Description
Europe terminal strip without wire protection
1-pin
Nominal cross-section: 16mm²
Contact spacing: 14.5mm
Rated voltage: 500V
Colour: white
This text is machine translated.
1-pin
Nominal cross-section: 16mm²
Contact spacing: 14.5mm
Rated voltage: 500V
Colour: white
This text is machine translated.
