Wieland Electric 32.540.0053.0 Bolt terminal 25 mm Bolt fixings Grey 25 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Bolt terminal
Connection
Bolt fixings
Cross section (flexible) (max.)
50 mm²
Nominal current - rounded value
150 A
Number (Package size 25 pc(s))
Total (€ 11.26 / piece)
€ 281.51
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Bolt terminal
- Features
with screw connection
- Connection
Bolt fixings
- Cross section (flexible) (min.)
50 mm²
- Cross section (flexible) (max.)
50 mm²
- Clamp width
25 mm
- No. of rows
1
- Pins per row
1
- Factory colour
Grey
- Nominal current
150 A
- Nominal current - rounded value
150 A
- Nominal voltage
1000 V
- Manufacturer part #
32.540.0053.0
- Content
25 pc(s)
- Type
BK M8/35
- Width
25 mm
- Flammability rating
V0
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Grey
1000 V
-40-55 °C
V0
FALSE
Bolt connection
Bolt connection
1
1
50-50 mm²
Thermoplastic
150 A
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3271693 Wieland Electric 32.540.0053.0 Bolt terminal 25 mm Bolt fixings Grey 25 pc(s) Piece
Description

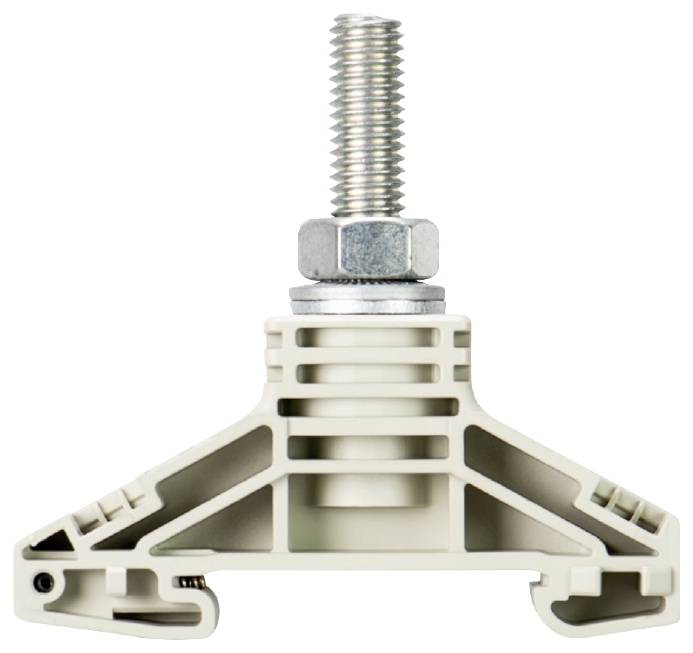

Bolt terminal with screw terminal for mounting on TS 35
Bolt size M 8
Installation width 25 mm.
Colour Grey
This text is machine translated.
Bolt size M 8
Installation width 25 mm.
Colour Grey
This text is machine translated.
