Wieland Electric 39.703.0153.0 Continuity Spring-loaded connector Grey 100 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Spring-loaded connector
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
24 A
Number (Package size 100 pc(s))
Total (€ 0.88 / piece)
€ 88.23
plus VAT.
14-day return policy included
Technical specifications
- Product type
Continuity
- Connection
Spring-loaded connector
- Cross section (flexible) (min.)
0.13 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.13 mm²
- Cross section (inflexible) (max.)
4 mm²
- No. of rows
1
- Pins per row
2
- Factory colour
Grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Manufacturer part #
39.703.0153.0
- Content
100 pc(s)
- Type
WKF2,5/M / F
- Insulation material
Thermoplastic
Direct mounting
Grey
800 V
-40-55 °C
V2
TRUE
Spring clamp connection
Spring clamp connection
1
2
0.13-4 mm²
0.13-2.5 mm²
Thermoplastic
24 A
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3271715 Wieland Electric 39.703.0153.0 Continuity Spring-loaded connector Grey 100 pc(s)
Description

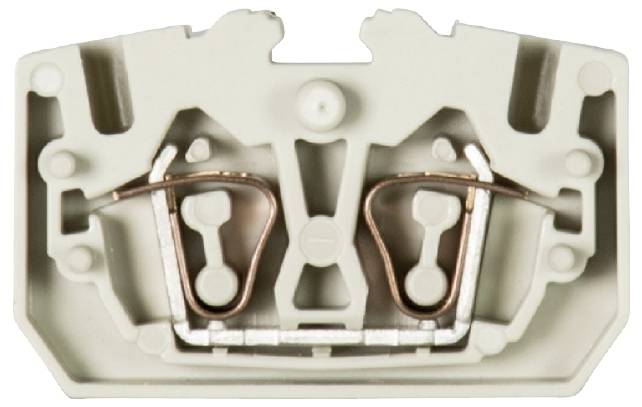

Through terminal with spring-cage connection for direct mounting
Nominal cross-section: 2.5 mm²
Installation width 5 mm
Colour: grey
This text is machine translated.
Nominal cross-section: 2.5 mm²
Installation width 5 mm
Colour: grey
This text is machine translated.
