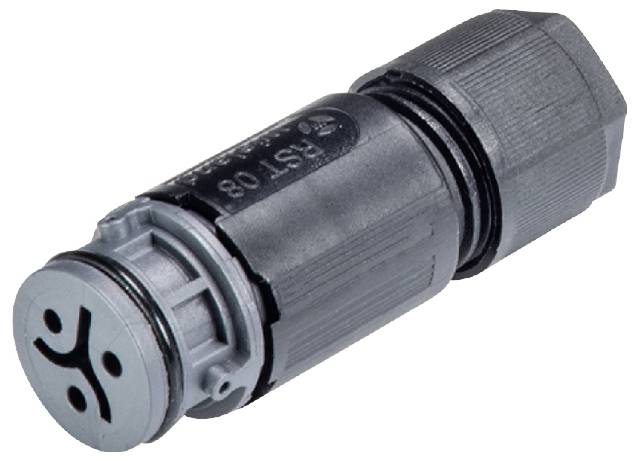

Wieland Electric 41.021.3041.4 Connector
EAN:
Part number:
Item no:
Number
Total (€ 2.93 / piece)
€ 2.93
plus VAT.
14 days return policy included
Technical specifications
- Product type
Connector
- Type A
Socket
- Type B
Socket
- Connector version
straight
- Connection
Screw connection
- Rated voltage
50 V
- Test current
8 A
- Cable Ø (max.)
7 mm
- Cable Ø up to
4 mm
- Cable Ø range
4 - 7 mm
- Number of pins
2
IP66
14.9 mm
Bus
TRUE
14.9 mm
Screw connection
Integrated in plug-in connector
8 A
50 V
TRUE
2
42.5 mm
Polyamide (PA)
4-7 mm
Silver-plated
3
2.5 kV
0.55 mOhm
CuZn
IP66
1
1, 2
Grey
0.018 kWh
0.22-1 mm²
0.2-1 mm²
100 °C
7015
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3273262 Wieland Electric 41.021.3041.4 Connector
Description
RST® MICRO connector
straight
Number of poles: 2
Socket
Connection type: screw terminals.
Rated voltage 50 V / 120 V
Rated current 8 A
Cable diameter 4 - 7 mm
Coding color / contact insert slate gray
This text is machine translated.
straight
Number of poles: 2
Socket
Connection type: screw terminals.
Rated voltage 50 V / 120 V
Rated current 8 A
Cable diameter 4 - 7 mm
Coding color / contact insert slate gray
This text is machine translated.
