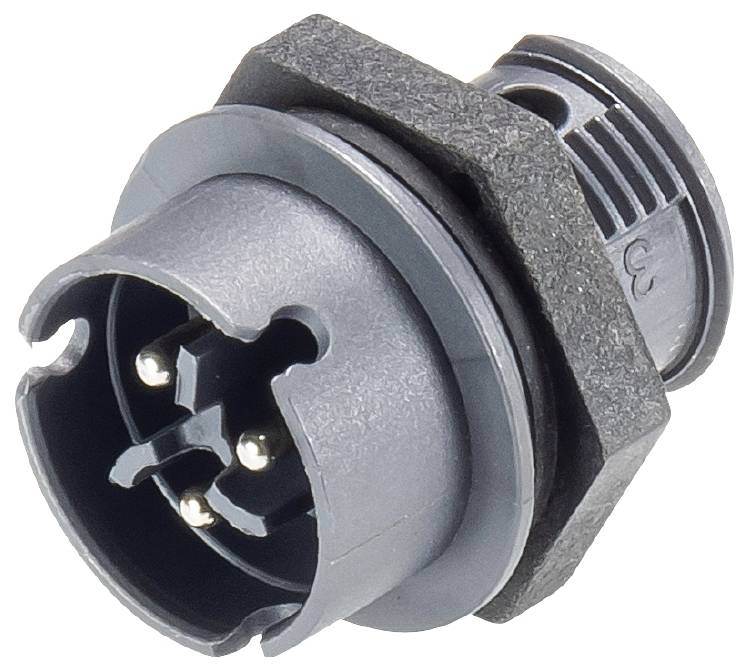

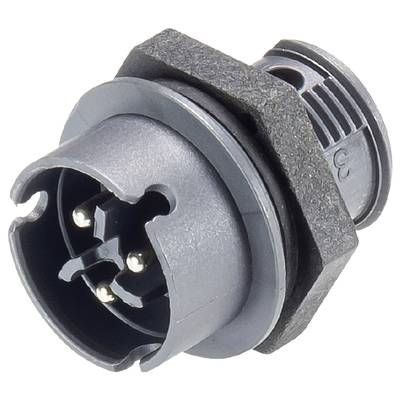

Wieland Electric 41.032.4041.4 Appliance connector
EAN:
Part number:
Item no:
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.35
5
7% = € 0.22
€ 3.13
10
10% = € 0.32
€ 3.03
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.35 / piece)
€
Technical specifications
- Product type
Appliance connector
- Type A
Plug
- Connector version
straight
- Connection
Screw connection
- Rated voltage
50 V
- Test current
8 A
- Number of pins
3
IP66
19.2 mm
Plug
TRUE
19.2 mm
Screw connection
Integrated in plug-in connector
8 A
50 V
3
21.3 mm
Polyamide (PA)
Silver-plated
3
Straight
TRUE
2.5 kV
0.55 mOhm
CuZn
No thread connection
IP66
1
1, 2, 3
Grey
0.22-1 mm²
0.2-1 mm²
100 °C
7015
Description
RST® MICRO device connection
Standard
straight
M14
Number of poles: 3
Plug version
Connection type: screw terminals.
Rated voltage 50 V / 120 V
Rated current 8 A
Coding color / contact insert slate gray
This text is machine translated.
Standard
straight
M14
Number of poles: 3
Plug version
Connection type: screw terminals.
Rated voltage 50 V / 120 V
Rated current 8 A
Coding color / contact insert slate gray
This text is machine translated.
