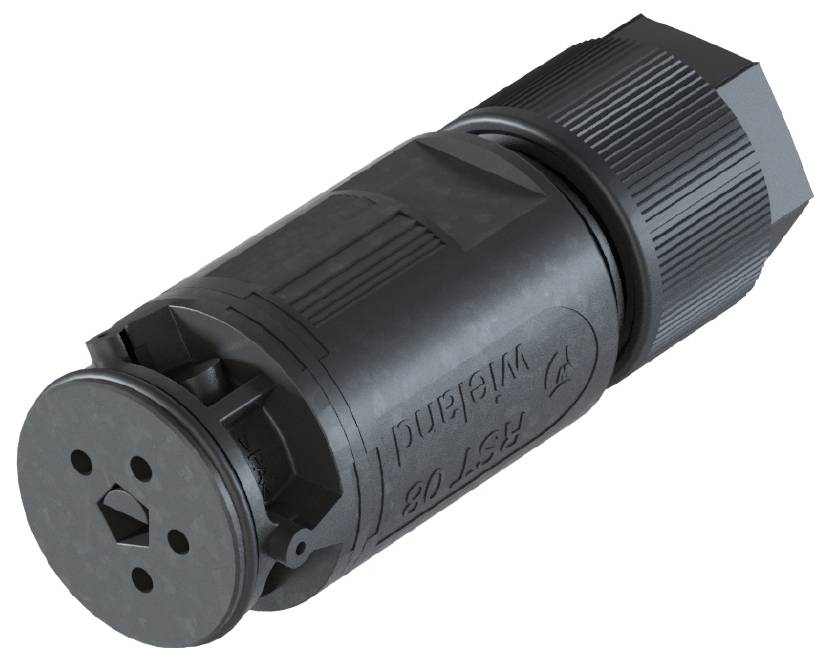

Wieland Electric 41.041.3053.1 Connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.71
3
6% = € 0.37
€ 6.34
5
8% = € 0.51
€ 6.20
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.71 / piece)
€ 6.71
plus VAT.
Technical specifications
- Product type
Connector
- Type A
Socket
- Connector version
straight
- Connection
Screw connection
- Rated voltage
250 V
- Test current
8 A
- Cable Ø (max.)
10.6 mm
- Cable Ø up to
5 mm
- Cable Ø range
5 - 10.6 mm
- Number of pins
4
IP66
20 mm
Bus
TRUE
20 mm
Screw connection
Integrated in plug-in connector
8 A
250 V
TRUE
4
56 mm
Polyamide (PA)
5-10.6 mm
Silver-plated
3
TRUE
2.5 kV
0.55 mOhm
CuZn
IP66
1
1, 2, 3, PE
Black
0.22-1 mm²
0.2-1 mm²
100 °C
9005
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3273386 Wieland Electric 41.041.3053.1 Connector
Description
RST® MICRO connector
straight
Number of pins: 4
Socket
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 8 A
Cable diameter 5 - 10.6 mm
Coding color / contact insert black
This text is machine translated.
straight
Number of pins: 4
Socket
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 8 A
Cable diameter 5 - 10.6 mm
Coding color / contact insert black
