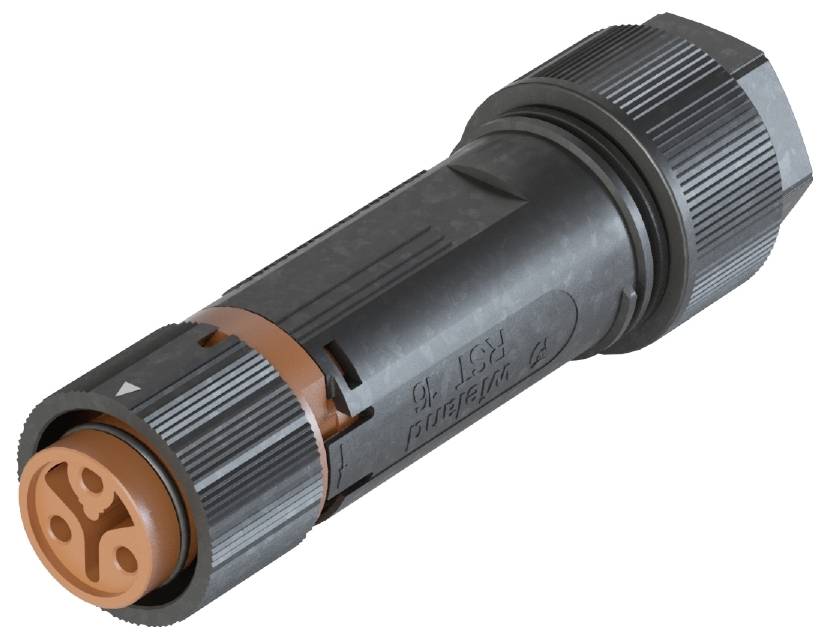

Wieland Electric 46.031.4450.4 Connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.97
3
5% = € 0.43
€ 7.54
5
8% = € 0.61
€ 7.36
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.97 / piece)
€ 7.97
plus VAT.
14-day return policy included
Technical specifications
- Product type
Connector
- Type A
Socket
- Type B
Socket
- Connector version
straight
- Connection
Screw connection
- Rated voltage
50 V
- Test current
16 A
- Cable Ø (max.)
13 mm
- Cable Ø up to
7.1 mm
- Cable Ø range
7.1 - 13 mm
- Number of pins
3
IP66
- Series
RST Mini
24 mm
Bus
TRUE
24 mm
Screw connection
Integrated in plug-in connector
16 A
50 V
TRUE
3
74 mm
Polyamide (PA)
7.1-13 mm
Silver-plated
3
4 kV
0.75 mOhm
CuZn
IP66
1
1, 2, 3
Other
0.135 kWh
0.25-2.5 mm²
0.25-2.5 mm²
100 °C
8002
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3273399 Wieland Electric 46.031.4450.4 Connector
Description
RST® MINI connector
straight
Number of poles: 3
Socket
Connection type: screw terminals.
Rated voltage 50 V / 120 V
Rated current 16 A
Cable diameter 7.1 - 13 mm
Coding color / contact insert signal brown
This text is machine translated.
straight
Number of poles: 3
Socket
Connection type: screw terminals.
Rated voltage 50 V / 120 V
Rated current 16 A
Cable diameter 7.1 - 13 mm
Coding color / contact insert signal brown
This text is machine translated.
