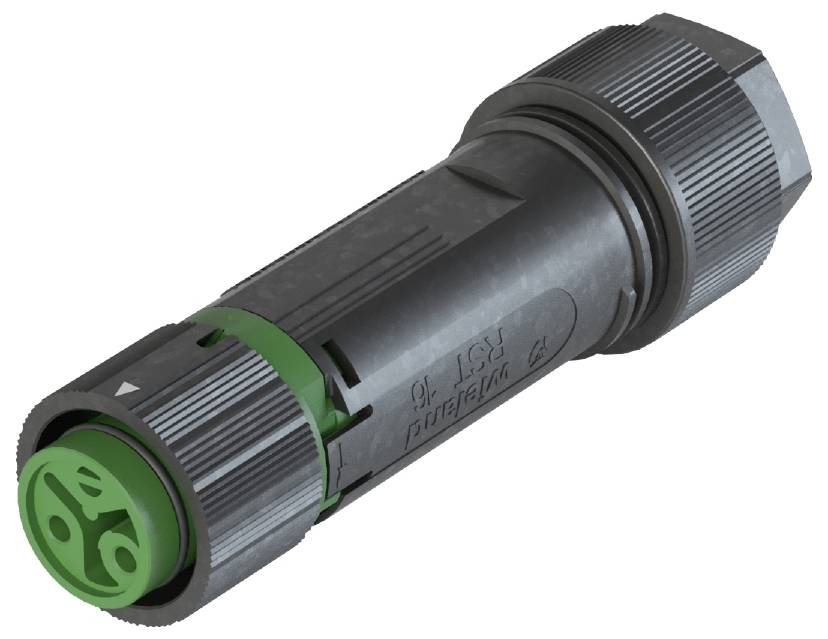

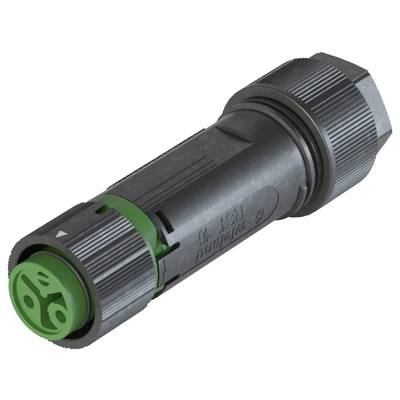

Wieland Electric 46.031.4456.7 Connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.71
3
6% = € 0.37
€ 6.34
5
8% = € 0.51
€ 6.20
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.71 / piece)
€
Technical specifications
- Type A
Socket
- Connection
Screw connection
- Cable Ø range
7.1 - 13 mm
IP66
- Number of pins
2
- Test current
16 A
- Rated voltage
250 V
- Cable Ø (max.)
13 mm
- Cable Ø up to
7.1 mm
24 mm
Bus
TRUE
24 mm
Screw connection
Integrated in plug-in connector
16 A
250 V
TRUE
2
74 mm
Polyamide (PA)
7.1-13 mm
Silver-plated
3
4 kV
0.75 mOhm
CuZn
IP66
1
1, 2
Green
0.133 kWh
0.25-2.5 mm²
0.25-2.5 mm²
100 °C
6002
- Product type
Connector
Description
RST® MINI connector
straight
Number of poles: 2
Socket
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 16 A
Cable diameter 7.1 - 13 mm
Coding color / contact insert leaf green
This text is machine translated.
straight
Number of poles: 2
Socket
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 16 A
Cable diameter 7.1 - 13 mm
Coding color / contact insert leaf green
This text is machine translated.
