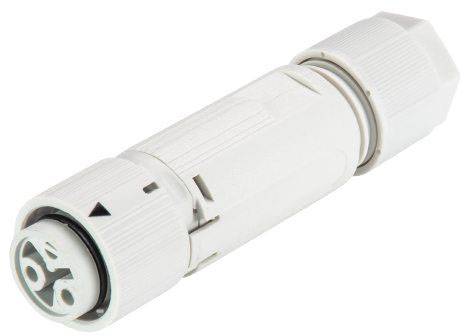

Wieland Electric 46.031.4554.0 Bullet connector Connector, straight Total number of pins: 2 Series (round connectors): R
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Connector, straight
Total no. of pins
2
Connection
Screws
Content
1 pc(s)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.55
5
6% = € 0.46
€ 7.09
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.55 / piece)
€ 7.55
plus VAT.
14-day return policy included
Highlights & Details
RST ® mini cable socket RSTI 162/3
Our service for you
Technical specifications
- Type
RST16I3/2S B1 ZT4 GL
- Product type
Bullet connector
- Connector type
Connector, straight
- Total no. of pins
2
- Connection
Screws
- Factory colour
Grey
- Content
1 pc(s)
- Max. temperature
+85 °C
- Nominal current
16 A
- Min. temperature
-25 °C
- Nominal current - rounded value
16 A
- Seal
Bayonet
- Leading contact (PE)
No
- Nominal voltage
250 V
- Cable Ø (max.)
9.5 mm
- Cable Ø up to
5 mm
- Connection angle
180°
- Manufacturer part #
46.031.4554.0
- Industrial packaging
No
- Cable Ø range
5 - 9.5 mm
- Number of pins
2
- Length
71 mm
- (Ø)
19.90 mm
- max. cross section
1.5 mm²
- Min. cross section
0.25 mm²
- Cross-section range
0.25 - 1.5 mm²
- RoHS-compliant
Yes
- Series
RST® MINI
- UKCA
not relevant
