Wieland Electric 46.032.4450.6 Connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.55
3
5% = € 0.41
€ 7.14
5
8% = € 0.58
€ 6.97
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.55 / piece)
€ 7.55
plus VAT.
Technical specifications
- Product type
Connector
- Type A
Plug
- Connector version
straight
- Connection
Screw connection
- Rated voltage
250 V
- Test current
16 A
- Cable Ø (max.)
13 mm
- Cable Ø up to
7.1 mm
- Cable Ø range
7.1 - 13 mm
- Number of pins
3
IP66
- Series
RST Mini
24 mm
Plug
TRUE
24 mm
Screw connection
Integrated in plug-in connector
16 A
250 V
TRUE
3
72 mm
Polyamide (PA)
7.1-13 mm
Silver-plated
3
4 kV
0.75 mOhm
CuZn
IP66
1
1, 2
Blue
0.115 kWh
0.25-2.5 mm²
0.25-2.5 mm²
100 °C
5018
Description

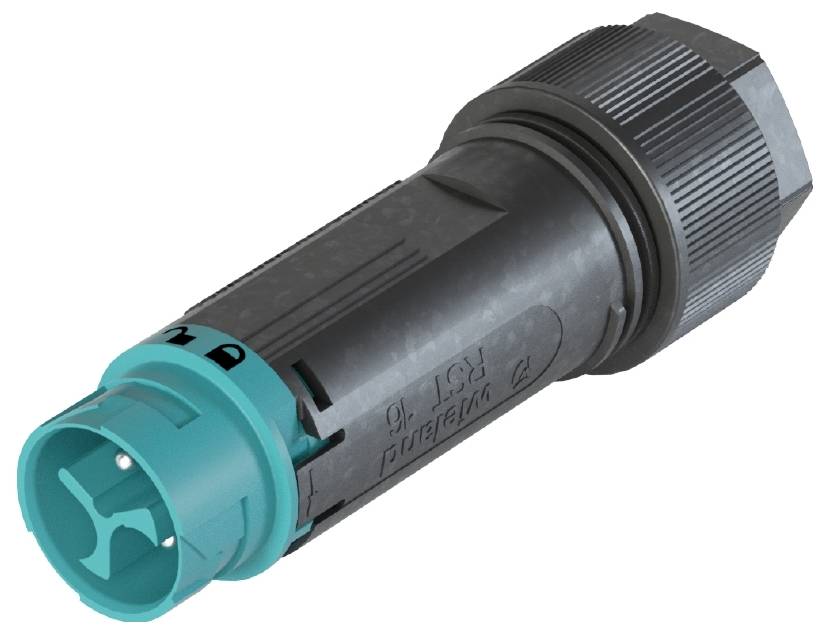

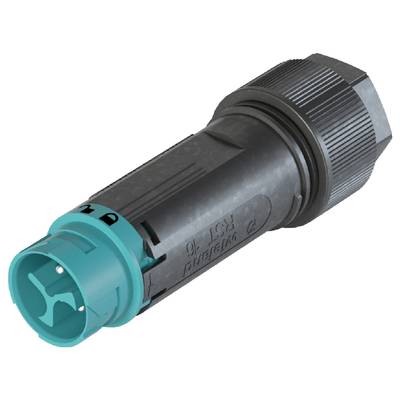

RST® MINI connector
straight
Number of poles: 3
Connector
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 16 A
Cable diameter 7.1 - 13 mm
Coding color / contact insert, turquoise
This text is machine translated.
straight
Number of poles: 3
Connector
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 16 A
Cable diameter 7.1 - 13 mm
Coding color / contact insert, turquoise
This text is machine translated.
