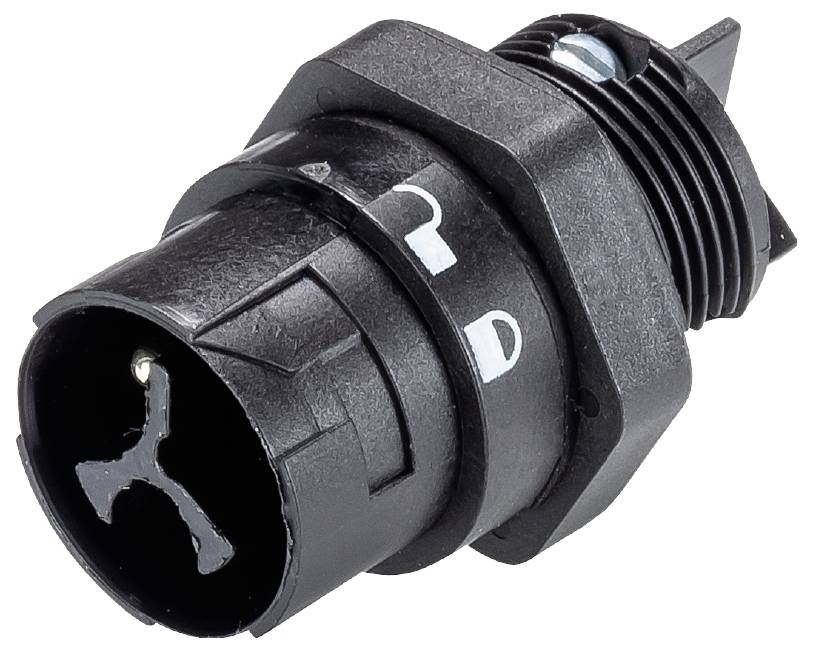

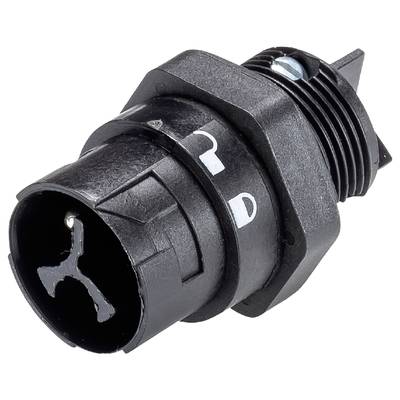

Wieland Electric 46.032.5054.1 Appliance connector
EAN:
Part number:
Item no:
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.03
5
6% = € 0.29
€ 4.74
10
8% = € 0.41
€ 4.62
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.03 / piece)
€
Technical specifications
- Type A
Plug
- Connector version
straight
- Connection
Screw connection
IP66
- Number of pins
2
- Test current
16 A
- Rated voltage
250 V
19 mm
Plug
TRUE
19 mm
Screw connection
Integrated in plug-in connector
16 A
250 V
2
35.2 mm
Polyamide (PA)
Silver-plated
3
Straight
4 kV
0.75 mOhm
CuZn
M16
IP66
1
L, N
Black
0.043 kWh
0.25-2.5 mm²
0.25-2.5 mm²
100 °C
9005
- Product type
Appliance connector
Description
RST® MINI device connection
Standard
straight
M16
Number of poles: 2
Plug version
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 16 A
Coding color / contact insert black
This text is machine translated.
Standard
straight
M16
Number of poles: 2
Plug version
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 16 A
Coding color / contact insert black
This text is machine translated.
