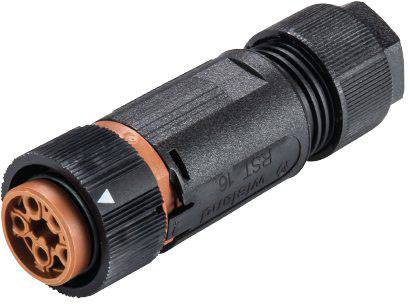

Wieland Electric 46.051.4550.4 Bullet connector Connector, straight Total number of pins: 5 Series (round connectors): R
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Connector, straight
Total no. of pins
5
Connection
Screws
Content
1 pc(s)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
6% = € 0.70
€ 11.90
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
14-day return policy included
Technical specifications
- Type
RST16I5 S B1 ZT6S L BR
- Product type
Bullet connector
- Connector type
Connector, straight
- Total no. of pins
5
- Connection
Screws
- Factory colour
Brown
- Content
1 pc(s)
- Max. temperature
+120 °C
- Nominal current
16 A
- Min. temperature
-40 °C
- Nominal current - rounded value
16 A
- Seal
Bayonet
- Leading contact (PE)
No
- Nominal voltage
50 V
- Cable Ø (max.)
16 mm
- Cable Ø up to
7.1 mm
- Connection angle
180°
- Manufacturer part #
46.051.4550.4
- Industrial packaging
No
- Cable Ø range
7.1 - 16 mm
- Number of pins
5
- Length
81 mm
- (Ø)
24.90 mm
- max. cross section
1.5 mm²
- Min. cross section
0.25 mm²
- Cross-section range
0.25 - 1.5 mm²
- RoHS-compliant
Yes
- Series
RST® MINI
24.9
Bus
TRUE
24.9 mm
Screw connection
Integrated in plug-in connector
16 A
50 V
TRUE
5
81 m
Polyamide (PA)
7.1-13 mm
Silver-plated
3
TRUE
4 kV
CuZn
Other
1, 2, 3, 4, 5
Brown
0.176
- UKCA
yes
