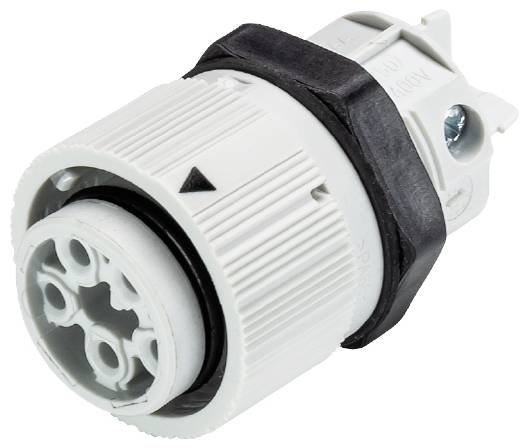

Wieland Electric 46.051.5053.0 Appliance connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 9.24
3
5% = € 0.48
€ 8.76
5
7% = € 0.68
€ 8.56
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 9.24 / piece)
€ 9.24
plus VAT.
Technical specifications
- Product type
Appliance connector
- Type A
Socket
- Connector version
straight
- Connection
Screw connection
- Rated voltage
250 V
- Test current
16 A
- Number of pins
5
IP66
24 mm
Bus
TRUE
24 mm
Screw connection
Integrated in plug-in connector
16 A
250 V
5
41.6 mm
Polyamide (PA)
Silver-plated
3
Straight
4 kV
0.75 mOhm
CuZn
No thread connection
IP66
1
3, N, PE, 2, 1
Grey
0.084 kWh
0.25-2.5 mm²
0.25-2.5 mm²
100 °C
7035
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3273590 Wieland Electric 46.051.5053.0 Appliance connector
Description
RST® MINI device connection
Standard
straight
M20.2
Number of pins: 5
Socket version
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 16 A
Coding color / contact insert light GRAY
This text is machine translated.
Standard
straight
M20.2
Number of pins: 5
Socket version
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 16 A
Coding color / contact insert light GRAY
This text is machine translated.
