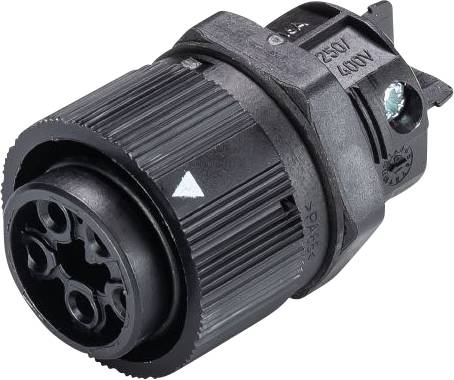

Wieland Electric 46.051.5053.1 Bullet connector Socket, built-in Total number of pins: 4 + PE Series (round connectors):
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Socket, built-in
Total no. of pins
4 + PE
Connection
Screws
Content
1 pc(s)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
6% = € 0.61
€ 10.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.92 / piece)
€ 10.92
plus VAT.
14-day return policy included
Highlights & Details
RST ® Mounted mini-socket RSTI16, M20
Our service for you
Technical specifications
- Type
RST16I5 S B1 M03 SW
- Product type
Bullet connector
- Connector type
Socket, built-in
- Total no. of pins
4 + PE
- Connection
Screws
- Factory colour
Black
- Content
1 pc(s)
- Max. temperature
+85 °C
- Nominal current
16 A
- Min. temperature
-40 °C
- Nominal current - rounded value
16 A
- Seal
Bayonet
- Leading contact (PE)
Yes
- Nominal voltage
250 V
- Cable Ø (max.)
2.5 mm
- Cable Ø up to
0.25 mm
- Connection angle
180°
- Mounting hole diameter
24.90 mm
- Manufacturer part #
46.051.5053.1
- Industrial packaging
No
- Cable Ø range
0.25 - 2.5 mm
- Number of pins
4
- Length
41.60 mm
- max. cross section
1.5 mm²
- Min. cross section
0.25 mm²
- Cross-section range
0.25 - 1.5 mm²
- RoHS-compliant
Yes
- Series
RST® MINI
