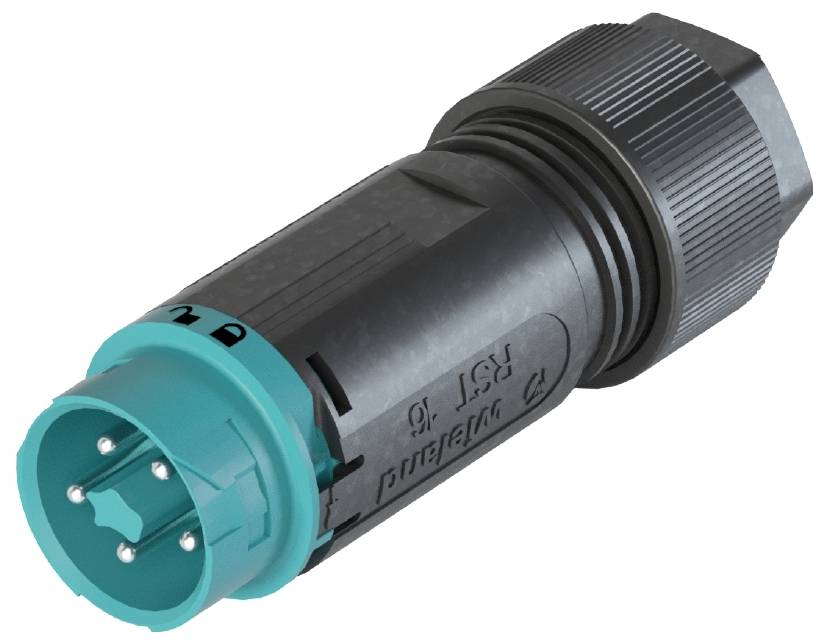

Buy Wieland Electric 46.052.4153.6 Connector

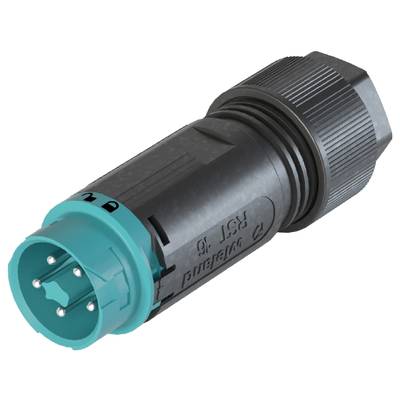

A cylindrical, black connector plug with a green socket and multiple metal pins, used for electrical connections.

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 12.60 / piece)

€

Report legal concerns

Technical specifications

Type A: Plug

Connection: Screw connection

Cable Ø range: 10 - 14.5 mm

: IP66

Number of pins: 5

Test current: 16 A

Rated voltage: 250 V

Cable Ø (max.): 14.5 mm

Cable Ø up to: 10 mm

: 27 mm

: Plug

: TRUE

: 27 mm

: Screw connection

: Integrated in plug-in connector

: 16 A

: 250 V

: TRUE

: 5

: Polyamide (PA)

: 10-14.5 mm

: Silver-plated

: 3

: 4 kV

: 0.75 mOhm

: CuZn

: IP66

: 1

: L, N, PE, 1, 2

: Blue

: 0.165 kWh

: 0.25-2.5 mm²

: 0.25-2.5 mm²

: 100 °C

: 5018

Product type: Connector

Description

RST® MINI connector
straight
Number of pins: 5
Connector
Connection type: screw terminals.
Rated voltage: 250 V
Rated current 16 A
Cable diameter 10 - 14.5 mm
Coding color / contact insert, turquoise
