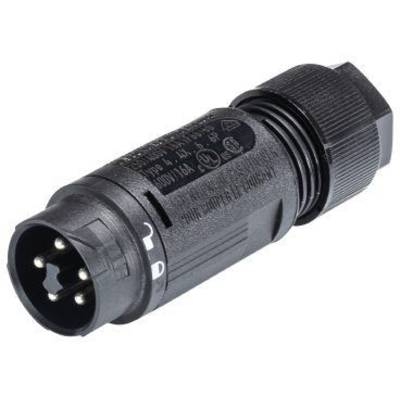

Wieland Electric 46.052.4553.1 Bullet connector Plug, straight Total number of pins: 4 + PE Series (round connectors): R
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Plug, straight
Total no. of pins
4 + PE
Connection
Screws
Content
1 pc(s)
141 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
6% = € 0.70
€ 11.90
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€
Technical specifications
- Type
RST16I5 S S1 ZT6 SW
- Product type
Bullet connector
- Connector type
Plug, straight
- Total no. of pins
4 + PE
- Connection
Screws
- Factory colour
Black
- Content
1 pc(s)
- Max. temperature
+120 °C
- Nominal current
16 A
- Min. temperature
-40 °C
- Nominal current - rounded value
16 A
- Seal
Bayonet
- Leading contact (PE)
Yes
- Nominal voltage
250 V
- Cable Ø (max.)
17 mm
- Cable Ø up to
7.1 mm
- Connection angle
180°
- Weight
31.80
- Manufacturer part #
46.052.4553.1
- Industrial packaging
No
- Cable Ø range
7.1 - 17 mm
- Number of pins
4
- Length
74 mm
- (Ø)
24 mm
- max. cross section
1.5 mm²
- Min. cross section
0.25 mm²
- Cross-section range
0.25 - 1.5 mm²
- RoHS-compliant
Yes
- Series
RST® MINI
